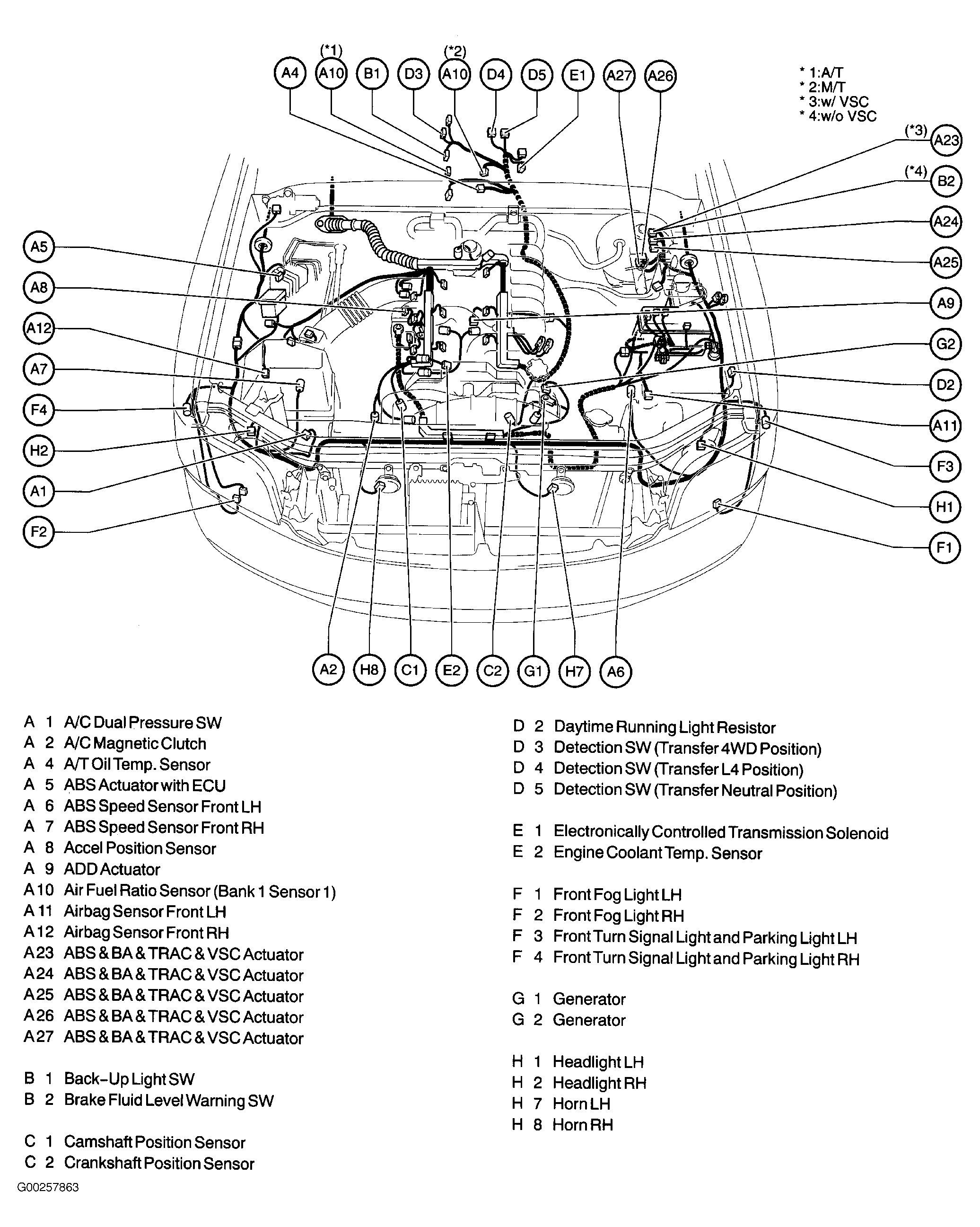

Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

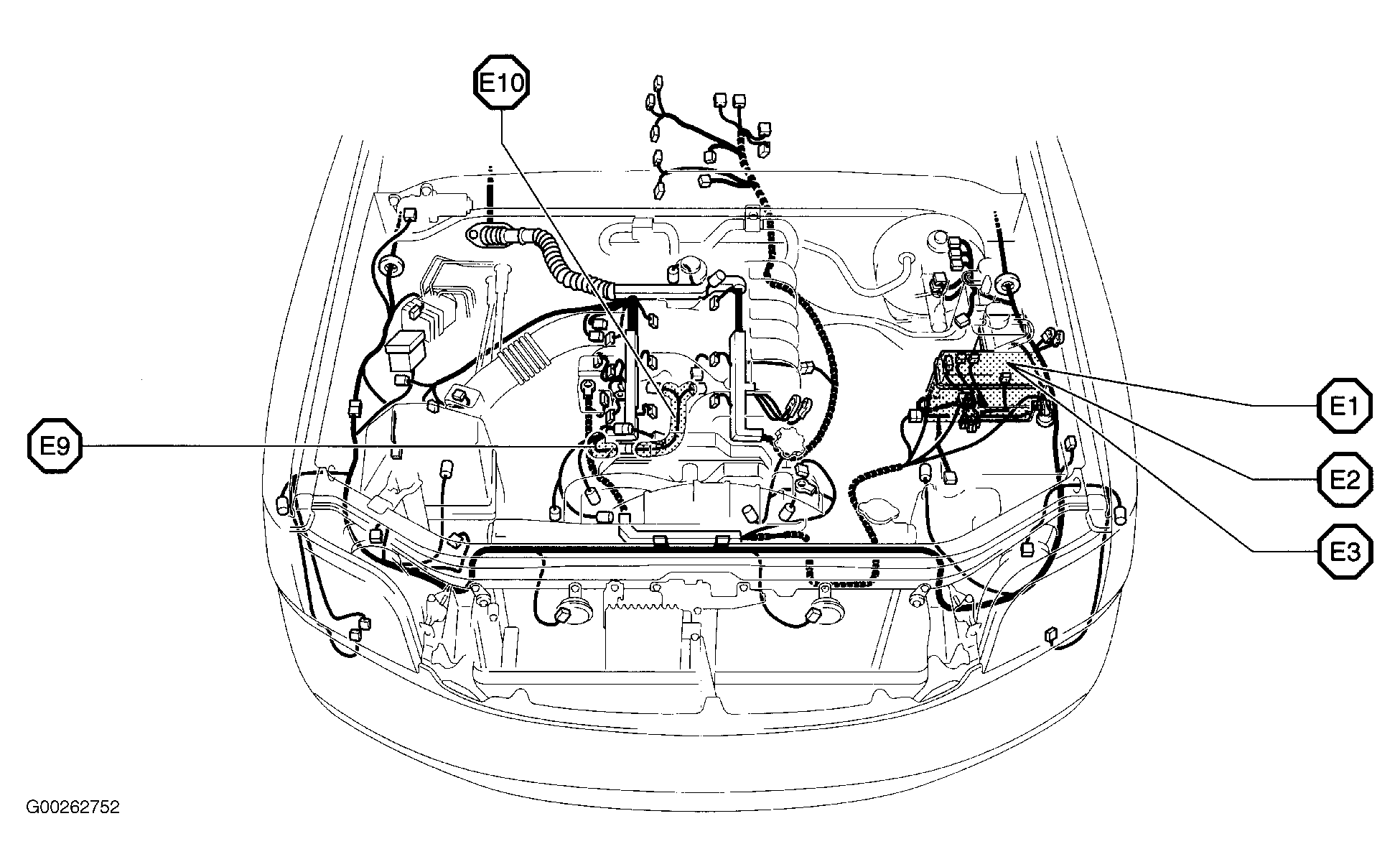

Fig 1: Engine Compartment (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

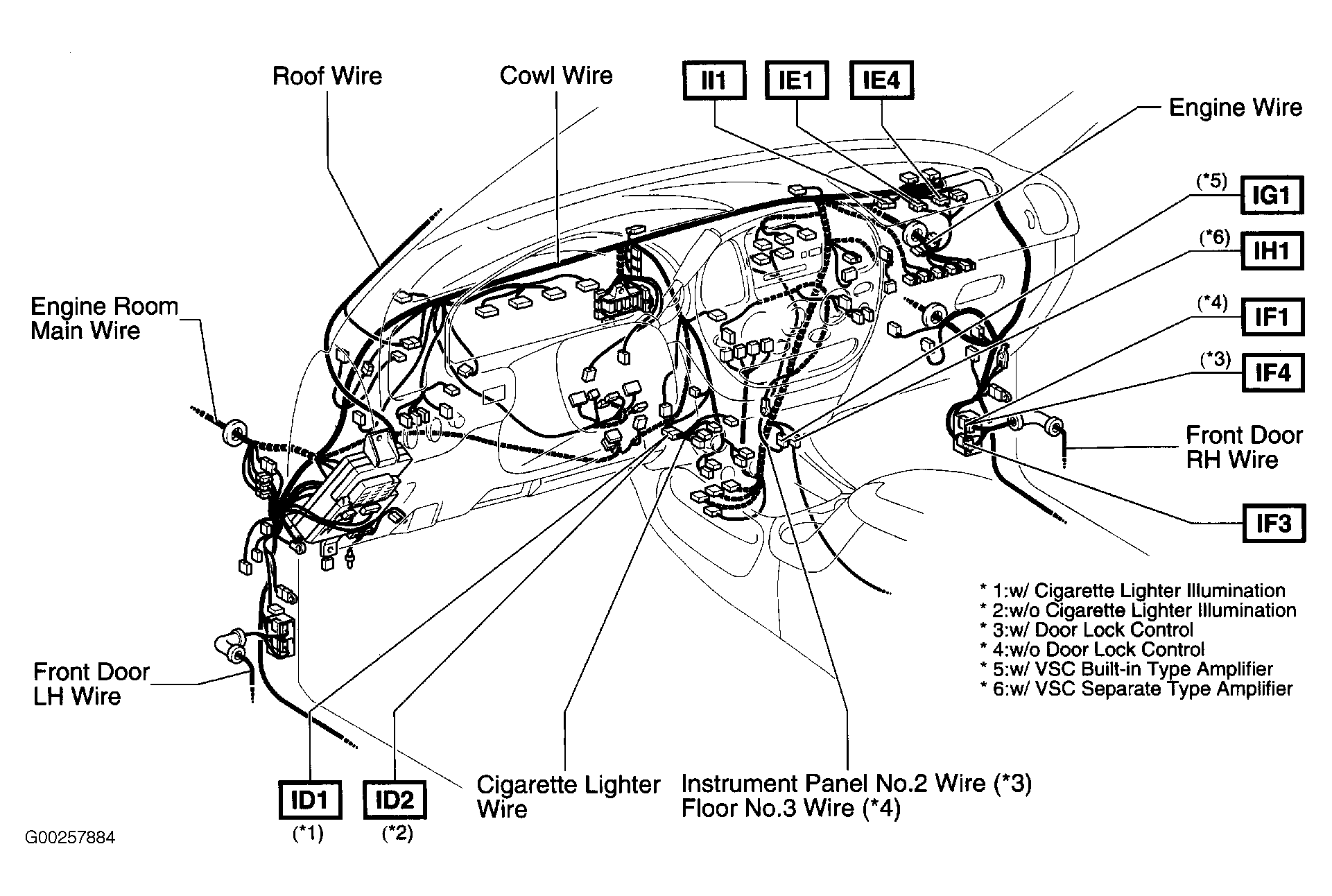

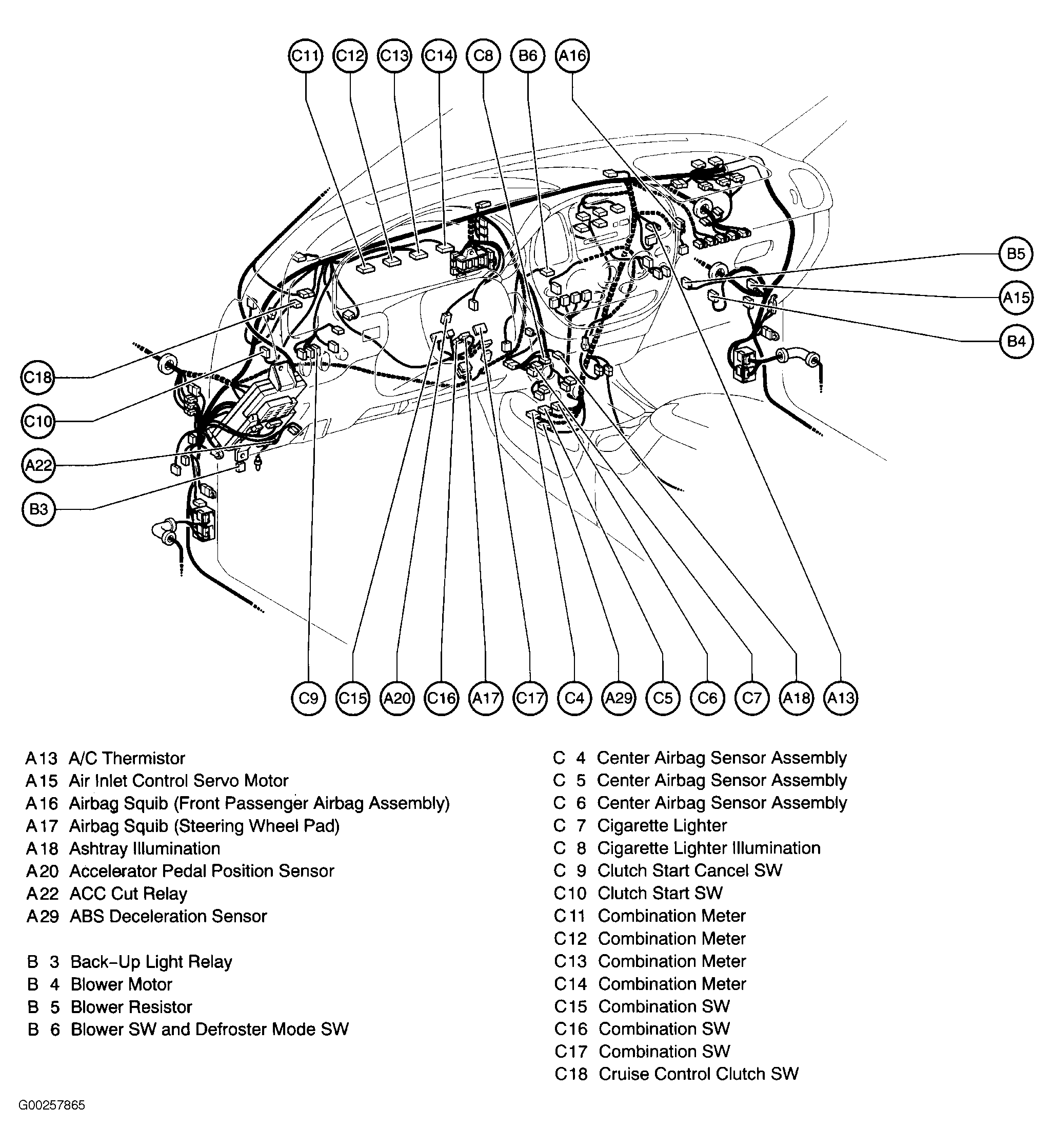

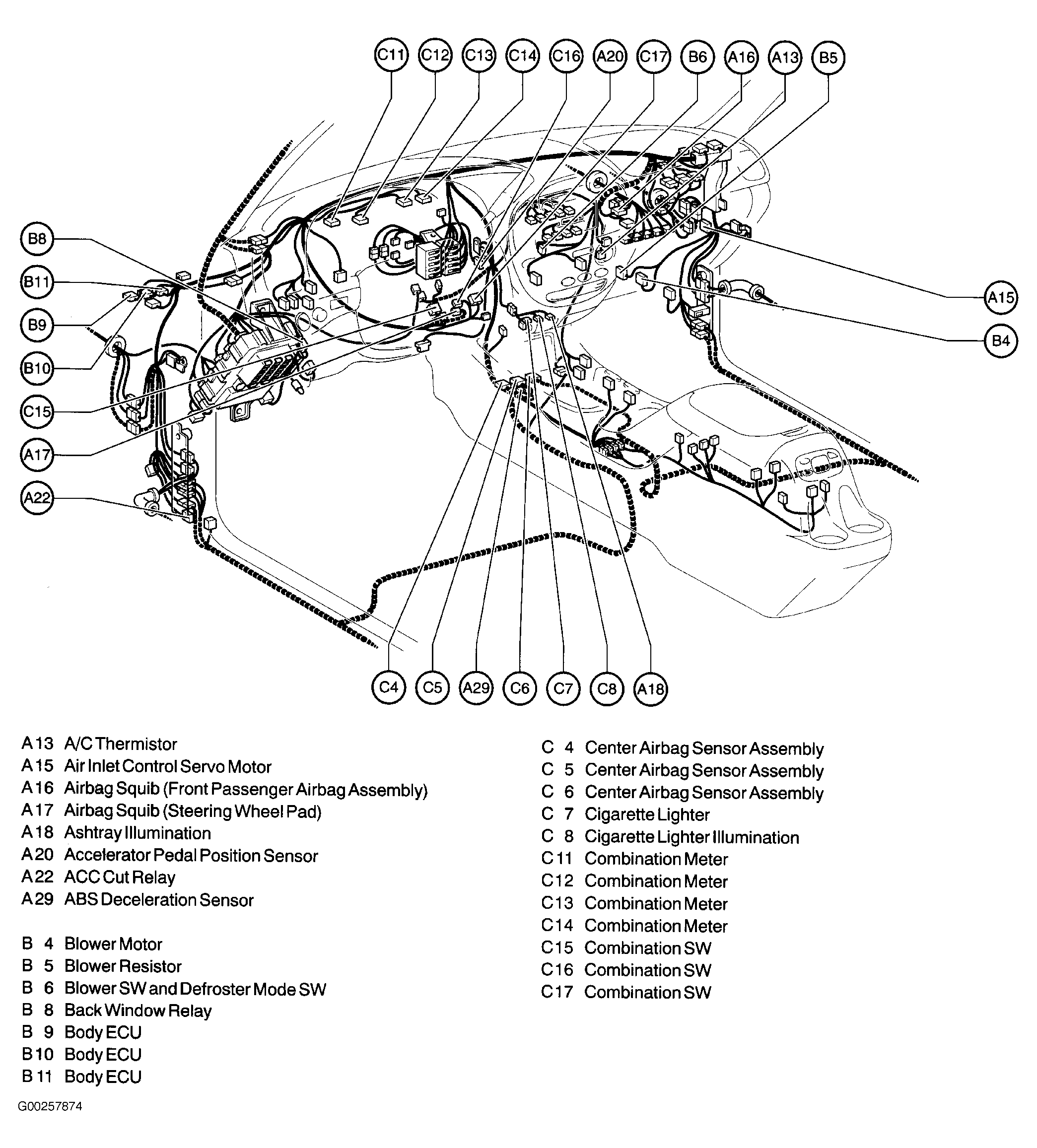

Fig 2: Dash (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION (STANDARD CAB)

RELAY DESCRIPTION
ACC Cut Relay
Back-Up Light Relay (A/T)
Integration Relay
Driver Side J/B and Integration Relay
4WD Control ECU (2UZ-FE) or Transmission Control Relay (5VZ-FE)

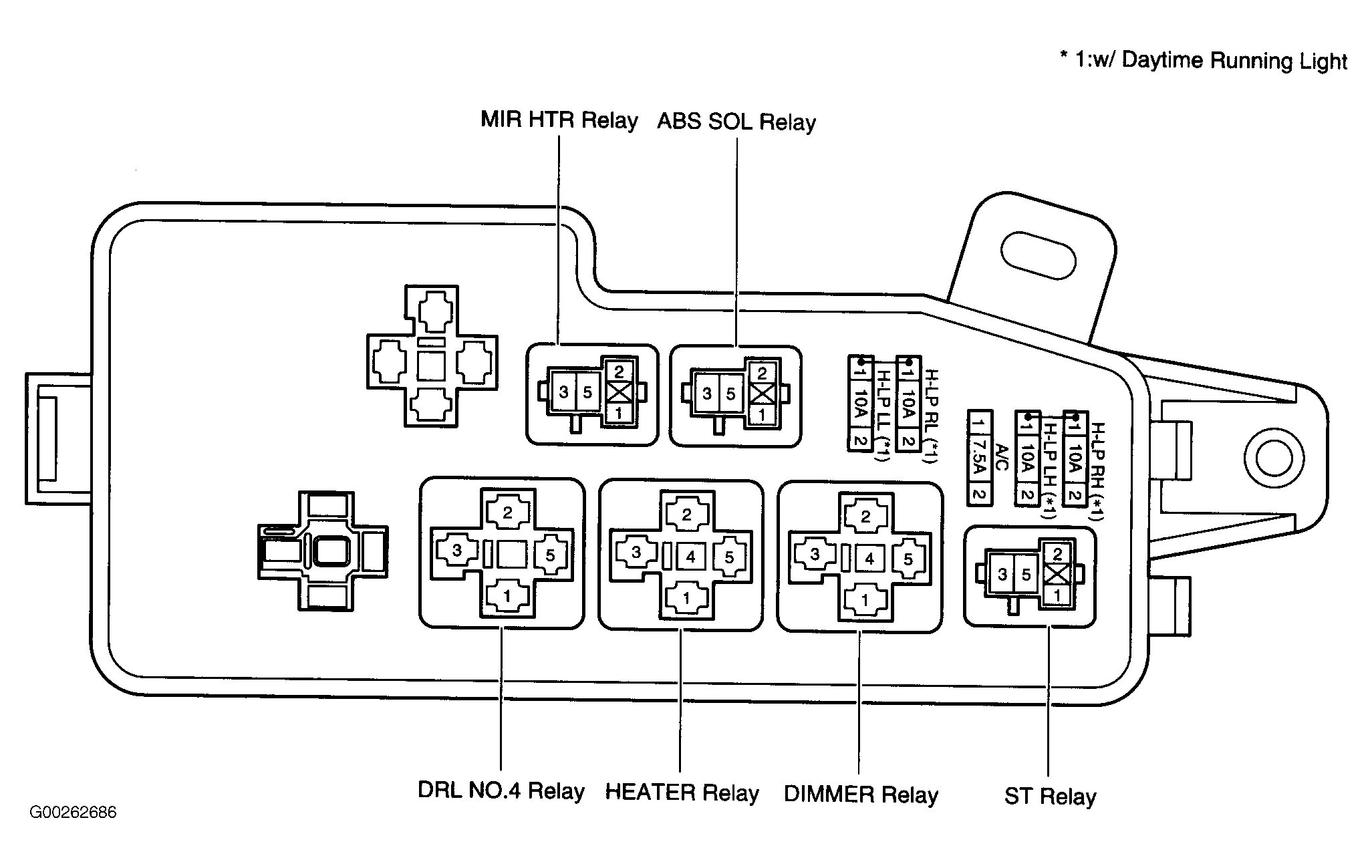

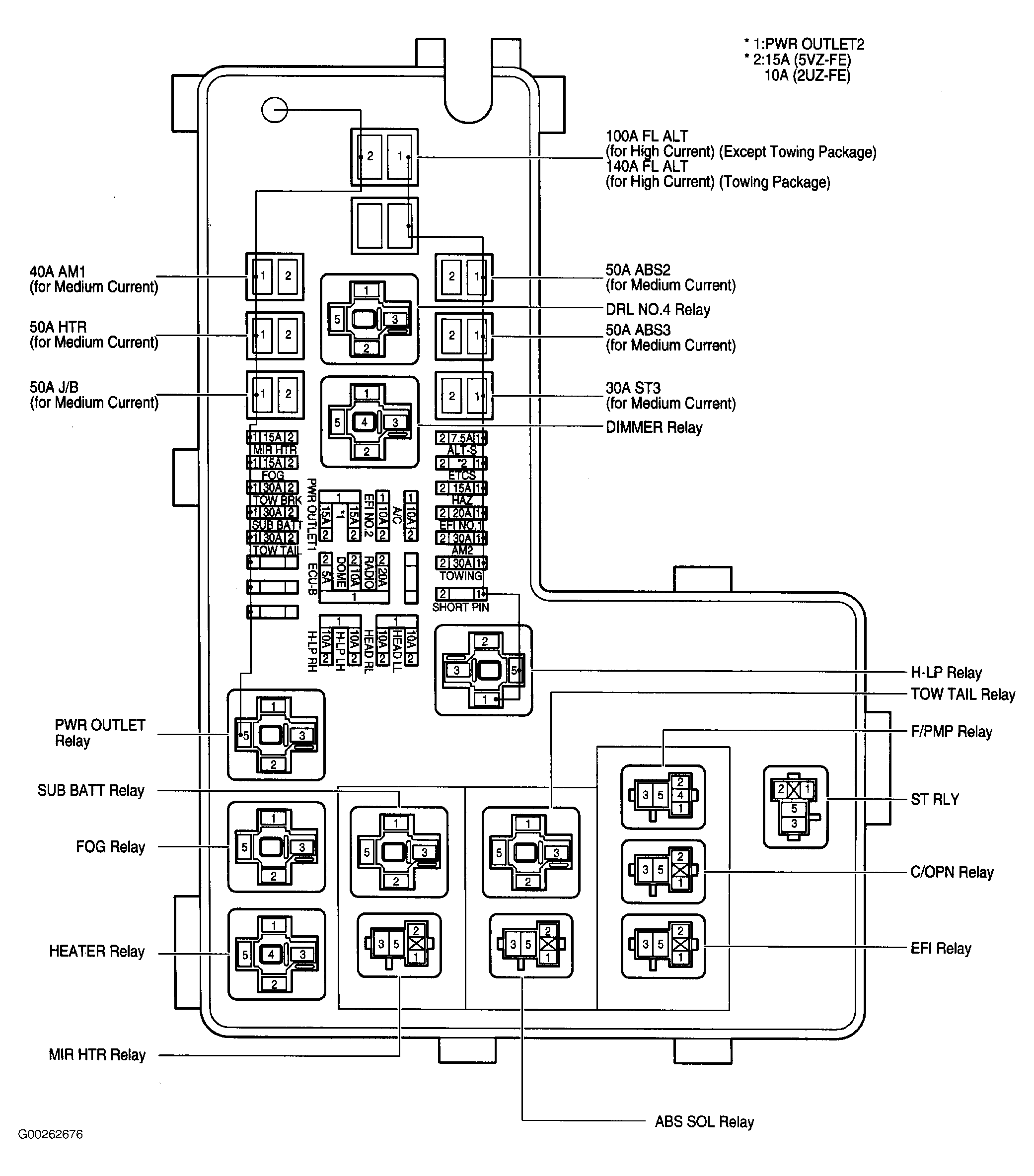

Fig 3: Engine Room R/B (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

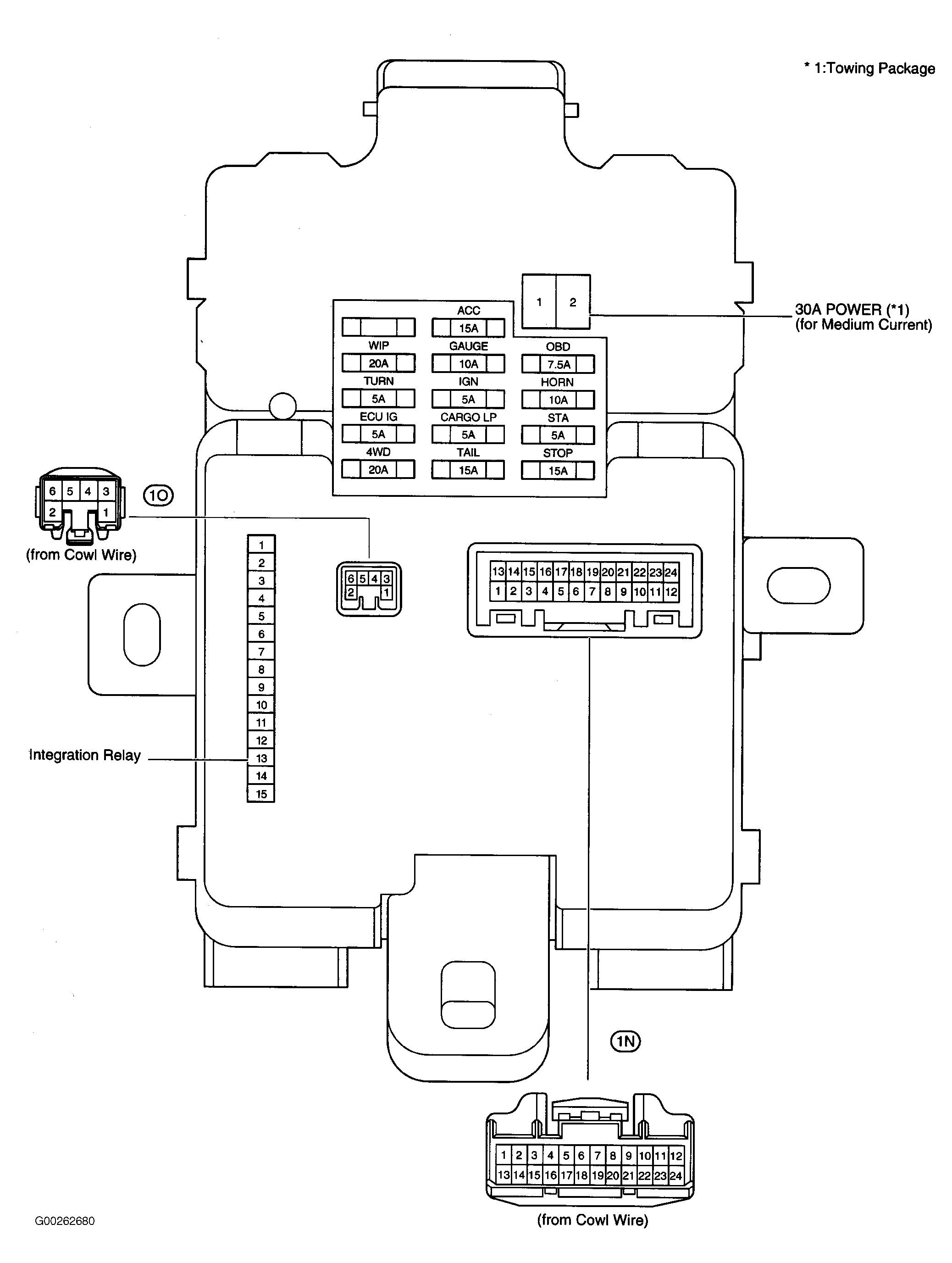

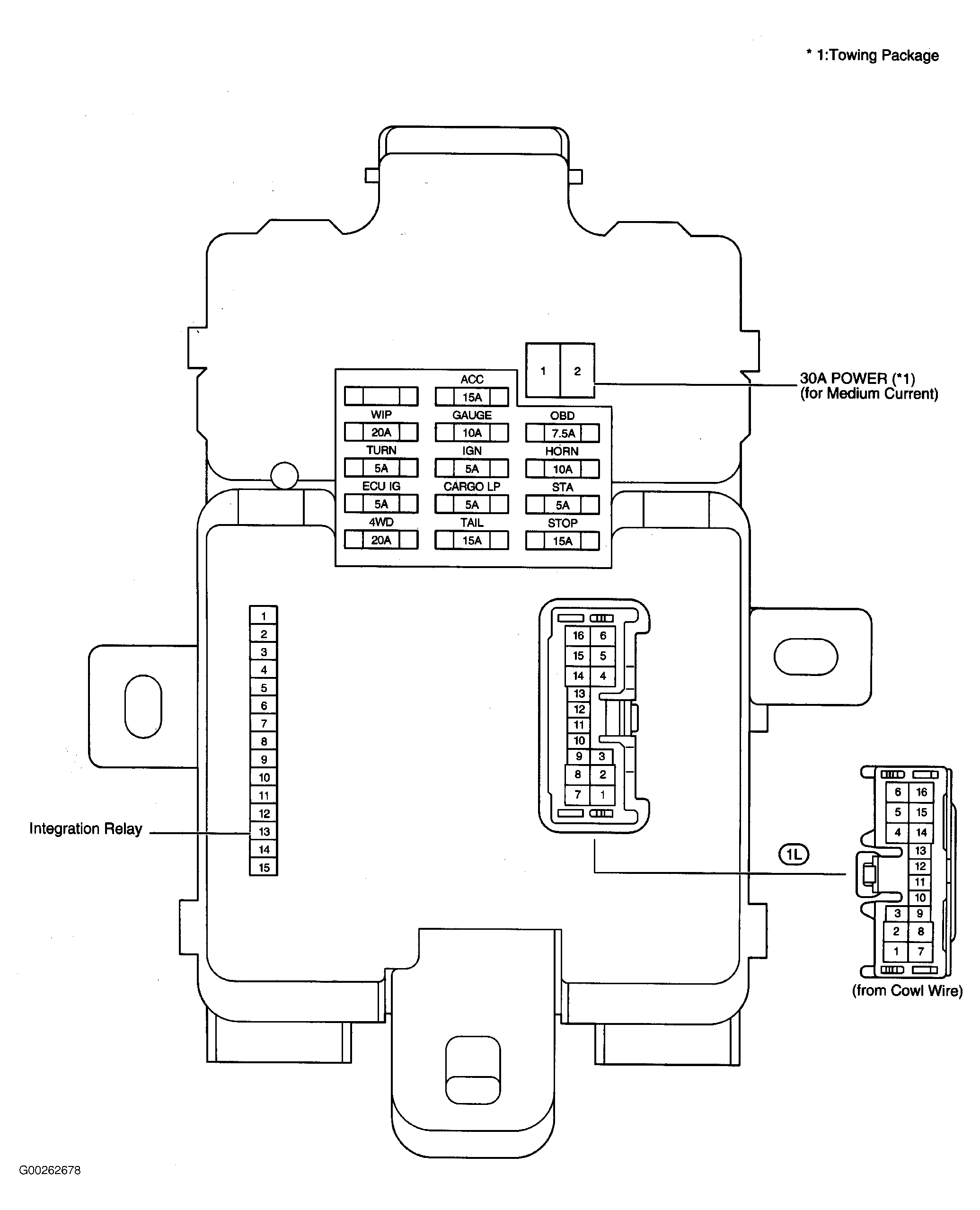

Fig 4: Front Of Driver Side J/B & Integration Relay (Access & Standard Cab W/O DRL)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

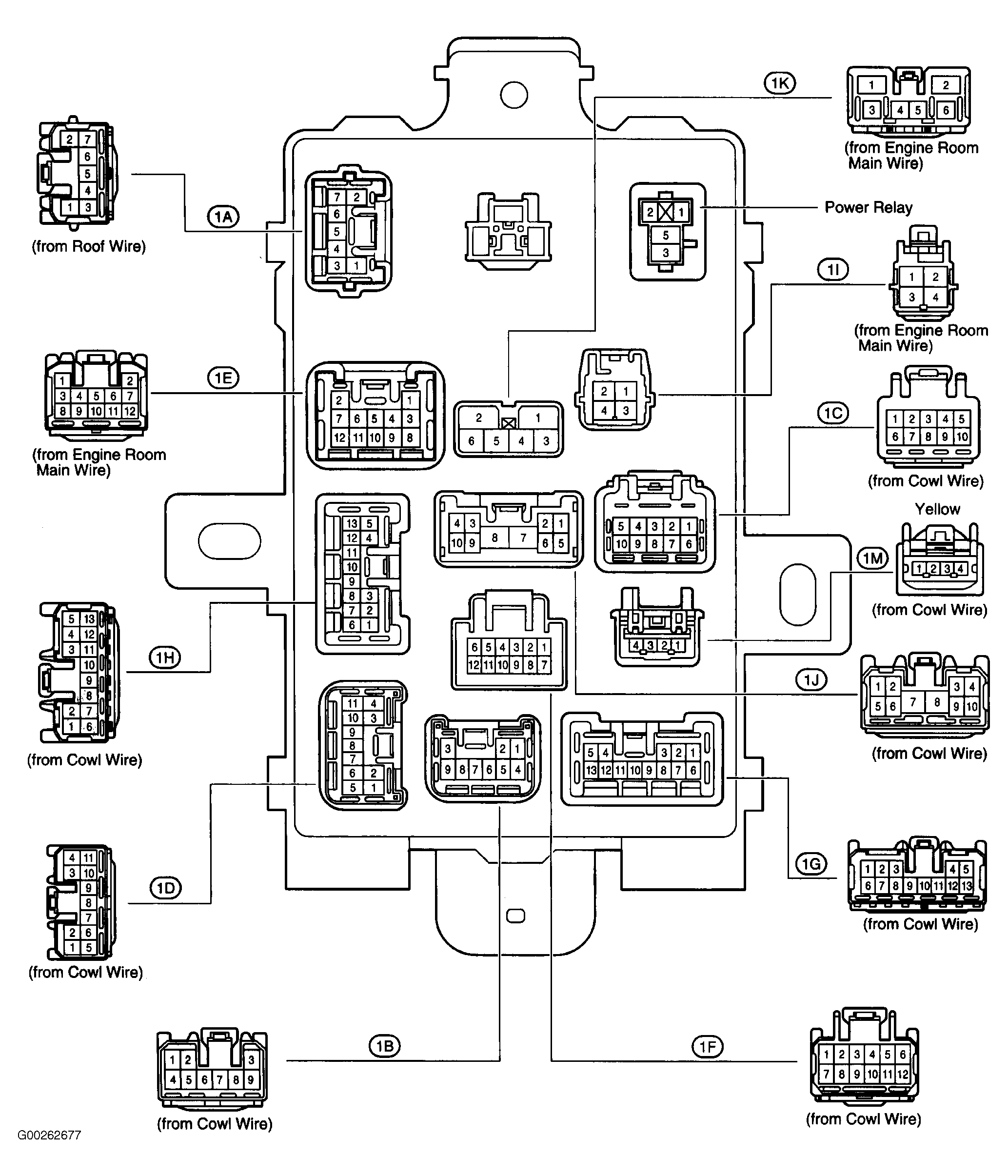

Fig 5: Rear Of Driver Side J/B & Integration Relay (Access & Standard Cab W/O DRL)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SIDE JUNCTION BLOCK RELAY IDENTIFICATION (W/O DRL)

RELAY DESCRIPTION
Integration Relay

Fig 6: Front Of Driver Side J/B & Integration Relay (Access & Standard Cab W/DRL)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Rear Of Driver Side J/B & Integration Relay (Access & Standard Cab W/DRL)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SIDE JUNCTION BLOCK RELAY IDENTIFICATION (WITH DRL)

RELAY DESCRIPTION
Integration Relay

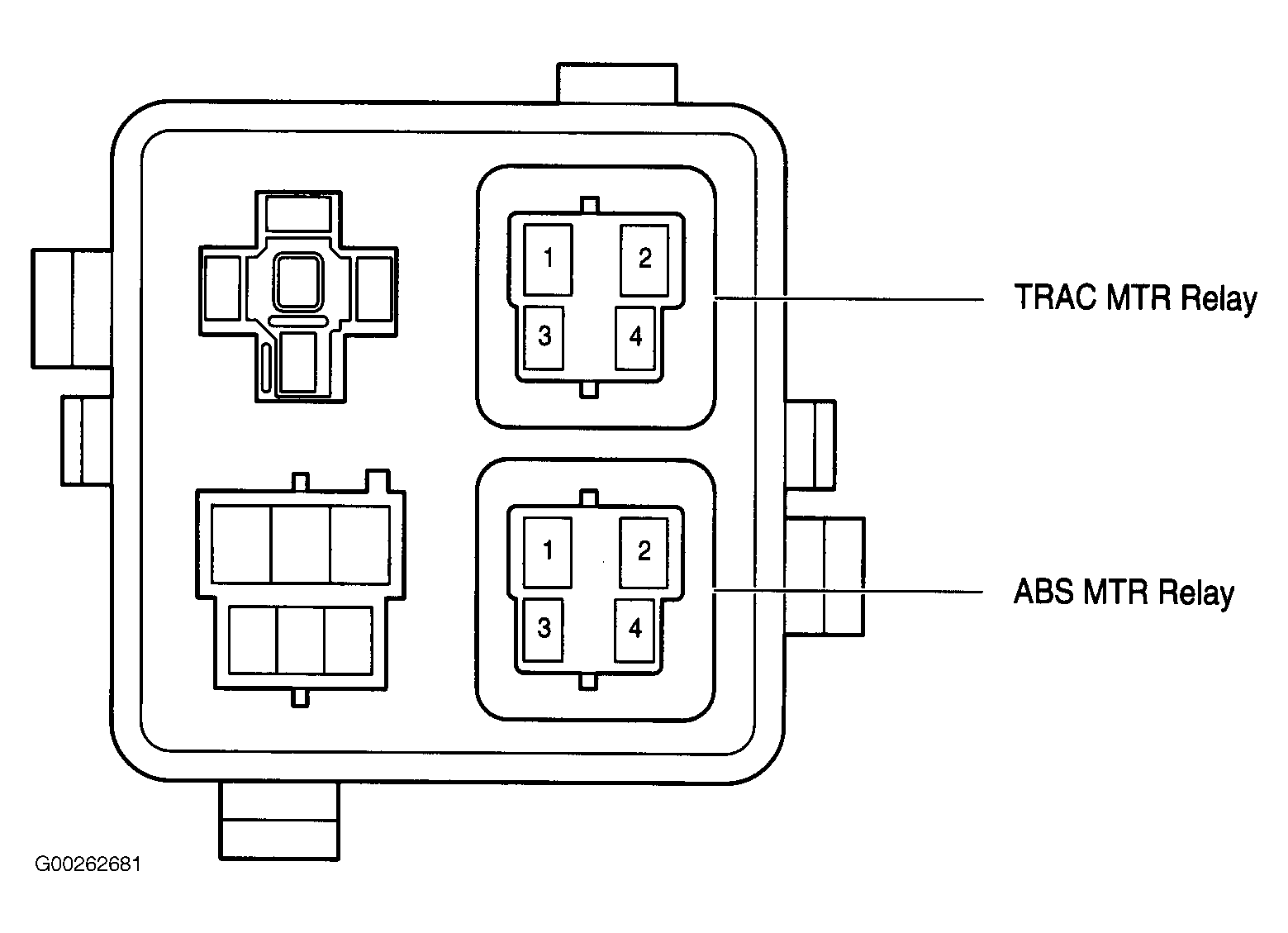

Fig 8: VSC R/B (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VEHICLE SKID RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
TRAC MTR Relay
ABS MTR Relay

Fig 9: Engine Compartment (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dash & Center Console (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION (DOUBLE CAB)

RELAY DESCRIPTION
ACC Cut Relay
Turn Signal Flasher Relay

Fig 11: Vehicle Overview (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BACK WINDOW CONTROL RELAY IDENTIFICATION (DOUBLE CAB)

RELAY DESCRIPTION
Back Window Control Relay

Fig 12: VSC R/B (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Room R/B No. 2 (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

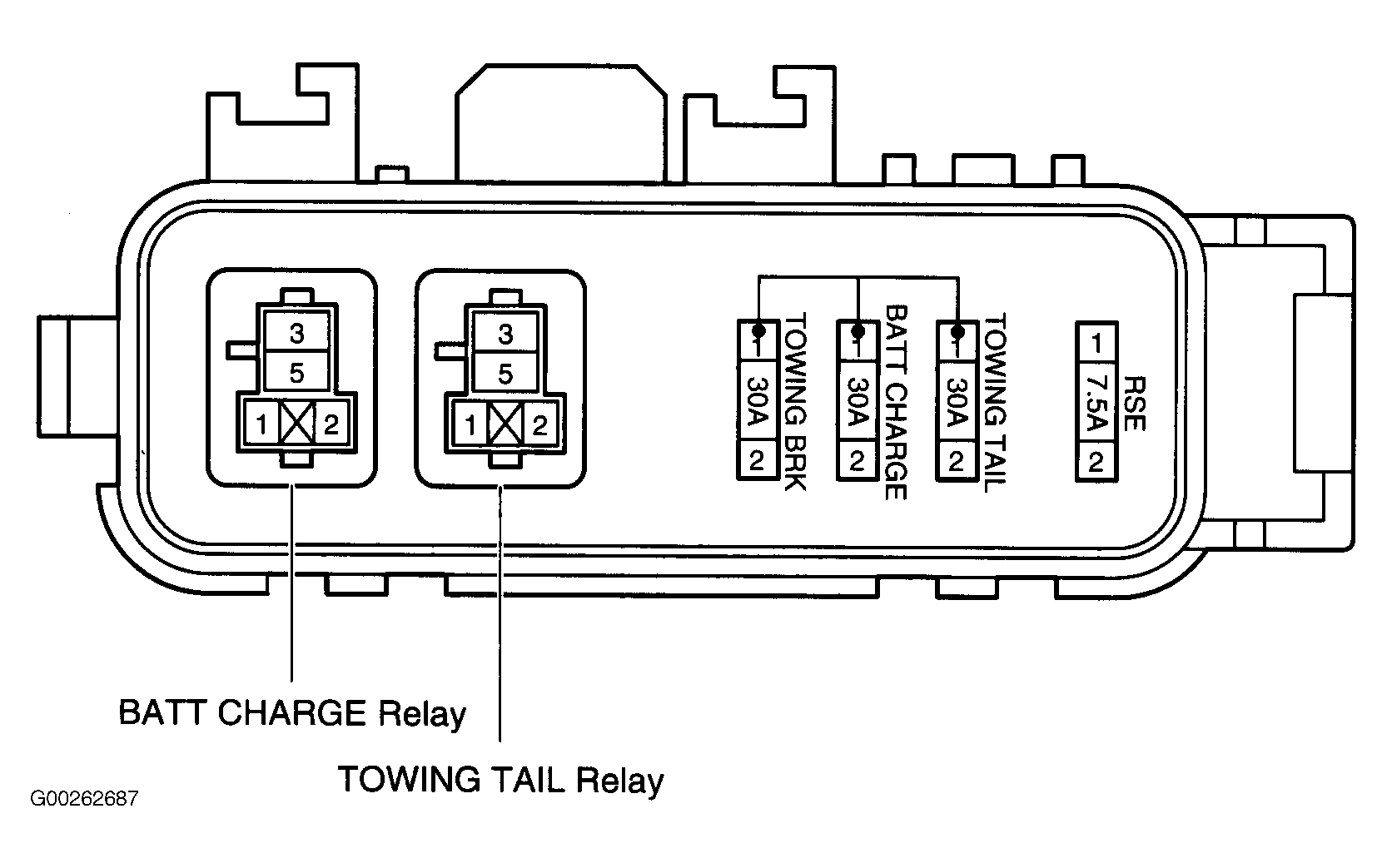

Fig 14: Engine Room R/B No. 3 (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK NO. 3 RELAY IDENTIFICATION

RELAY DESCRIPTION
Towing Tail Relay
BATT Charge Relay

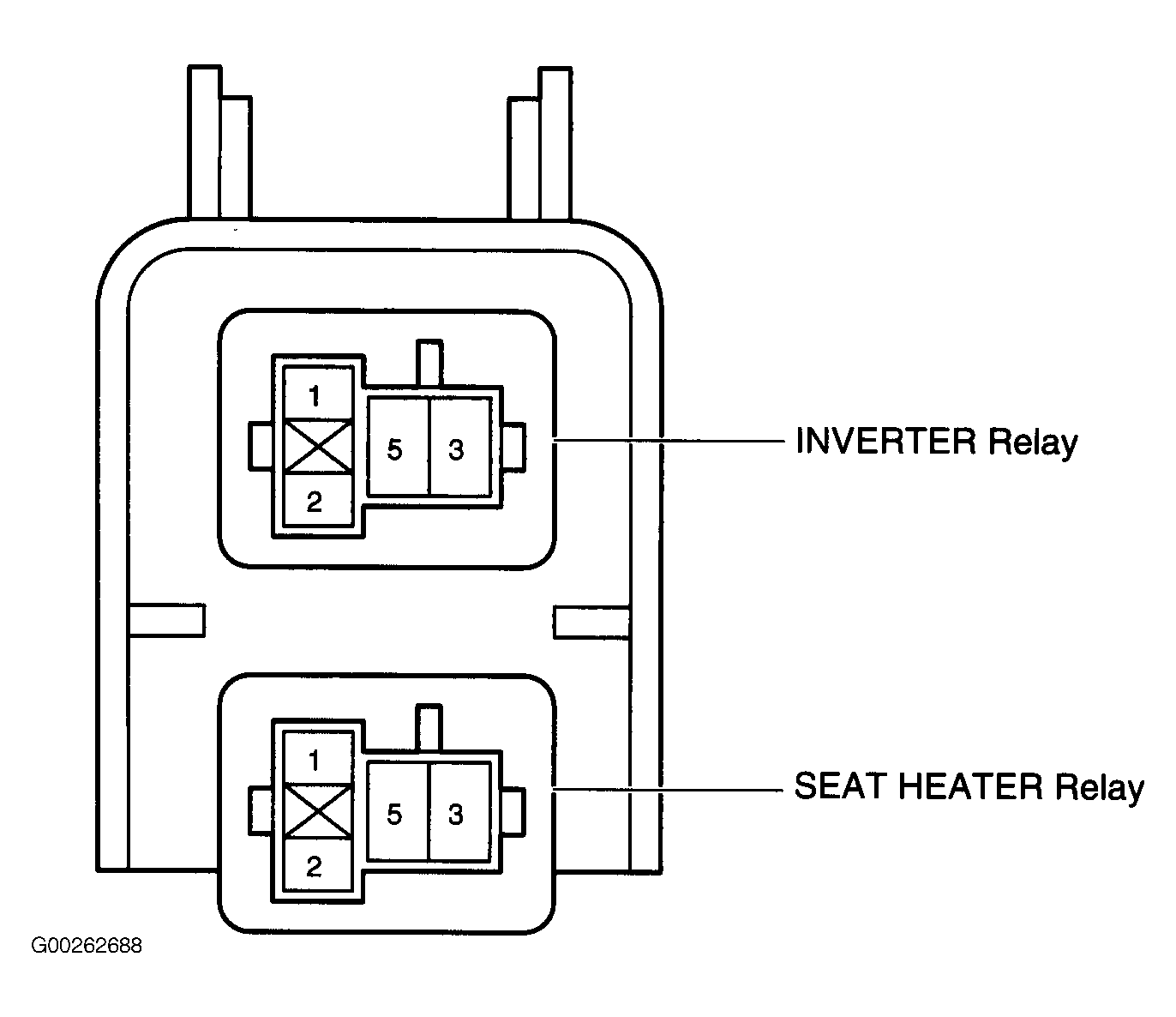

Fig 15: Driver Side R/B (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SIDE RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Inverter Relay
Seat Heater Relay

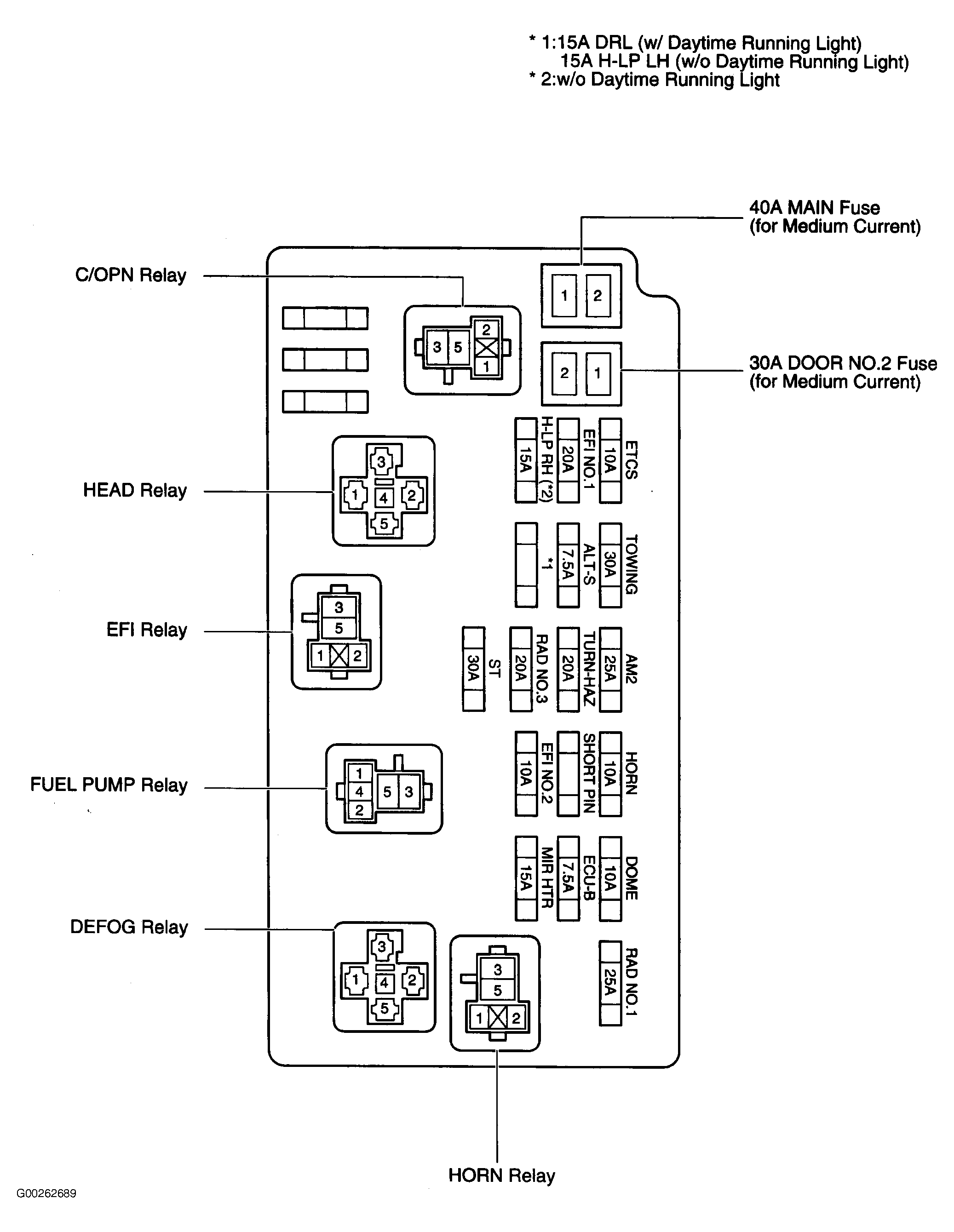

Fig 16: Engine Room J/B (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT JUNCTION BLOCK RELAY IDENTIFICATION (DOUBLE CAB)

RELAY DESCRIPTION
Defog Relay
Fuel Pump Relay
EFI Relay
Head Relay
C/OPN Relay
Horn Relay

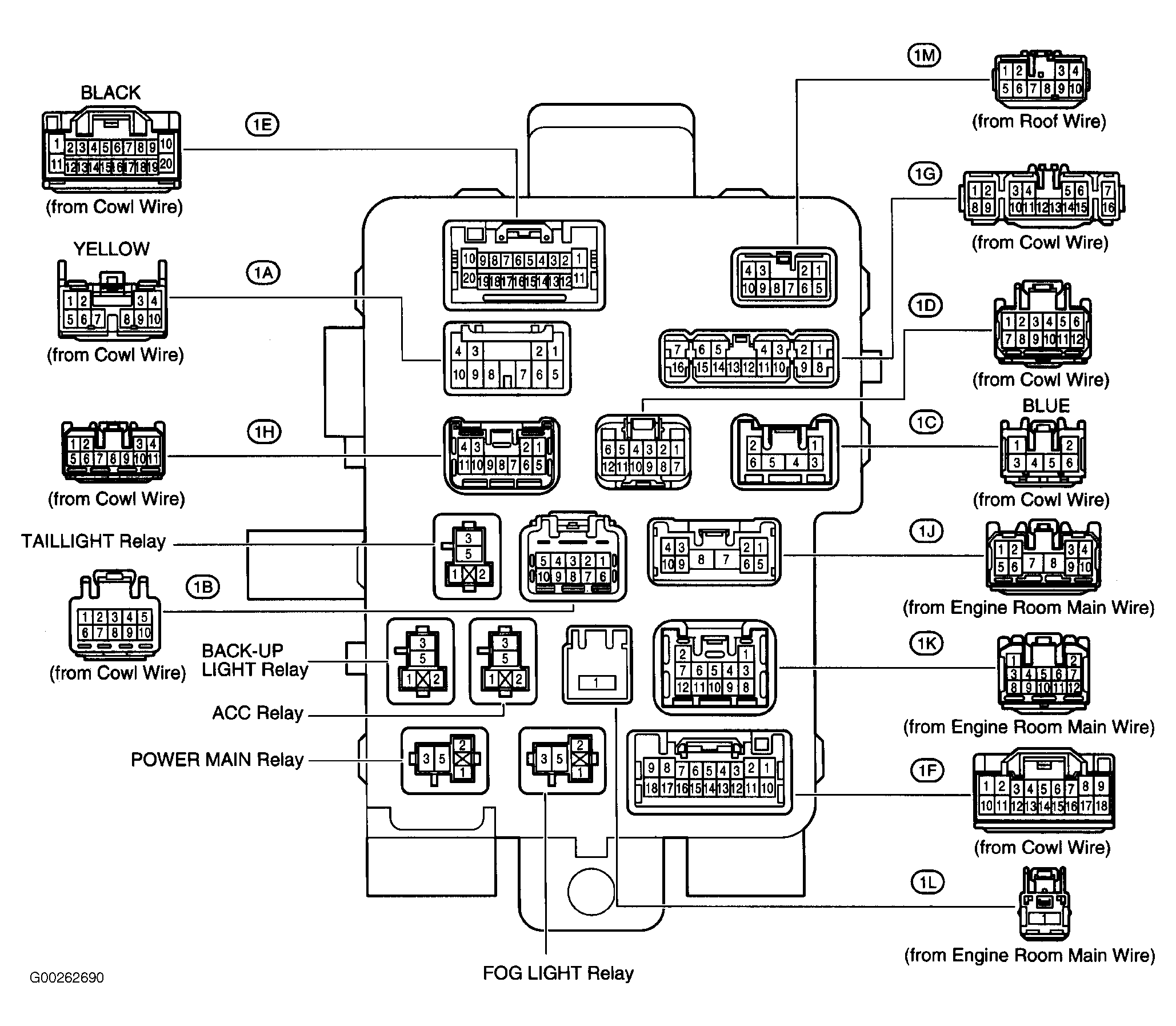

Fig 17: Rear Of Driver Side J/B (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION (DOUBLE CAB)

RELAY DESCRIPTION
Power Main Relay
ACC Relay
BACK-UP LIGHT Relay
Taillight Relay
Fog LIGHT Relay

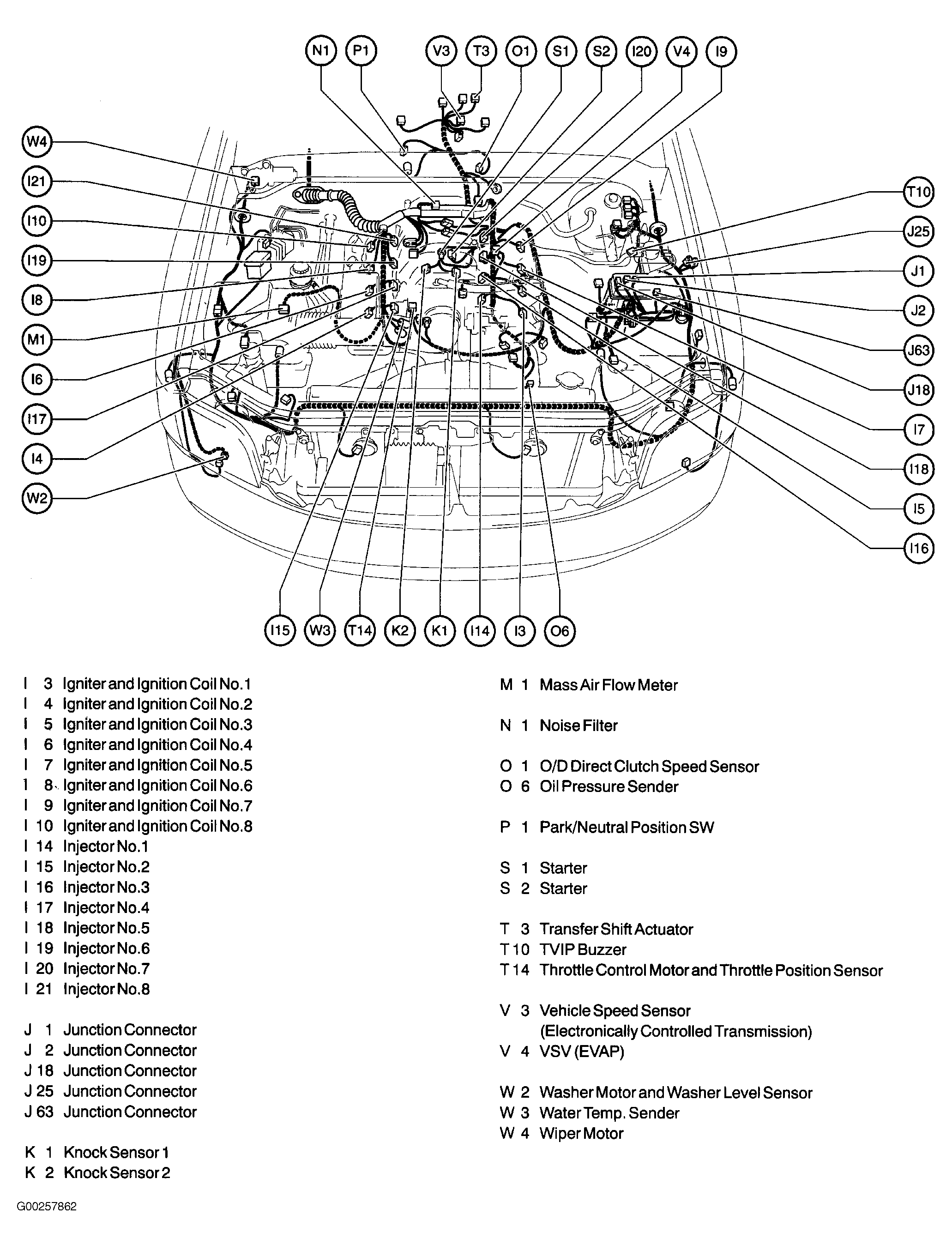

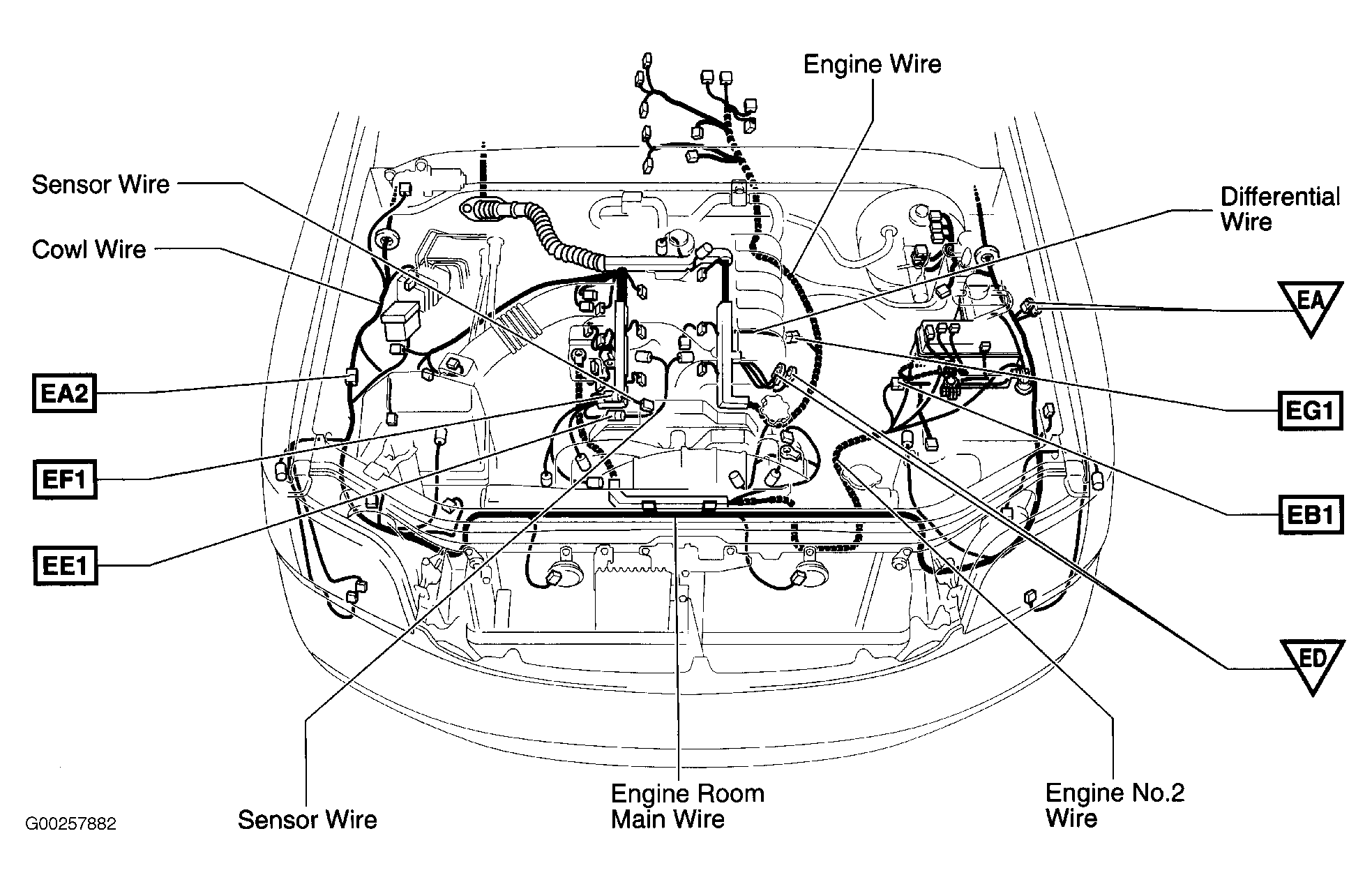

Fig 18: Engine Compartment (4.7L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Engine Compartment (4.7L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

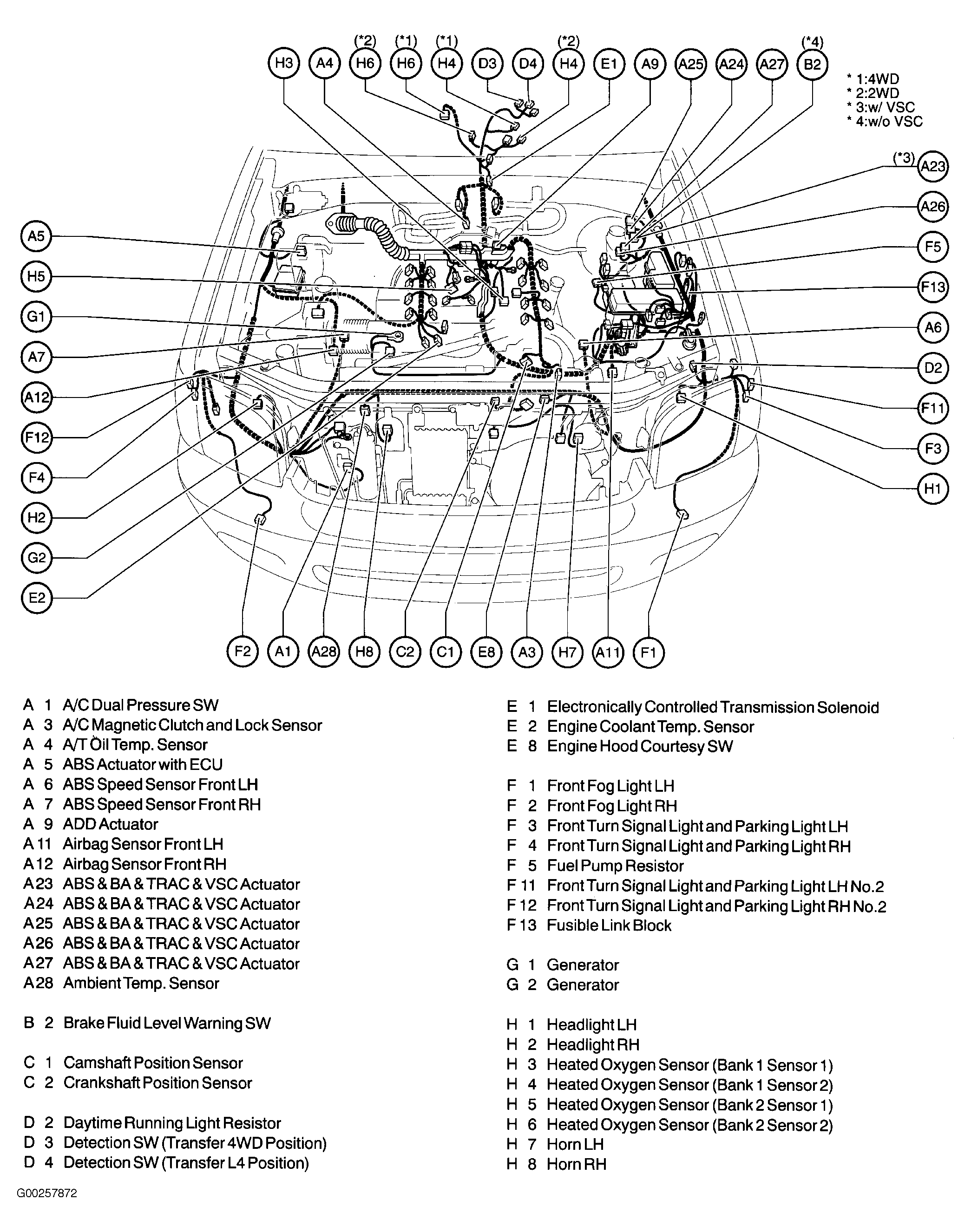

Fig 20: Engine Compartment (3.4L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Engine Compartment (3.4L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

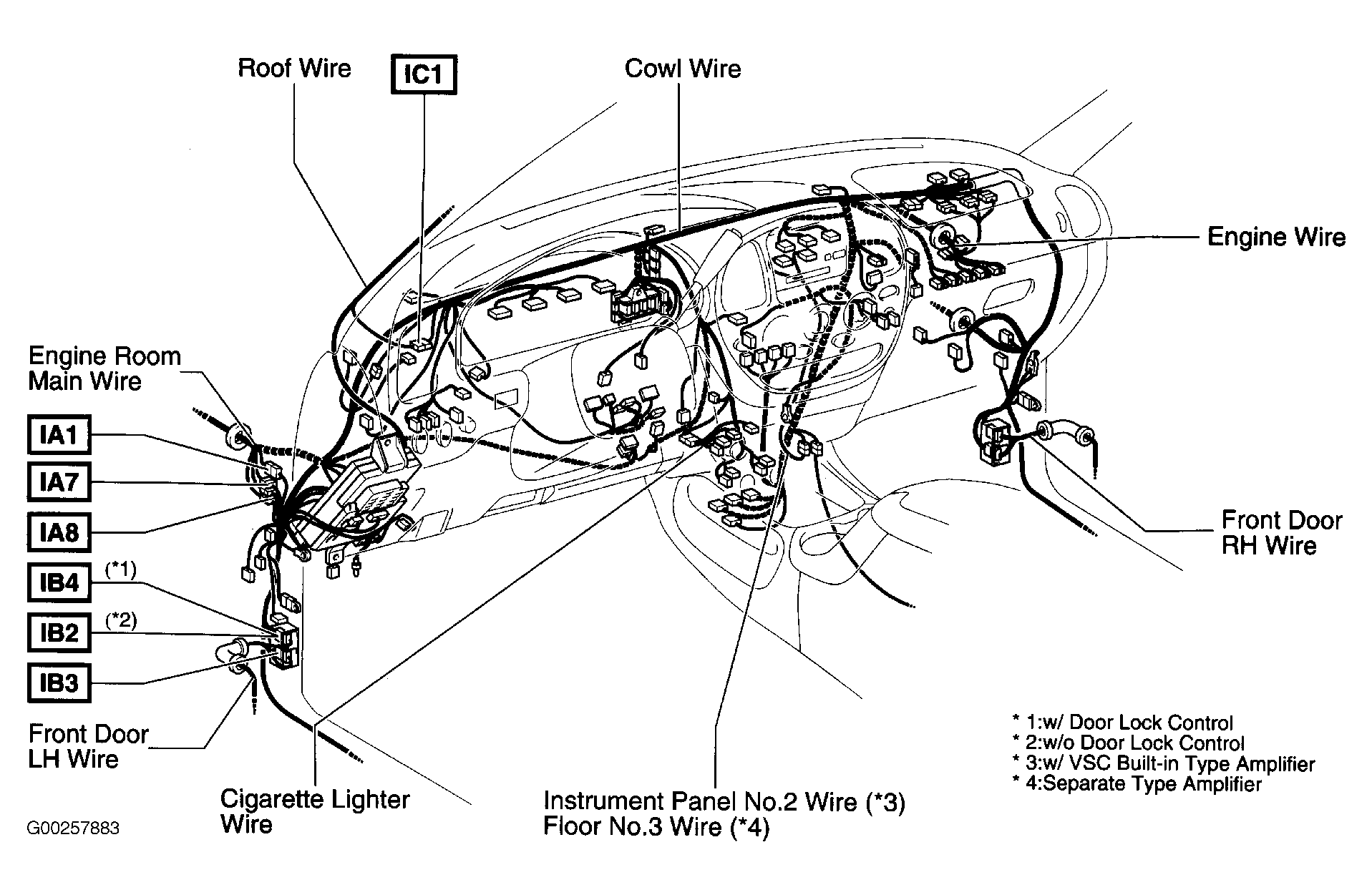

Fig 22: Dash (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Dash (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Dash (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Dash (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Vehicle Overview (Access Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Vehicle Overview (Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

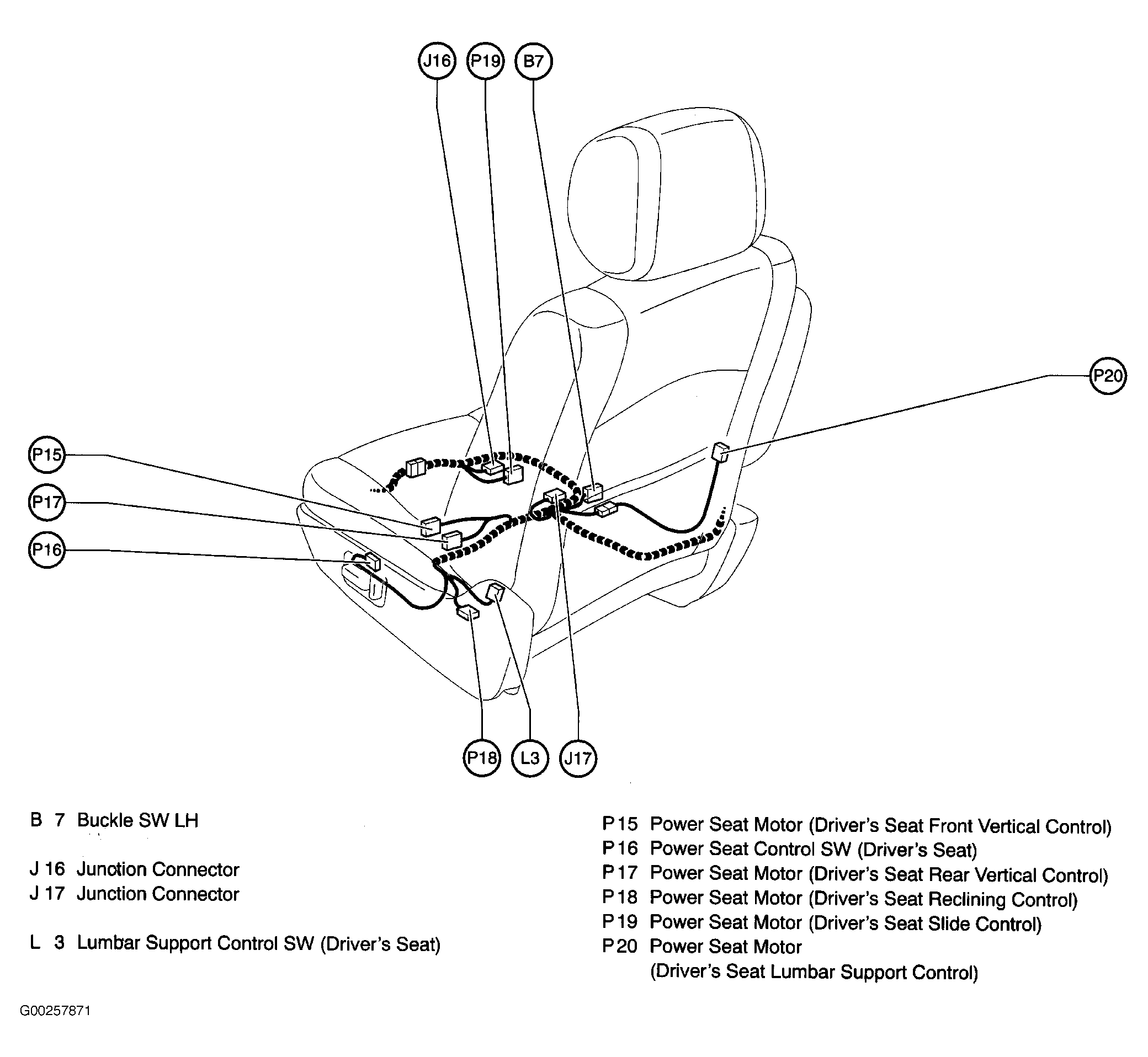

Fig 28: Driver Seat (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

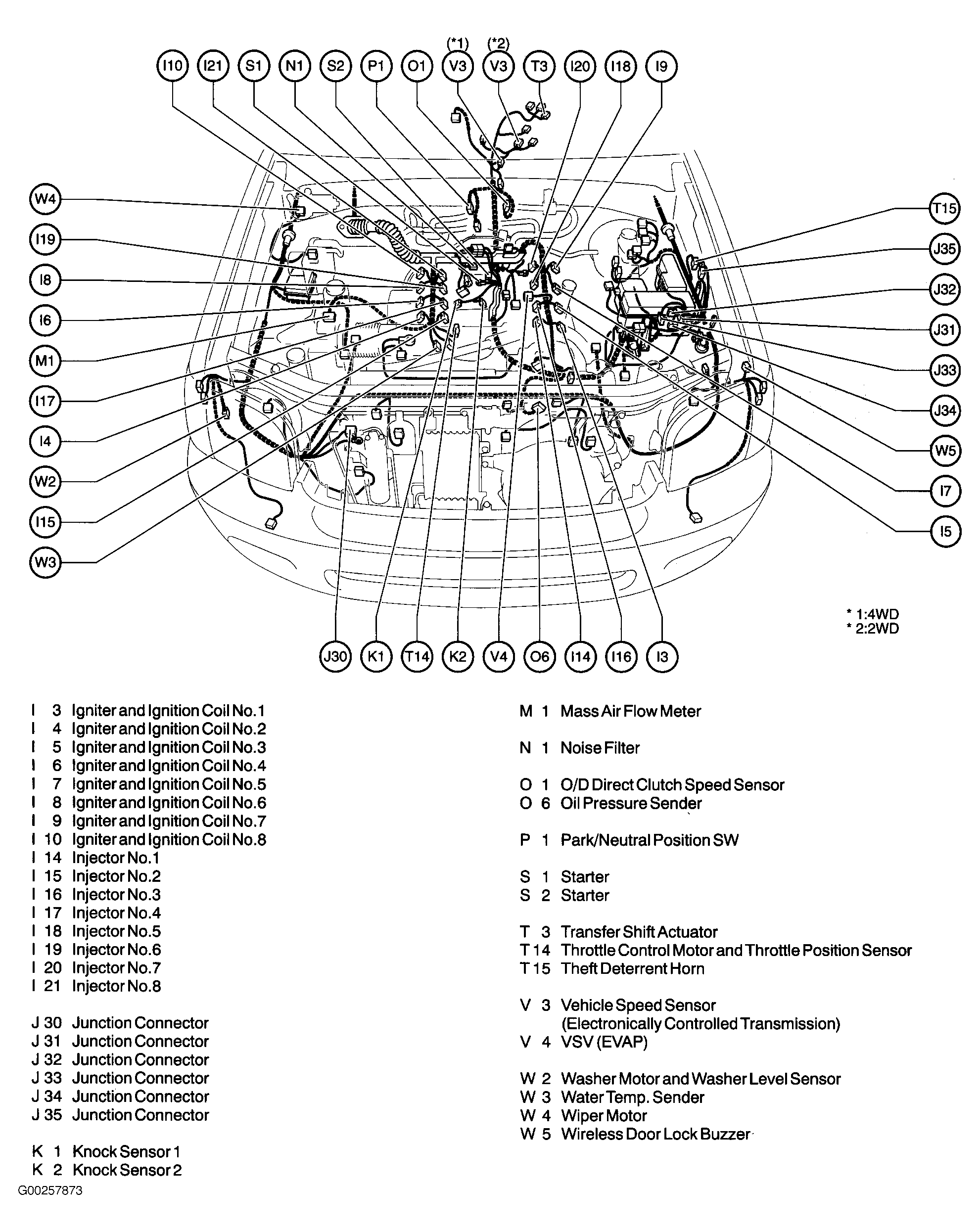

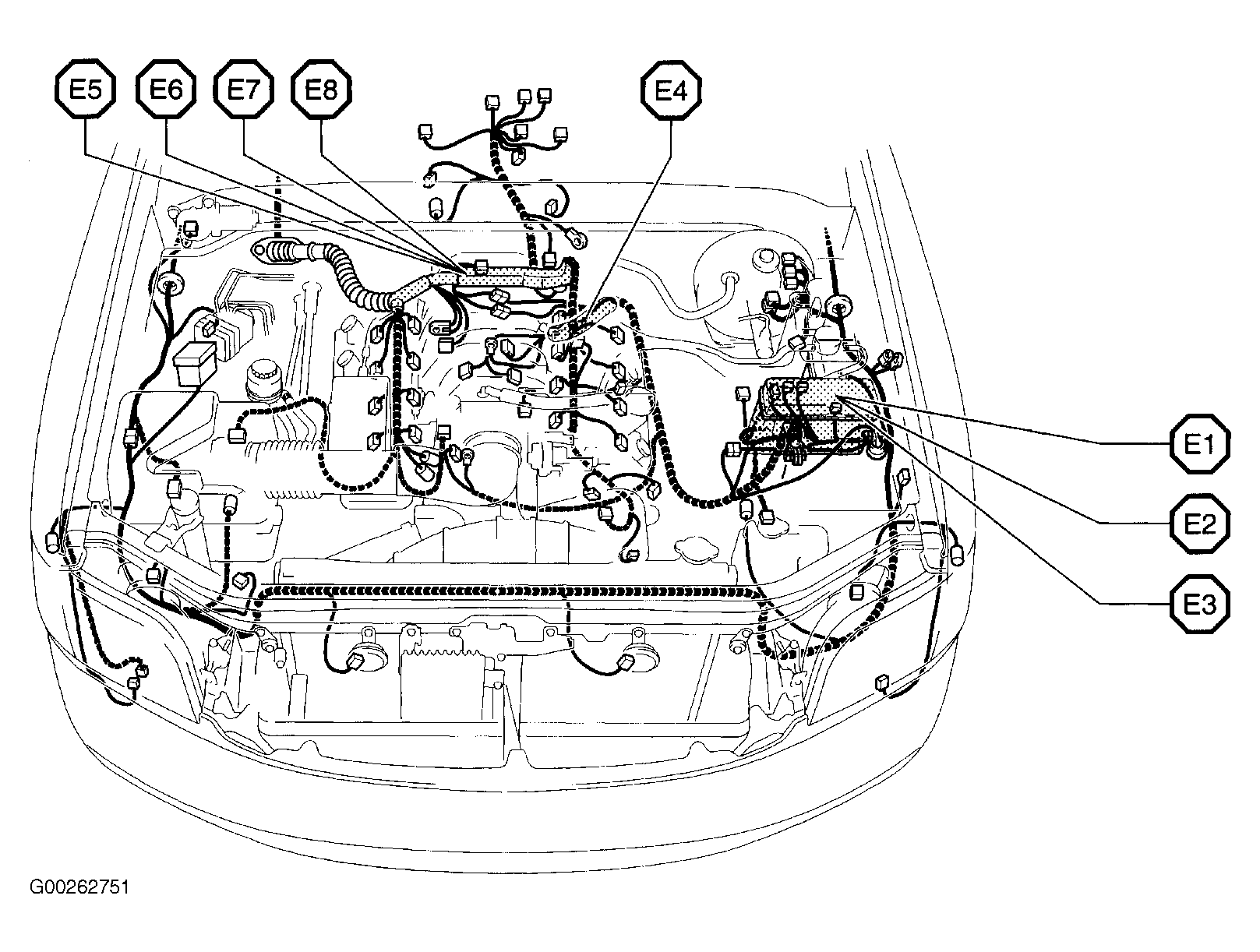

Fig 29: Engine Compartment (4.7L) (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Engine Compartment (4.7L) (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

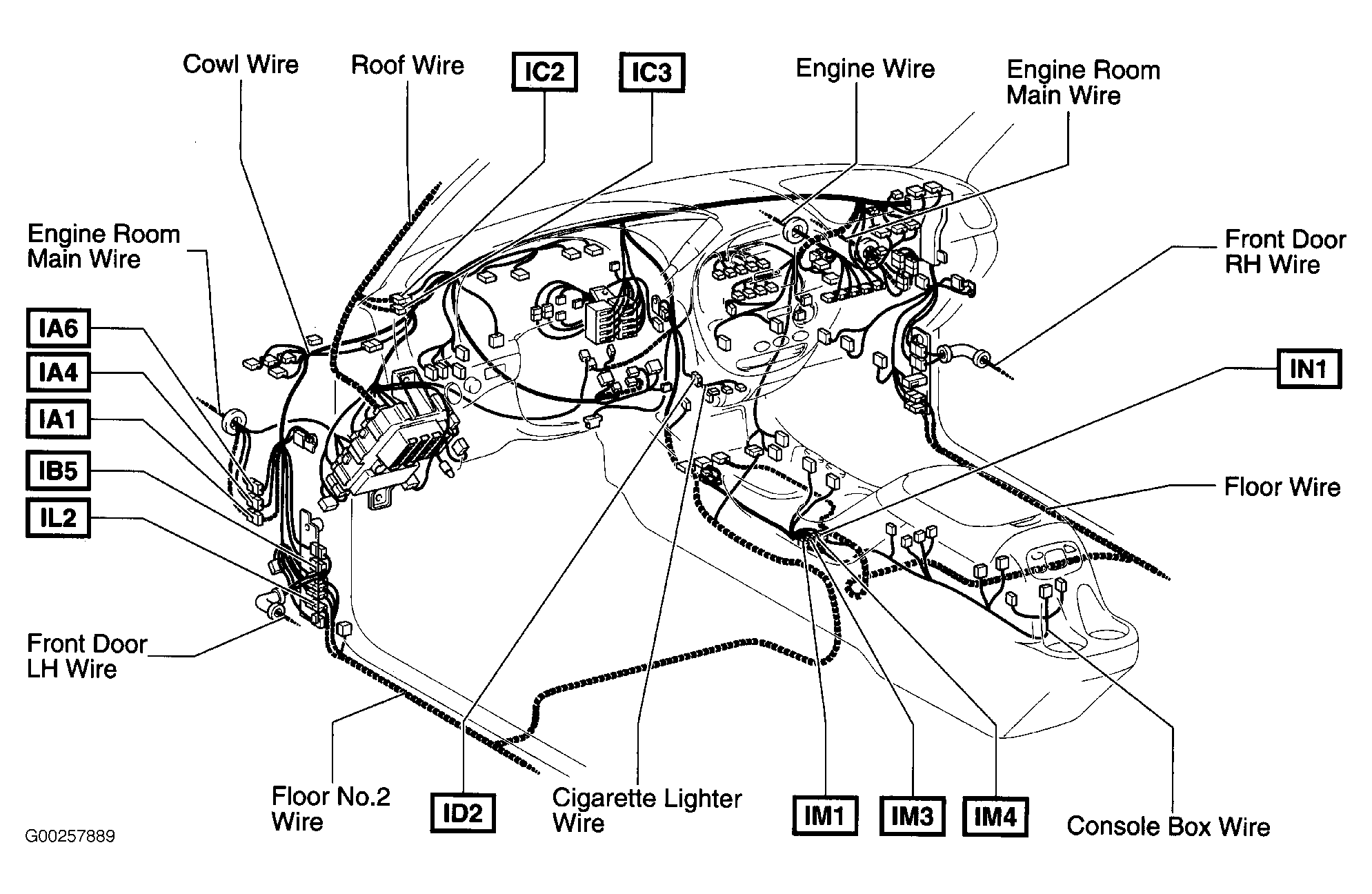

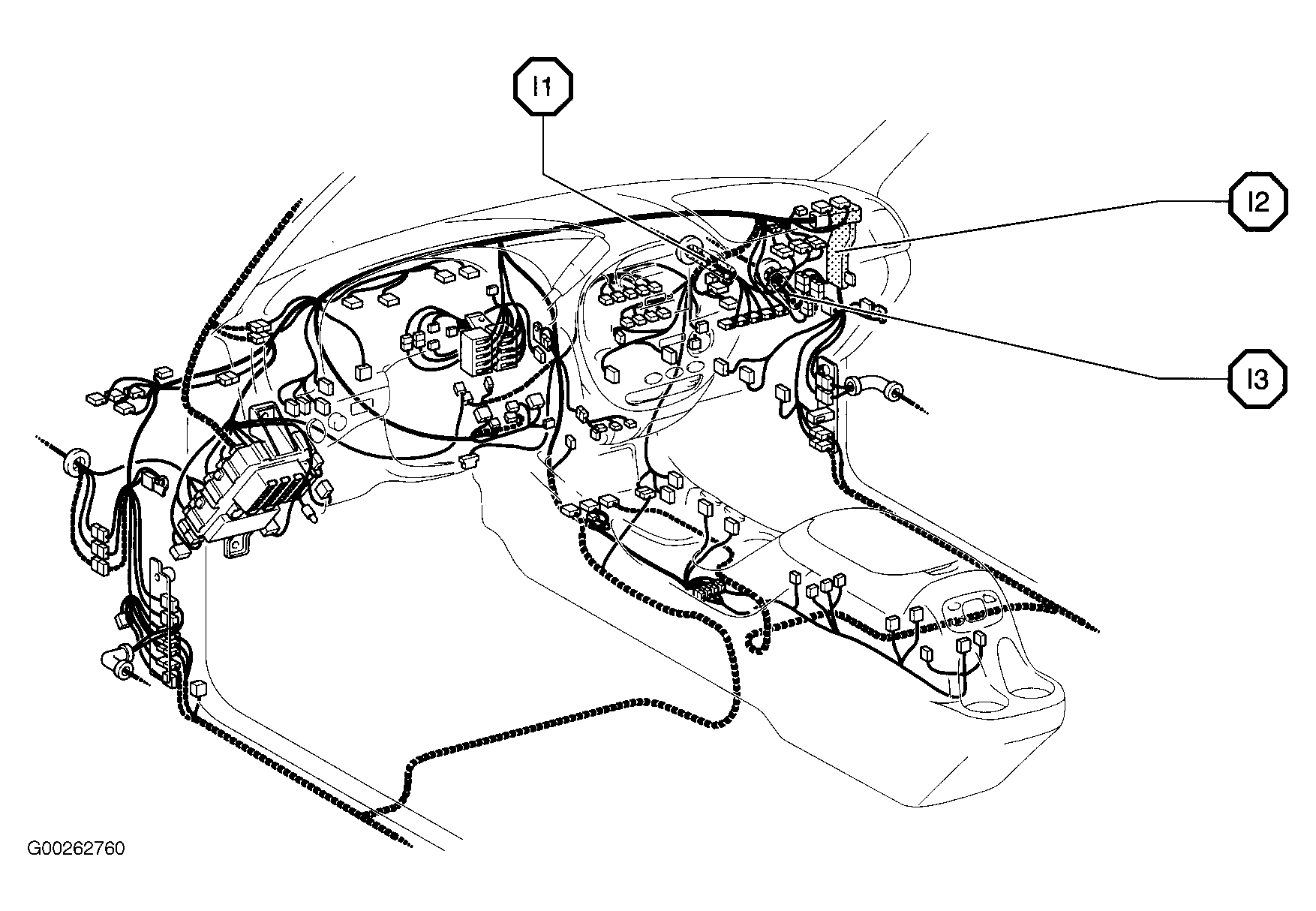

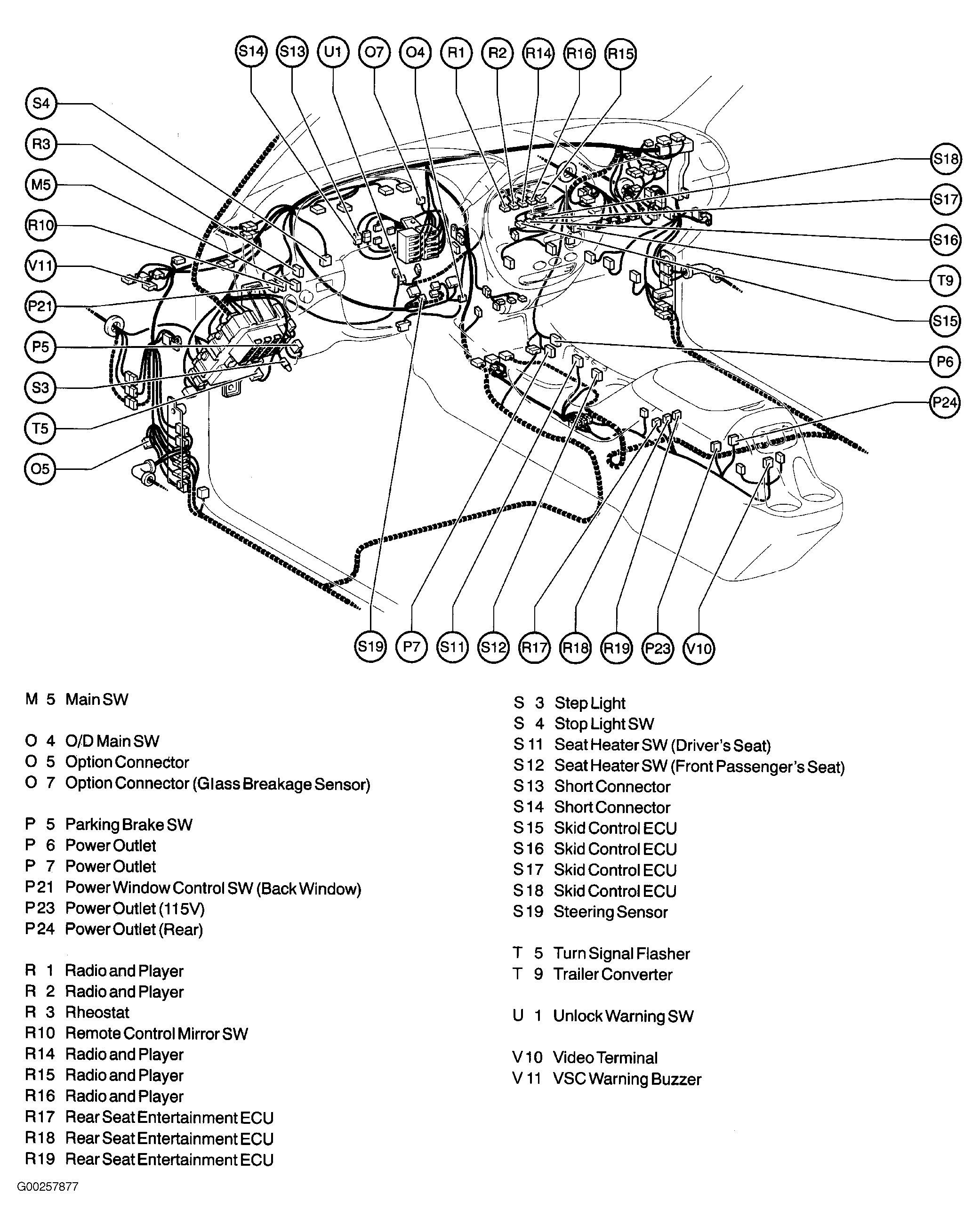

Fig 31: Dash & Center Console (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

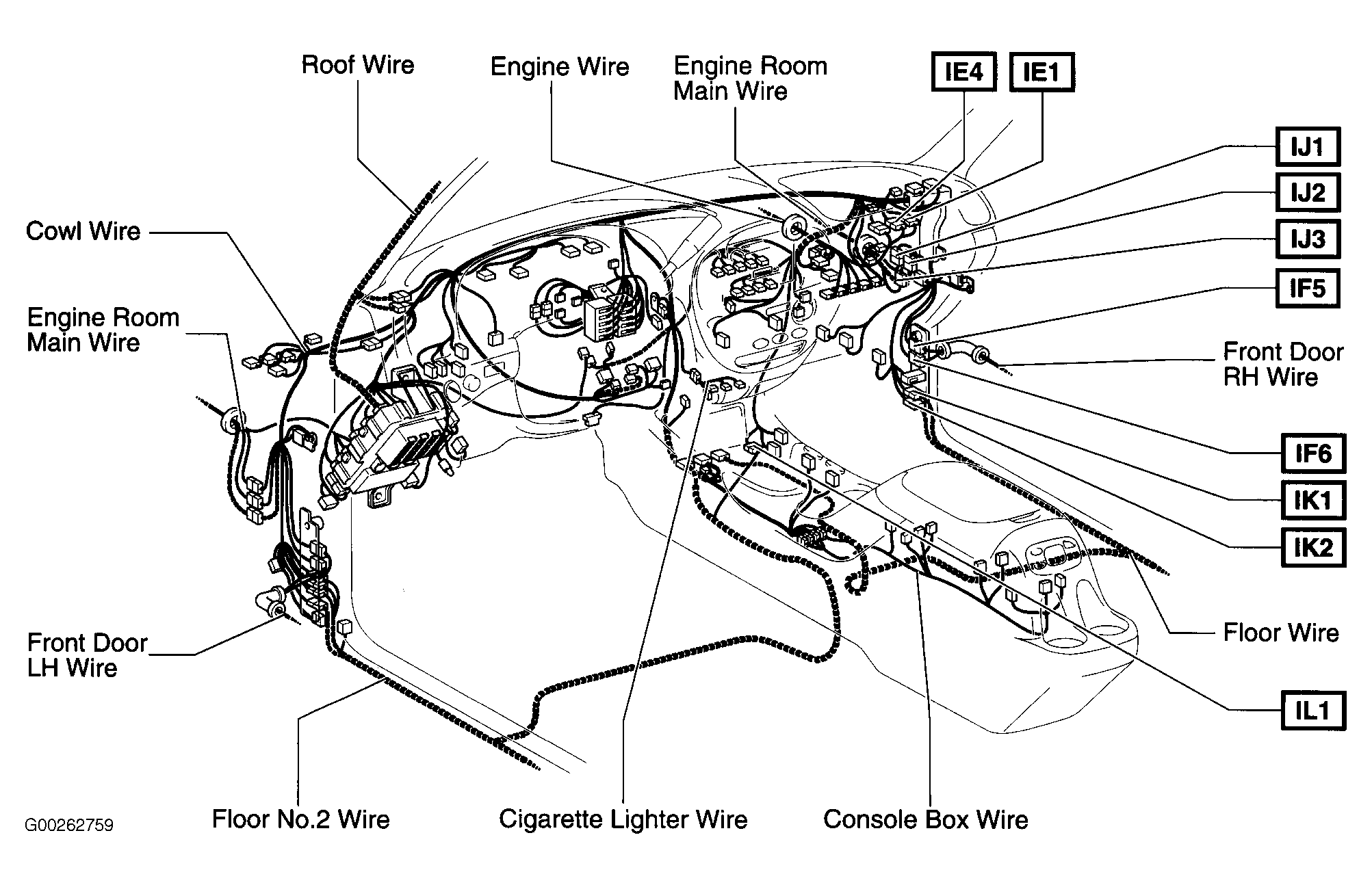

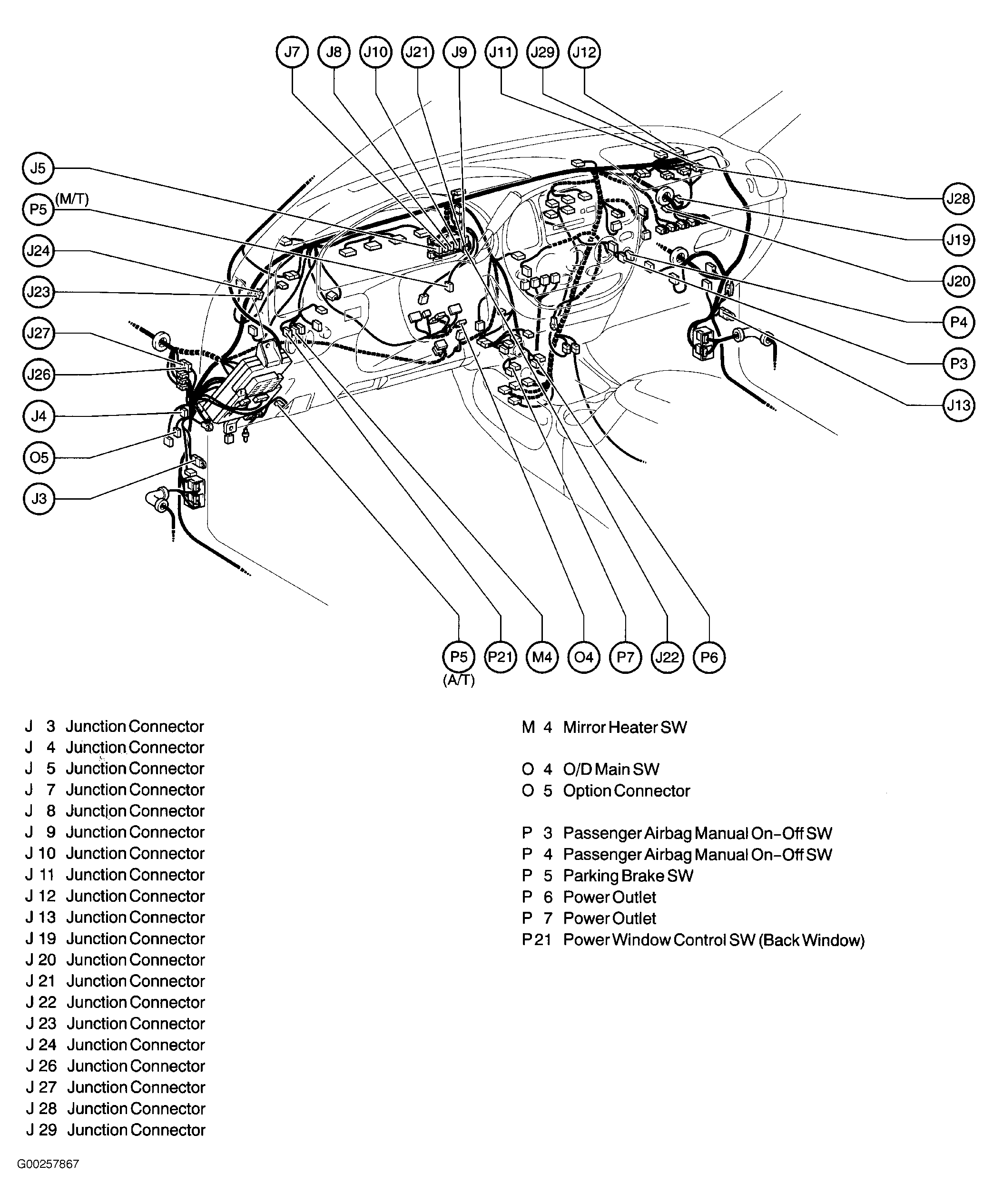

Fig 32: Dash & Center Console (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 33: Dash & Center Console (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 34: Dash & Center Console (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

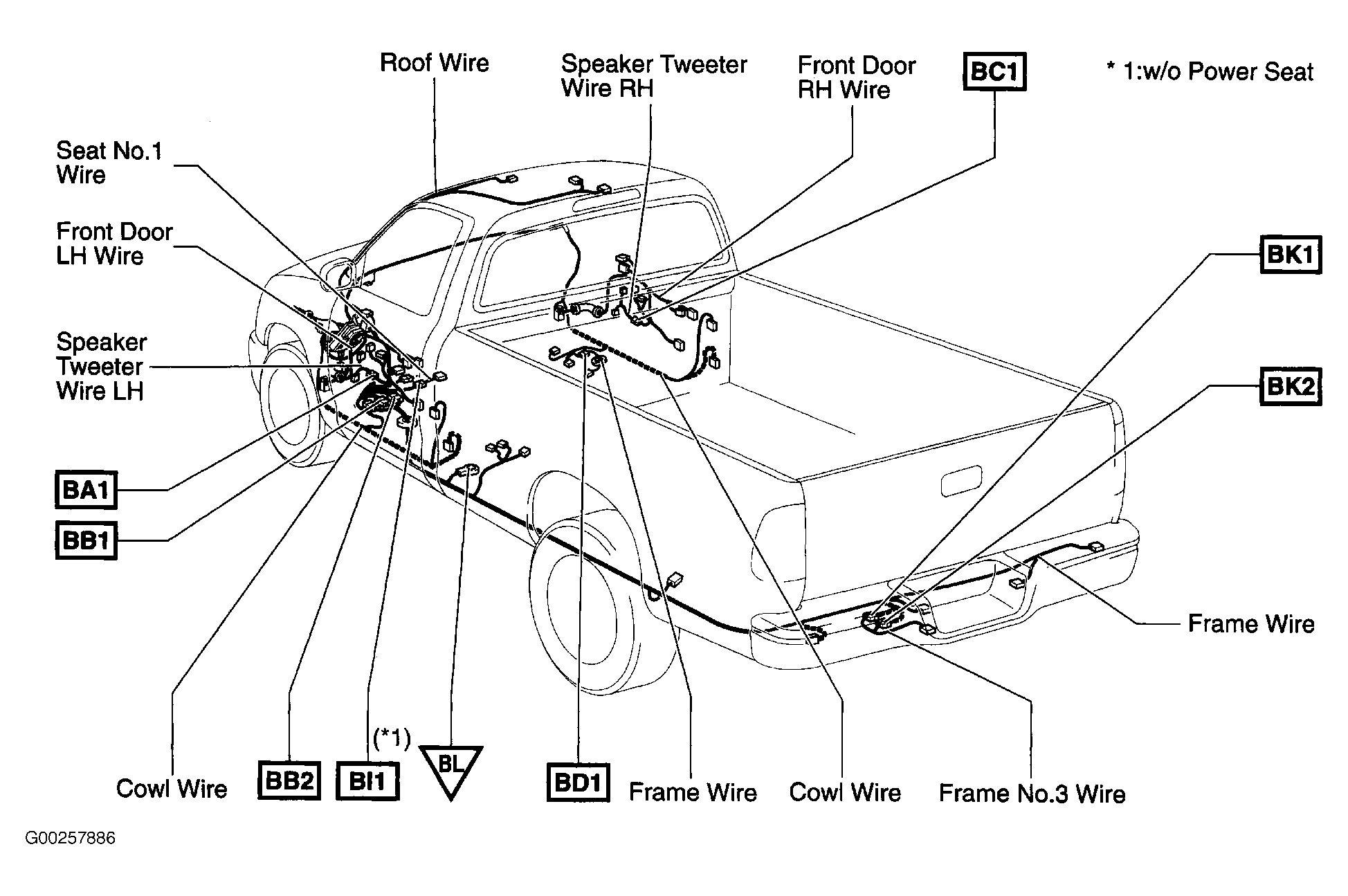

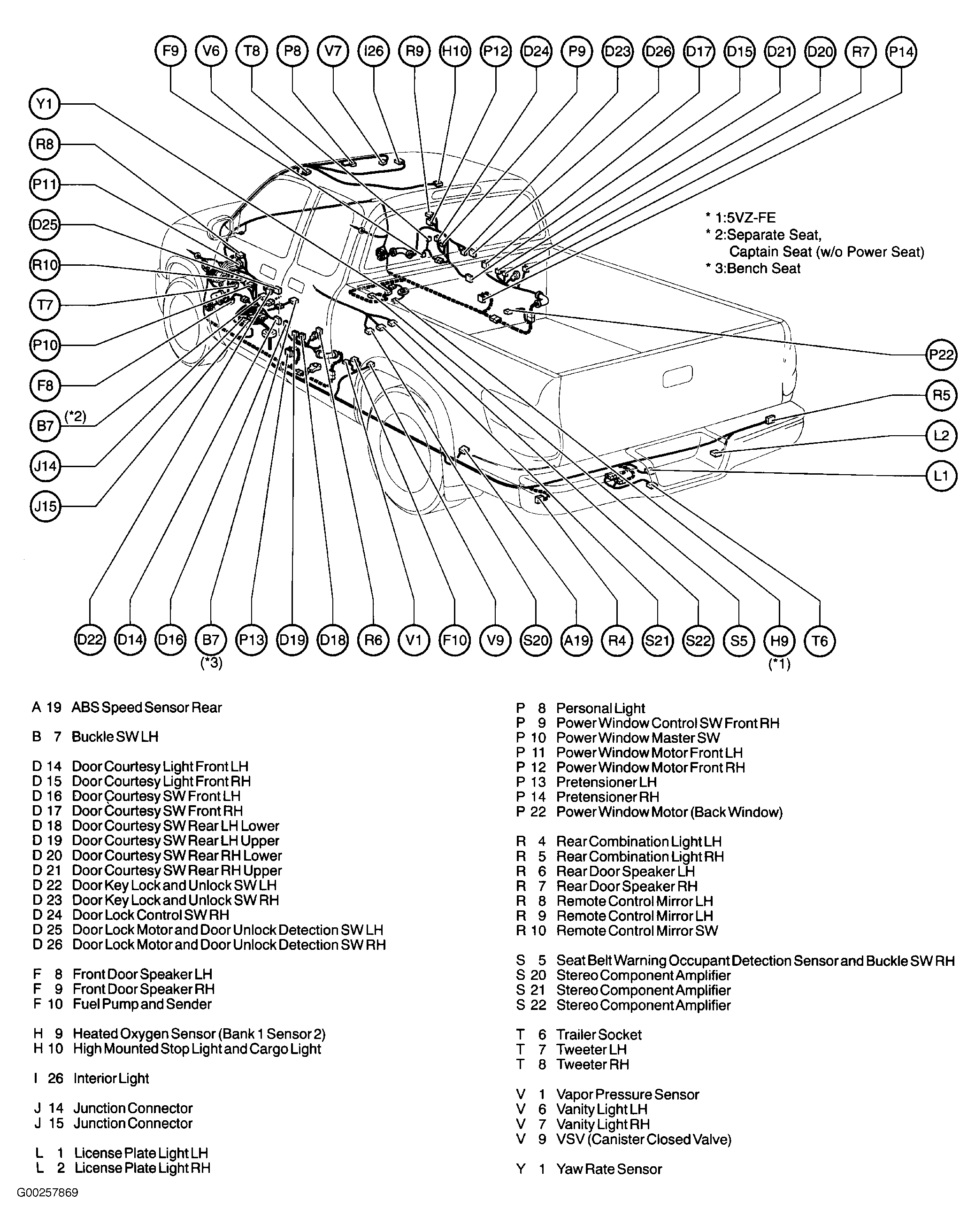

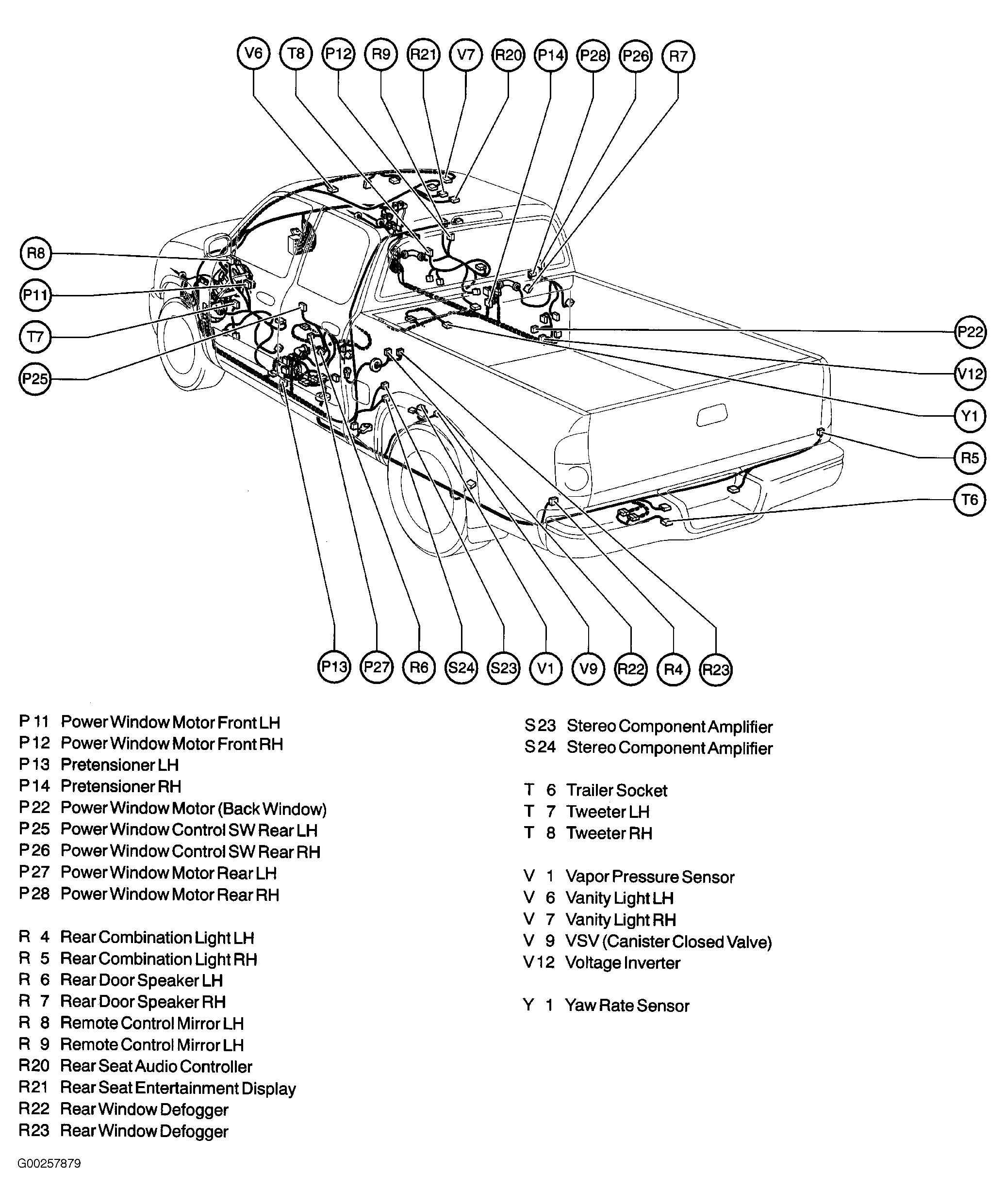

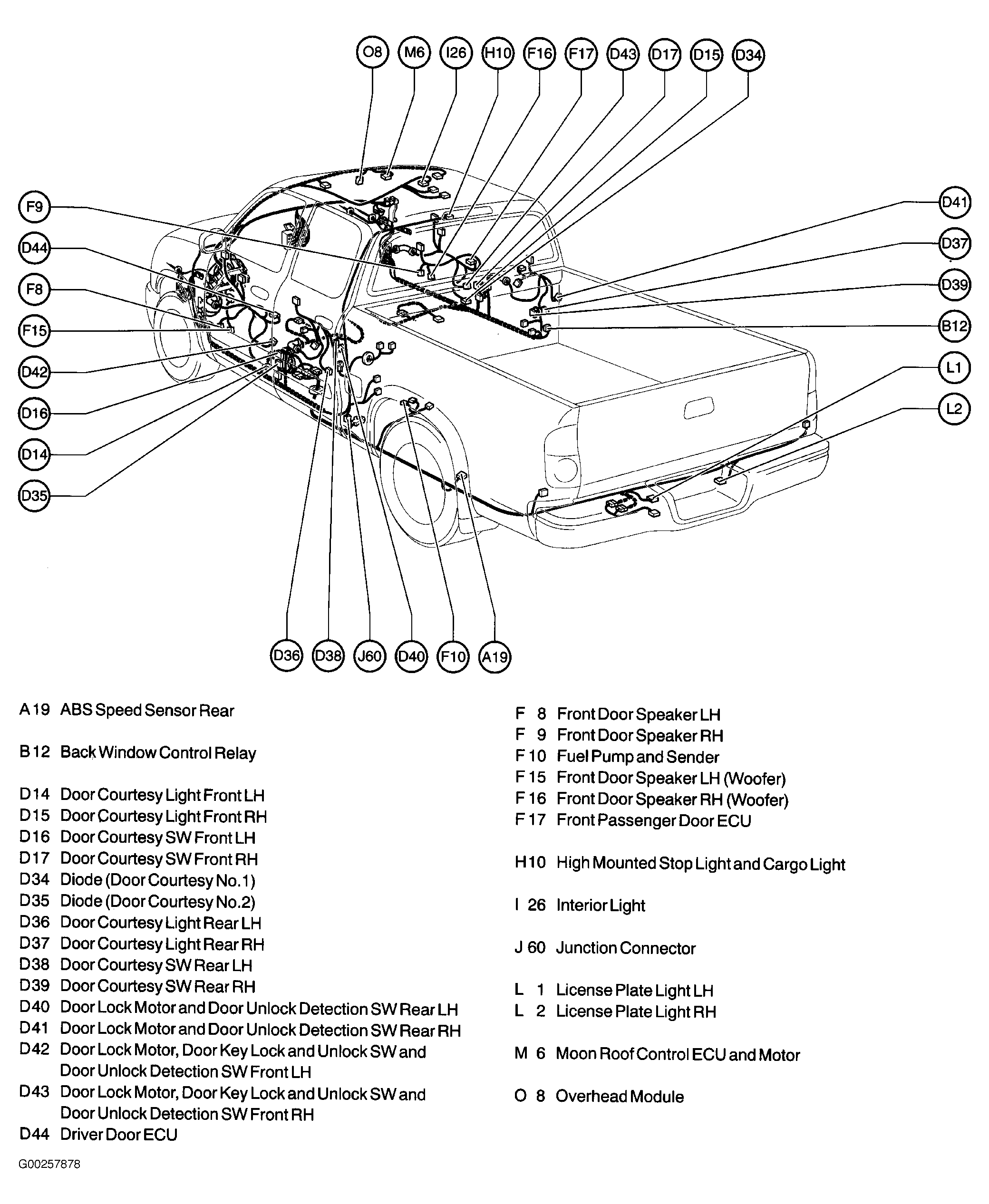

Fig 35: Vehicle Overview (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 36: Vehicle Overview (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 37: Front Seats (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 38: Engine Compartment (4.7L) (Access & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 39: Engine Compartment (4.7L) (Access & Standard Cab)

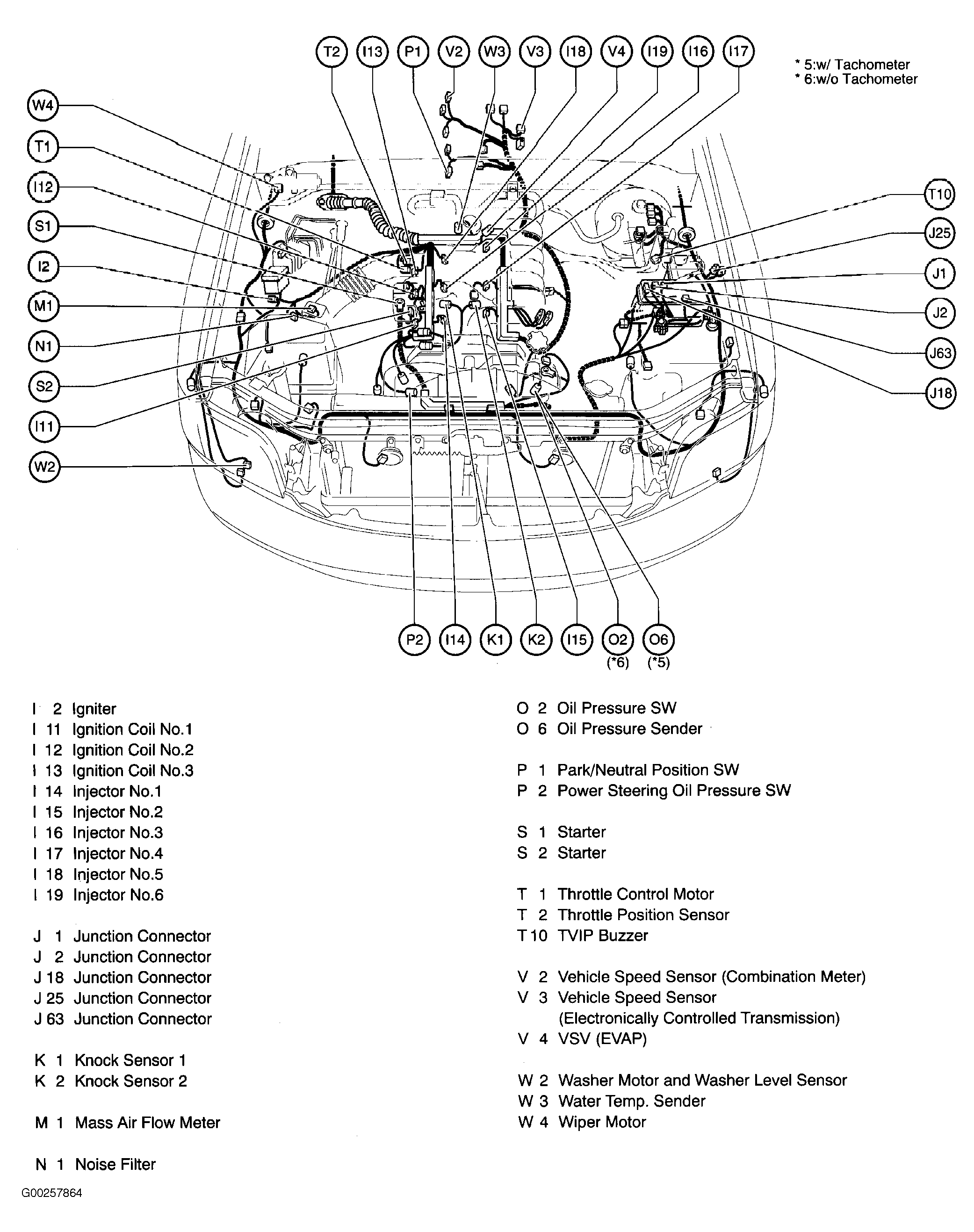

Fig 40: Engine Compartment (3.4L) (Access & Standard Cab)

Fig 41: Engine Compartment (3.4L) (Access & Standard Cab)

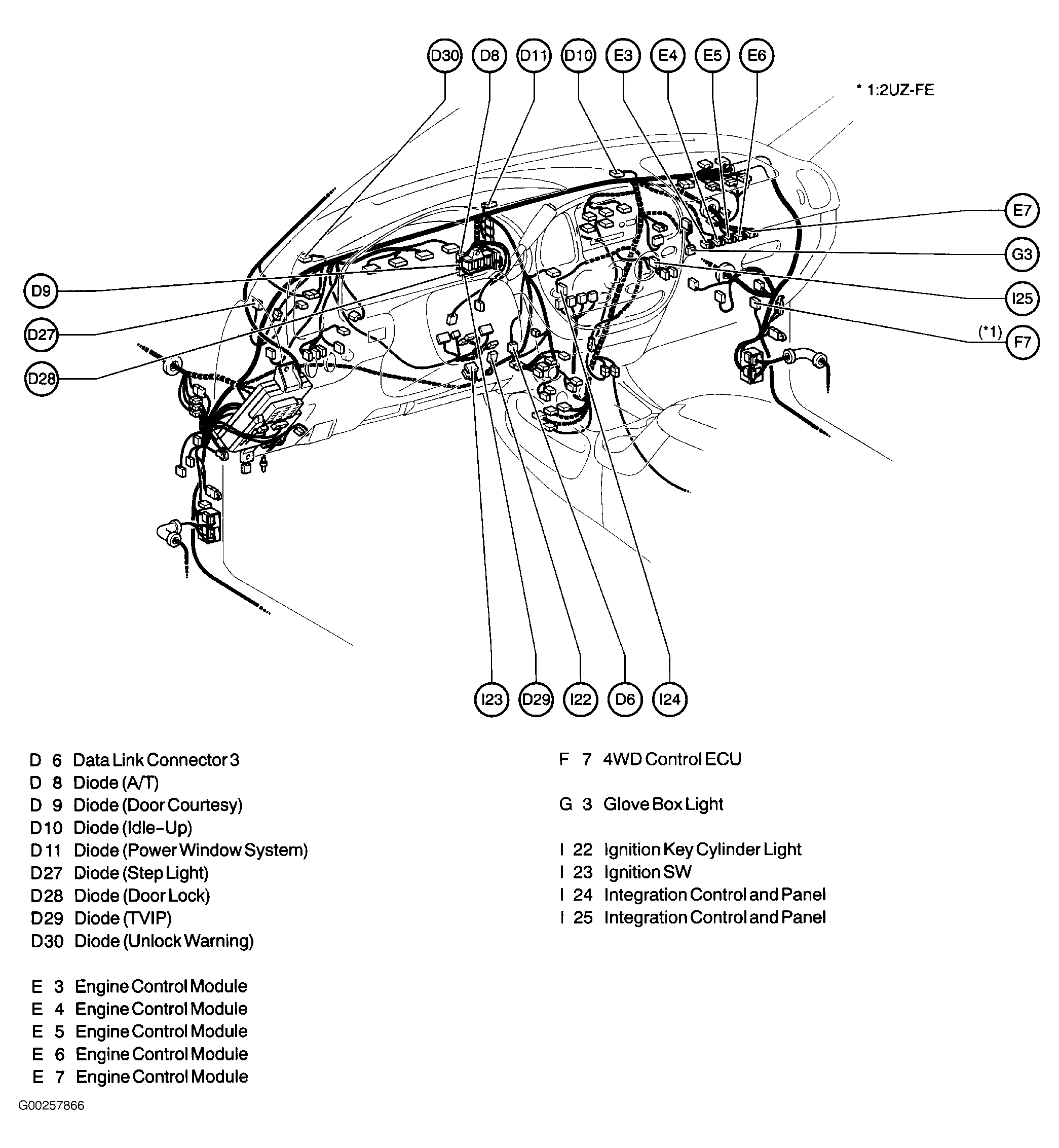

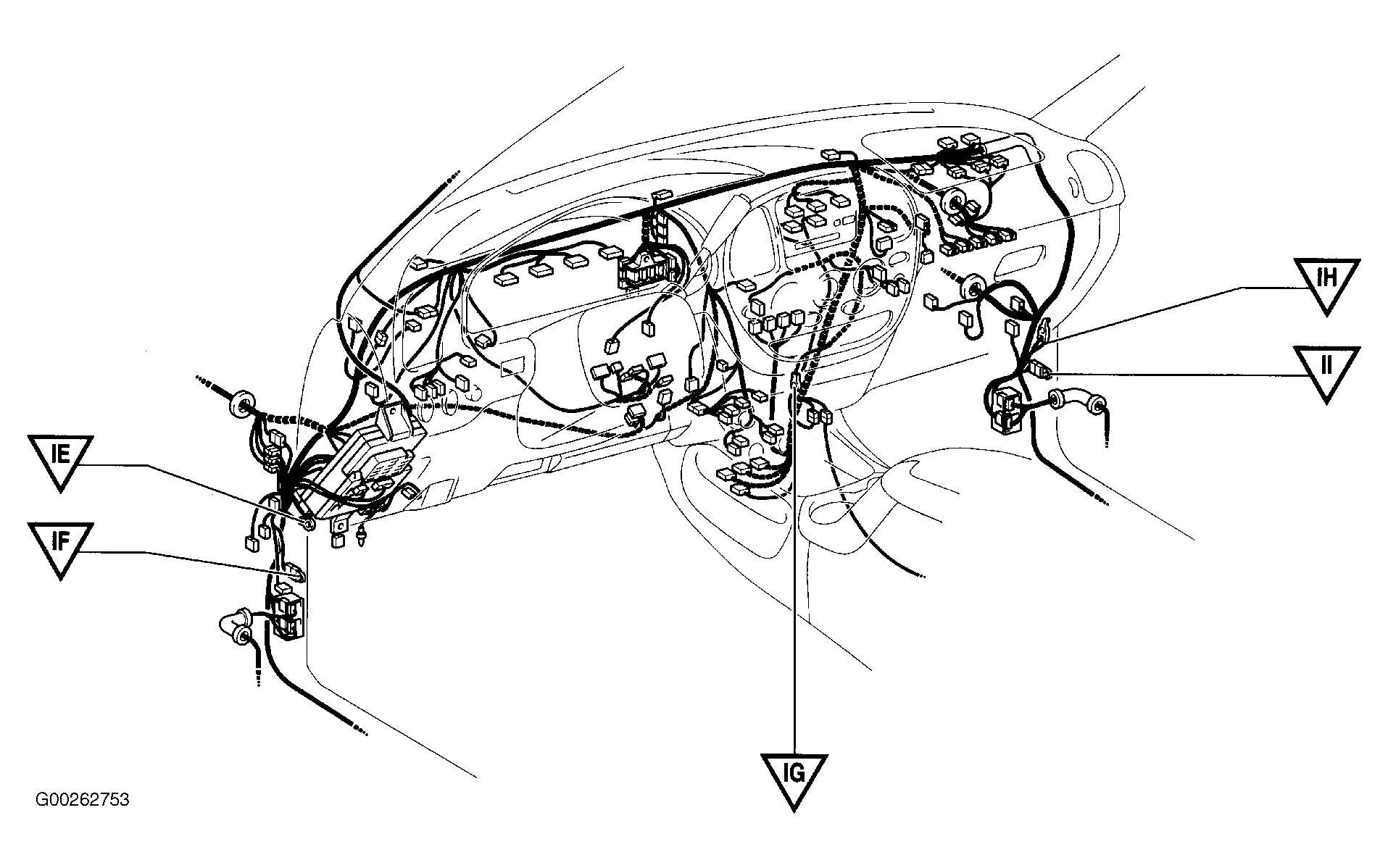

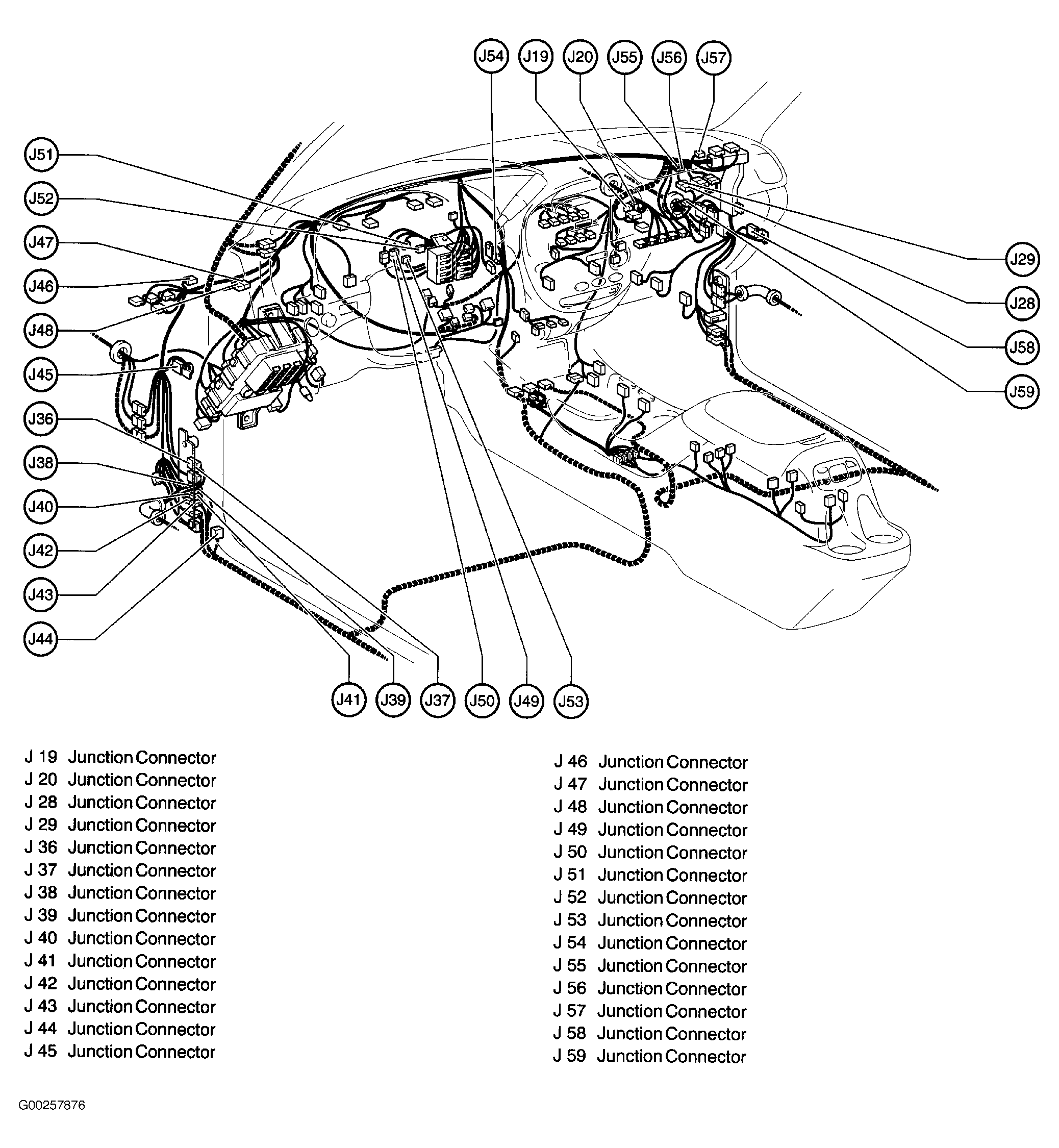

Fig 42: Dash (Access & Standard Cab)

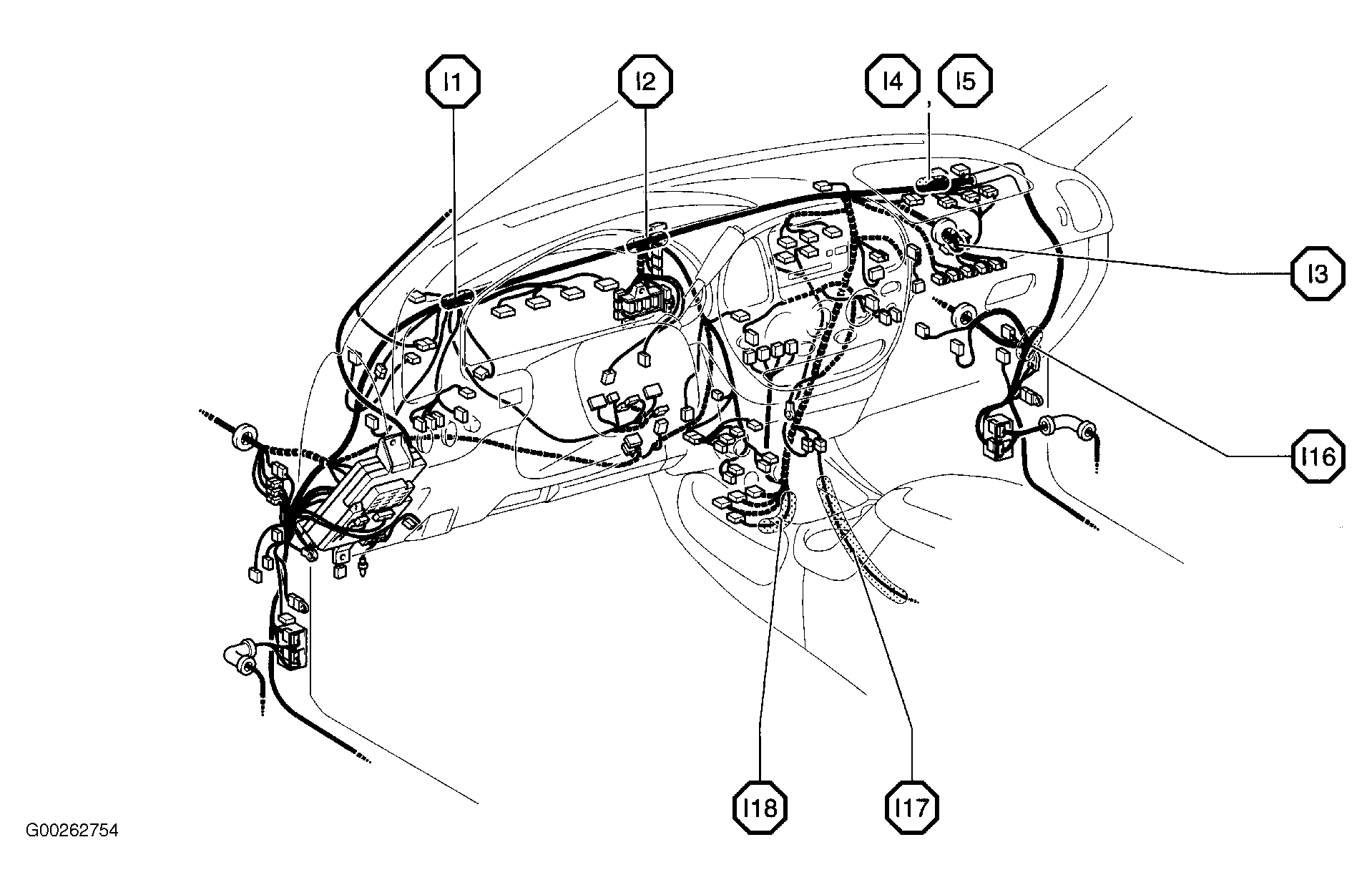

Fig 43: Dash (Access & Standard Cab)

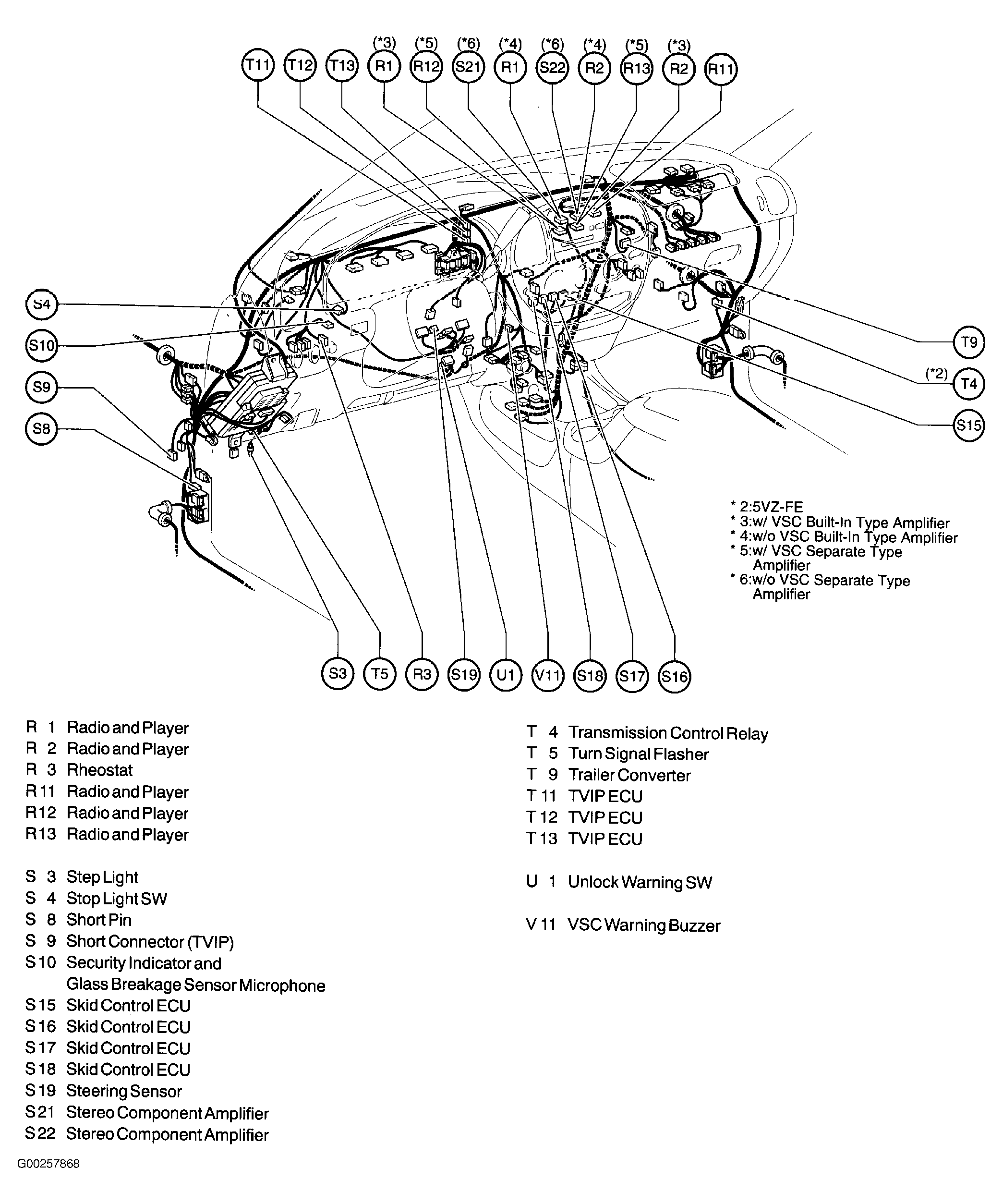

Fig 44: Dash (Access & Standard Cab)

Fig 45: Dash (Access & Standard Cab)

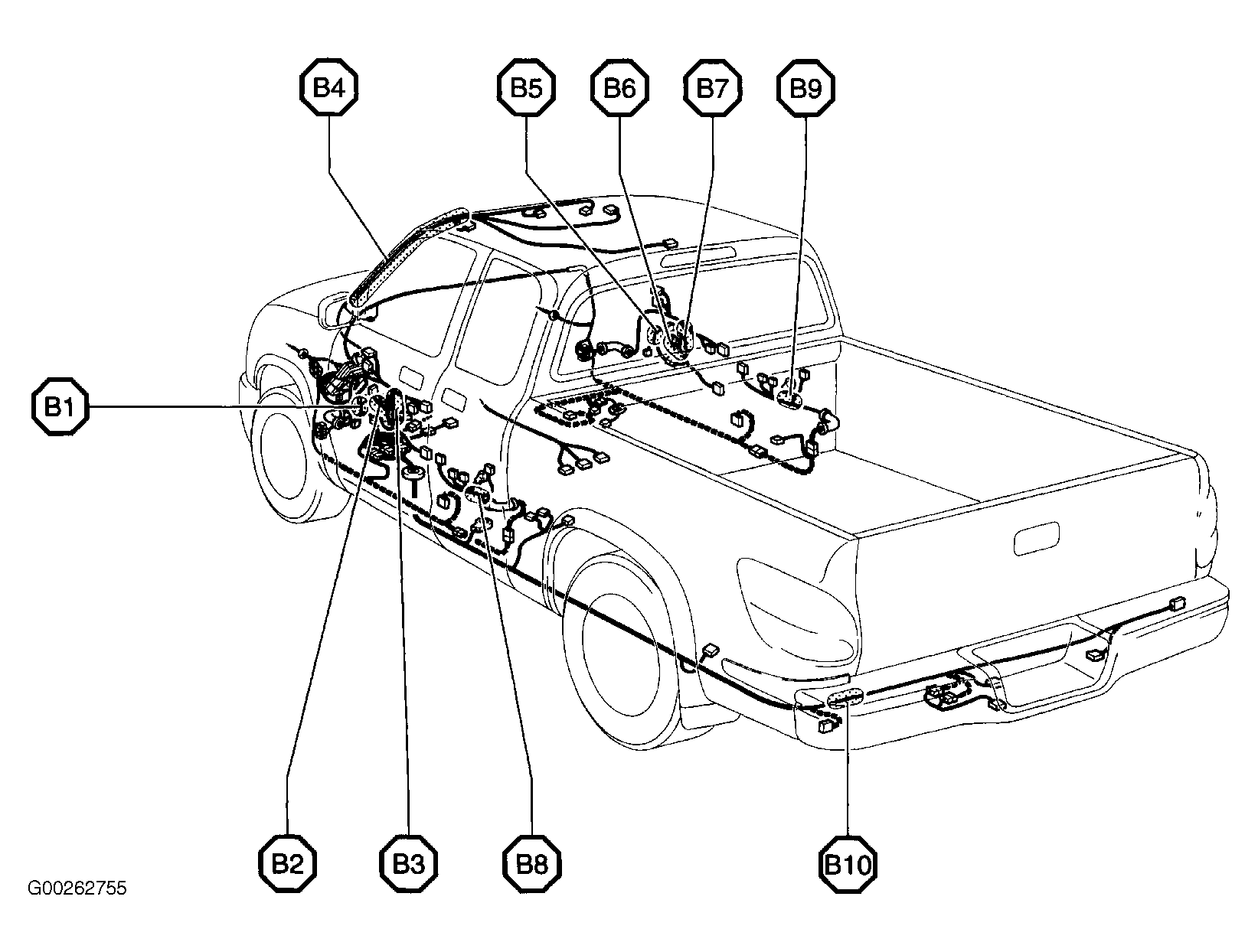

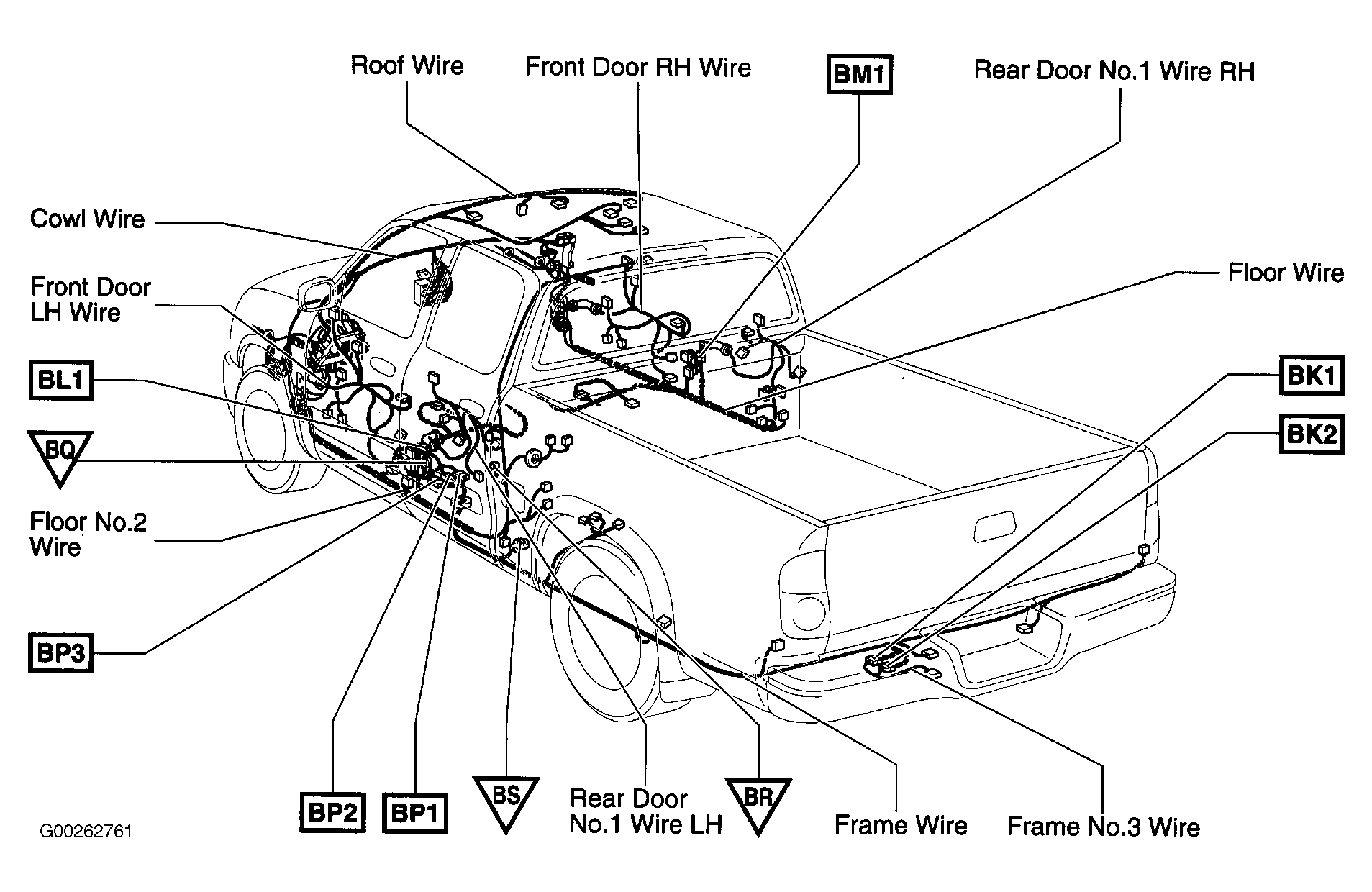

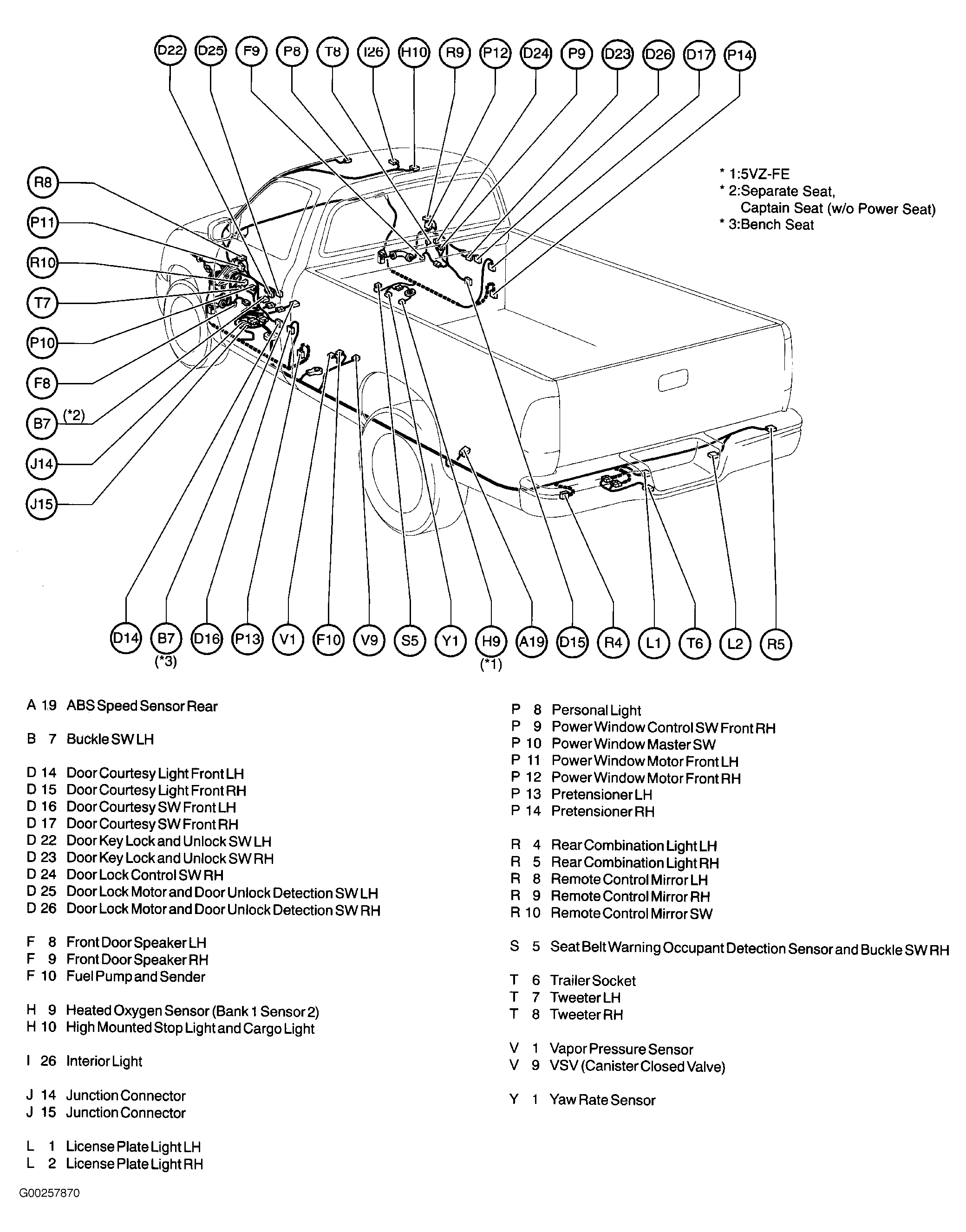

Fig 46: Vehicle Overview (Access Cab)

Fig 47: Vehicle Overview (Access Cab)

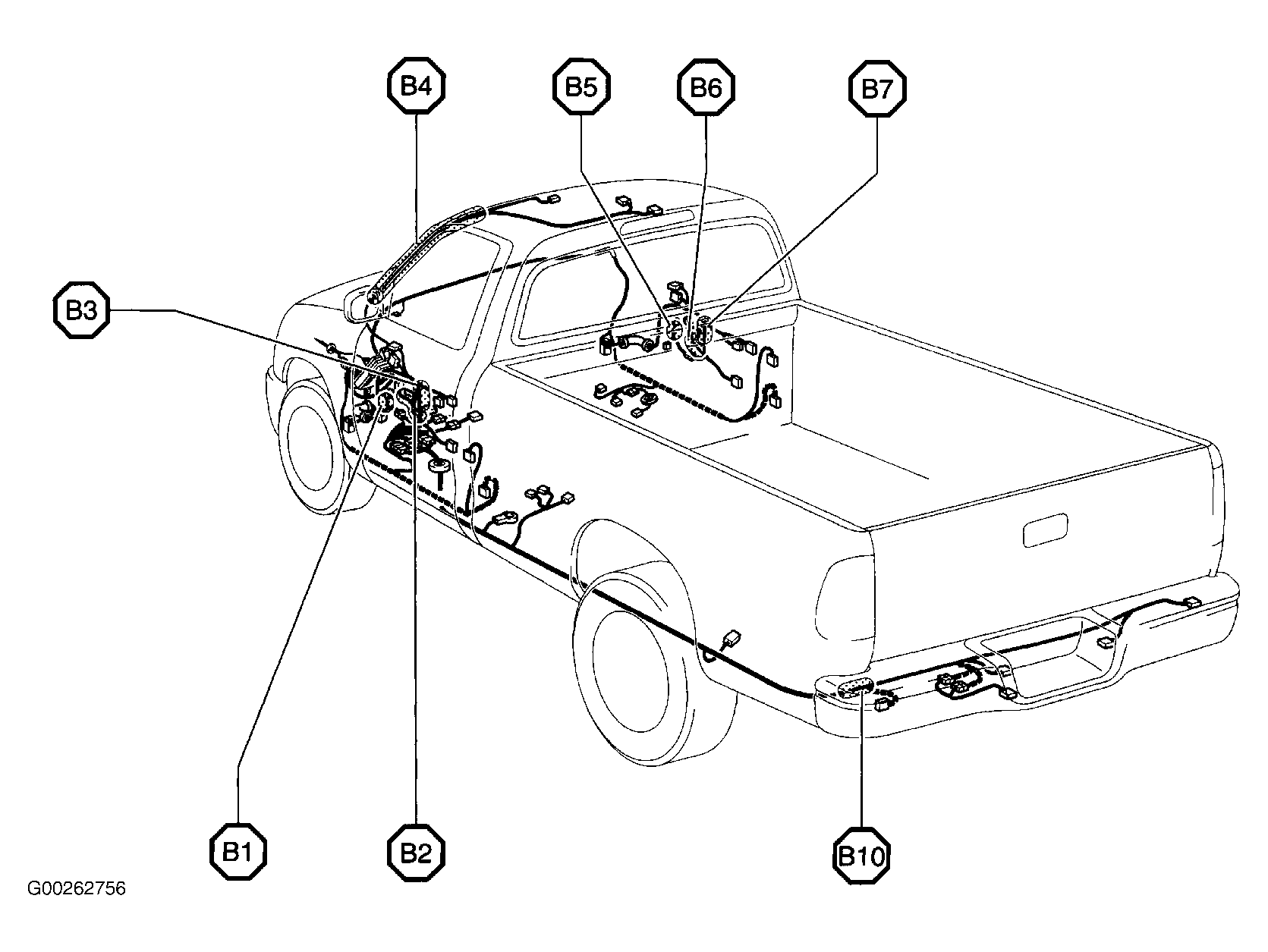

Fig 48: Vehicle Overview (Standard Cab)

Fig 49: Vehicle Overview (Standard Cab)

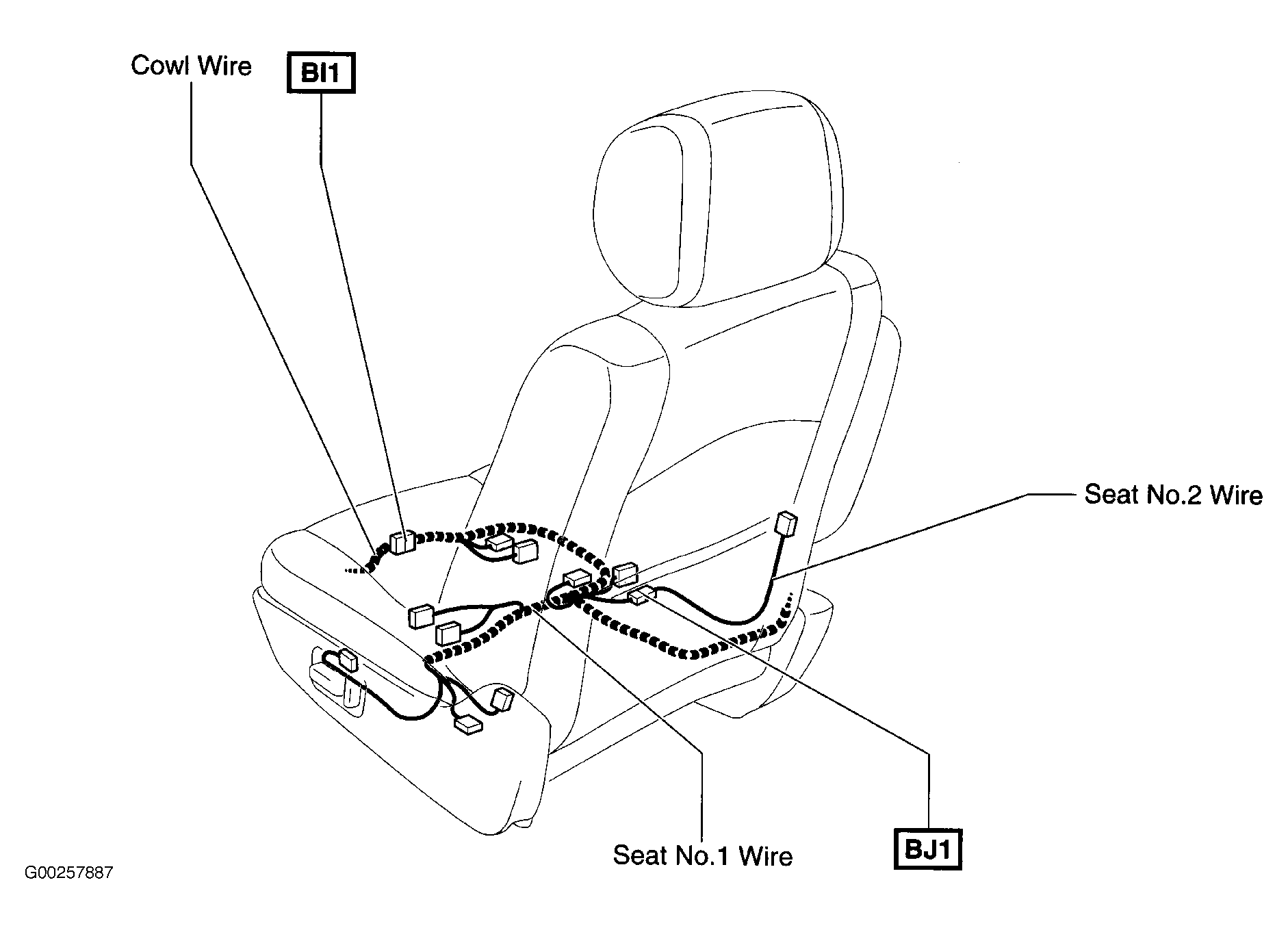

Fig 50: Driver Seat (Access & Standard Cab)

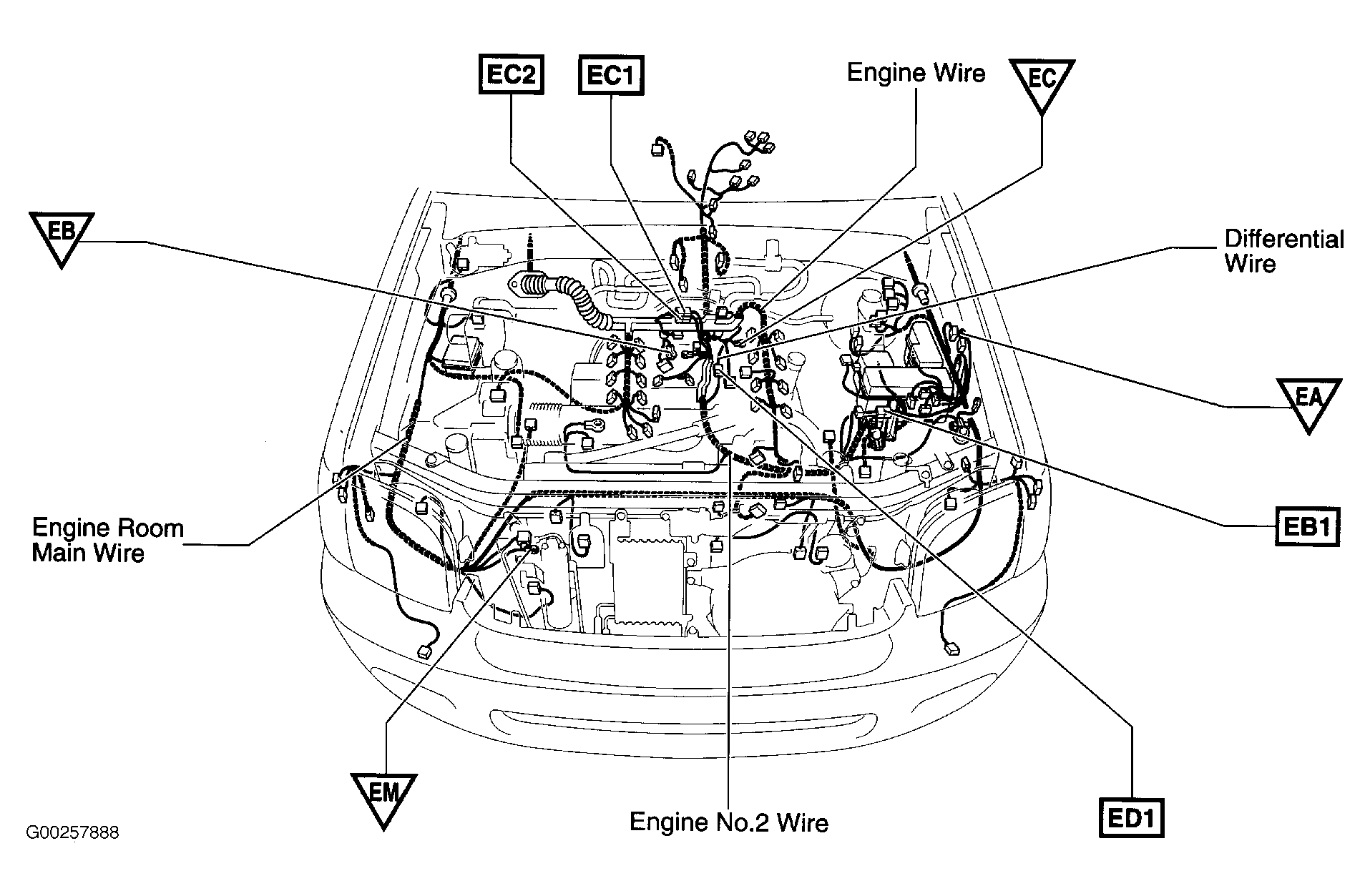

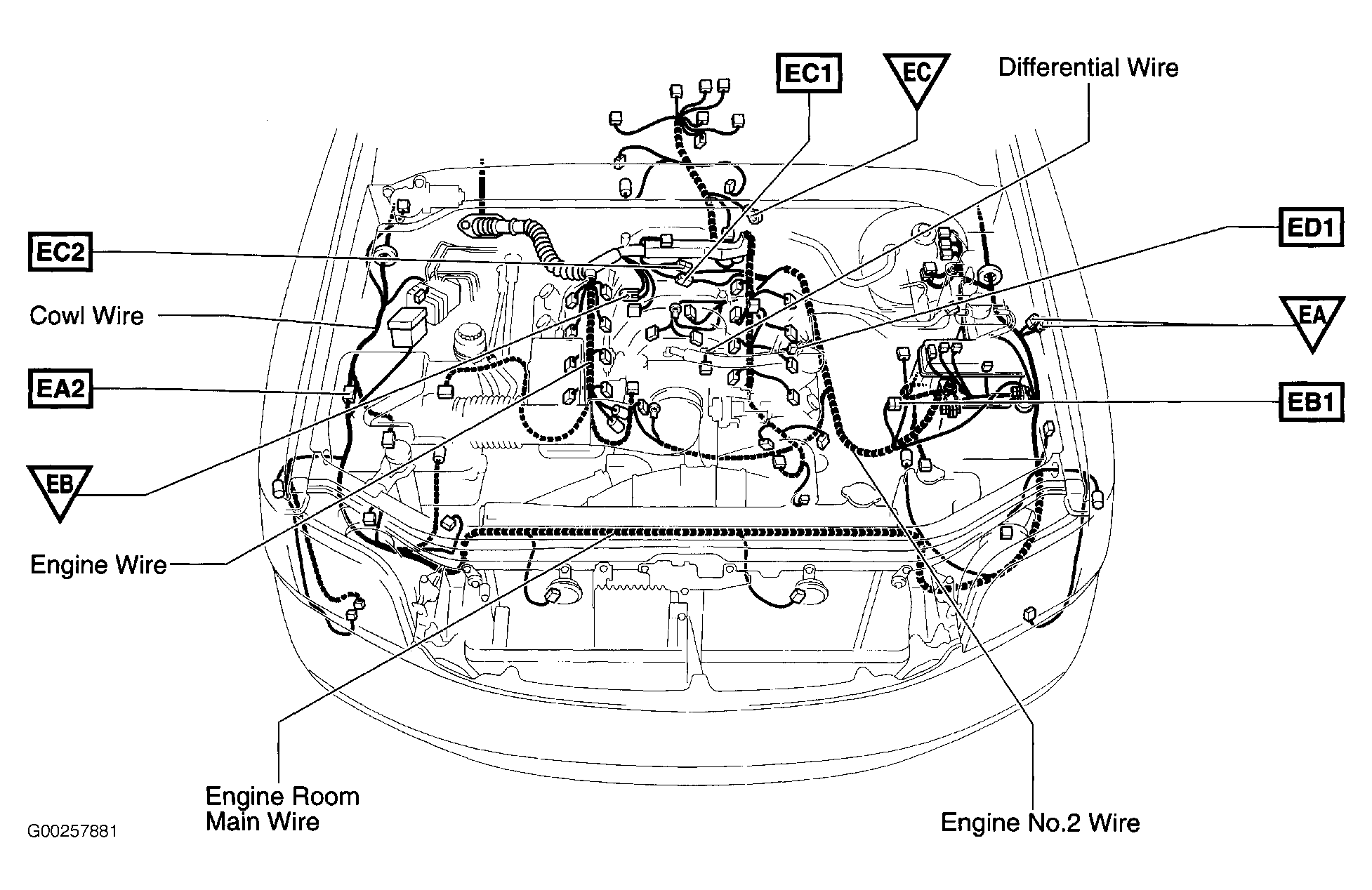

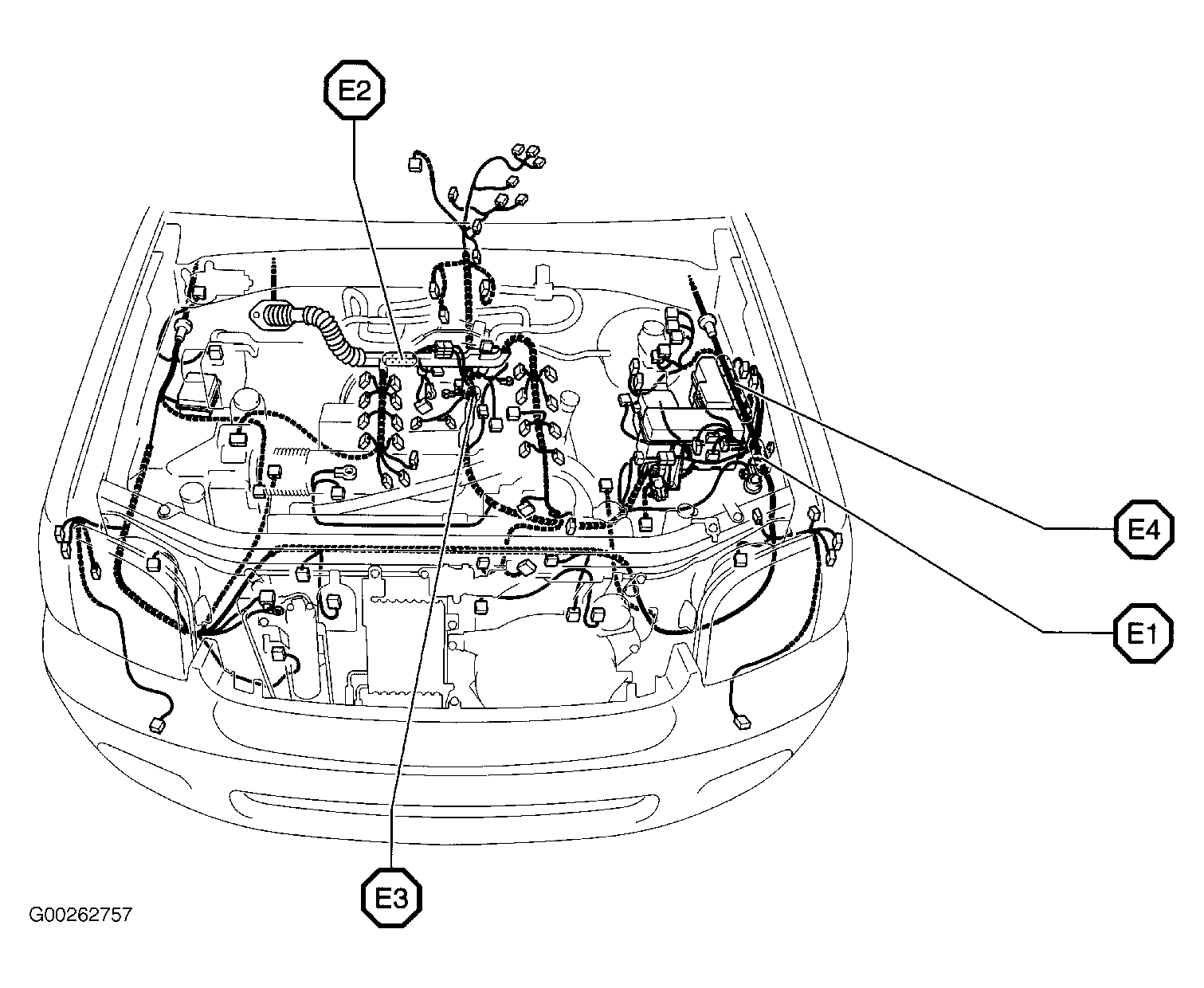

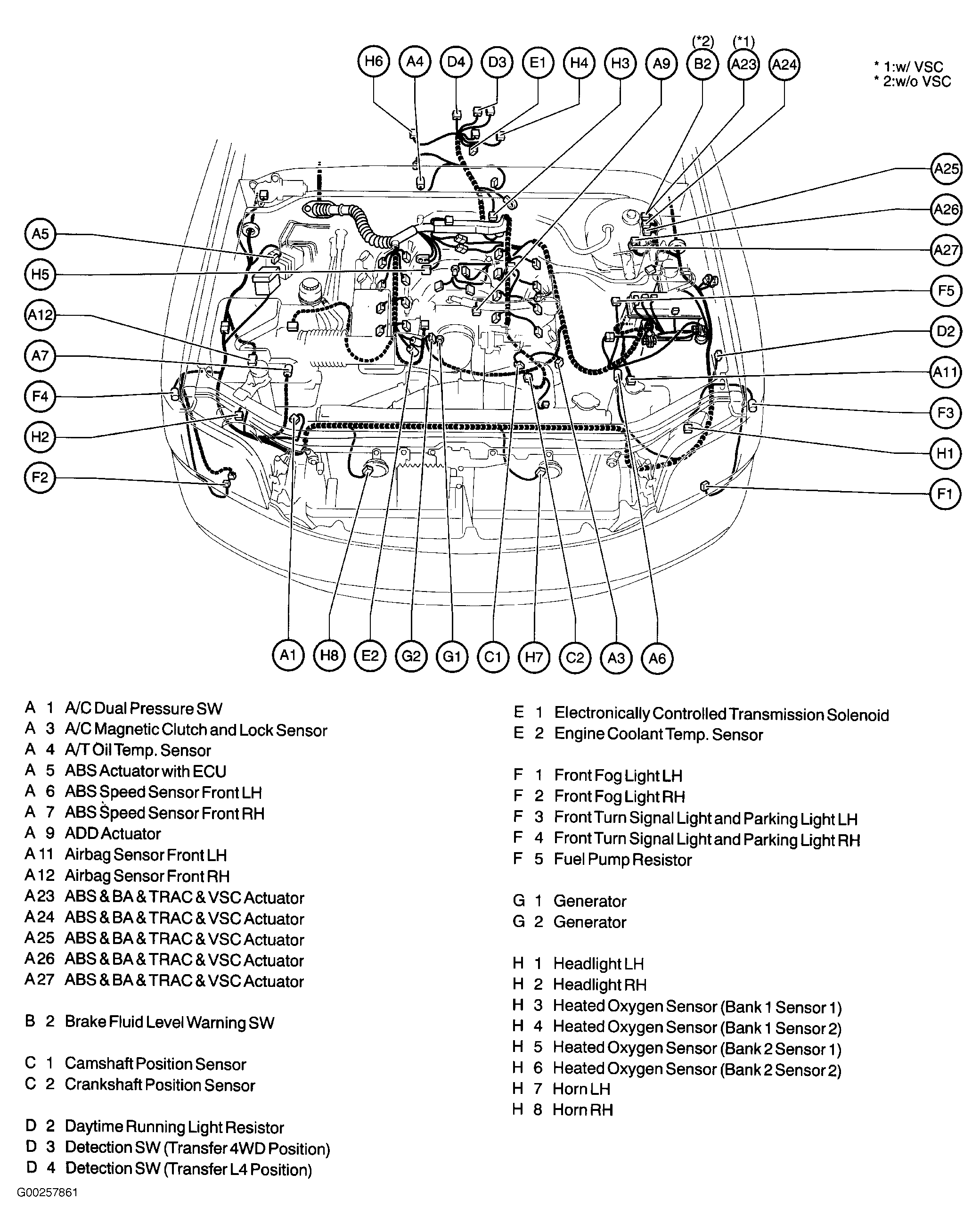

Fig 51: Engine Compartment (Double Cab)

Fig 52: Engine Compartment (Double Cab)

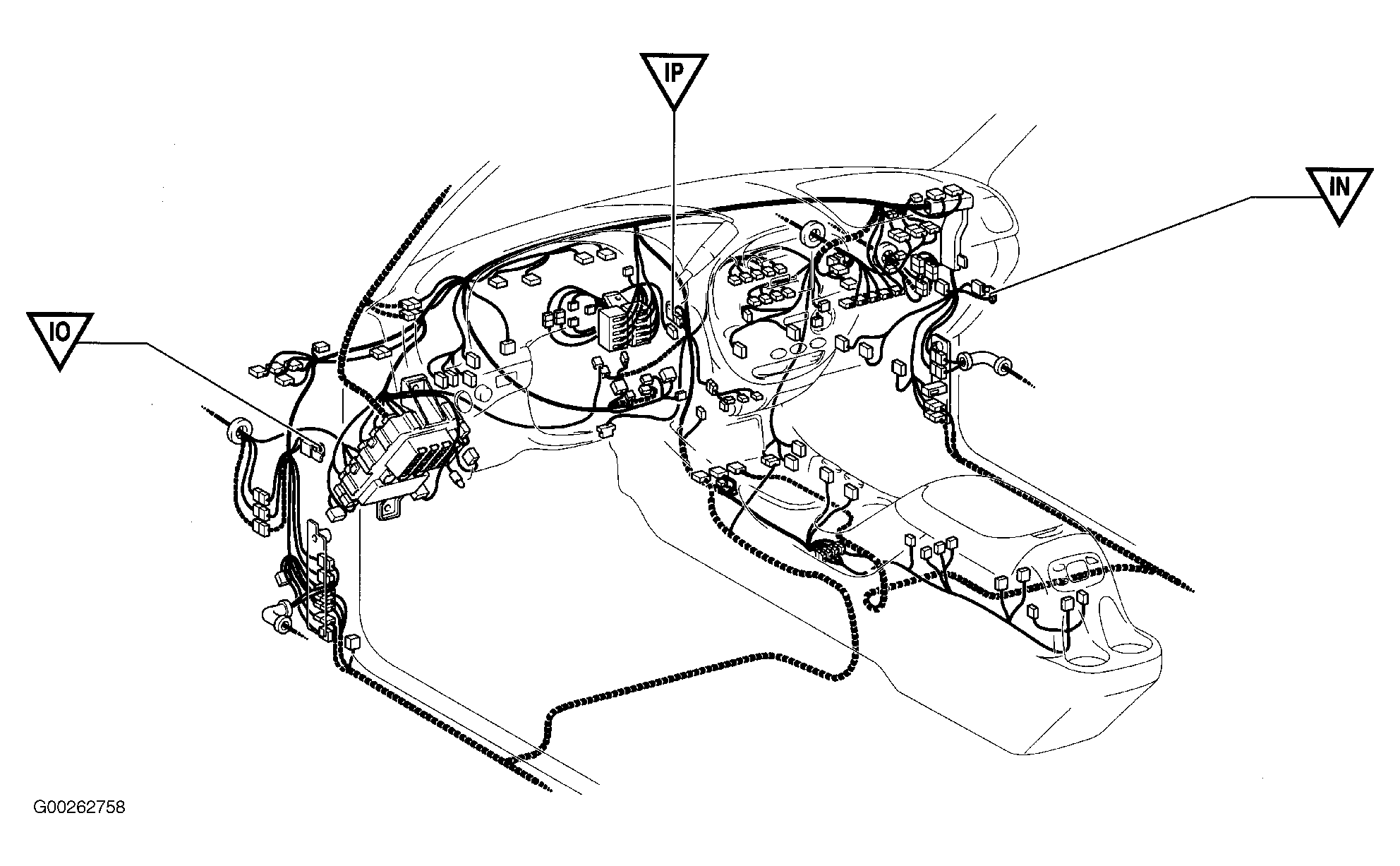

Fig 53: Dash & Center Console (Double Cab)

Fig 54: Dash & Center Console (Double Cab)

Fig 55: Dash & Center Console (Double Cab)

Fig 56: Dash & Center Console (Double Cab)

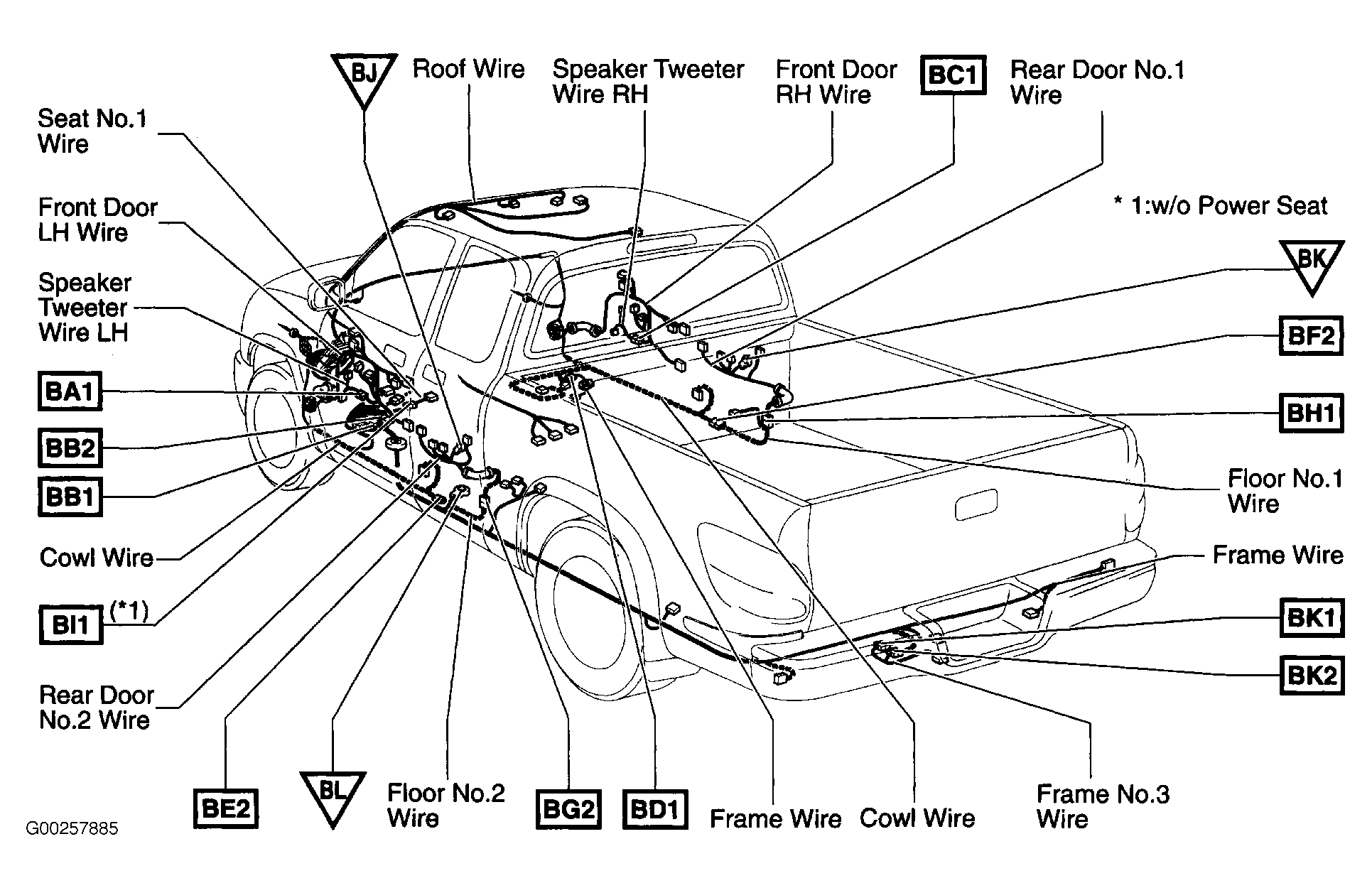

Fig 57: Vehicle Overview (Double Cab)

Fig 58: Vehicle Overview (Double Cab)

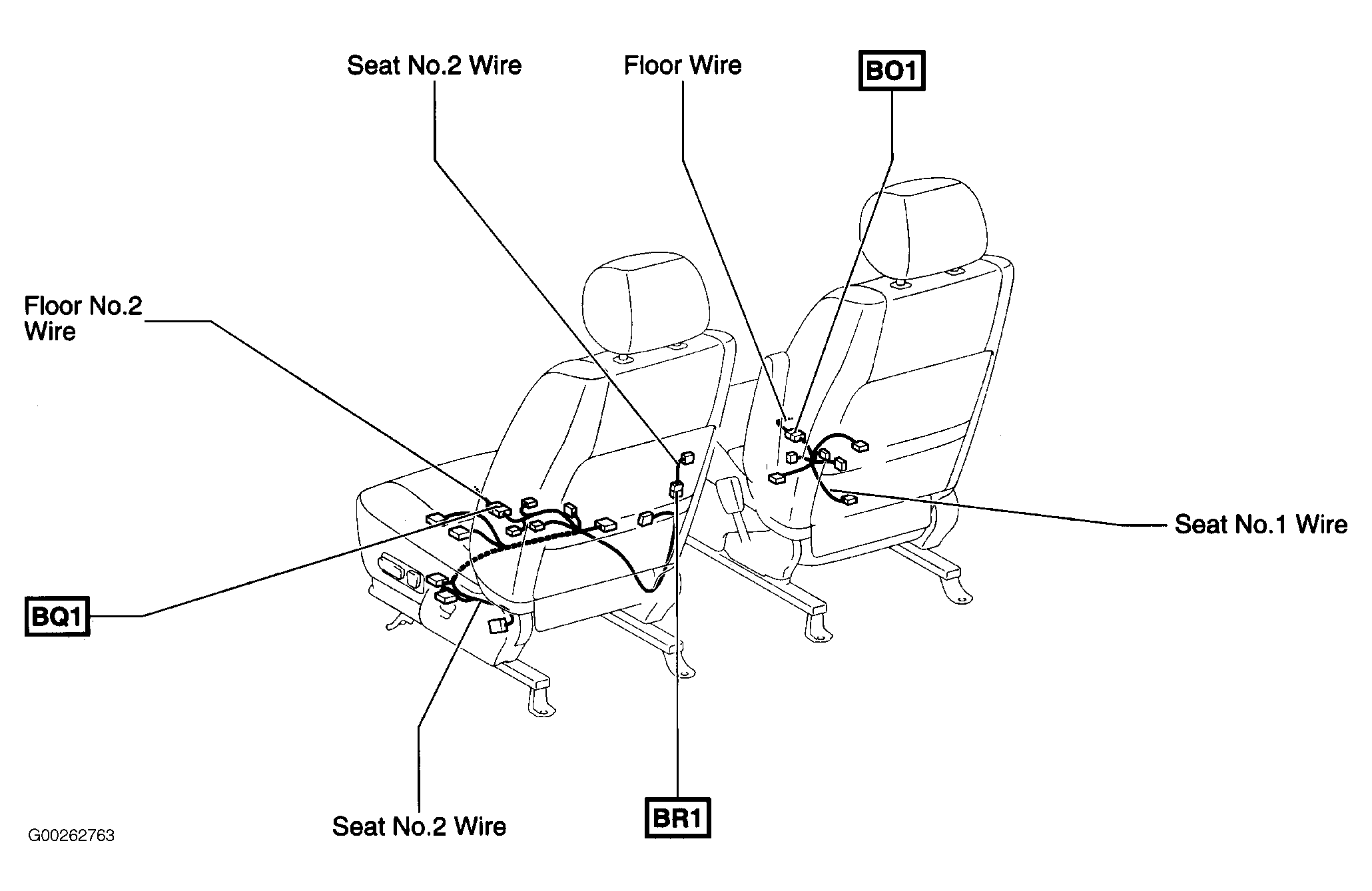

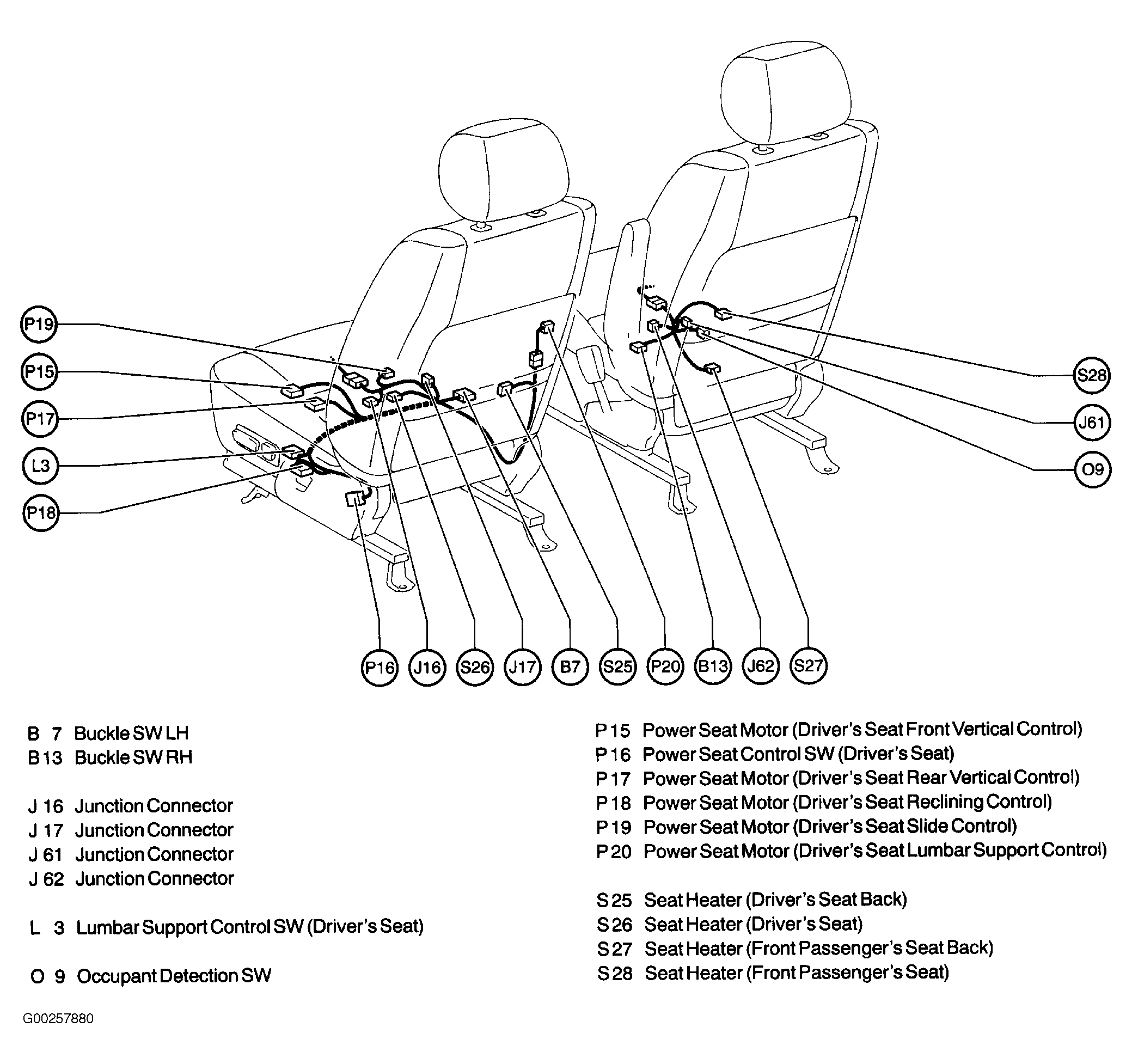

Fig 59: Front Seats (Double Cab)
