Instrument Panel: Components

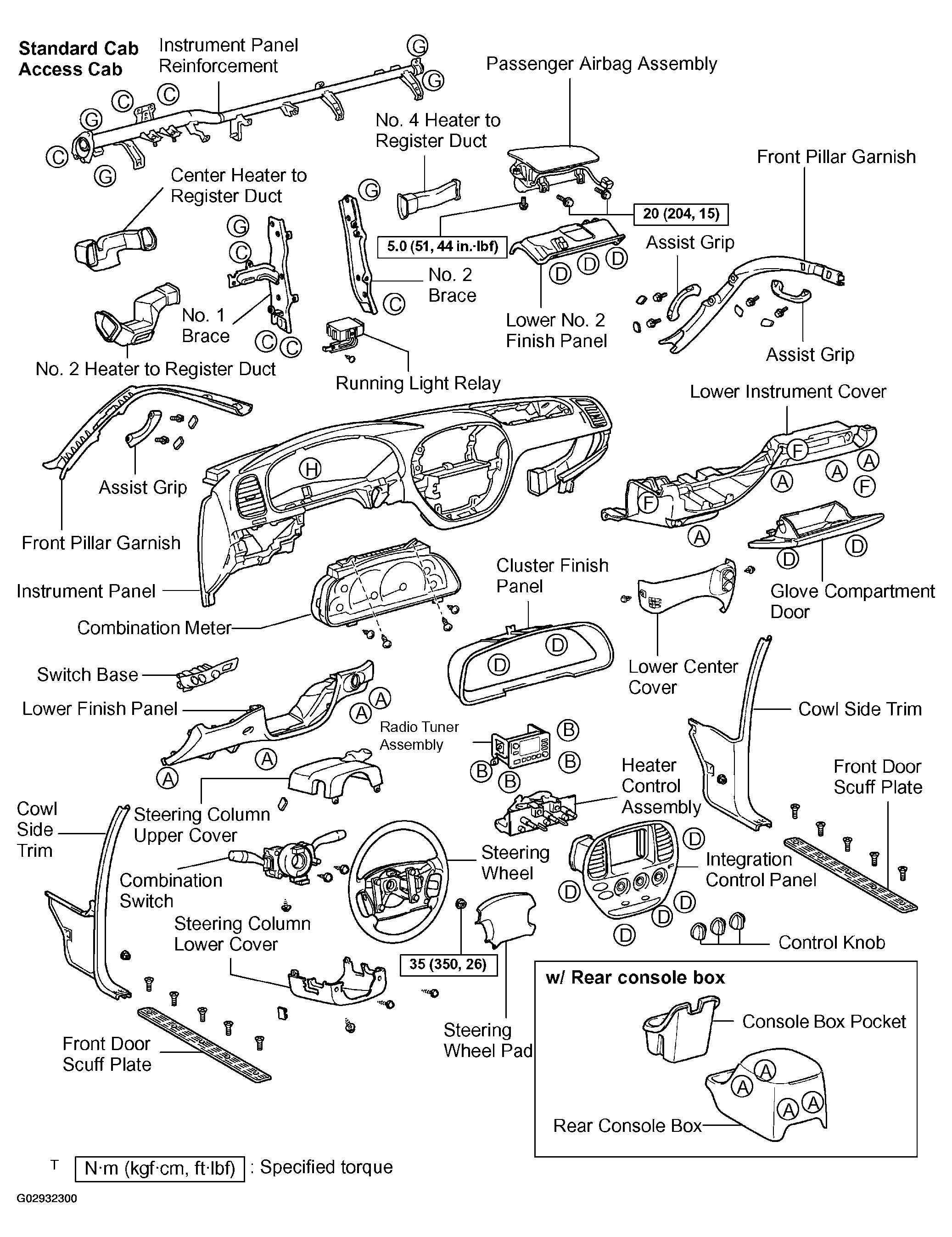

Fig 1: Identifying Instrument Panel Components (Access Cab & Standard Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

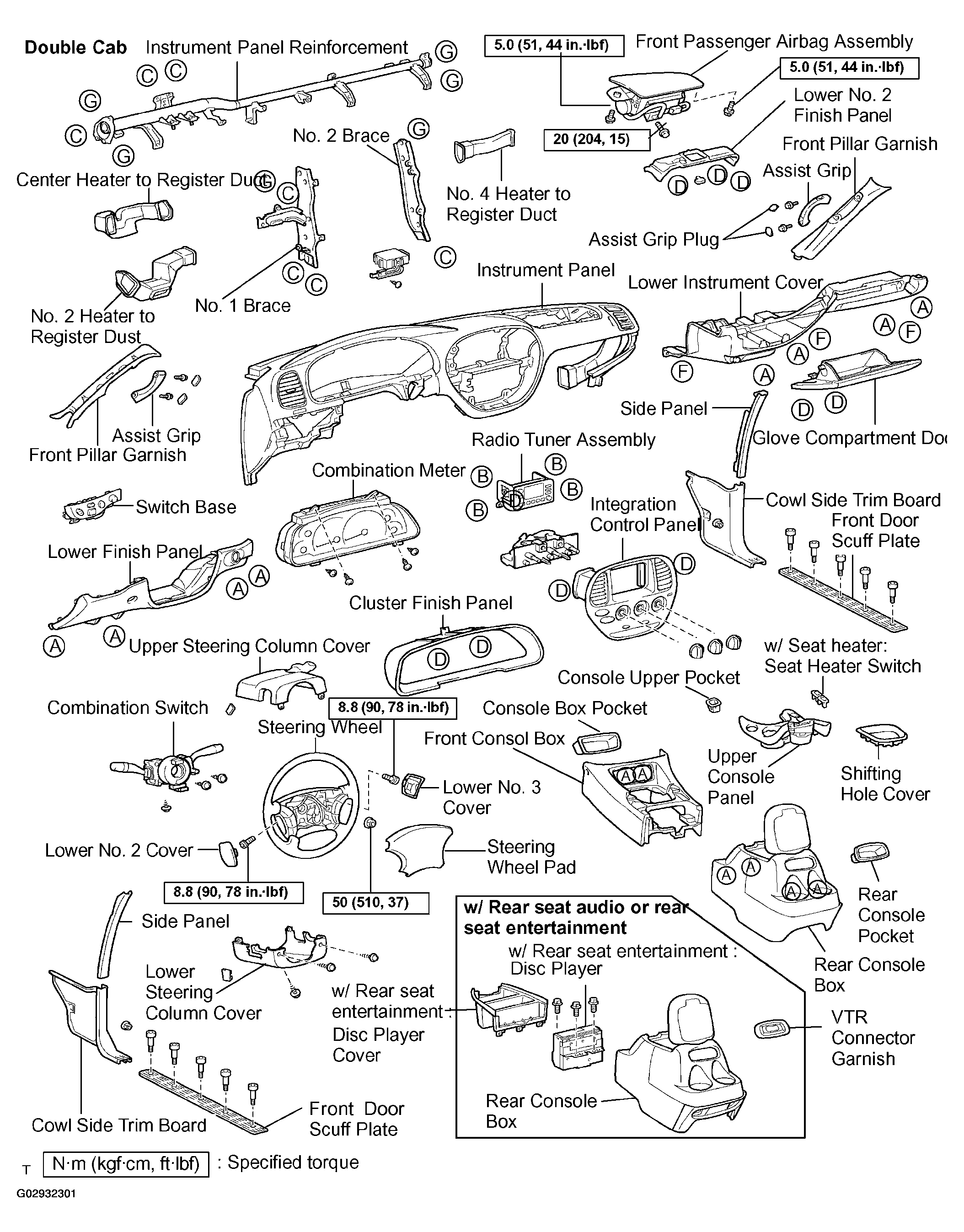

Fig 2: Identifying Instrument Panel Components (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

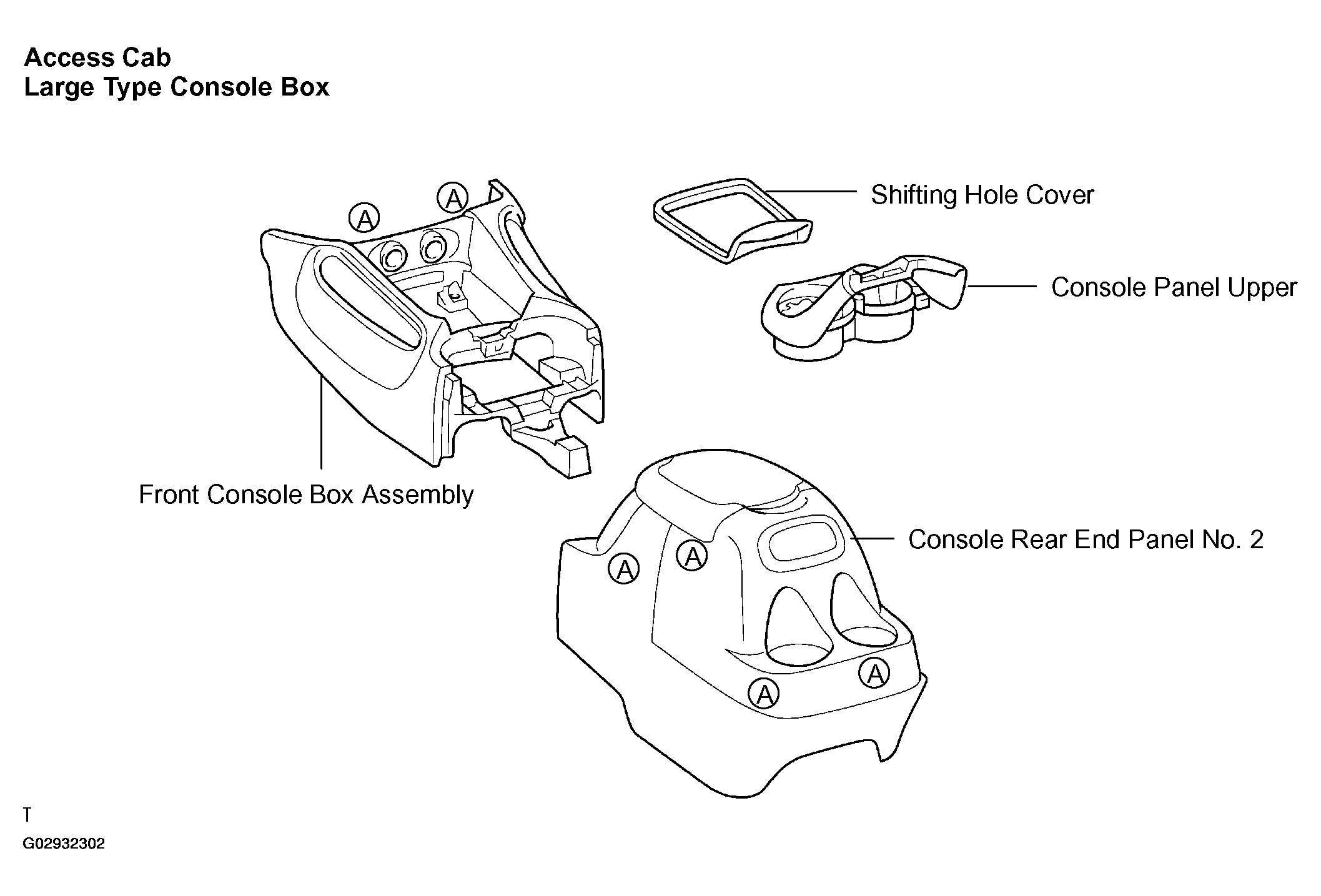

Fig 3: Identifying Large Type Console Box Components (Access Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

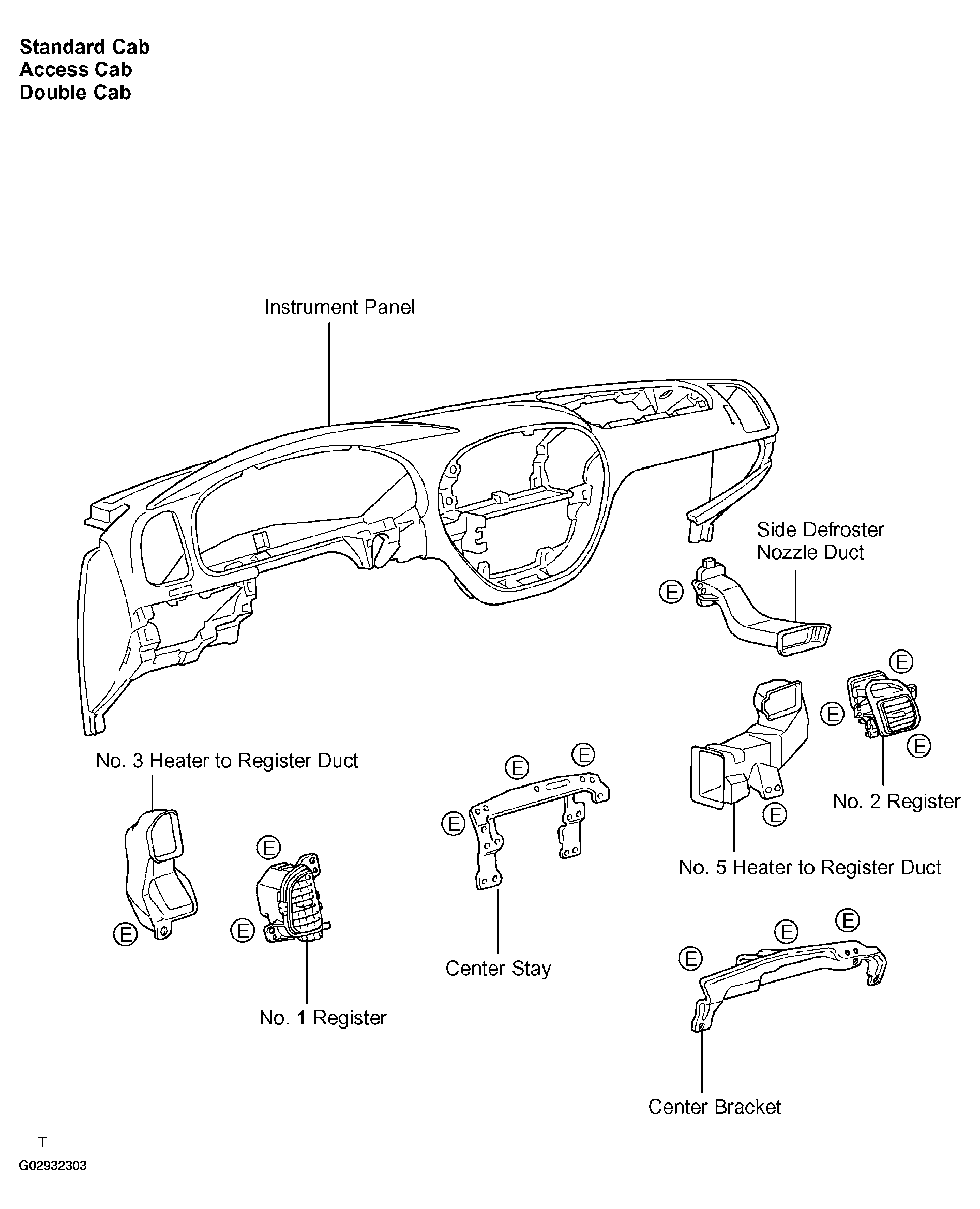

Fig 4: Identifying Instrument Panel Components (All)

The shapes and sizes of the screws, bolts and nuts are indicated in the table below. The codes (A-H) correspond to those indicated in the COMPONENTS on the previous pages.

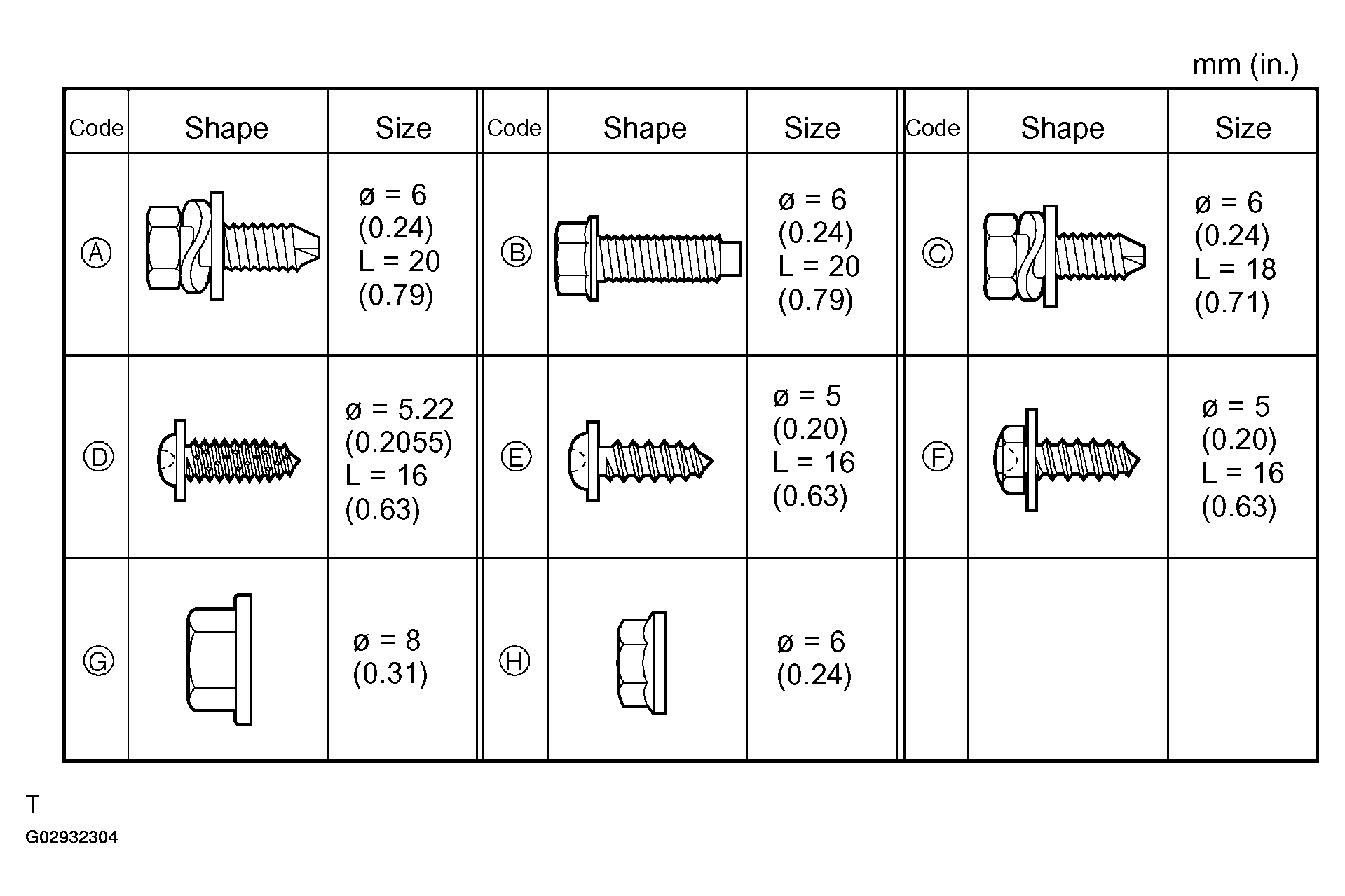

Fig 5: Fastener Shape & Size Chart
