Engine Control Module (ECM): Components

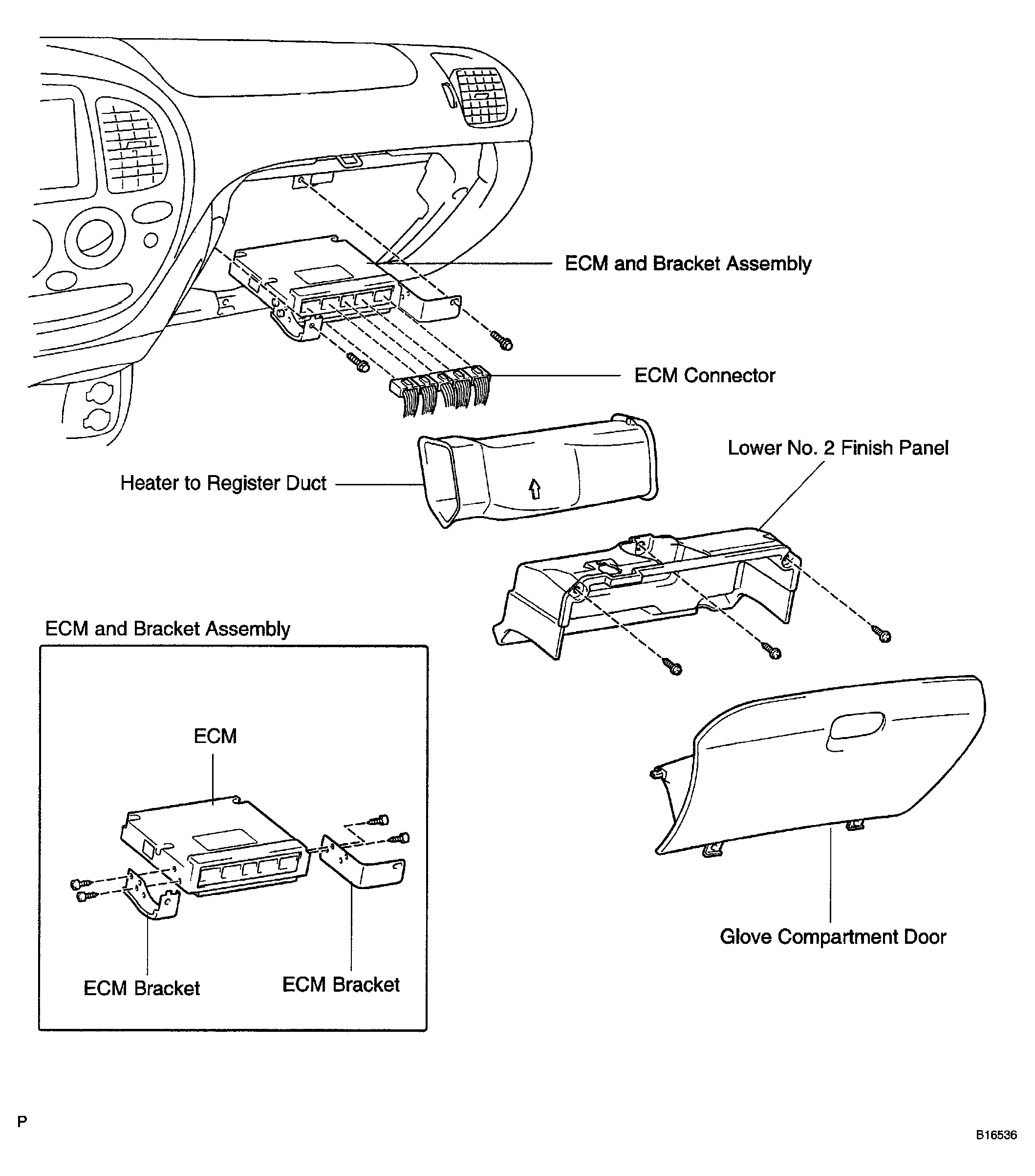

Fig 1: Identifying Engine Control Module (ECM) Components

G04208023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
