Fuel Pressure Regulator: Components

Fig 1: Exploded View Of Fuel Pressure Regulator Components (1 Of 2)
G04207952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

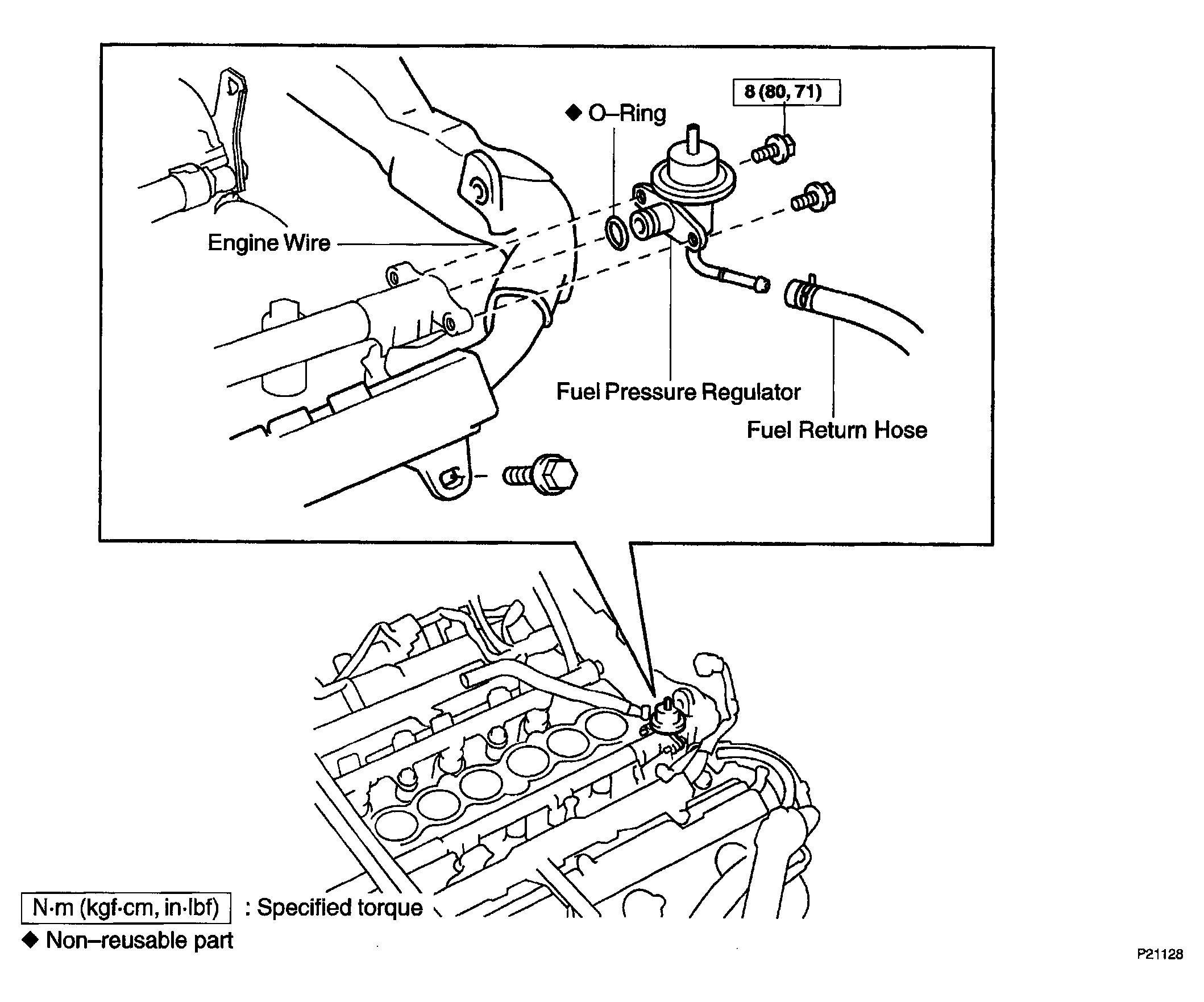

Fig 2: Exploded View Of Fuel Pressure Regulator Components (2 Of 2)
G04207953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
