SFI System (5VZ-FE): Injector: Components

Fig 1: Exploded View Of Injector Components (1 Of 2)
G04207957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

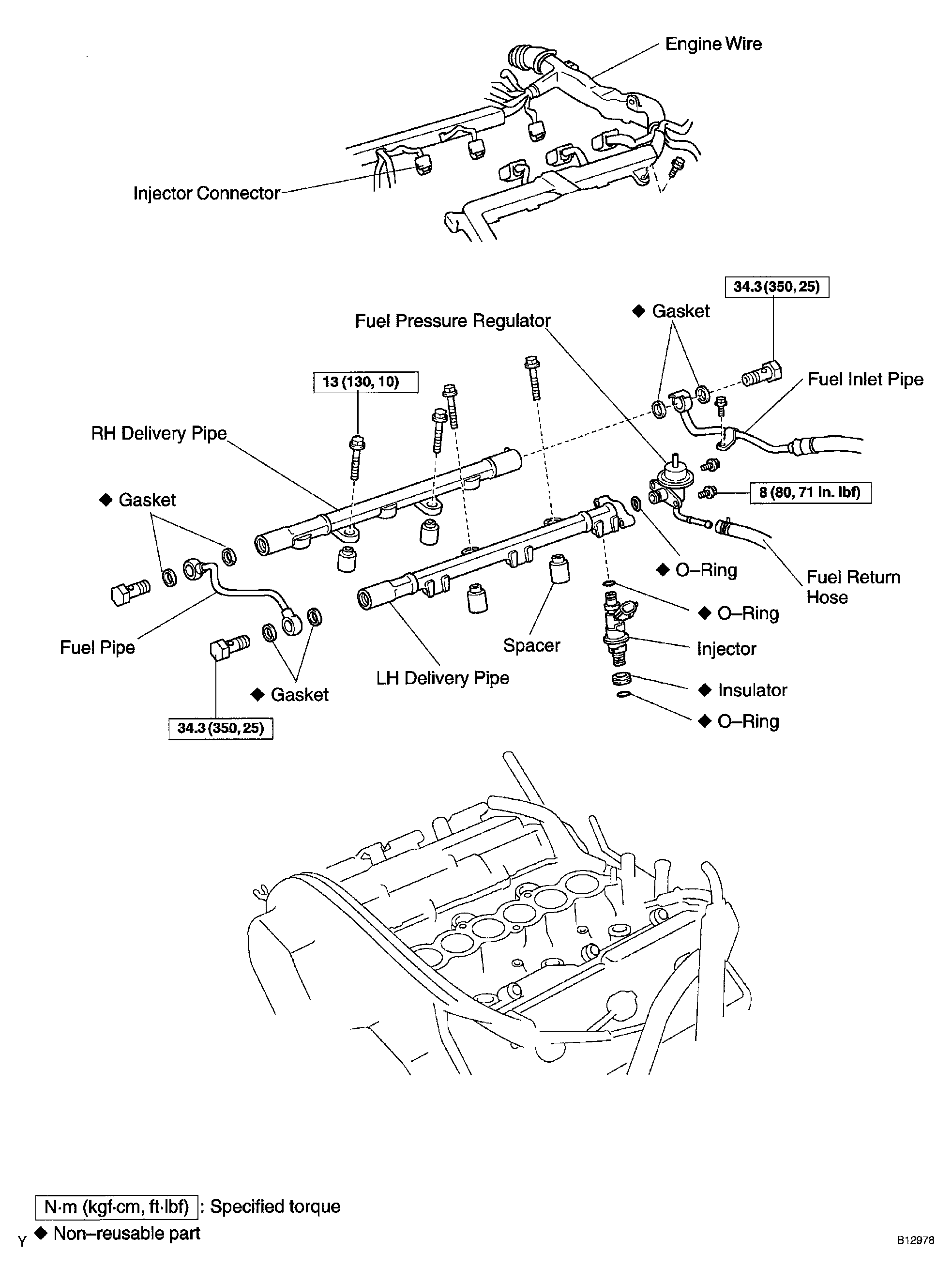

Fig 2: Exploded View Of Injector Components (2 Of 2)
G04207958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
