SFI System (5VZ-FE): Injector: Removal

  1. REMOVE AIR CLEANER HOSE
  2. REMOVE INTAKE AIR CONNECTOR (See  ENGINE UNIT (2WD) (5VZ-FE)  )
  3. REMOVE FUEL PRESSURE REGULATOR (See  REPLACEMENT  )
  4. DISCONNECT FUEL INLET PIPE
    CAUTION: Catch leaking fuel in a container.
  5. REMOVE FUEL PIPE
  6. DISCONNECT INJECTOR CONNECTORS

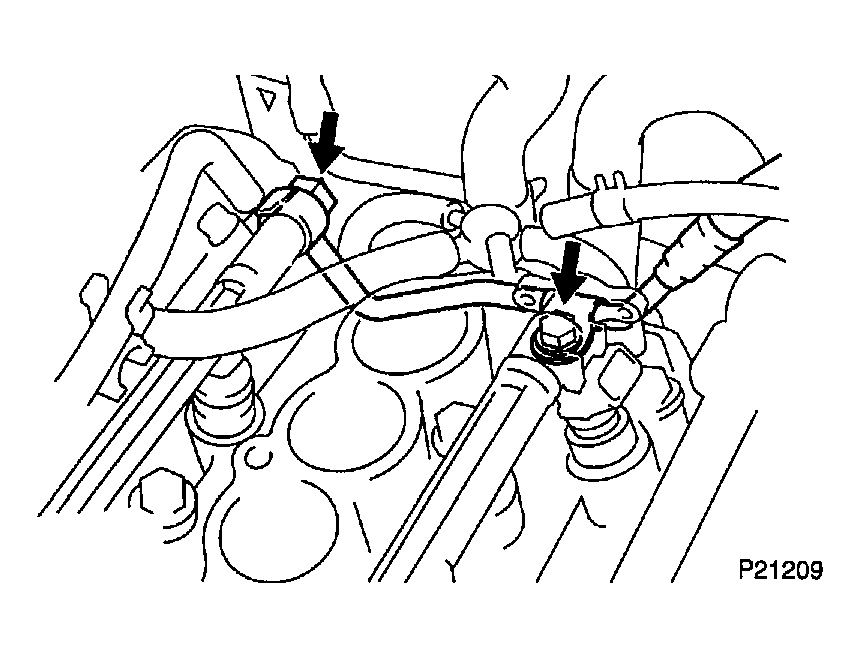

    Fig 1: Disconnecting Fuel Inlet Pipe
    G04207959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE DELIVERY PIPES AND INJECTORS
    NOTE: Be careful not to drop the injectors when removing the delivery pipes.
    1. Remove the 4 bolts and delivery pipes together with the 6 injectors
    2. Remove the 4 spacers from the intake manifold.
    3. Pull out the 6 injectors from the delivery pipes.
    4. Remove the 2 O-rings and 2 grommets from each injector.

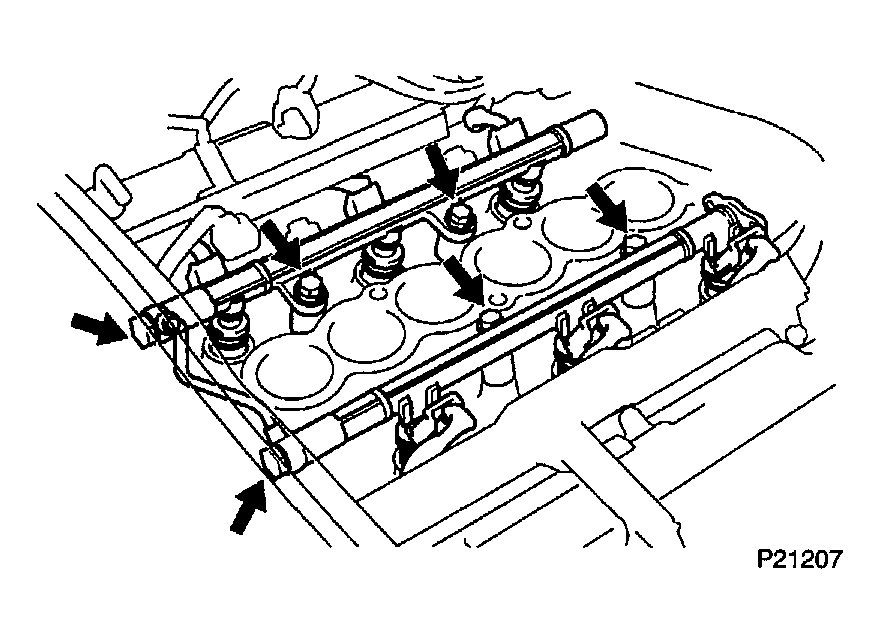

    Fig 2: Removing Bolts And Delivery Pipes
    G04207960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
