Camshaft Position Sensor (5VZ-FE): Components

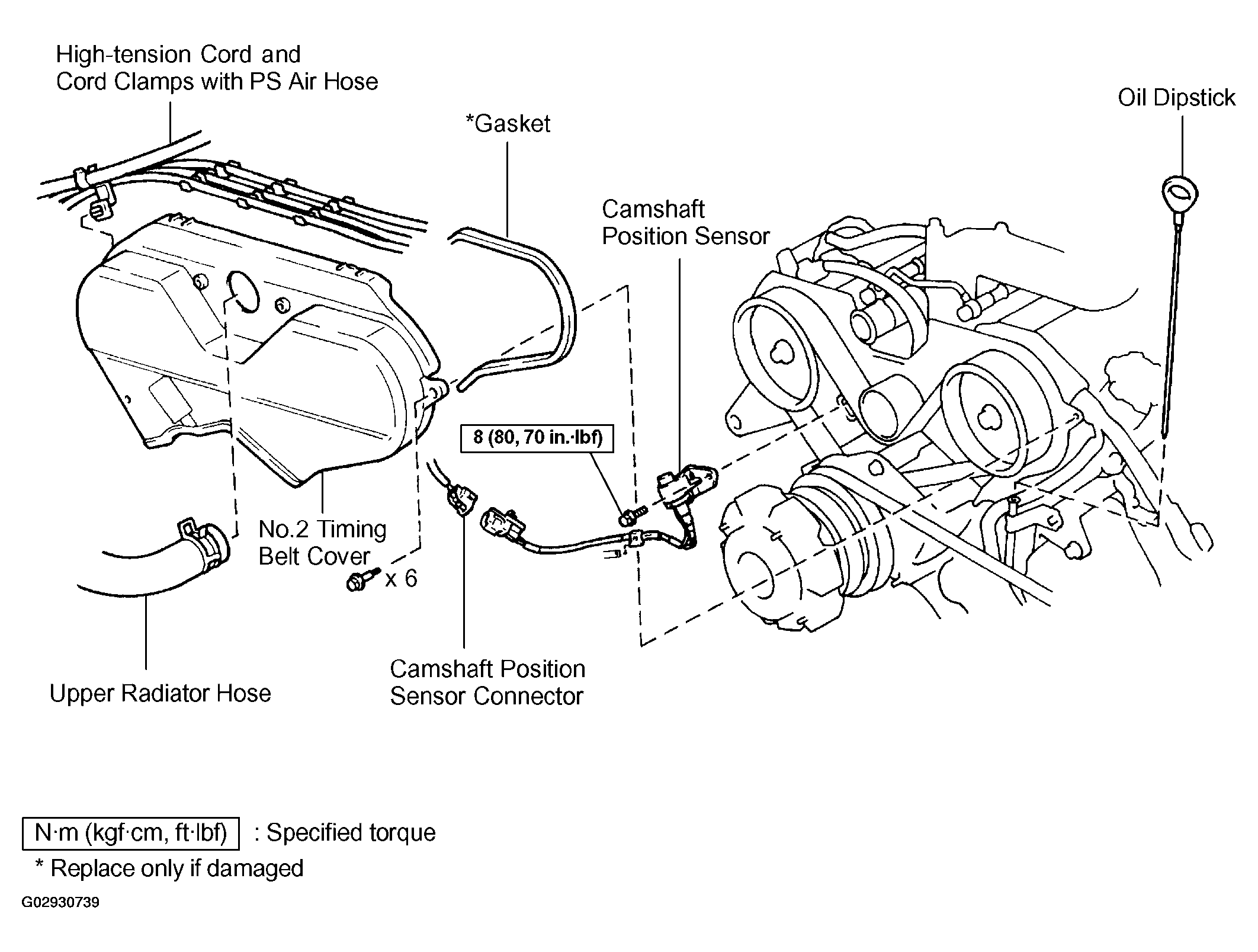

Fig 1: Identifying Camshaft Position Sensor Components

G02930739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
