Steering Column: Components

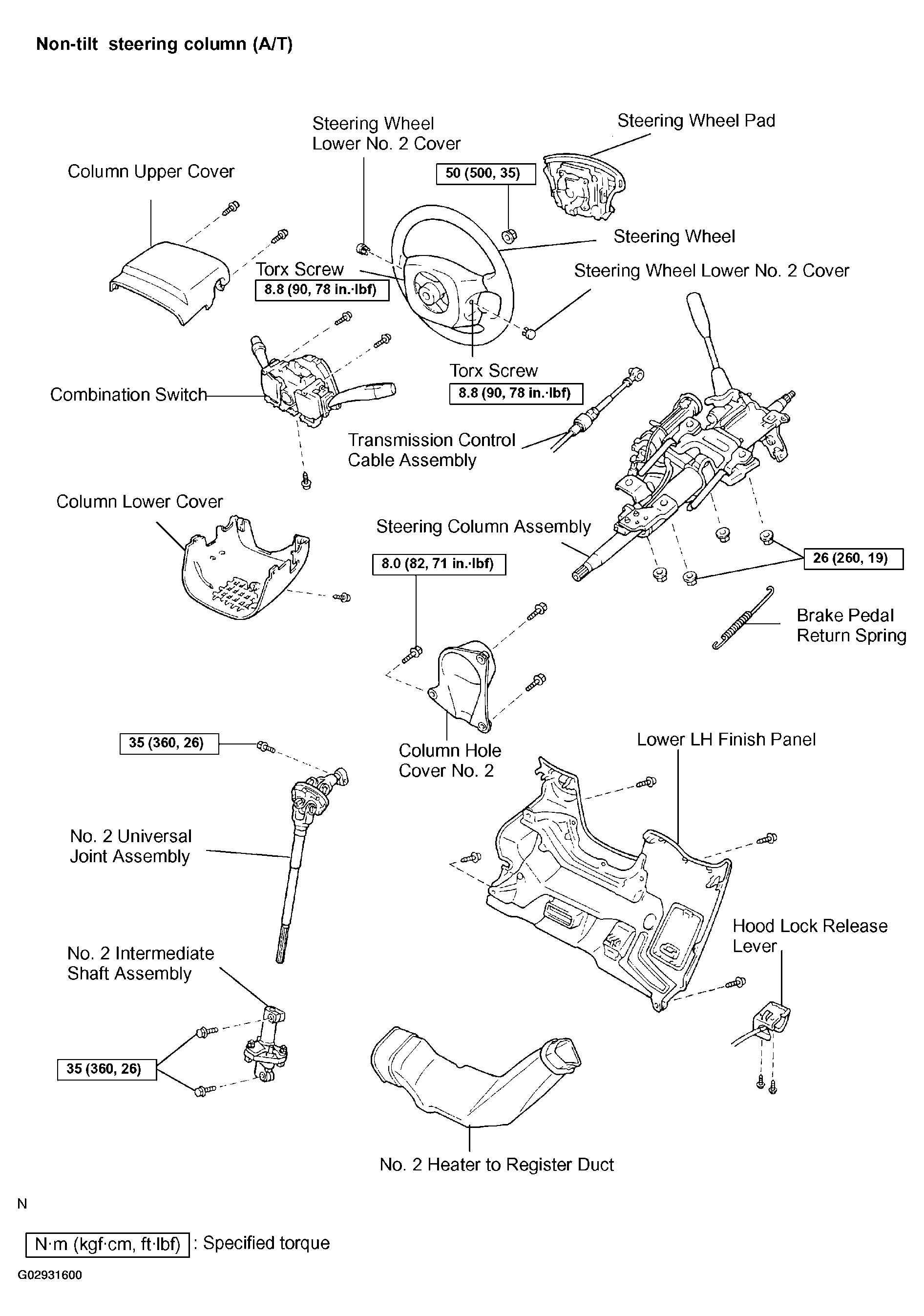

Fig 1: Exploded View Of Steering Column Assembly & Related Components (Non Tilt Steering Column - A/T)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

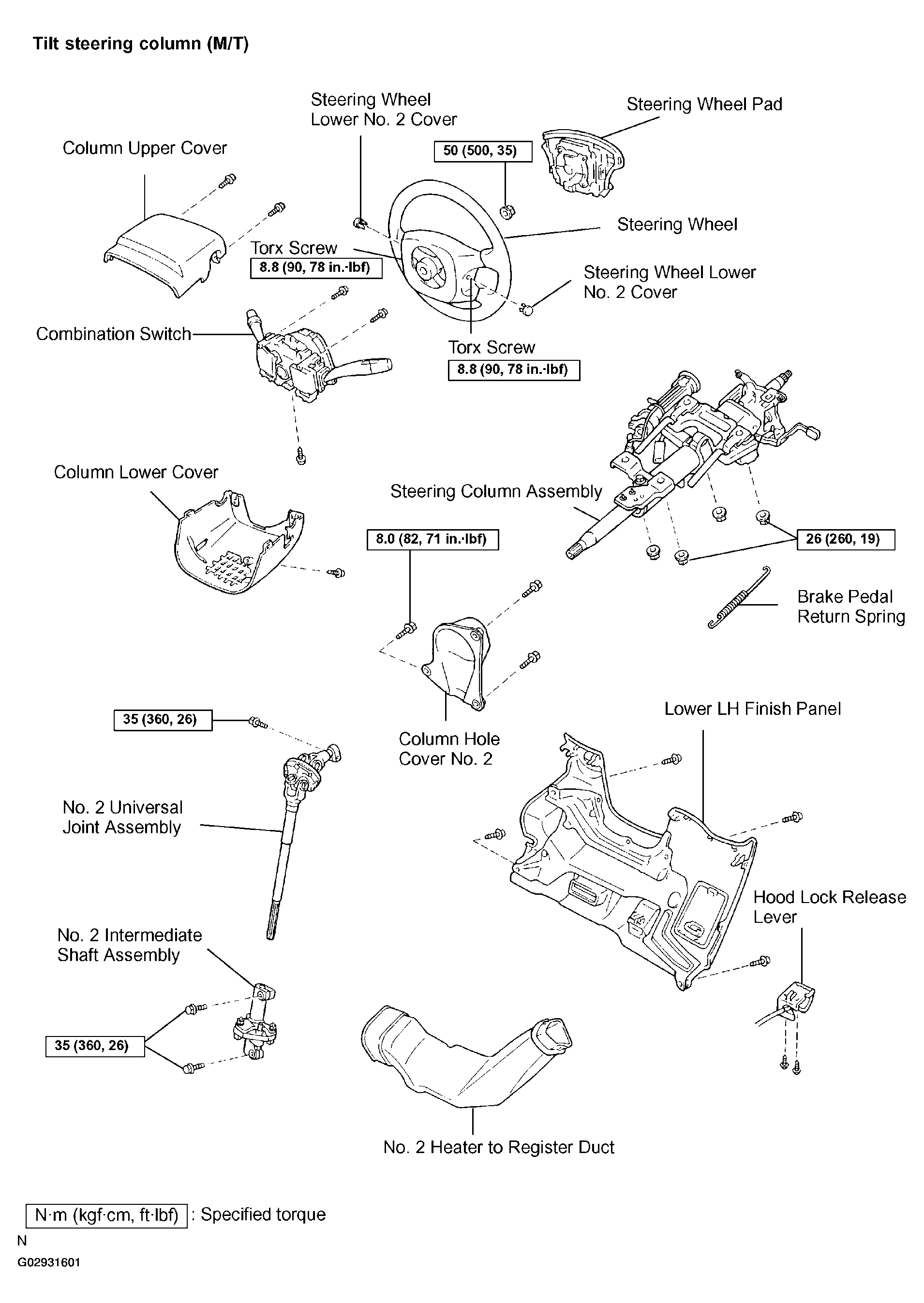

Fig 2: Exploded View Of Steering Column Assembly & Related Components (Tilt Steering Column - M/T)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

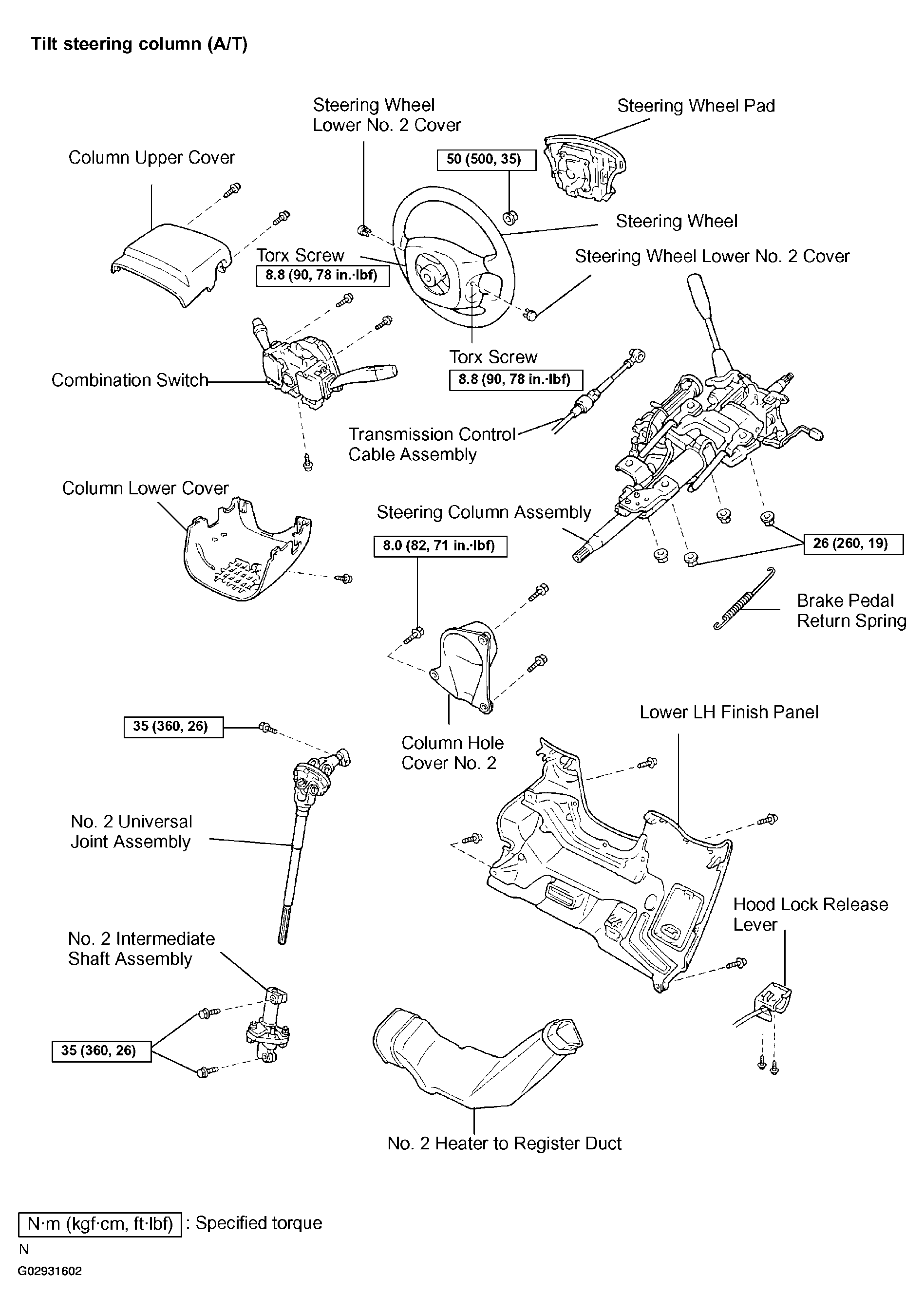

Fig 3: Exploded View Of Steering Column Assembly & Related Components (Tilt Steering Column - A/T)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

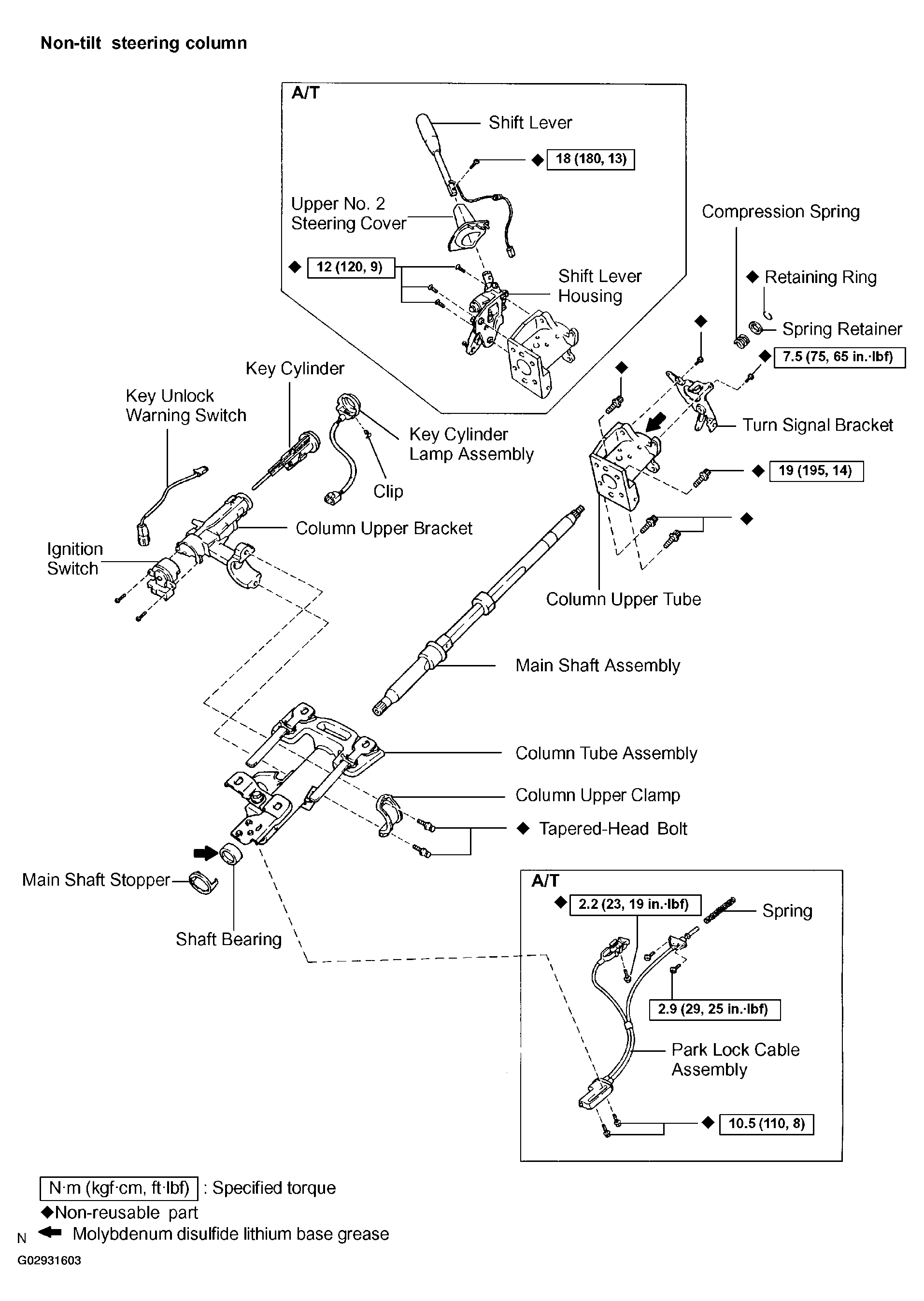

Fig 4: Exploded View Of Steering Column Assembly (Non Tilt Steering Column)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

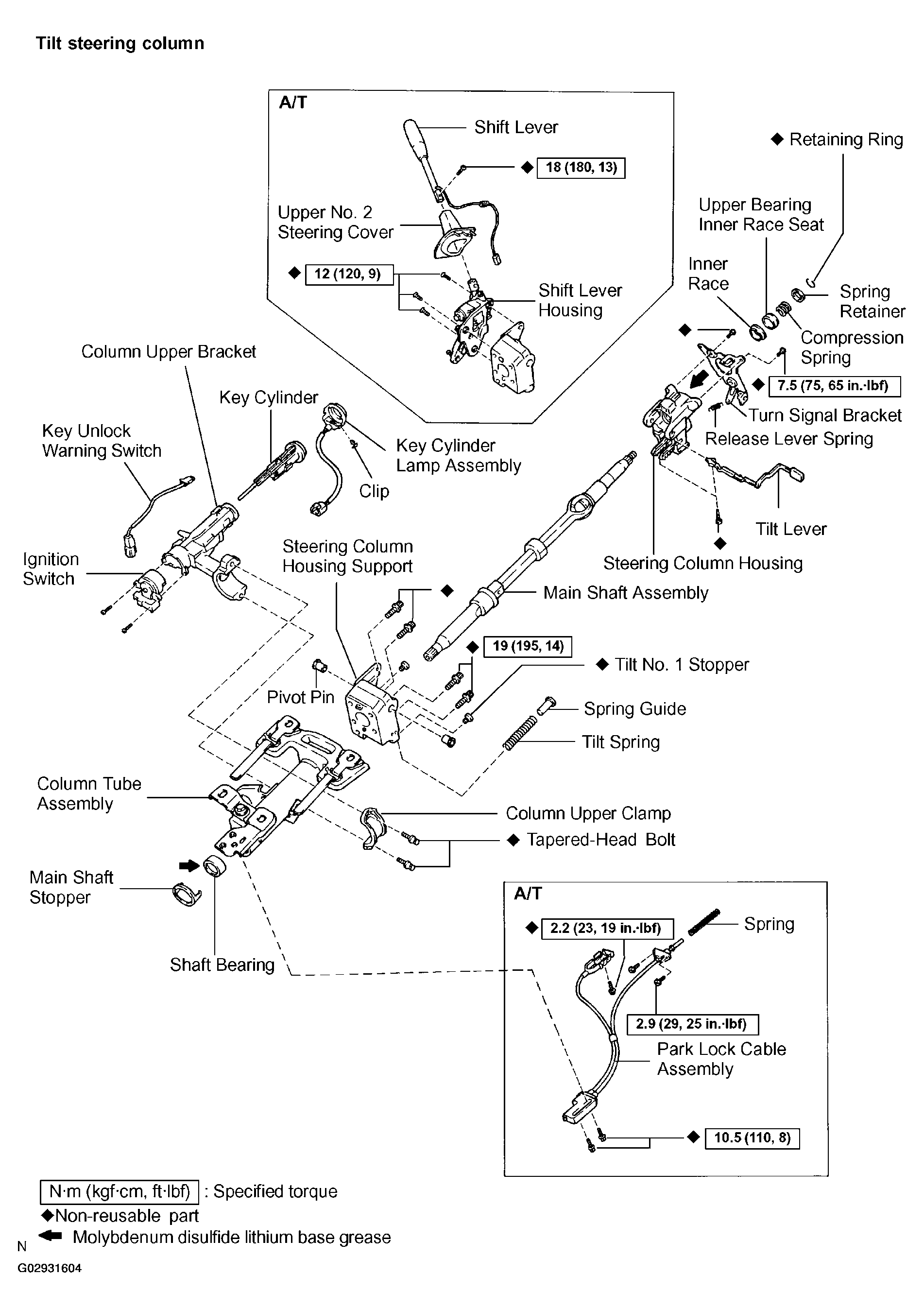

Fig 5: Exploded View Of Steering Column Assembly (Tilt Steering Column)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

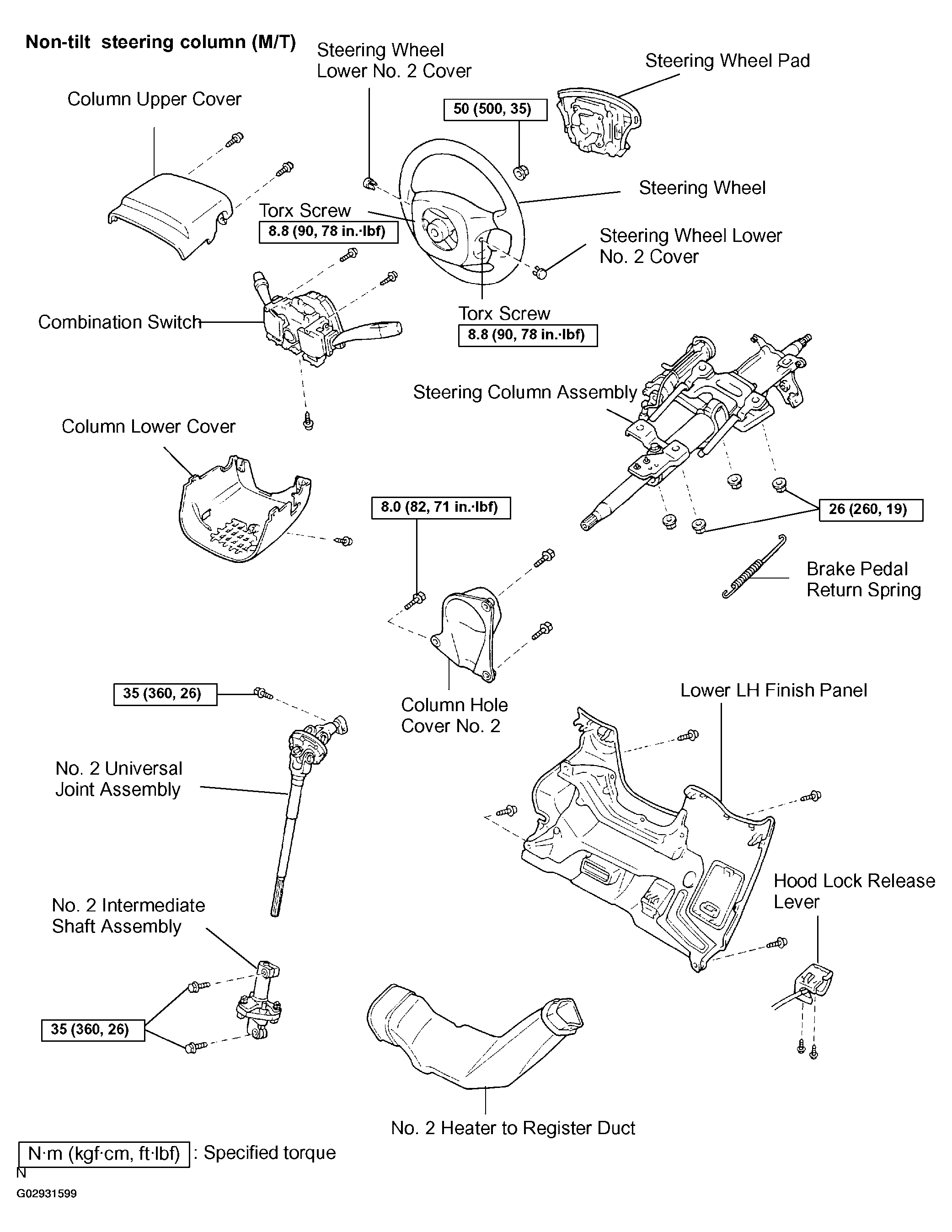

Fig 6: Exploded View Of Steering Column Assembly & Related Components (Non Tilt Steering Column - M/T)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
