Steering Column: Reassembly

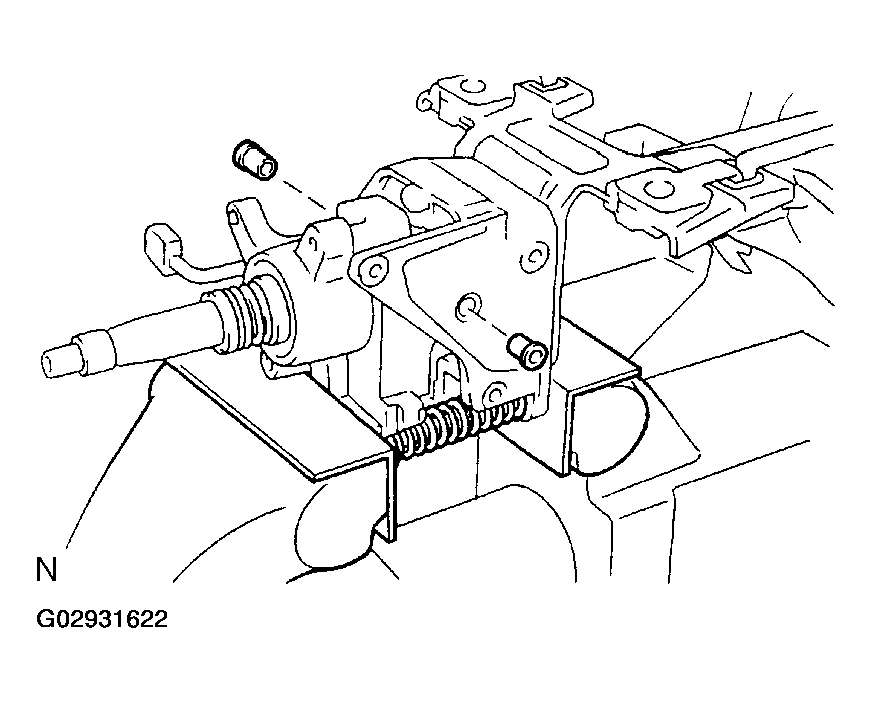

- COAT PARTS INDICATED BY ARROWS WITH MOLYBDENUM DISULFIDE LITHIUM BASE GREASE (See COMPONENTS )
- INSTALL MAIN SHAFT ASSEMBLY
- Non-tilt steering column:
Install the compression spring and spring retainer.
- Tilt steering column:
Install the inner race, upper bearing inner race seat, compression spring and spring retainer.
- Install a new retaining ring to the main shaft assembly.
- Install the washer of SST to the main shaft assembly.

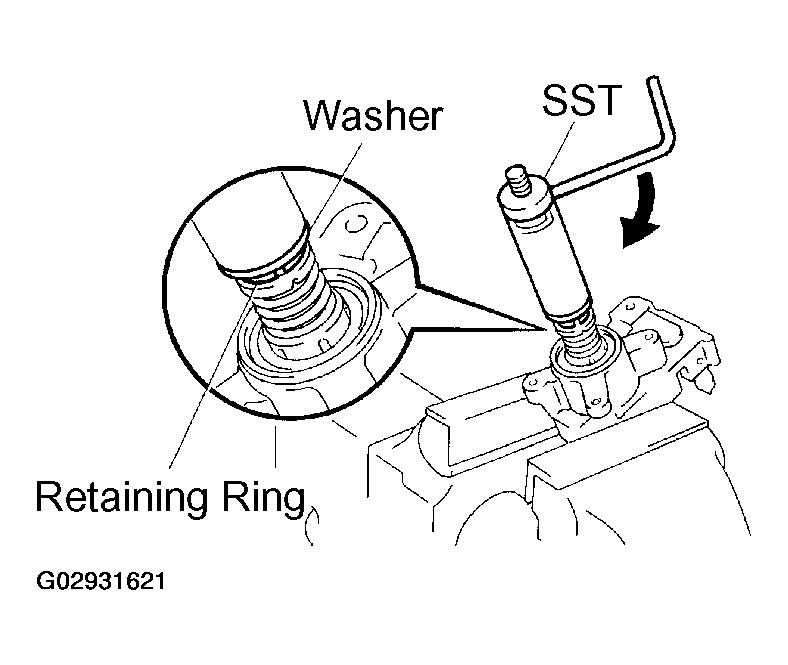

- Install SST to the main shaft assembly, as shown in the illustration.
SST 09612-07010
- Using SST, push down the retaining ring until it fits into the shaft groove and install the main shaft assembly.NOTE: Do not bend the universal joint of the shaft assembly more than 15°.
HINT:
Hold the main shaft assembly with your hand so that it does not rotate.
- Non-tilt steering column:
- INSTALL MAIN SHAFT STOPPER
- Tilt steering column: INSTALL STEERING COLUMN HOUSING SUPPORT
- Install the 2 new tilt No.1 stopper with the steering column housing support.

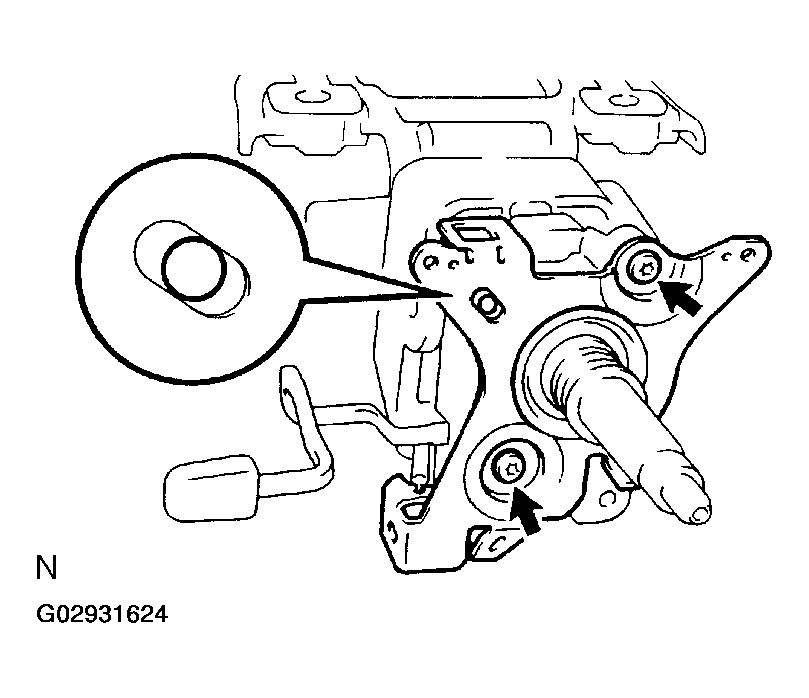

- Install 4 new torx bolts.
Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
- Non-tilt steering column: INSTALL COLUMN UPPER TUBE WITH MAIN SHAFT ASSEMBLY
- Install the column upper tube with the main shaft assembly to the column tube assembly.
- Install 4 new torx bolts.
Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
- Tilt steering column: INSTALL STEERING COLUMN HOUSING WITH MAIN SHAFT ASSEMBLY
- Install the steering column housing with the main shaft assembly into the column tube assembly.
- Install the tilt spring and spring guide.
- Using a vise to hold the steering column housing and steering column housing support.
- Temporarily install 2 new pivot pins.
- Using a punch and a hammer, tap in the pivot pin.

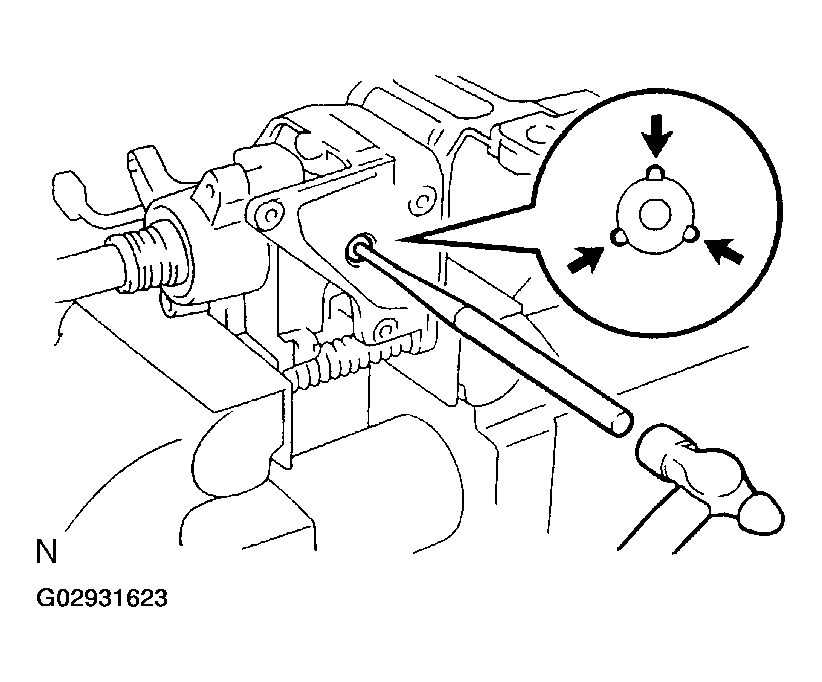

- Using a pin punch, stake on 3 places evenly around the hole as shown in the illustration.
- INSTALL TURN SIGNAL BRACKET
Install the turn signal bracket with 2 new torx screws.
Torque: 7.5 N.m (75 kgf.cm, 65 in.lbf)
HINT:
Set the hole of the turn signal bracket and projection of steering column housing.
- Tilt steering column: INSTALL RELEASE LEVER SPRING
- A/T: INSTALL PARK LOCK CABLE ASSEMBLY (See INSTALLATION )
- A/T: INSTALL SHIFT LEVER HOUSING
Install the shift lever housing with 3 new torx screws.
Torque: 12 N.m (120 kgf.cm, 9 ft.lbf)
- A/T: INSTALL UPPER NO. 2 STEERING COVER
- A/T: INSTALL SHIFT LEVER
Install the shift lever with a new torx screw.
Torque: 18 N.m (180 kgf.cm, 13 ft.lbf)
- INSTALL COLUMN UPPER BRACKET AND COLUMN UPPER CLAMP
- Install the column upper bracket and column upper clamp with 2 new tapered-head bolts.
HINT:
Insert the bracket pin into the column tube hole.

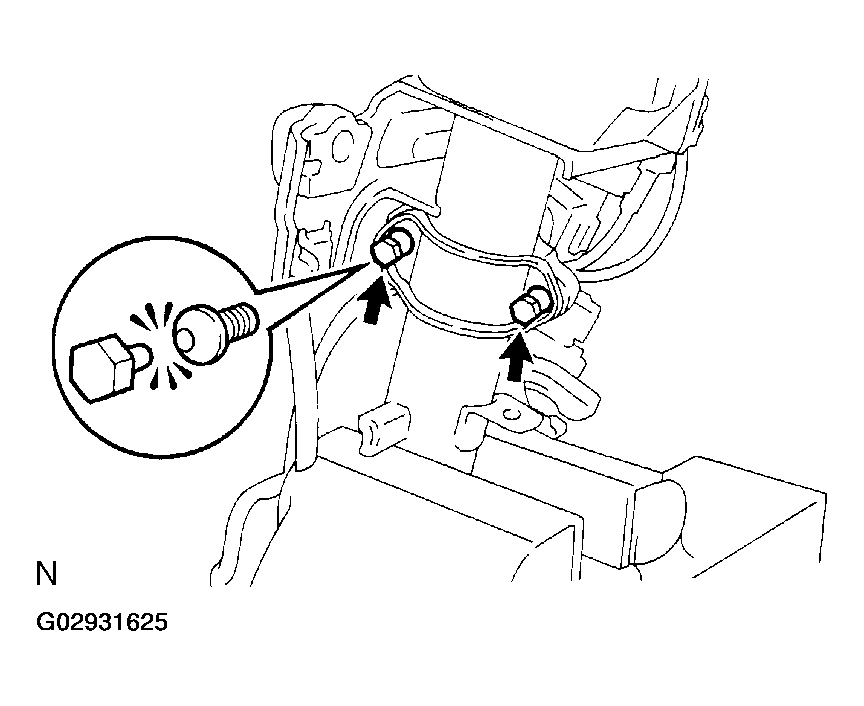

- Tighten the tapered-head bolts until the bolt heads break off.
- Install the column upper bracket and column upper clamp with 2 new tapered-head bolts.
- INSTALL KEY CYLINDER LAMP ASSEMBLY
Install the clip with the key cylinder lamp assembly.
