On-Vehicle Repair

5VZ-FE: DISCONNECT OIL COOLER PIPE
1. Remove the 3 bolts and clamps.

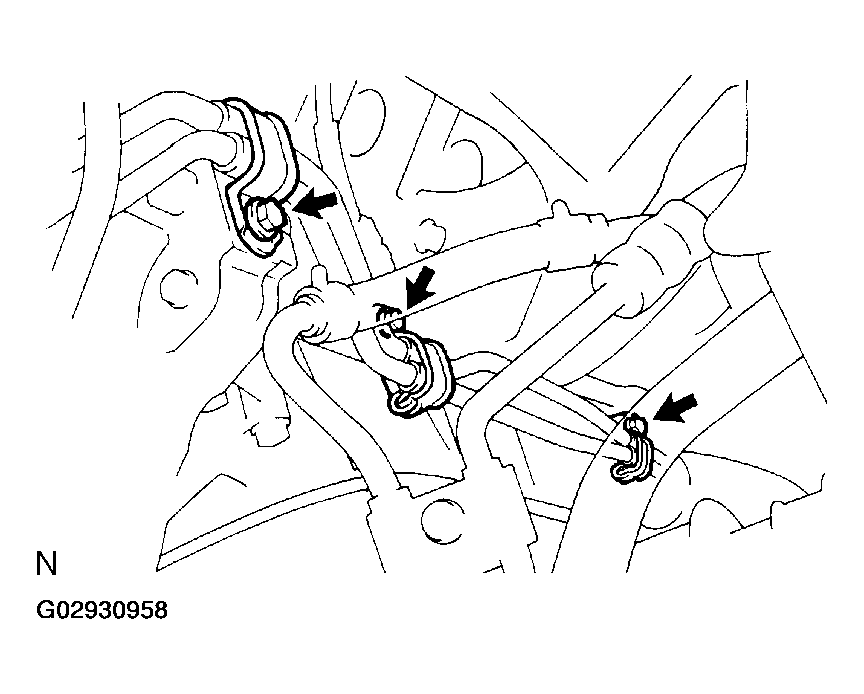

  Fig 1: Removing Oil Cooler Pipe Bolts & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the oil cooler pipe.
3. Remove the elbow from the transmission.

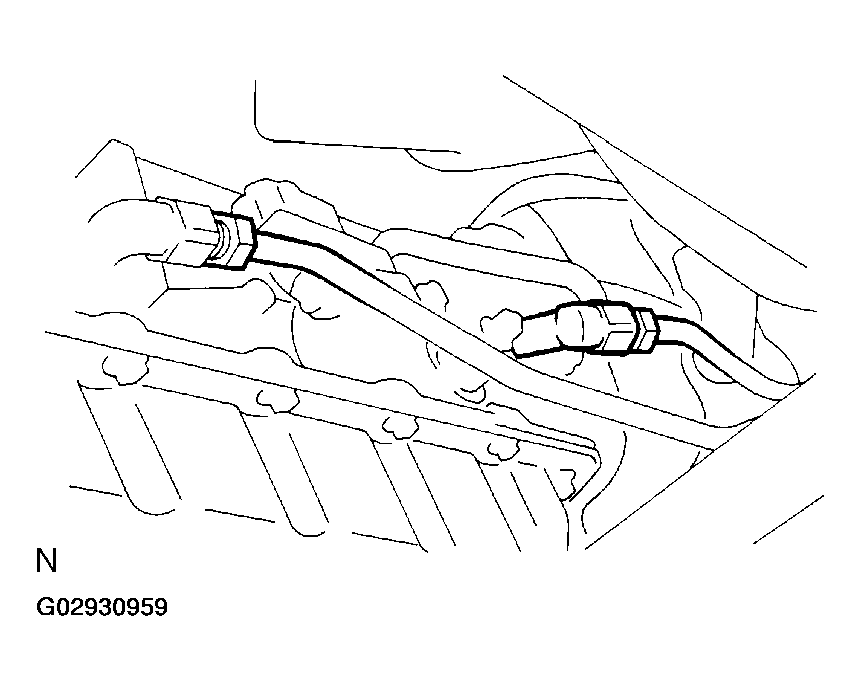

  Fig 2: Disconnecting Oil Cooler Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT ATF TEMPERATURE SENSOR CONNECTOR
REMOVE ATF TEMPERATURE SENSOR
1. Remove the ATF temperature sensor.
2. Remove the O-ring from the ATF temperature sensor.
INSTALL ATF TEMPERATURE SENSOR
1. Coat a new O-ring with ATF and install it to the ATF temperature sensor.
2. Install the ATF temperature sensor. Torque: 15 N.m (150 kgf.cm, 11 ft.lbf)
CONNECT ATF TEMPERATURE SENSOR CONNECTOR
NOTE: Be careful not to twist the wire harness.

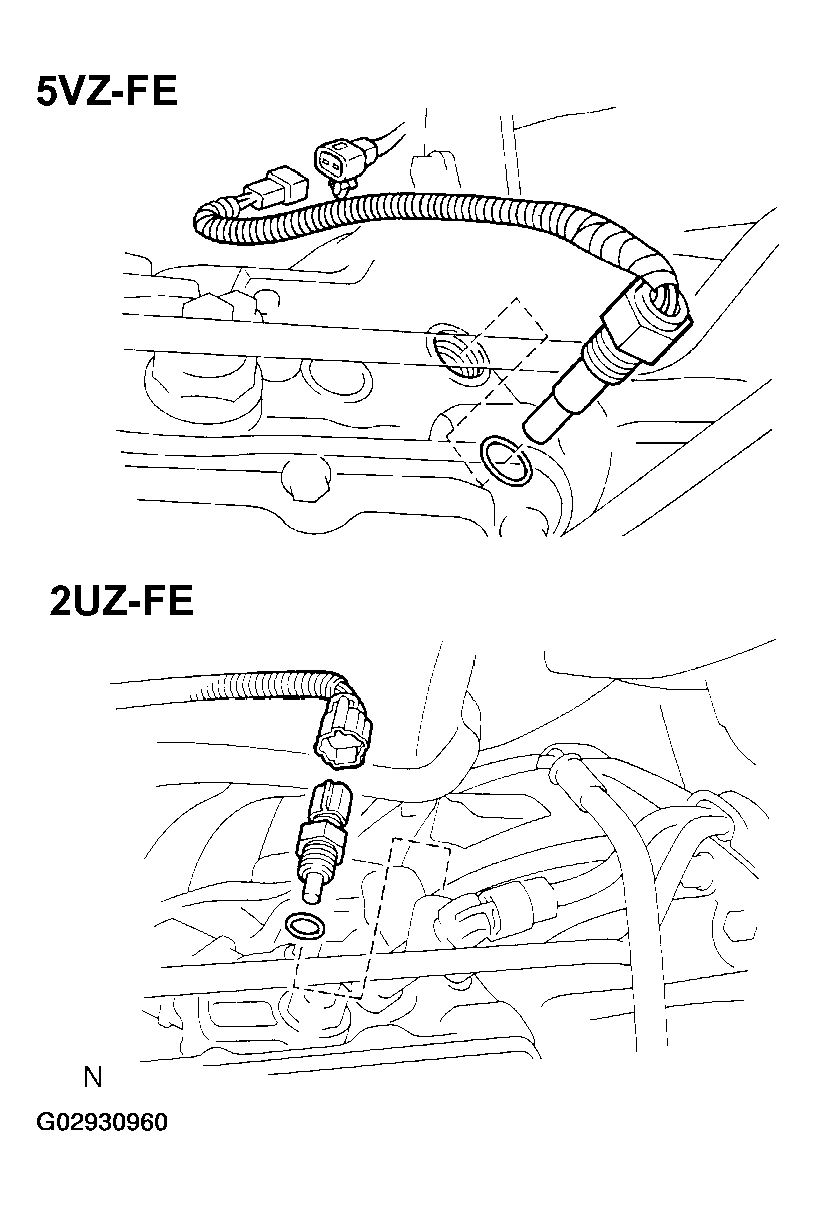

Fig 3: Removing & Installing O-Ring To ATF Temperature Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5VZ-FE: CONNECT OIL COOLER PIPE
1. Install the elbow to the transmission.
2. Connect the oil cooler pipe.
  Torque: 34 N.m (350 kgf.cm, 25 ft.lbf)

  Fig 4: Connecting Oil Cooler Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 3 clamps with the 3 bolts.
FILL ATF AND CHECK FLUID LEVEL (See SERVICING )

Fig 5: Installing Oil Cooler Pipe Clamps & Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
