Automatic Transmission System
>>
Operation
Automatic Transmission System: Operation

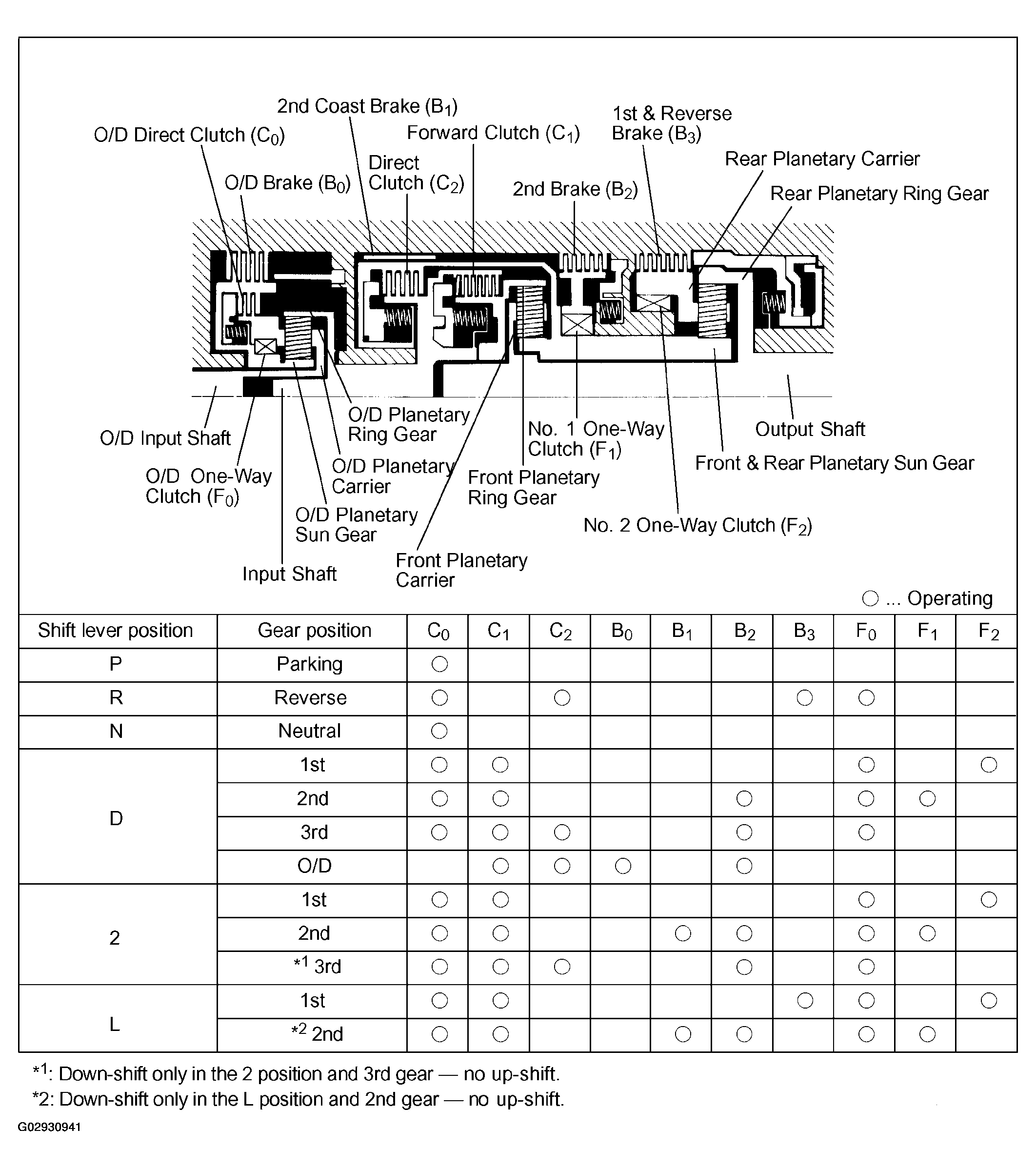

Fig 1: Cross Sectional View Of Automatic Transmission System Along With Operating Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
