Home >> Toyota >> 2005 >> Avalon XL >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Preparation >> Brake >> Preparation >> SST >> Notes

Engine Control Systems: Preparation: Brake: Preparation: SST: Notes

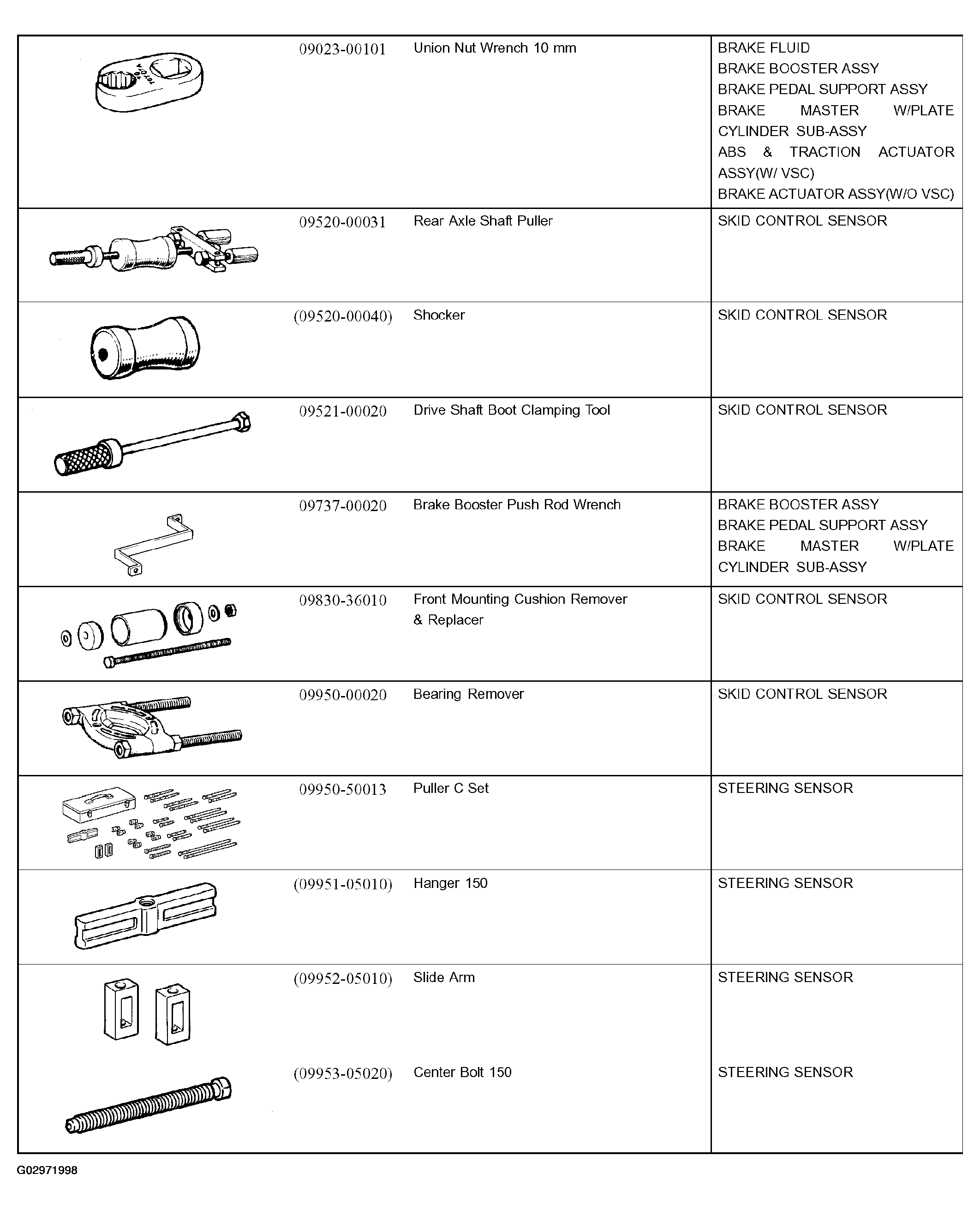

Fig 1: Identifying SST Tool (1 Of 2)
G02971998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

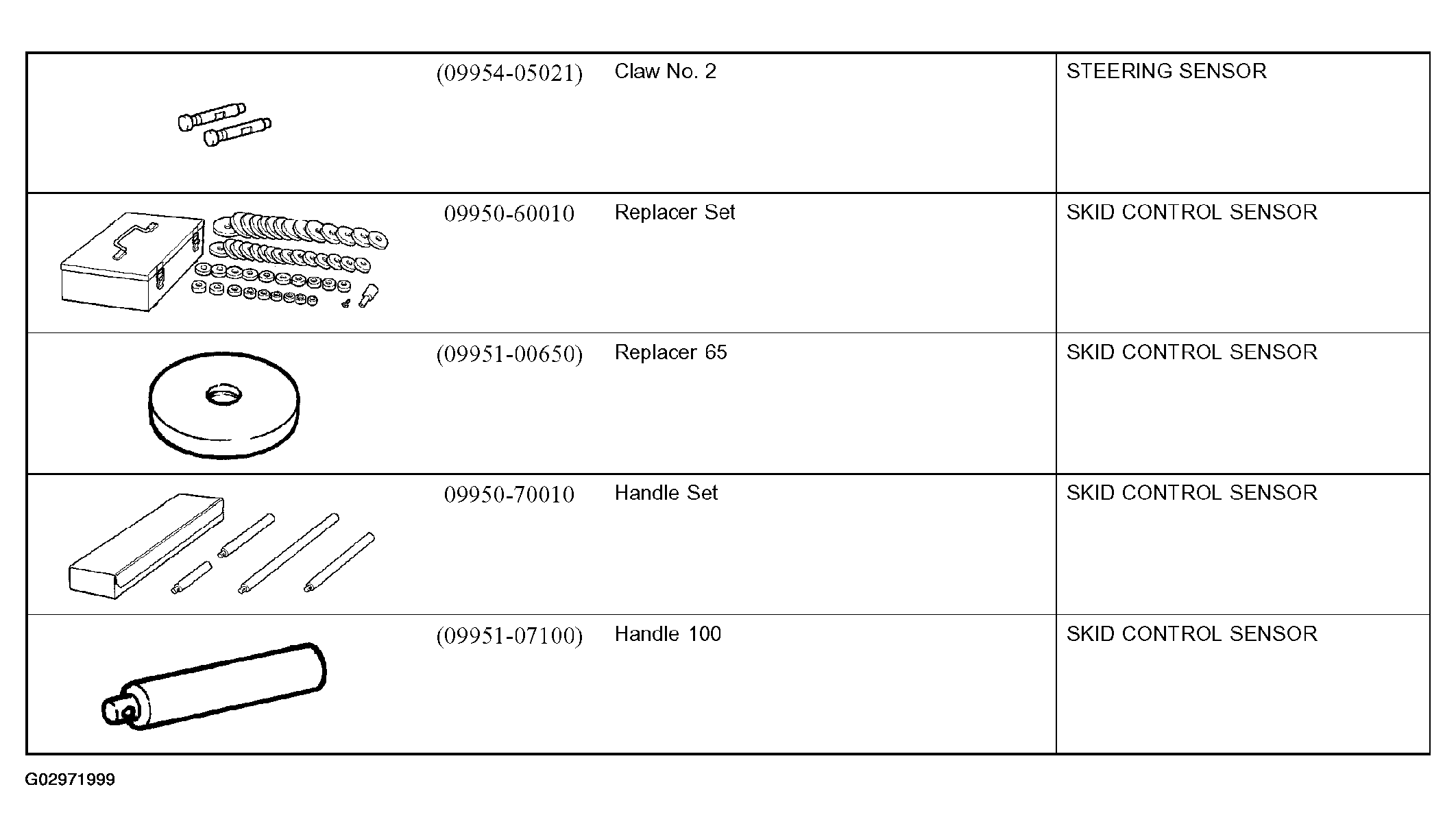

Fig 2: Identifying SST Tool (2 Of 2)
G02971999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
