Customize Parameters

HINT:

The following items can be customized.

NOTE:
  • When the customer requests a change in a function, first make sure that customization of the function (s) is possible.
  • Be sure to record the current settings before customizing.
  • When troubleshooting a function, first make sure that the function is not set to OFF.
  1. Using hand-held tester

    WIRELESS DOOR LOCK

    WIRELESS DOOR LOCK CUSTOMIZE PARAMETERS

    Display (Item) Default Contents Setting
    OPEN DOOR WARN (Open door warning) ON Function to make the buzzer sound for 10 seconds if the door is open when locking with the wireless door lock function. ON/OFF
    WIRELESS OPER (Wireless door lock control function) ON ON/OFF of the wireless door lock function. ON/OFF
    ALARM FUNCTION ((1)) (Panic function) ON Function to operate the theft deterrent system by keeping pressing the lock button of the transmitter for 2.5 seconds. If there is a panic button, press the panic button instead of the lock button. ON/OFF
    UNLOCK/2 OPER (2 times operation wireless unlock) ON Function to unlock the driver's door by pressing the unlock button of the transmitter once and to unlock all the doors by pressing it twice. In the OFF setting, pressing one time makes all the doors unlocked. ON/OFF
    LUGGAGE COMPARTMENT LID OPER (Trunk lid open function type) 0.8 s PR To change the operation method of opening the luggage compartment by the transmitter. 1 TIME/2 TIMES/0.8 s PR/OFF
    AUTO LOCK DELAY (Auto lock time) 30 s To change the time until re-locking after unlocking with the wireless door lock function. 60 s/30 s
    HAZARD AND BACK (Hazard answer back of the wireless) ON Function to light up the all turn signal lights once when pressing the transmitter lock button and twice when pressing the unlock button. ON/OFF
    WIRLS BUZZ RESP (Wireless buzzer response) ON ON/OFF of the wireless buzzer response function. ON/OFF
    (1) w/Theft deterrent system

    WARNING (COMBINATION METER)

    WARNING (COMBINATION METER) CUSTOMIZE PARAMETERS

    Display (Item) Default Contents Setting
    SMART WARN3 (Warn a key is taken out by fellow passengers) ON Function to warn that a key is taken out by fellow passengers (it means the key is taken out from except the driver's door) when ignition is not OFF. ON/OFF
    KEY LOW-BATT WRN (Warn when the key battery becomes weak) ON Setting a warning function for the first time when a key battery becomes weak. ON/OFF
    KEY REMND VOLUM (Key reminder buzzer volume) LARGE To change the volume of the key reminder buzzer. LARGE/MEDIUM/SMALL
    KEY REMND SOUND (Key reminder buzzer sound) NORMAL To change the frequency of the key reminder buzzer. NORMAL/FAST/SLOW/0 s

    SMART

    SMART CUSTOMIZE PARAMETERS

    Display (Item) Default Contents Setting
    SMART IGNITION (SMART ignition available area) ALL Function to choose the available area for smart key to start E/G and cancel the Steering Lock. FRONT/ALL
    PARK WAIT TIME (Wait time to permit opening door after locking) 2.5 s Setting a wait time to permit opening a door after it being locked with SMART entry. 0.5 s/1.5 s/2.5 s/5 s
    SMART TRUNK (Luggage compartment opening operation when vehicle is locked) ON Function to open a luggage compartment when the driver has the key and press the luggage open button. ON/OFF
    KEY LOW-BATT WRN ON Function to set a warning function for the time when a key battery becomes weak. ON/OFF
  2. Entry Unlock Mode Switching
    1. Check that the power source mode is OFF and the LED on the key does not blink. Press all buttons other than LOCK and UNLOCK on the key at the same time for approximately 5 seconds while the key is in the actuation area.
    2. Certification ECU receives this signal from the tuner and switches the entry unlock mode.
    3. The certification ECU sounds the buzzer of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.

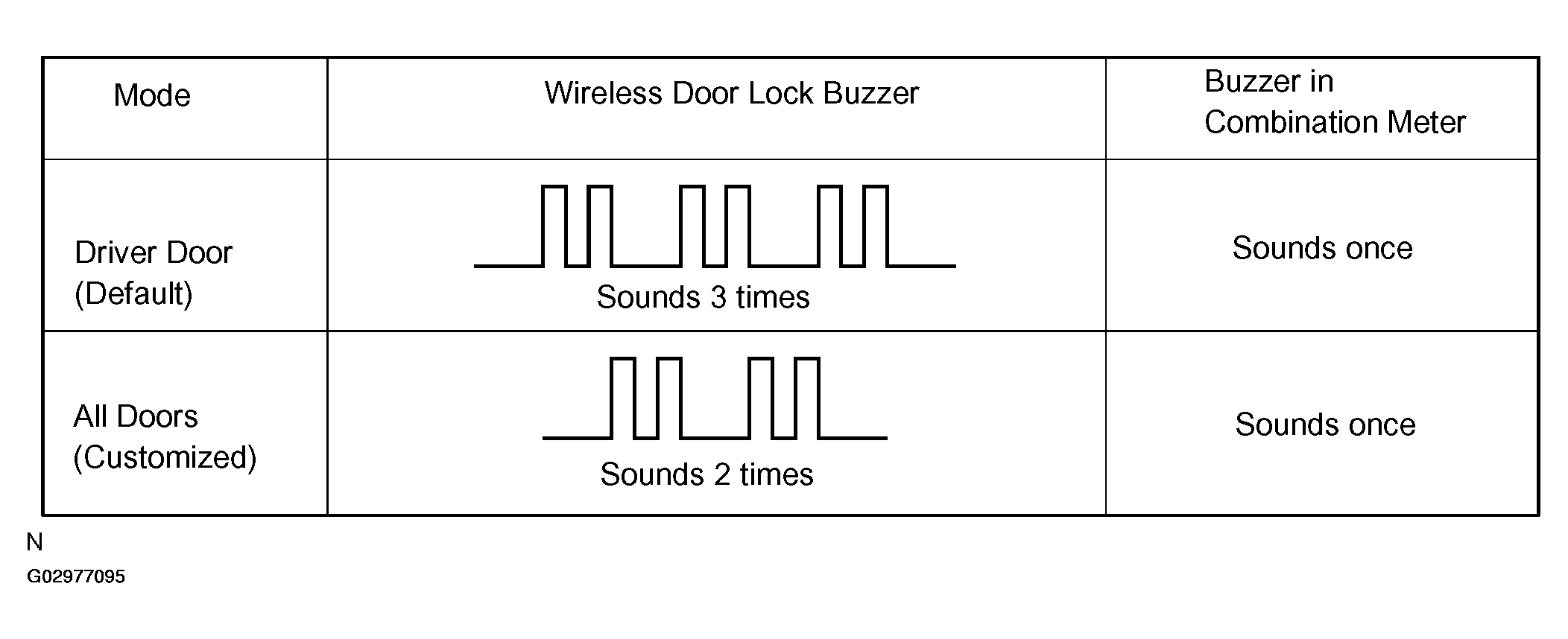

      Fig 1: Identifying Blinking Pattern Of Wireless Door Lock Buzzer
      G02977095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • The function only switches the entry unlock of the smart key system. It does not switch the unlocking of the wireless door lock remote control.
      • The entry unlock mode cannot be changed for 5 seconds after the previous change.
  3. Key Cancel

    Key cancel is operated when certain operations are performed with the vehicle in the following conditions.

    • A function that allows you to lock/unlock the doors and open the luggage compartment by simply carrying a key.
    • A function that causes the vehicle to beep if keys are left inside the vehicle or luggage compartment and a door is closed.
    • A function that recalls the position of the driver's seat and side rear view mirrors.
    1. The operation procedures are as follows:
      1. Unlock twice with the UNLOCK button of the key.
      2. Open the driver's door within 5 seconds, from 1) operation.
      3. Unlock twice with the UNLOCK button of the key within 5 seconds, from 2) operation.
      4. Repeat open --> close twice for the driver door within 30 seconds, from 3) operation and open again.

        (Driver Door: Open --> Close --> Open --> Close --> Open)

      5. Unlock twice with the UNLOCK button of the key within 5 seconds, from 3) operation.
      6. Repeat open -> close once for the driver door within 30 seconds, from 3) operation and open again.

        (Driver Door: Open --> Close --> Open)

      7. Close the driver door within 5 seconds, from 6) operation.

        When key cancel is activated, the wireless door lock buzzer sounds once.

        To return to the original condition, perform the procedures again. When key cancel is returned, the wireless door lock buzzer sounds twice.
