DTC Check/Clear

  1. CHECK DTC
    1. Connect the hand-held tester to the DLC3.
    2. Turn the engine switch on (IG).
    3. Read the DTCs by following the directions on the tester screen.

      HINT:

      Refer to the hand-held tester operator's manual for further details.

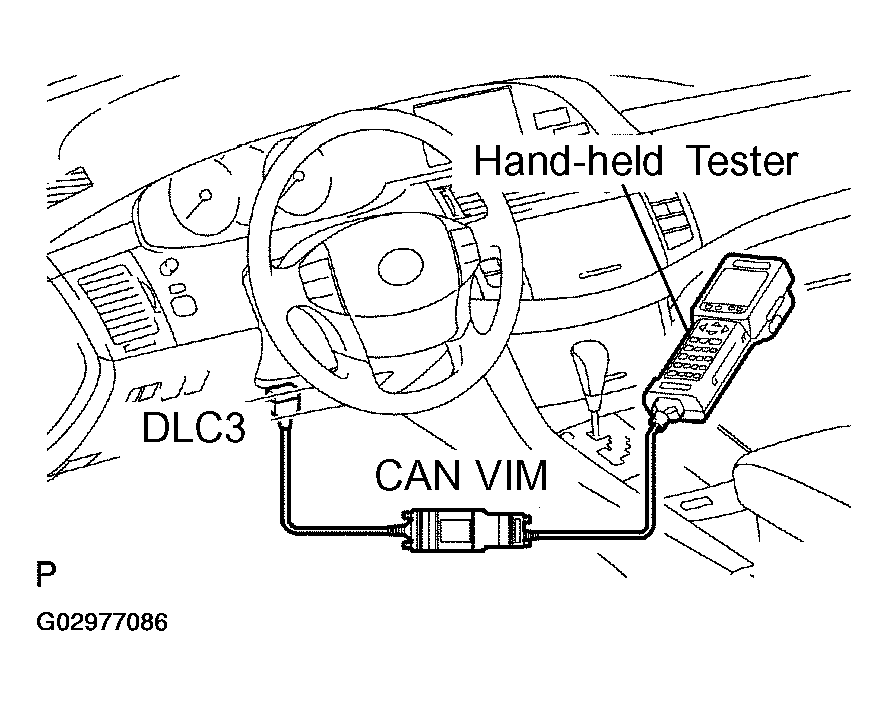

      Fig 1: Connecting Hand Held Tester To DLC3
      G02977086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CLEAR DTC
    1. Connect the hand-held tester to the DTC3.
    2. Turn the engine switch on (IG).
    3. Erase the DTCs by following the directions on the tester screen.

      HINT:

      Refer to the hand-held tester operator's manual for further details.
