Data List/Active Test

  1. DATA LIST

    HINT:

    By accessing the DATA LIST displayed on the hand-held tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST is the first step of troubleshooting and is one method to shorten labor time.

    1. Connect the hand-held tester to the DLC3.
    2. Turn the engine switch on (IG).
    3. Following the display on the tester, select "DATA LIST".

    PWR SOURCE CTRL (Power source control ECU):

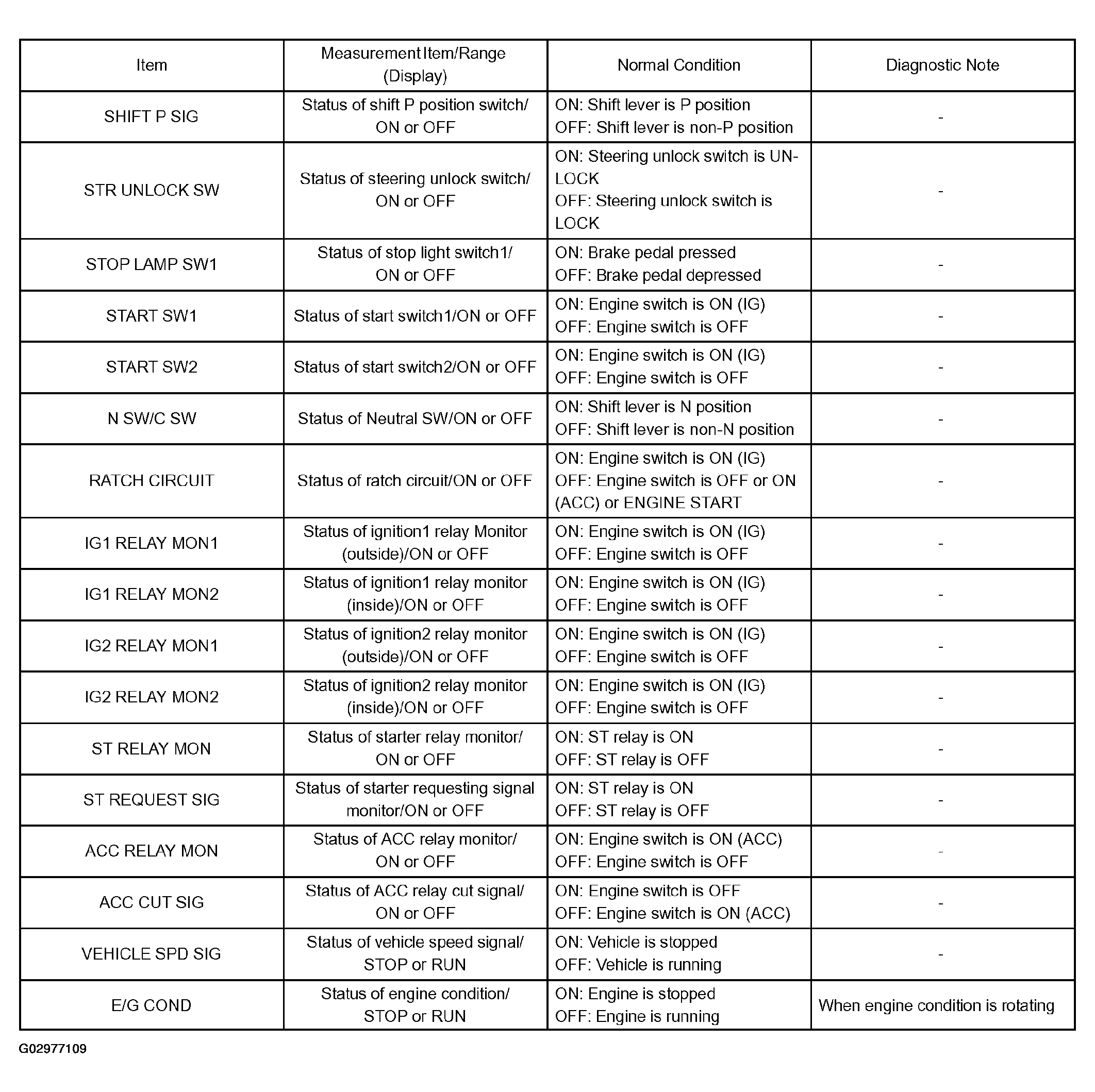

    Fig 1: PWR Source CTRL (Power Source Control ECU) Data List (1 Of 2)
    G02977109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

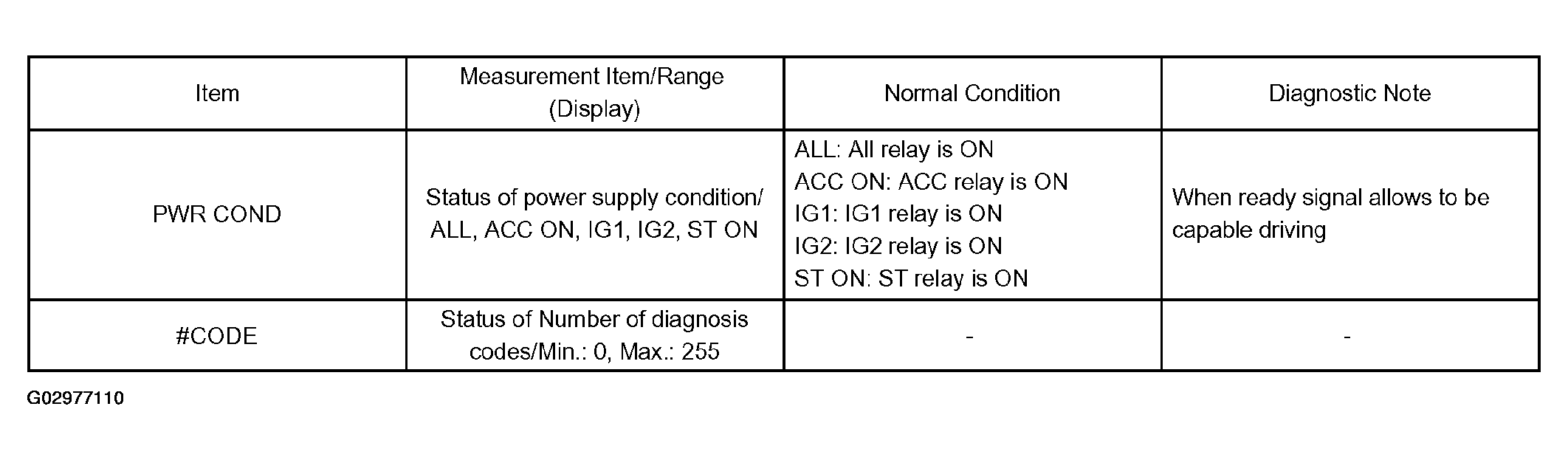

    Fig 2: PWR Source CTRL (Power Source Control ECU) Data List (2 Of 2)
    G02977110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    SMART KEY (Certification ECU):

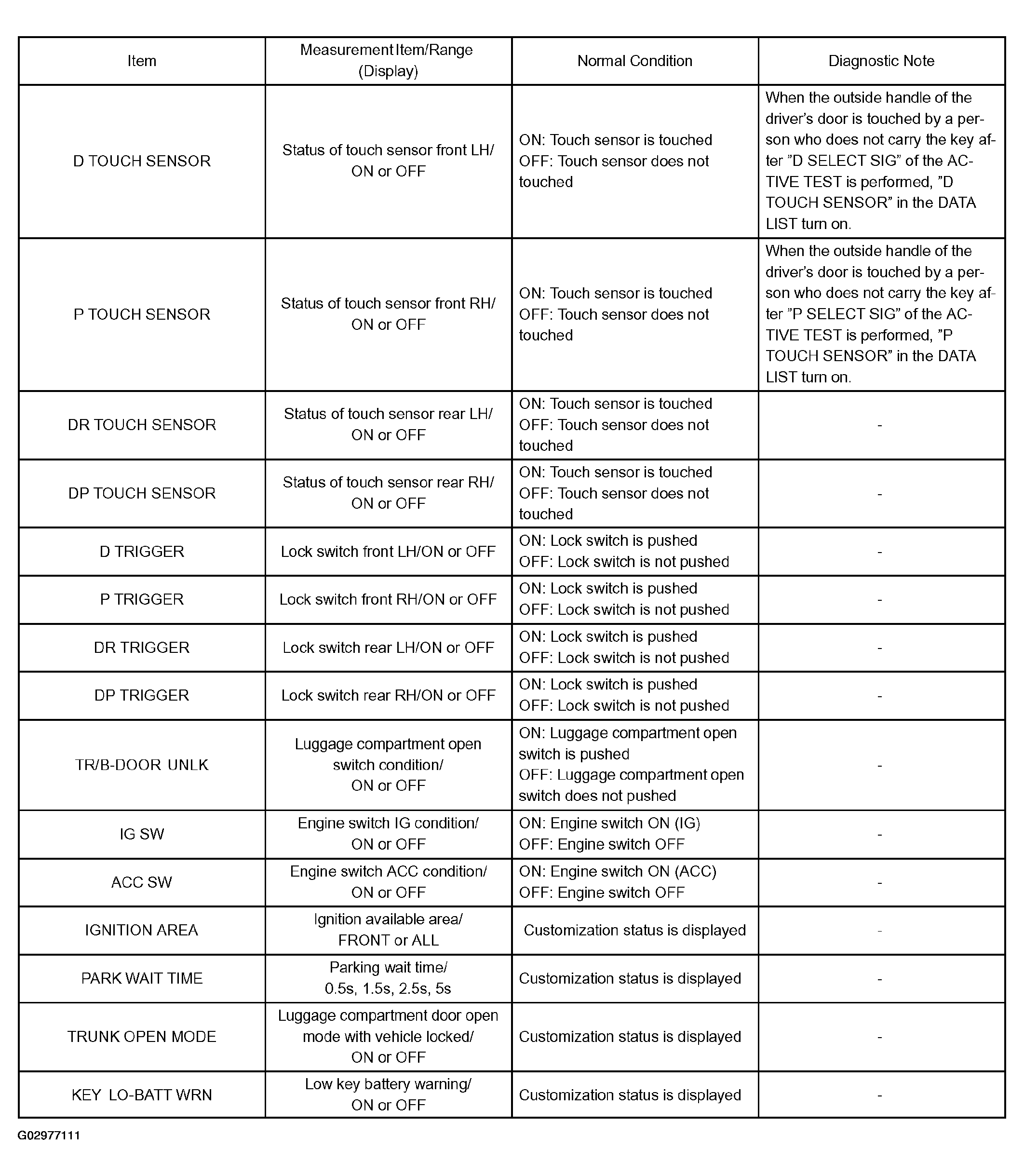

    Fig 3: Smart Key (Certification ECU) Data List (1 Of 4)
    G02977111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

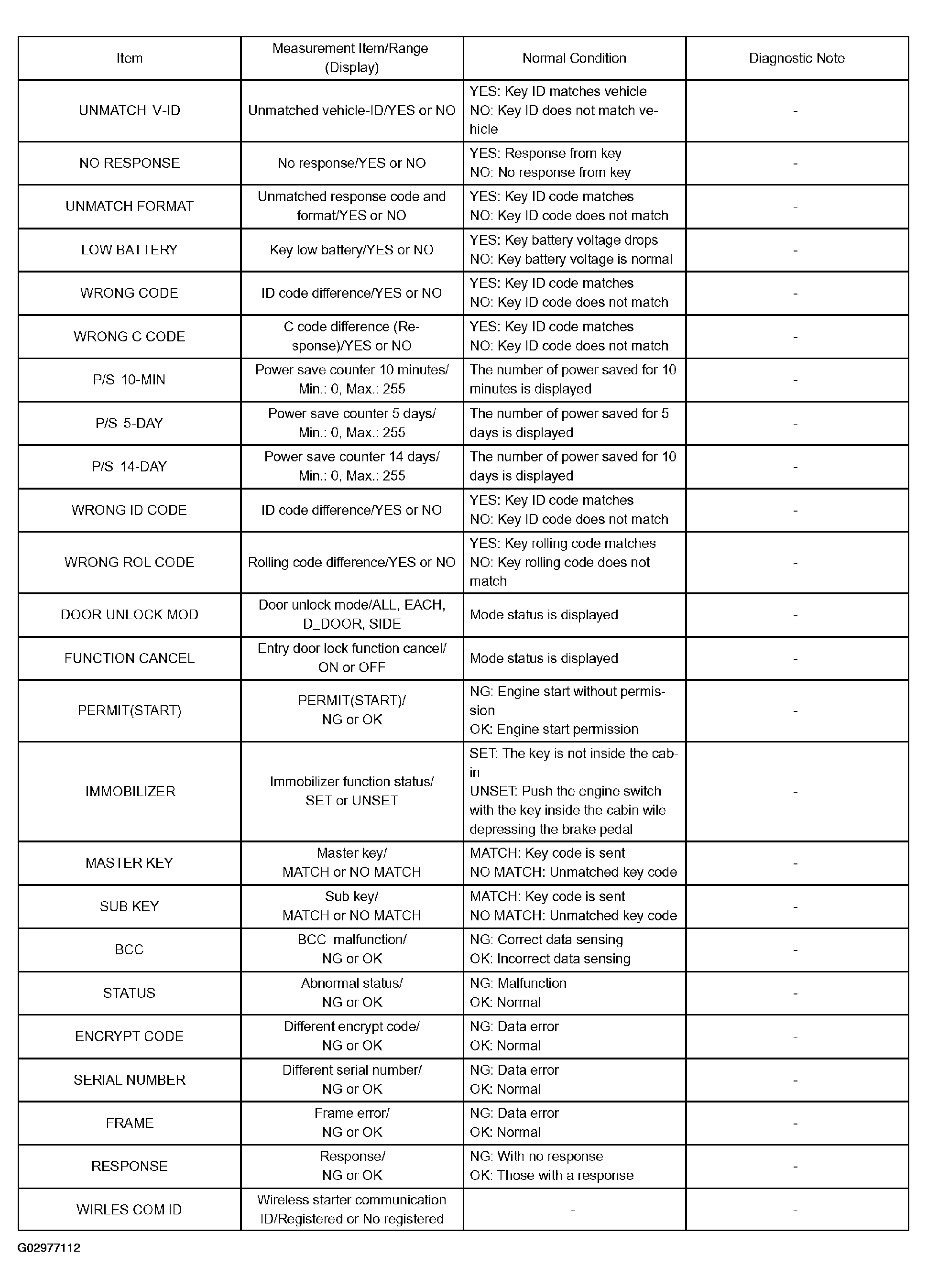

    Fig 4: Smart Key (Certification ECU) Data List (2 Of 4)
    G02977112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

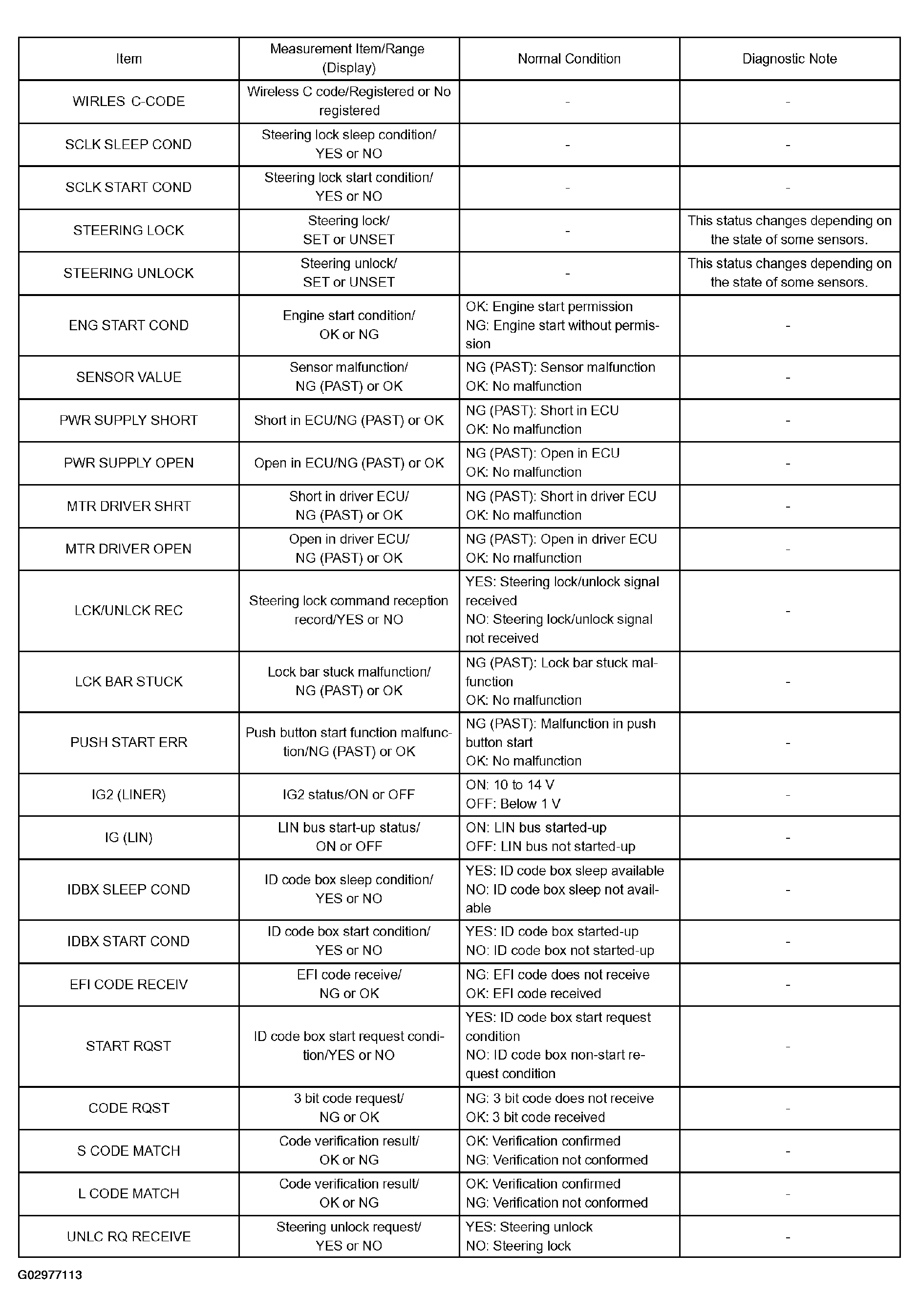

    Fig 5: Smart Key (Certification ECU) Data List (3 Of 4)
    G02977113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

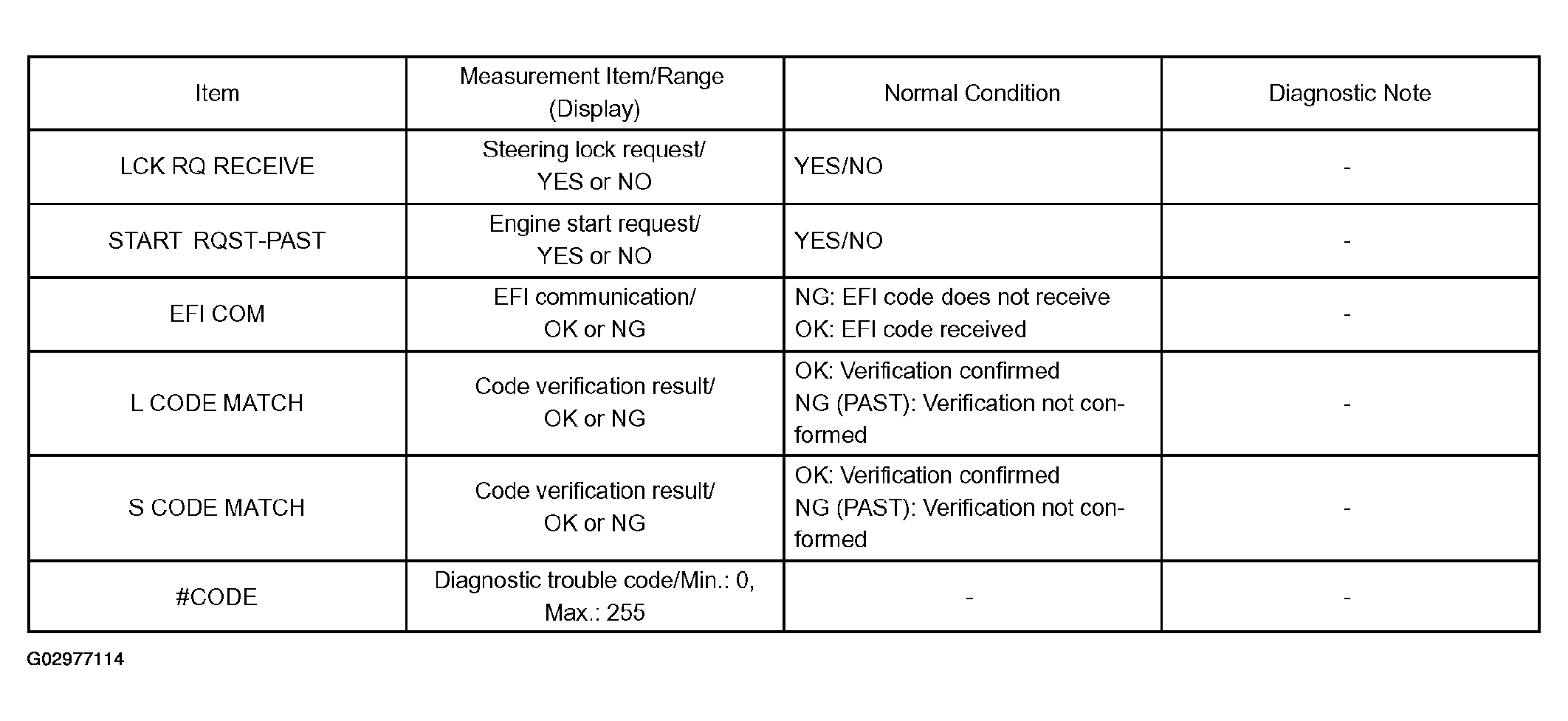

    Fig 6: Smart Key (Certification ECU) Data List (4 Of 4)
    G02977114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    METER (Combination Meter):

    METER (COMBINATION METER) DATA LIST

    Item Measurement Item/Range (Display) Normal Condition Diagnostic Note
    SPEED METER Vehicle speed/ Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) Almost the same as the actual vehicle speed (Wheel driving) -
    TACHO METER Engine speed/Min.: 0 rpm, Max.: 12,750 rpm Almost the same as the actual engine speed (When engine is running) -
    KEY REMND VOLUM Key remind warning volume/LARGE, MEDIUM, SMALL Customization status is displayed -
    KEY REMND SOUND Key remind warning sound/FAST, NORMAL, SLOW Customization status is displayed -

    SMART KEY (Steering Lock):

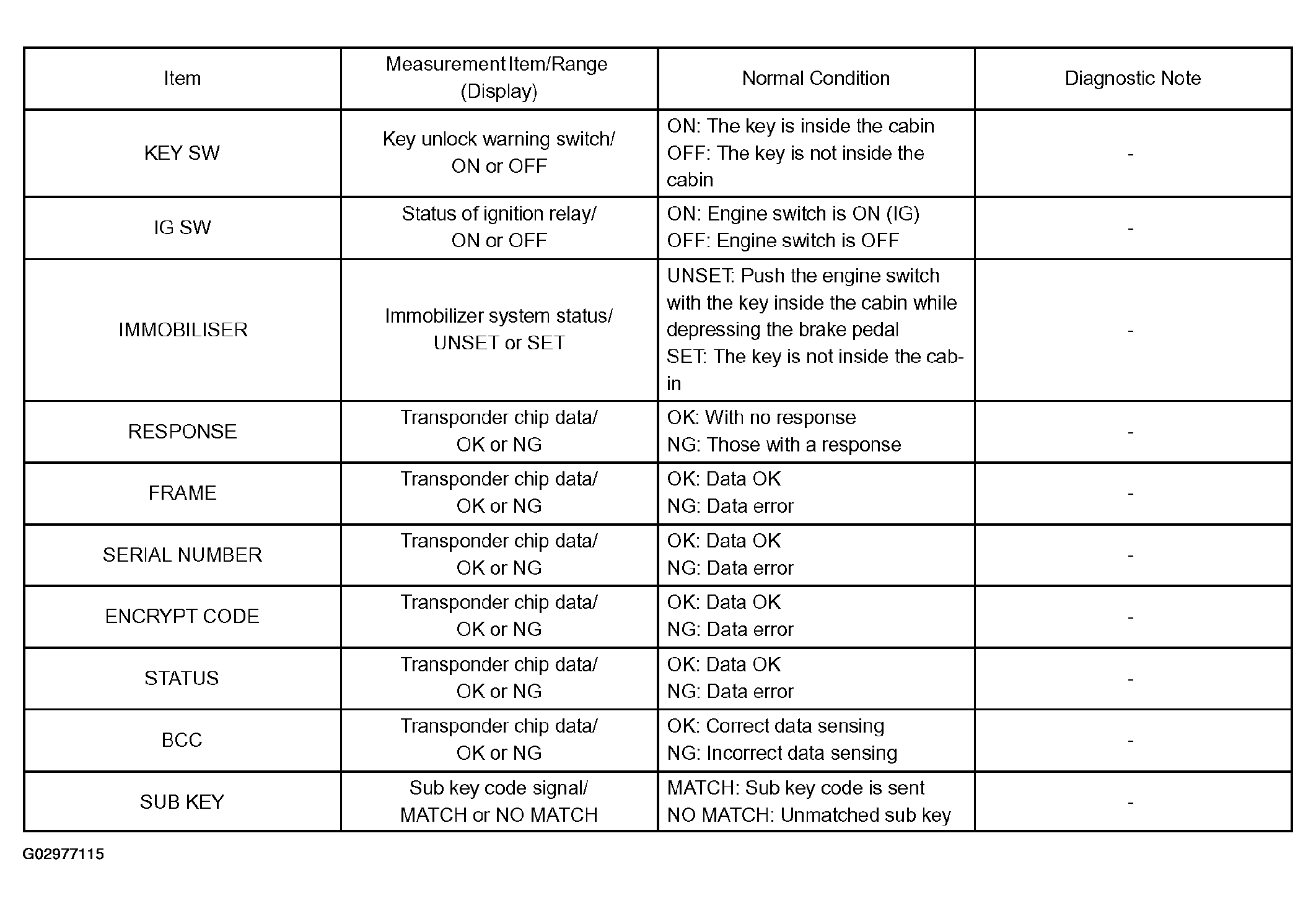

    Fig 7: Smart Key (Steering Lock) Data List (1 Of 2)
    G02977115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

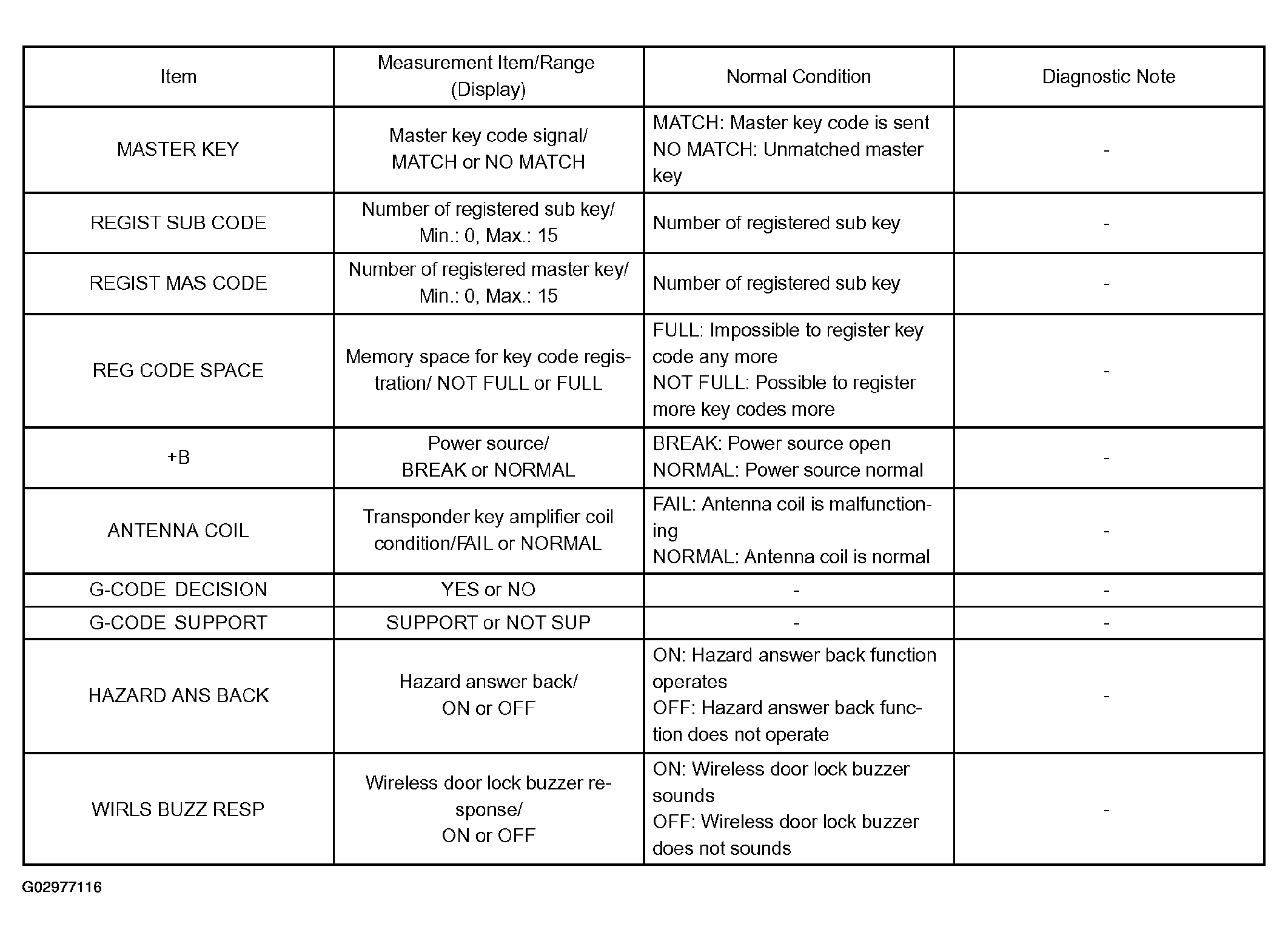

    Fig 8: Smart Key (Steering Lock) Data List (2 Of 2)
    G02977116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ACTIVE TEST

    HINT:

    Perform the ACTIVE TEST using the hand-held tester to operate the motors of the front seat outer belts. Performing the ACTIVE TEST is one of the methods to shorten labor time. It is possible to display the DATA LIST during the ACTIVE TEST.

    1. Connect the hand-held tester to the DLC3.
    2. Turn the engine switch on (IG).
    3. Following the display on the tester, select the "ACTIVE TEST".

      SMART KEY (Certification ECU):

      SMART KEY (CERTIFICATION ECU) ACTIVE TEST

      Item Vehicle Condition/Test Details Diagnostic Note
      IN LUG TUNER Inside Trunk Tuner ON/OFF -
      OVERHEAD TUNER Cabin Tuner ON/OFF -
      D TRANSMITTER Door Oscillator (Front LH) ON/OFF -
      P TRANSMITTER Door Oscillator (Front RH) ON/OFF -
      Fr TRANSMITTER Cabin Oscillator (Front) ON/OFF -
      IN-BDR TRANSMTTR Luggage Compartment Oscillator (Inner) ON/OFF -
      BDOOR TRANSMTTR Luggage Compartment Oscillator (Outer) ON/OFF -
      D SELECT SIG D-sheet Select ON/OFF The same condition as when the key is brought near the vehicle will occur even if the key is not brought near the vehicle.
      P SELECT SIG P-sheet Select ON/OFF The same condition as when the key is brought near the vehicle will occur even if the key is not brought near the vehicle.

      METER (Combination Meter):

      METER (COMBINATION METER) ACTIVE TEST

      Item Vehicle Condition/Test Details Diagnostic Note
      OPEN DOOR WARN Open Door Warning Light ON/OFF -
      KEY REMND BUZZR Key Remained Buzzer ON/OFF -
      WARNING BUZZER Warning Buzzer ON/OFF -
      SMART KEY Smart Key System Warning Light ON/OFF -

      SMART KEY (Steering Lock ECU):

      SMART KEY (STEERING LOCK ECU) ACTIVE TEST

      Item Vehicle Condition/Test Details Diagnostic Note
      SECURITY INDIC Security Indicator Light ON/OFF -
  3. SMART KEY SYSTEM DIAGNOSIS MODE

    HINT:

    • The smart key system diagnostic mode can be used to check that the key and each tuner operate normally without removing the tuners from the vehicle.
    • The smart key system diagnostic mode check is performed with the hand-held tester.
    1. Connect the hand-held tester to the DLC3.
    2. Turn the engine switch on (IG).
    3. Following the display on the tester, select "SMART KEY" --> "ID UTILITY".
    4. Select each "Item" and bring the key up to the action area in which the system can detect the key.

      If the system functions normally, the wireless door lock buzzer sounds once.

      SMART DIAG MODE:

      SMART DIAG MODE

      Item Tuner
      D+OVERHEAD Cabin
      P+OVERHEAD Cabin
      DR+OVERHEAD Cabin
      PR+OVERHEAD Cabin
      FR+OVERHEAD Cabin
      RR+OVERHEAD Cabin
      IN-LUG+IN-LUG Luggage
      LUGG+OVERHEAD Cabin
      LUGG+IN-LUG Luggage
      IN-BDOR+OVERHEAD Cabin
      BDOR+OVERHEAD Cabin
      IMMOBI+AMP Transponder key amplifier
