Inspection Procedure

  1. INSPECT ID CODE BOX
    1. Disconnect the D29 ID code box connector.
    2. Measure the voltage according to the value (s) in the table below.

      Standard:

      ID CODE BOX VOLTAGE

      Tester Connection Condition Specified Condition
      D29-1 (MPXB) - Body ground Always 10 to 14 V
    3. Measure the resistance according to the value (s) in the table below.

      Standard:

      ID CODE BOX RESISTANCE

      Tester Connection Condition Specified Condition
      D29-8 (GND) - Body ground Always Below 1 Ω

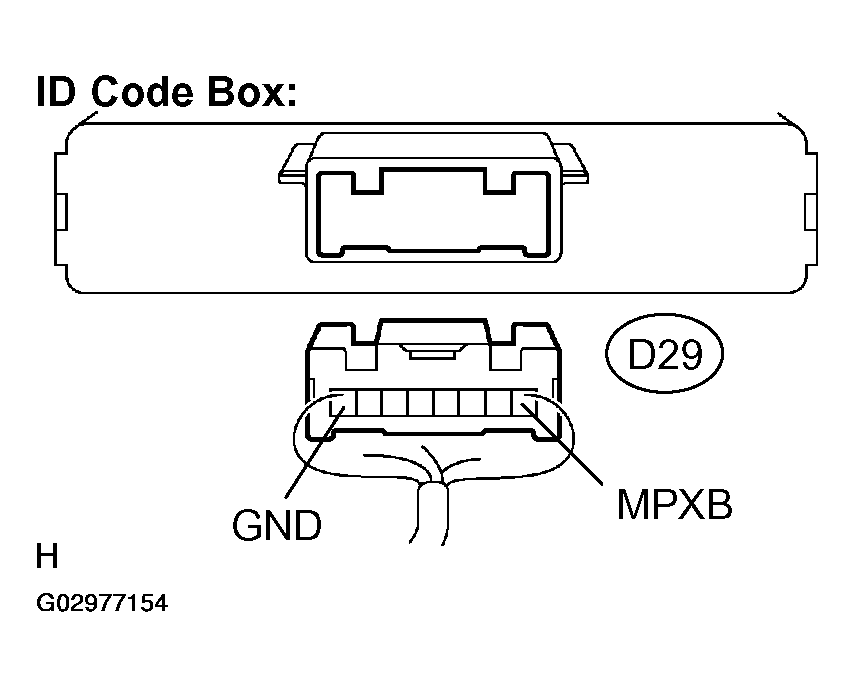

      Fig 1: Disconnecting D29 ID Code Box Connector
      G02977154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
    2. OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
