Entry Lock/Unlock Function

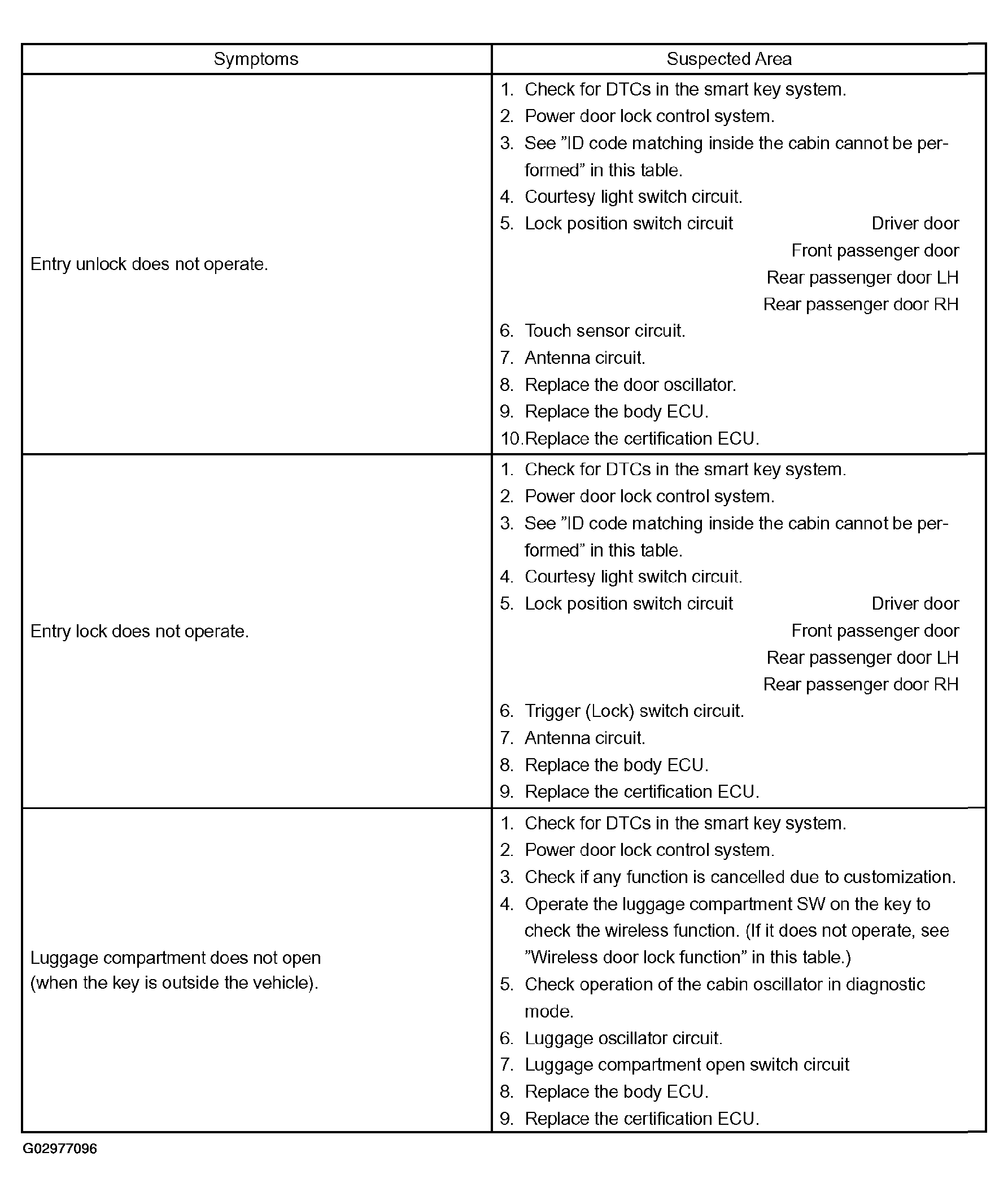

Fig 1: Entry Lock/Unlock Function Problem Symptoms Chart (1 Of 2)
G02977096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

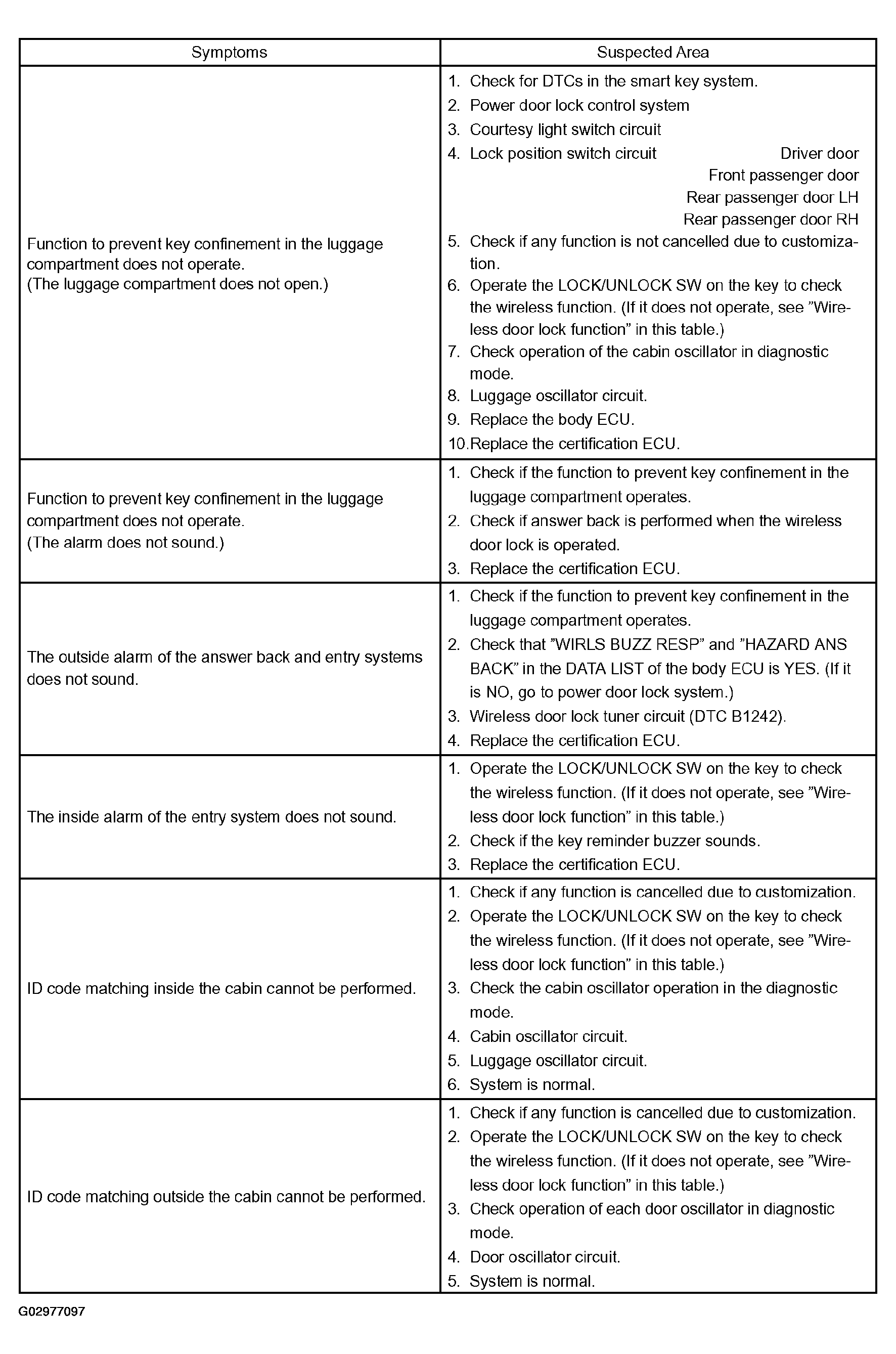

Fig 2: Entry Lock/Unlock Function Problem Symptoms Chart (2 Of 2)
G02977097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
