System Diagram
>>
Entry Function
Entry Function

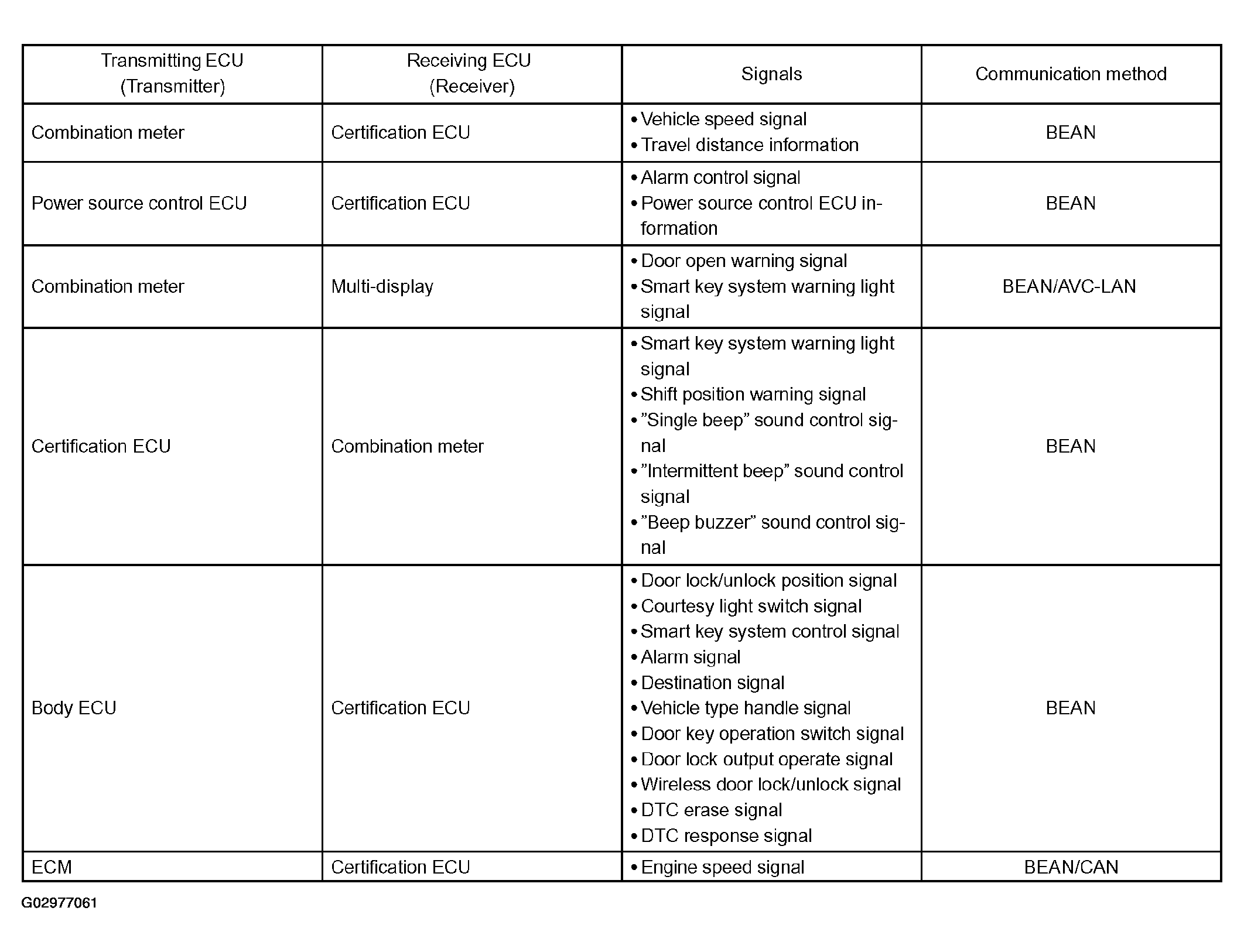

Fig 1: Entry Function Signals And Communication Method Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
