Smart Key System (Keyless Entry)
>>
System Diagram
>>
Start Key System
Start Key System

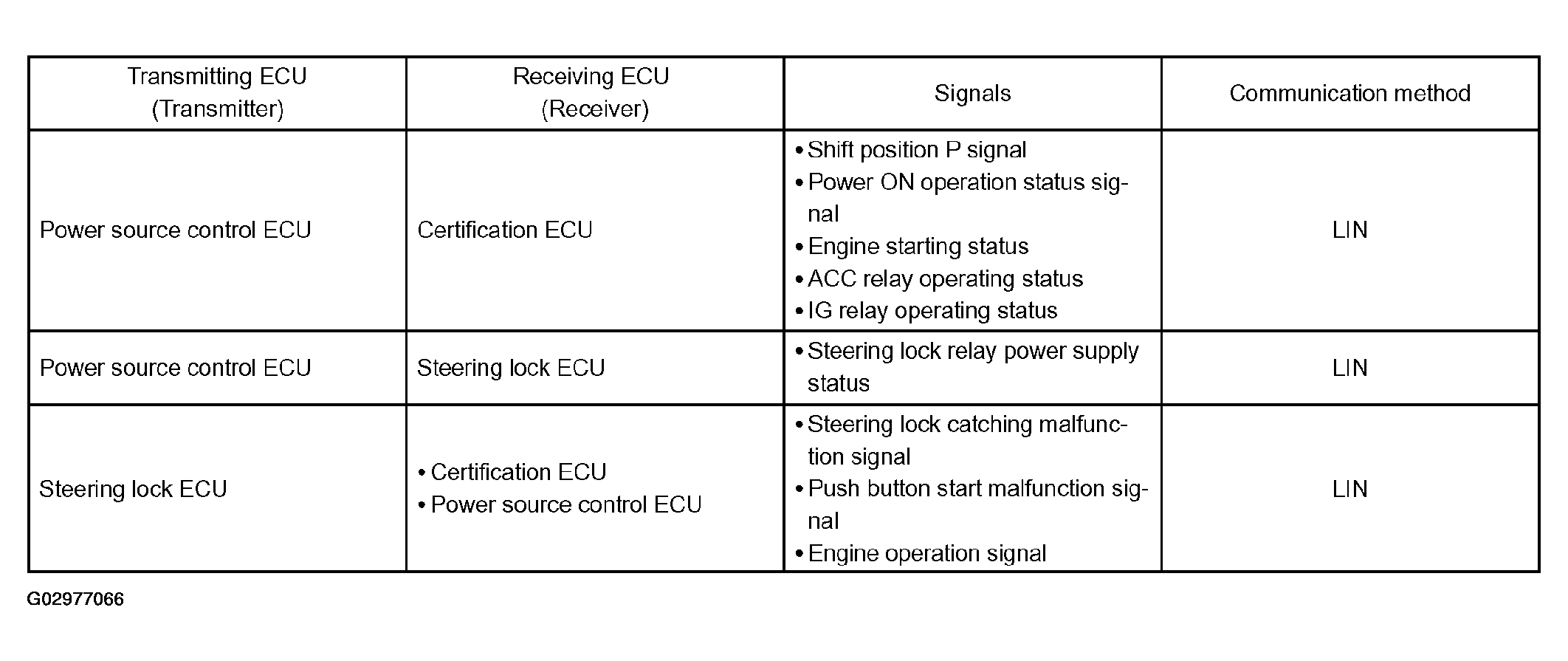

Fig 1: Start Key System Signals And Communication Method Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

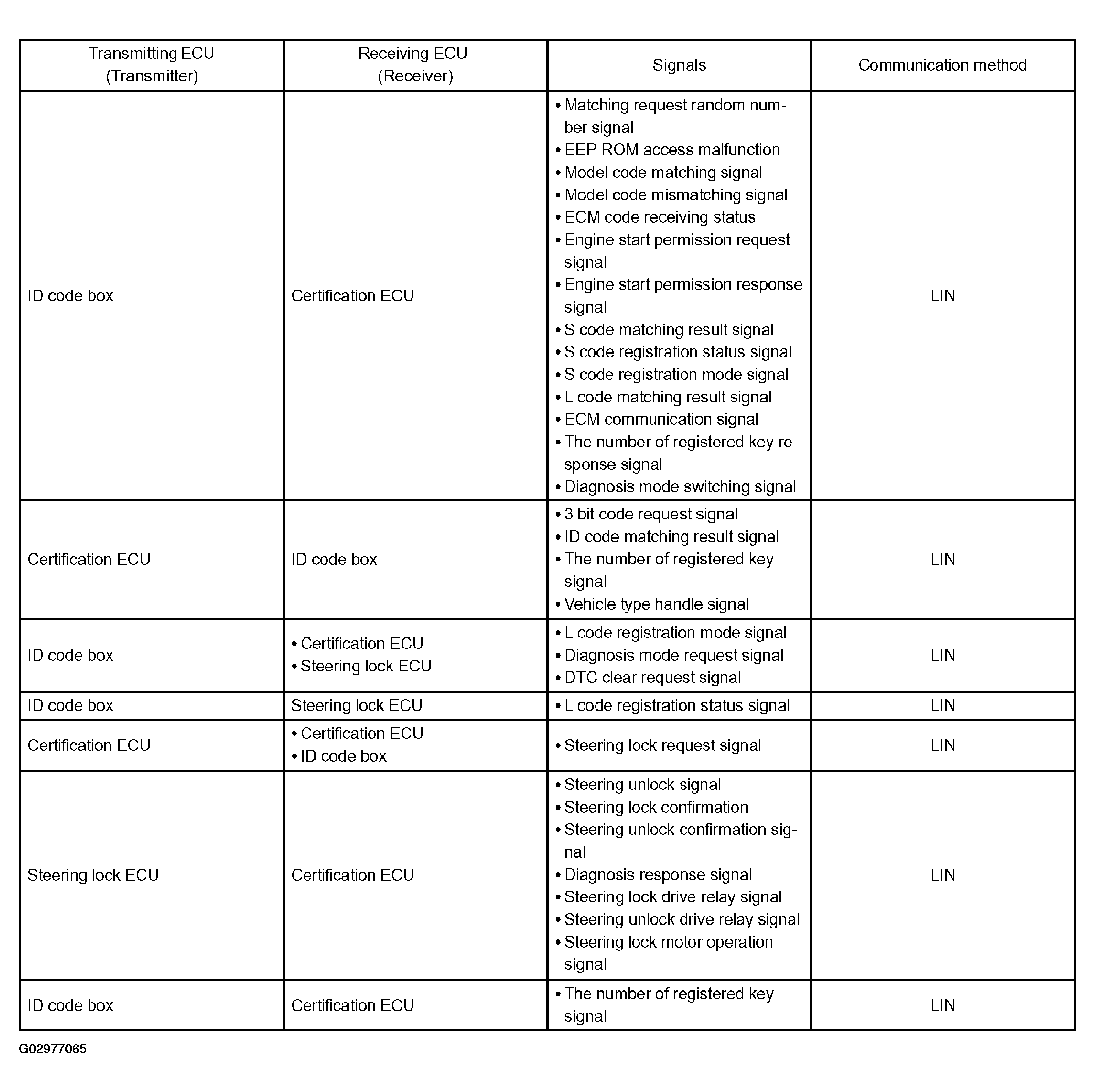

Fig 2: Start Key System Signals And Communication Method Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
