Home >> Toyota >> 2005 >> Avalon XLS >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Location

Power Window Control System: Location

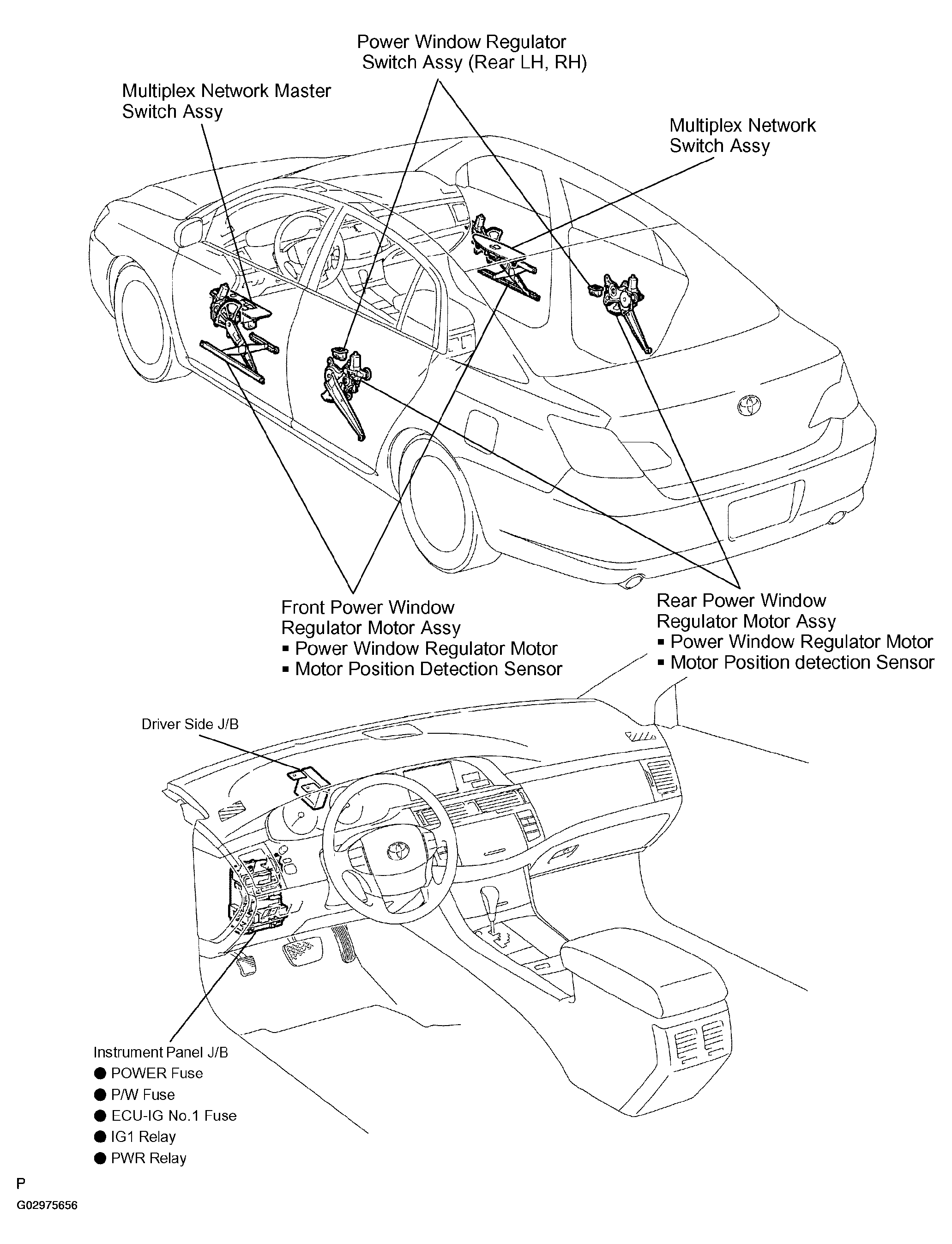

Fig 1: Identifying Power Window Control System Components

G02975656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
