Power Window Control System
>>
Window Lock Signal Circuit
>>
Wiring Diagram
Window Lock Signal Circuit: Wiring Diagram

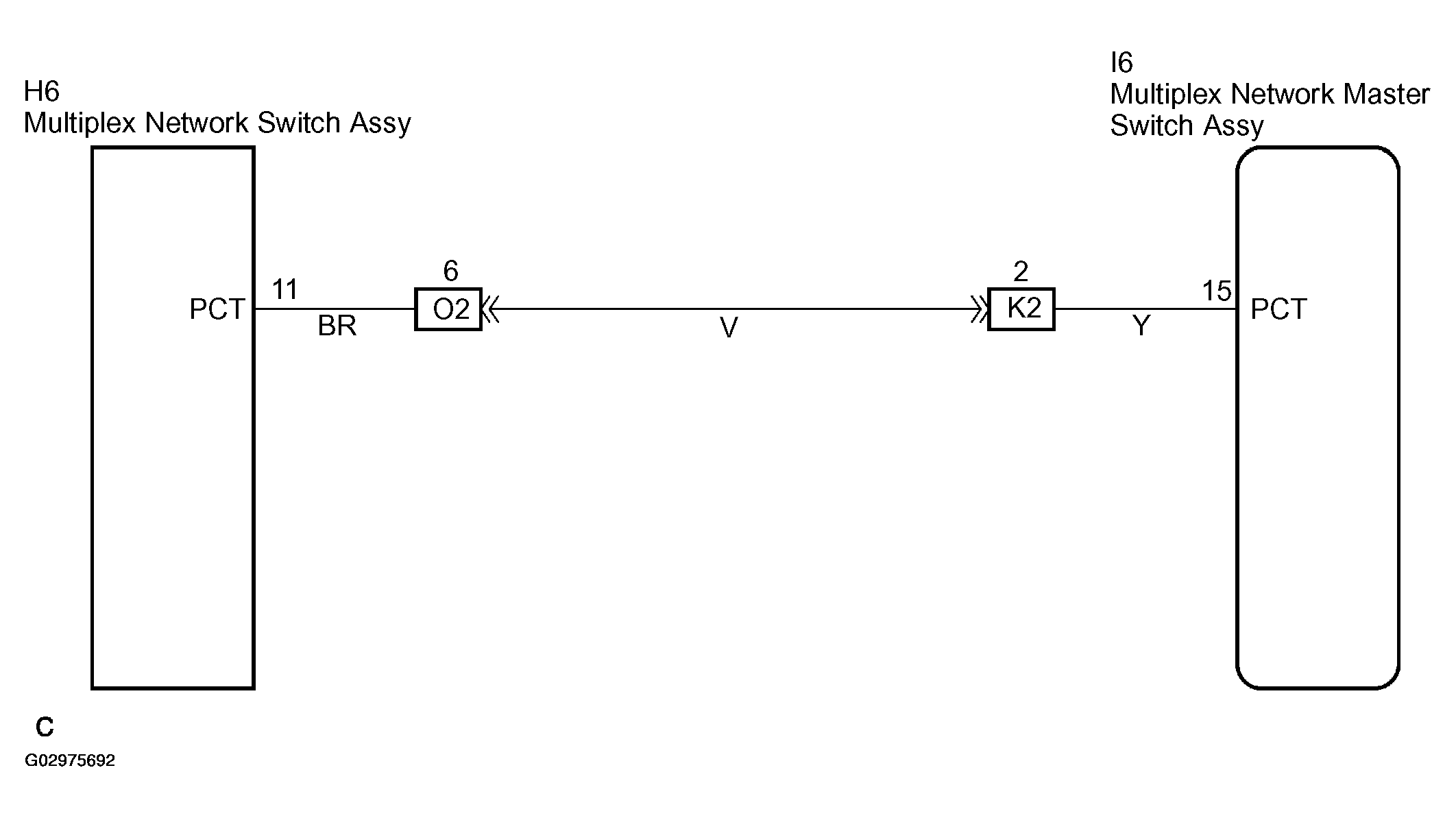

Fig 1: Window Lock Signal Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
