Combination Meter: Precaution

1. Before performing electronic work, disconnect the battery negative (-) terminal in order to prevent a short in the system.
2. When disconnecting and reconnecting the battery cable, turn the ignition switch and lighting switches off and loosen the terminal nut completely. Perform these operations without prying on the terminal.
3. When the battery terminal is removed, the memories of the clock, radio, DTCs, etc. are erased. So before removing the terminal, check and make a note of them.
   NOTE: When disconnecting the battery negative (-) terminal, initialize the following system after the terminal is reconnected.
   PRECAUTION NOTE



   System Name	See
   Front Power Seat Control System	INITIALIZATION
   Sliding Roof System	INITIALIZATION

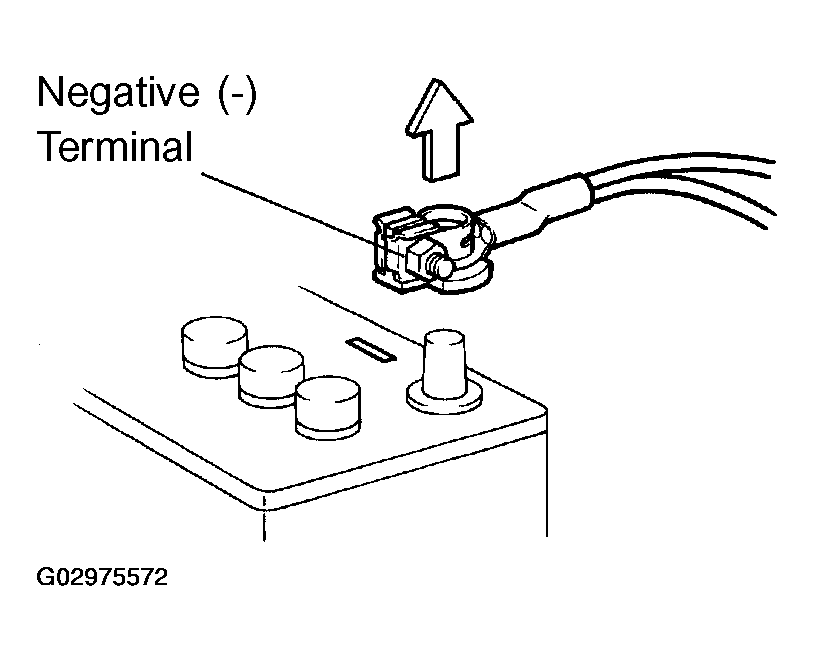

   Fig 1: Disconnecting Battery Negative (-) Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The type of ignition switch used on this model differs according to the specifications of the vehicle.

The expressions listed in the table below are used in this section.

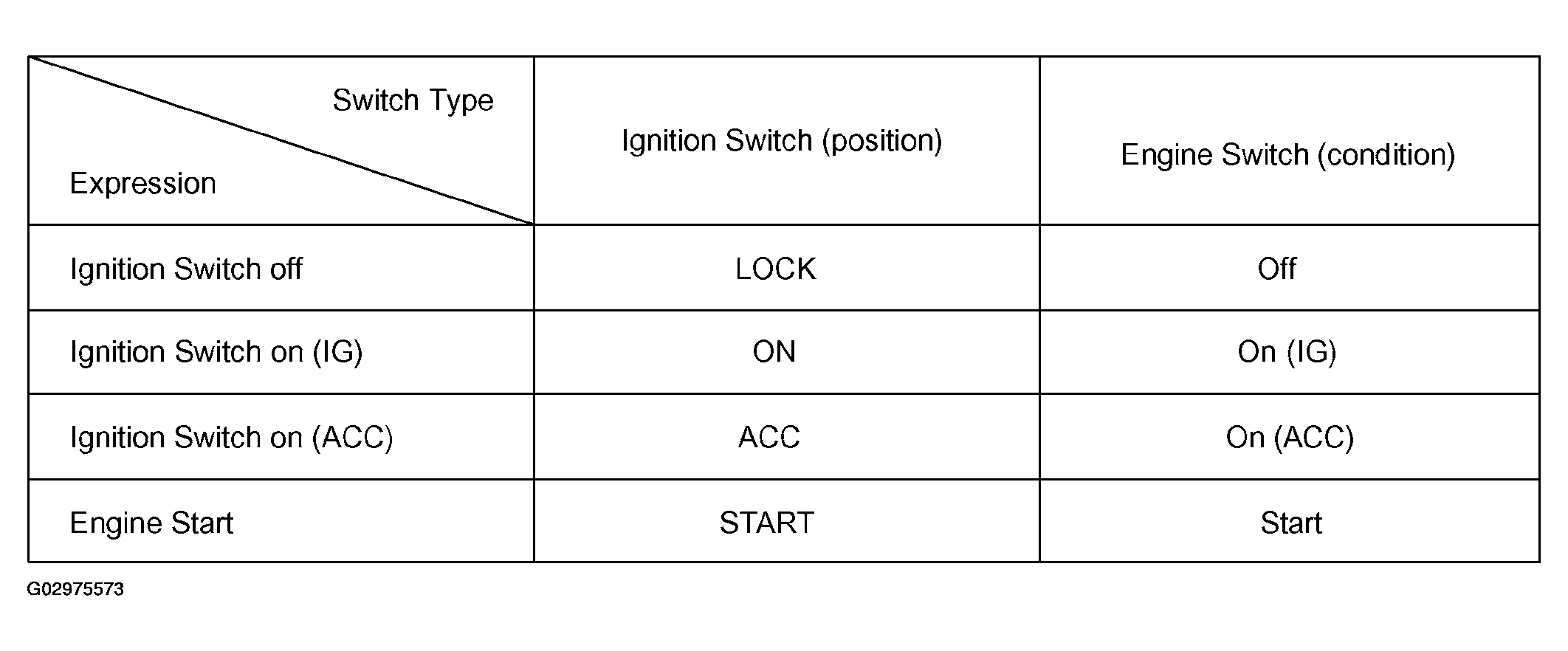

Fig 2: Expressions Listing Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
