System Description

  1. Combination Meter Assy

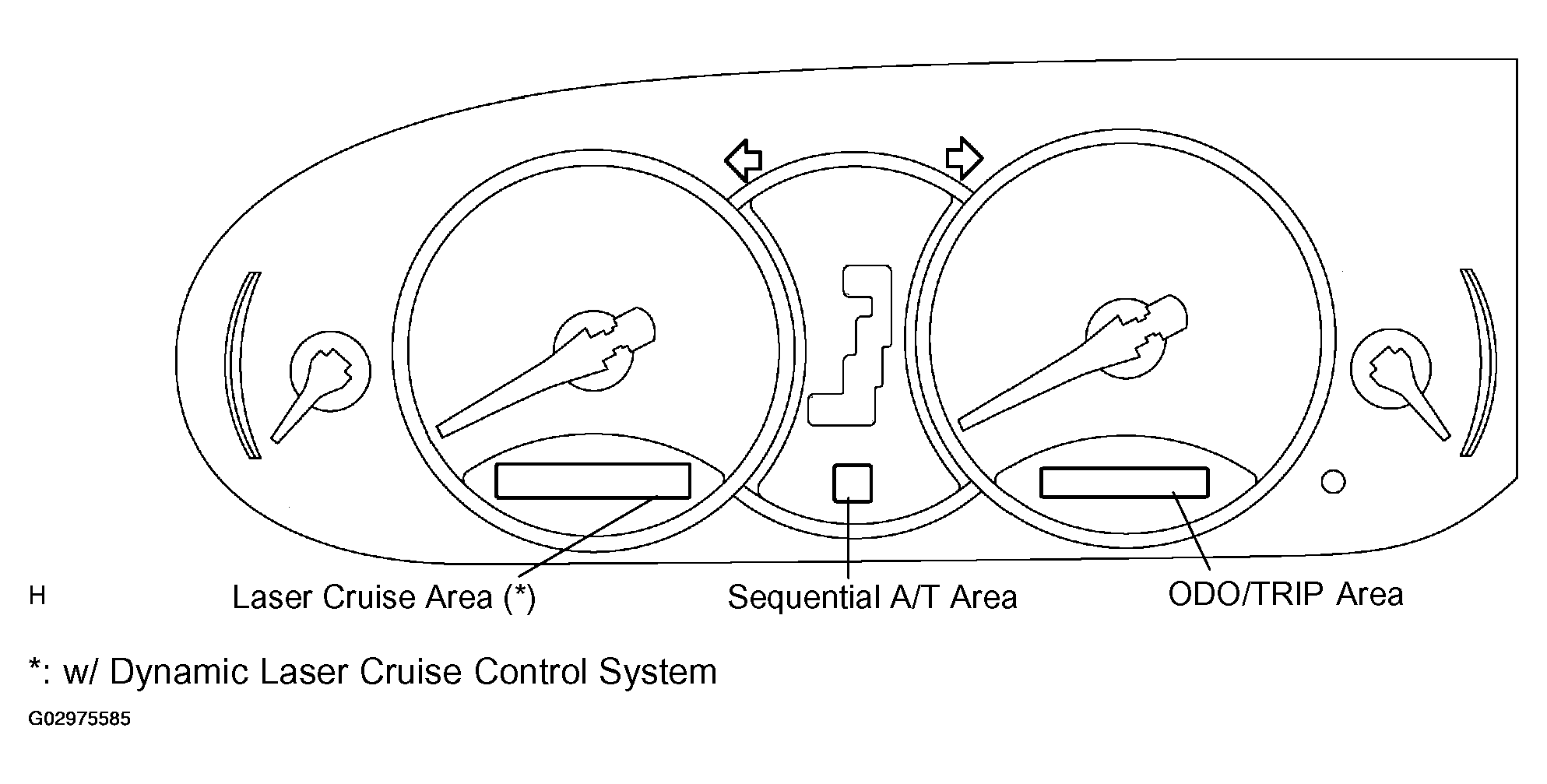

    Fig 1: Identifying Combination Meter Assy
    G02975585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *: w/Dynamic Laser Cruise Control System

    HINT:

    CAN signals and AVC-LAN signals are transmitted to or received from the combination meter assy through the gateway ECU.

    GAUGE:

    AVC-LAN SIGNALS DESCRIPTION

    Item Detail
    Speedometer Based on a signal received from the wheel speed sensor, the ABS & traction actuator assy (VSC) (*1)/brake actuator assy (ABS)(*2) calculates vehicle speed and transmits the data to the meter (Direct line).
    Tachometer ECM transmits engine speed to the meter display (Direct line).
    Engine Coolant Temperature Gauge Displays the engine coolant temperature receiving a signal from the ECM (CAN-BEAN).
    Fuel Gauge Receives the fuel sender gauge signal from the fuel sender gauge assy (Direct line).

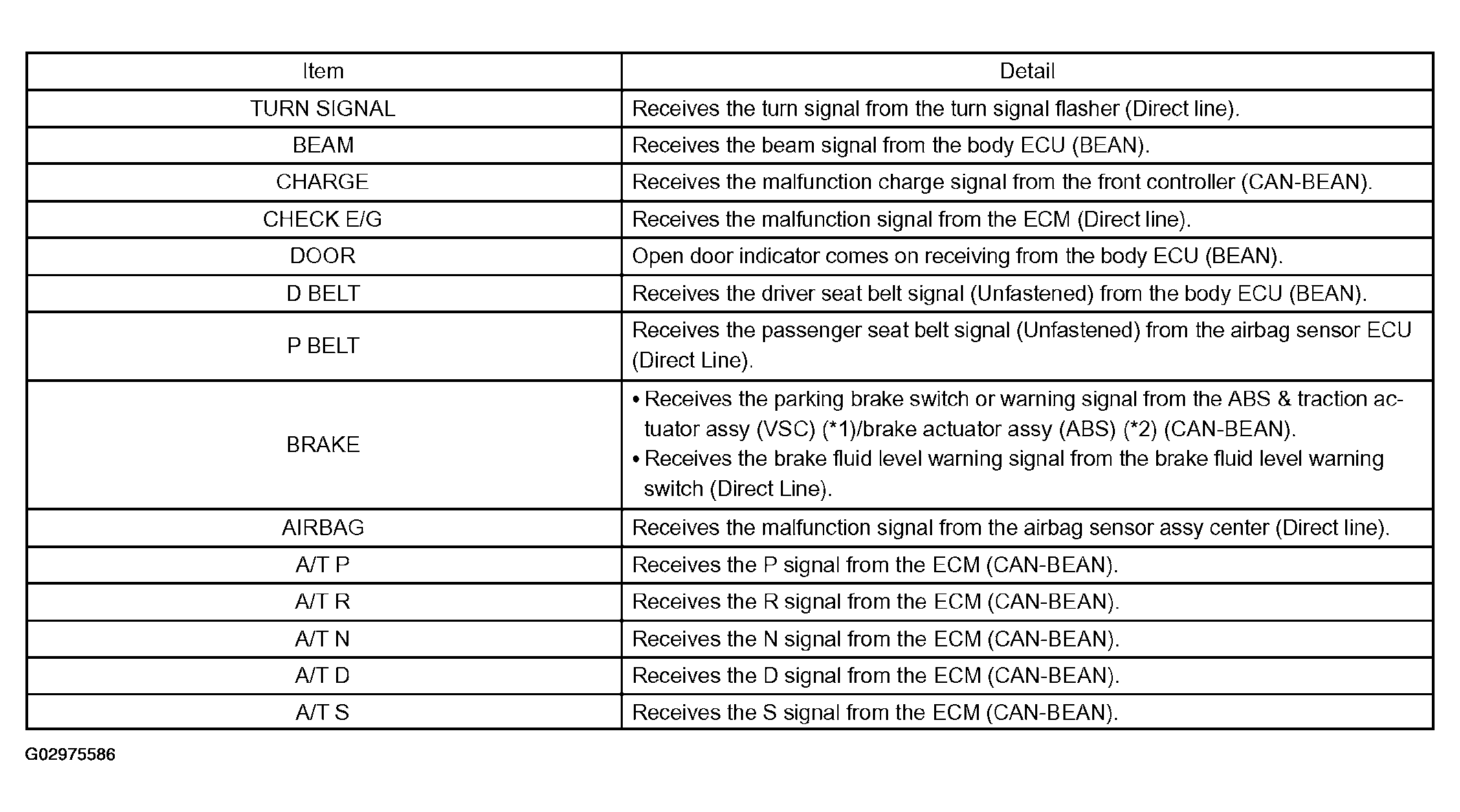

    Fig 2: Can Signals & AVC-LAN Signals Description Table - Warning Indicator (1 Of 2)
    G02975586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

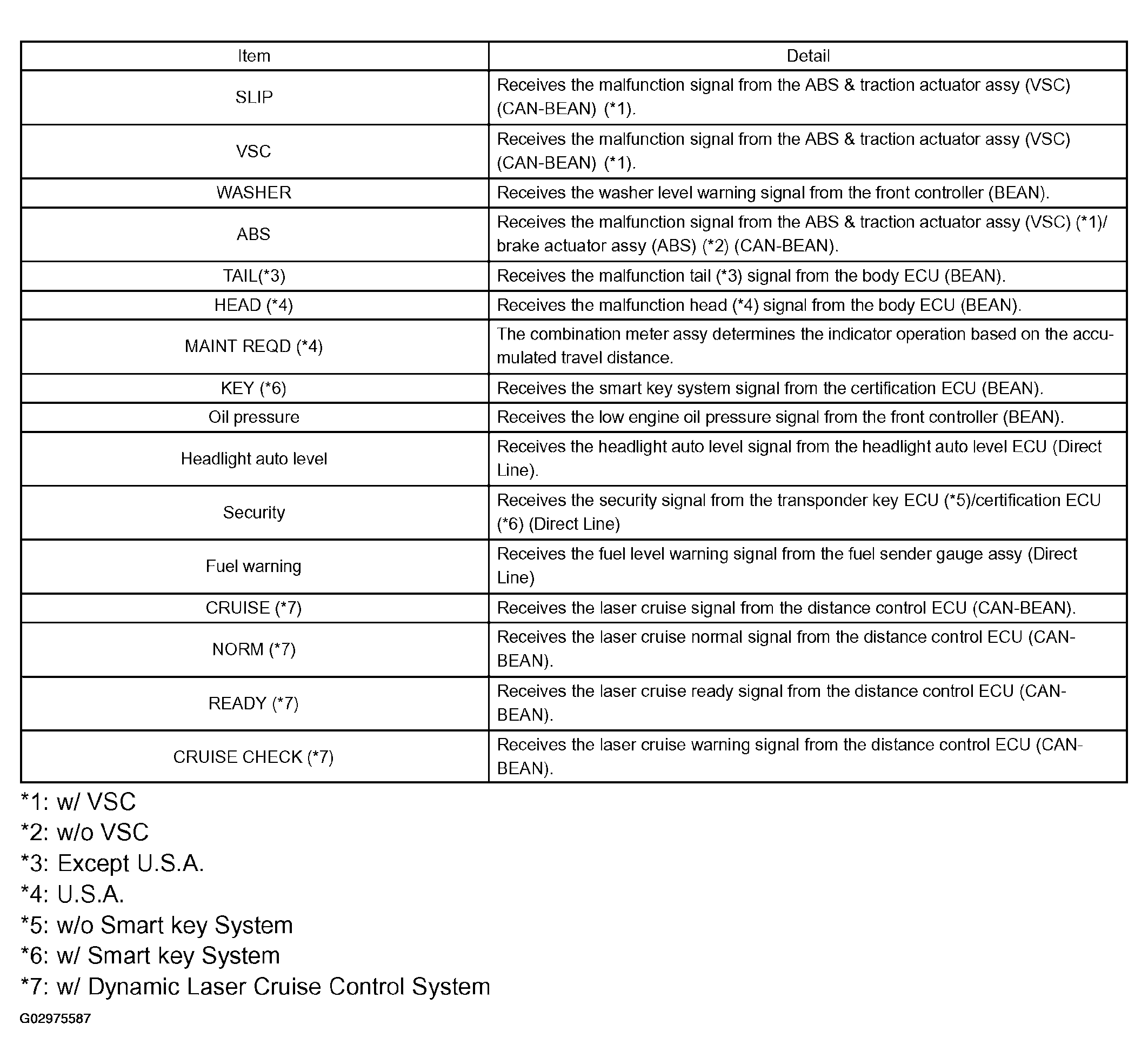

    Fig 3: Can Signals & AVC-LAN Signals Description Table - Warning Indicator (2 Of 2)
    G02975587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    MULTI-INFORMATION DISPLAY

    • The multi-information display consists of two display areas (Laser cruise area and ODO/TRIP area). These areas display the contents given in the table below.
    • A steering pad switch (for multi-information display) that switches the contents of the multi-information display has been provided on the steering wheel.
      MULTI-INFORMATION DISPLAY

      Item Details
      Laser cruise area Displays cruise information. In addition, the contents of the display can be switched by operating the mode change of the cruise control switch.
      ODO/TRIP area Displays ODO/TRIP information. The contents of the display can be switched by operating ODO/TRIP switch.
  2. ACCESSORY METER ASSY

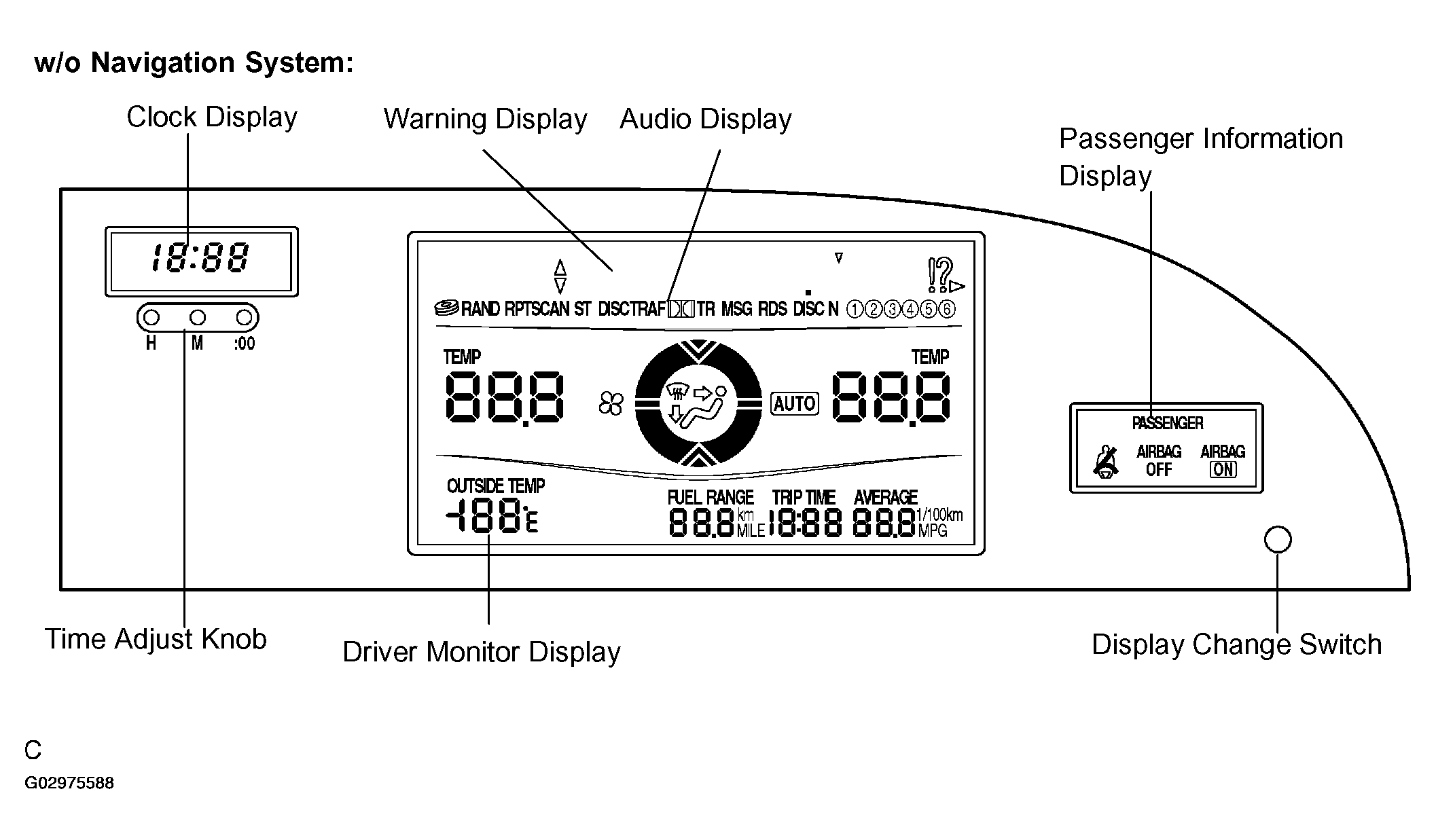

    Fig 4: Identifying Accessory Meter Assy Displays - W/O Navigation System
    G02975588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

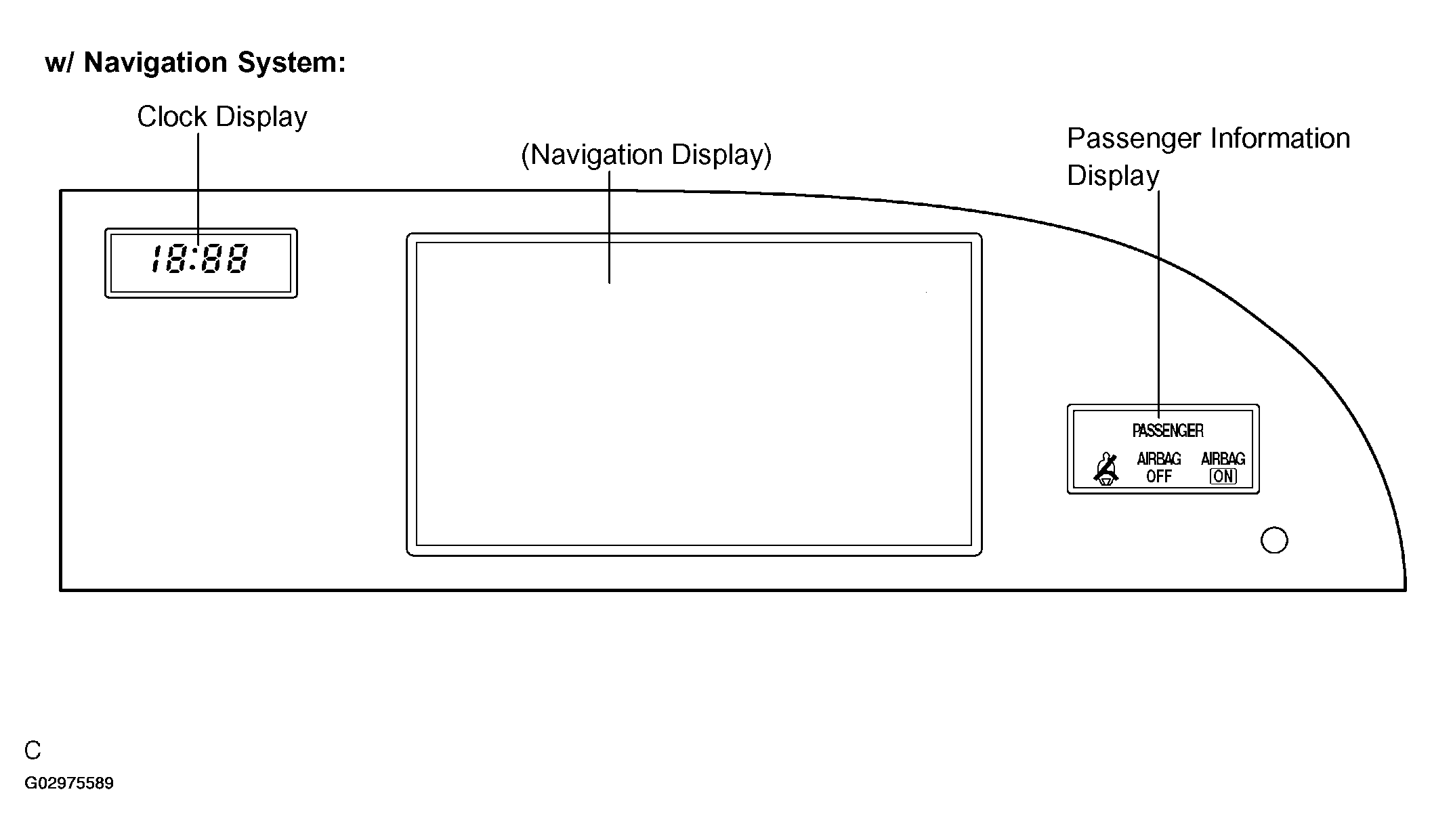

    Fig 5: Identifying Accessory Meter Assy Displays - With Navigation System
    G02975589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The accessory meter assy consists of six displays (clock display, warning display, audio display, A/C display, driver information display, and passenger information display). These areas display the contents given in the table below.

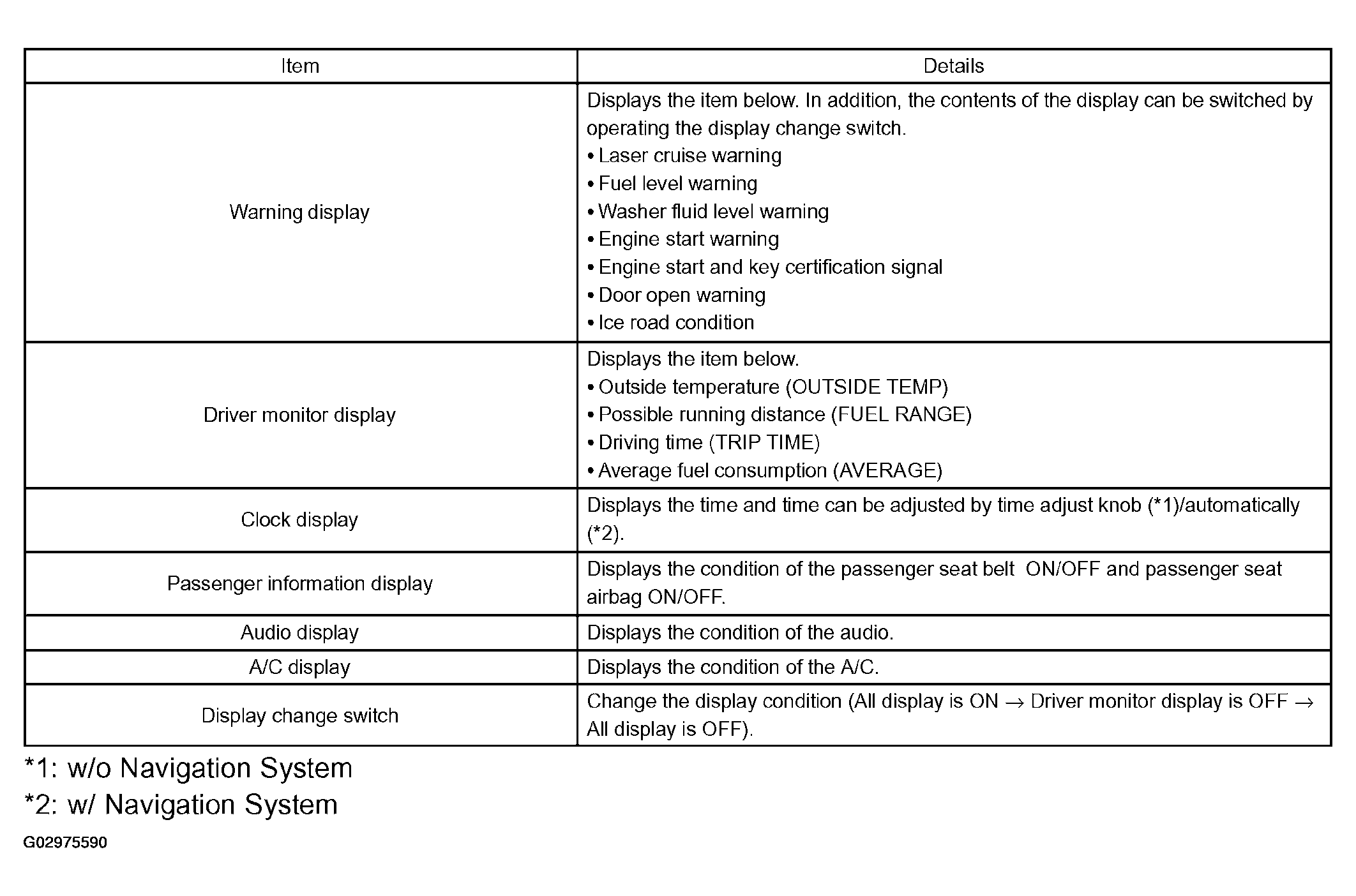

      Fig 6: Displays Area Display Description Table
      G02975590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
