Freeze Frame Data
>>
List Of Freeze Frame Data
List Of Freeze Frame Data

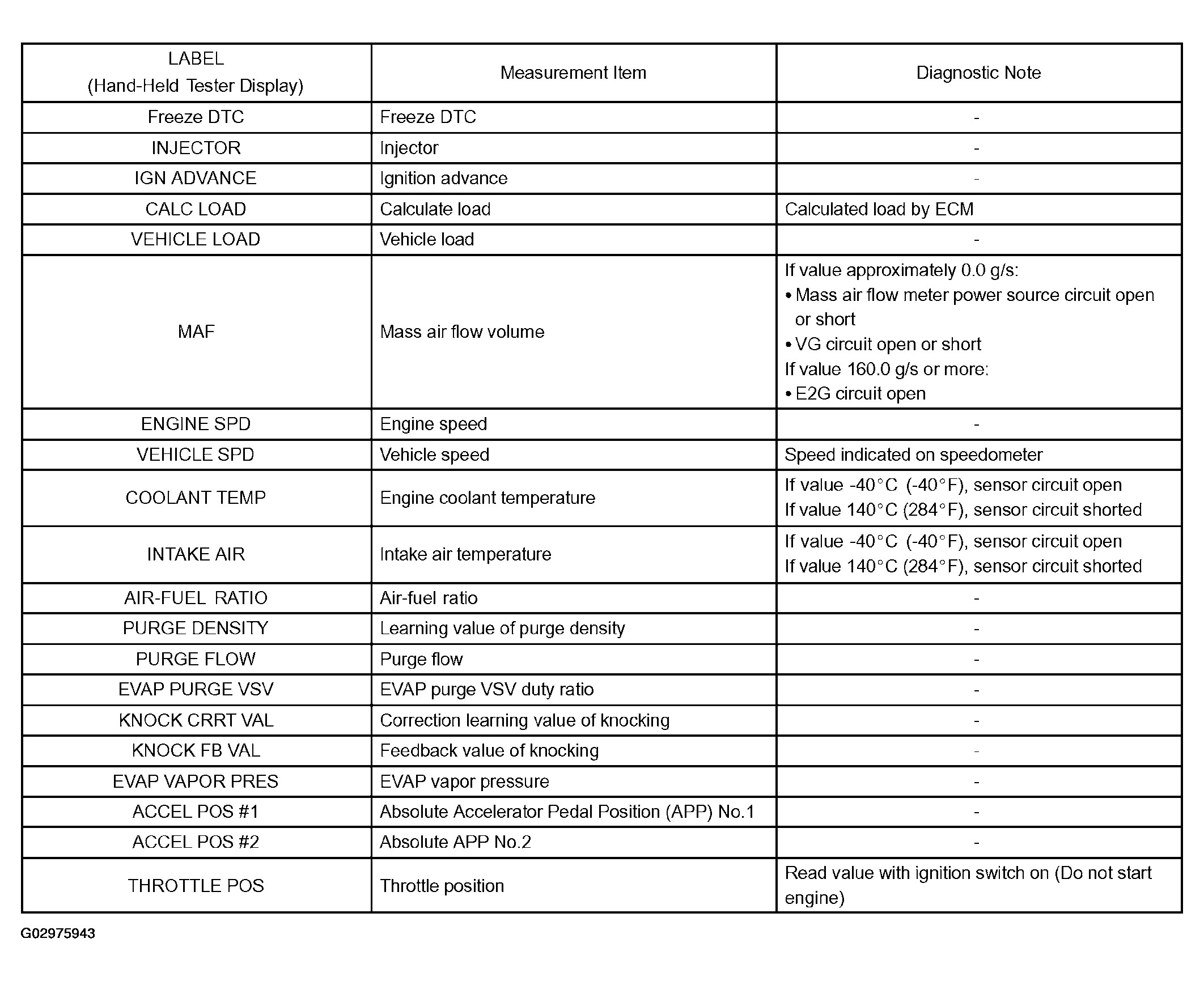

Fig 1: List Of Freeze Frame Data (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

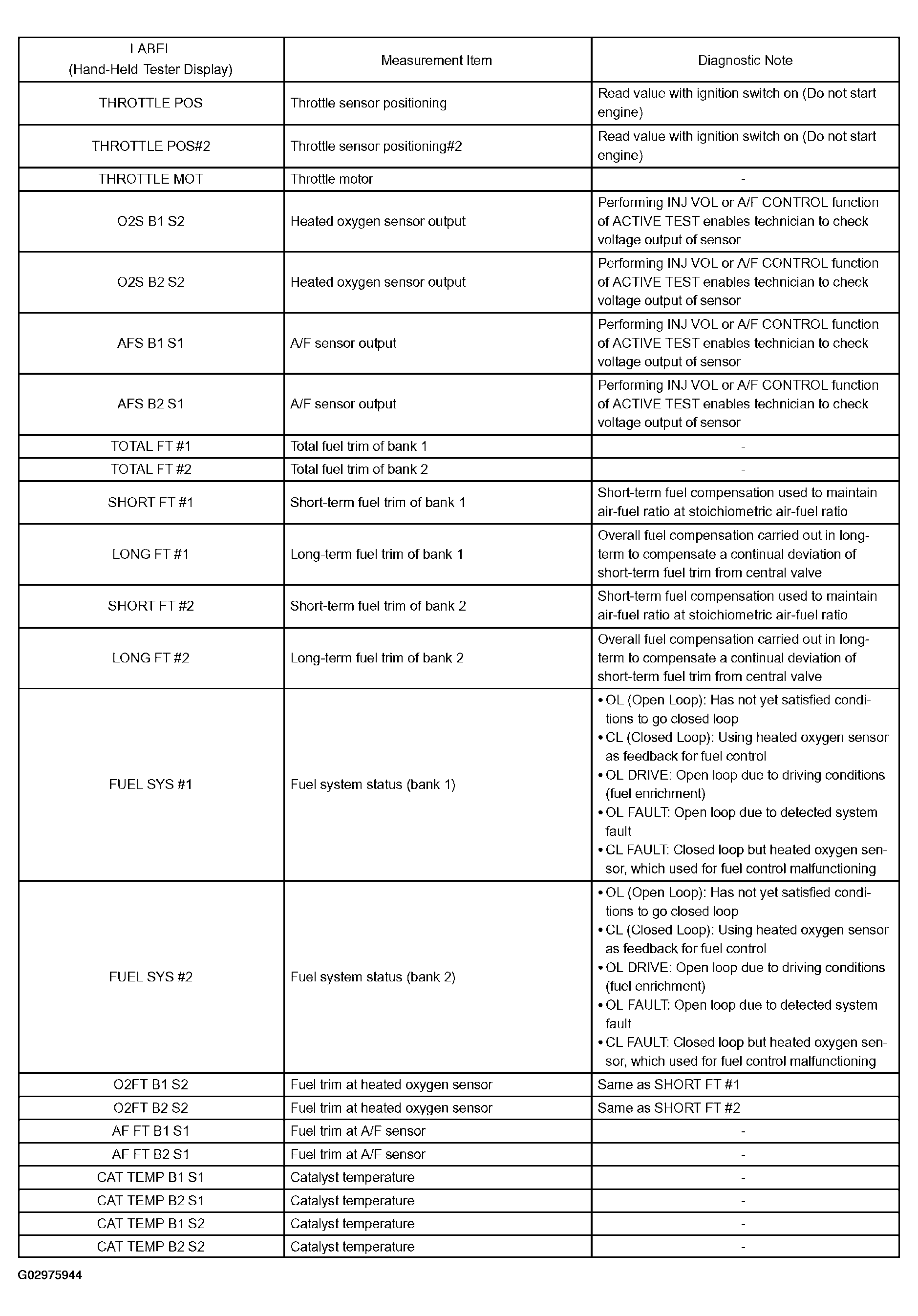

Fig 2: List Of Freeze Frame Data (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

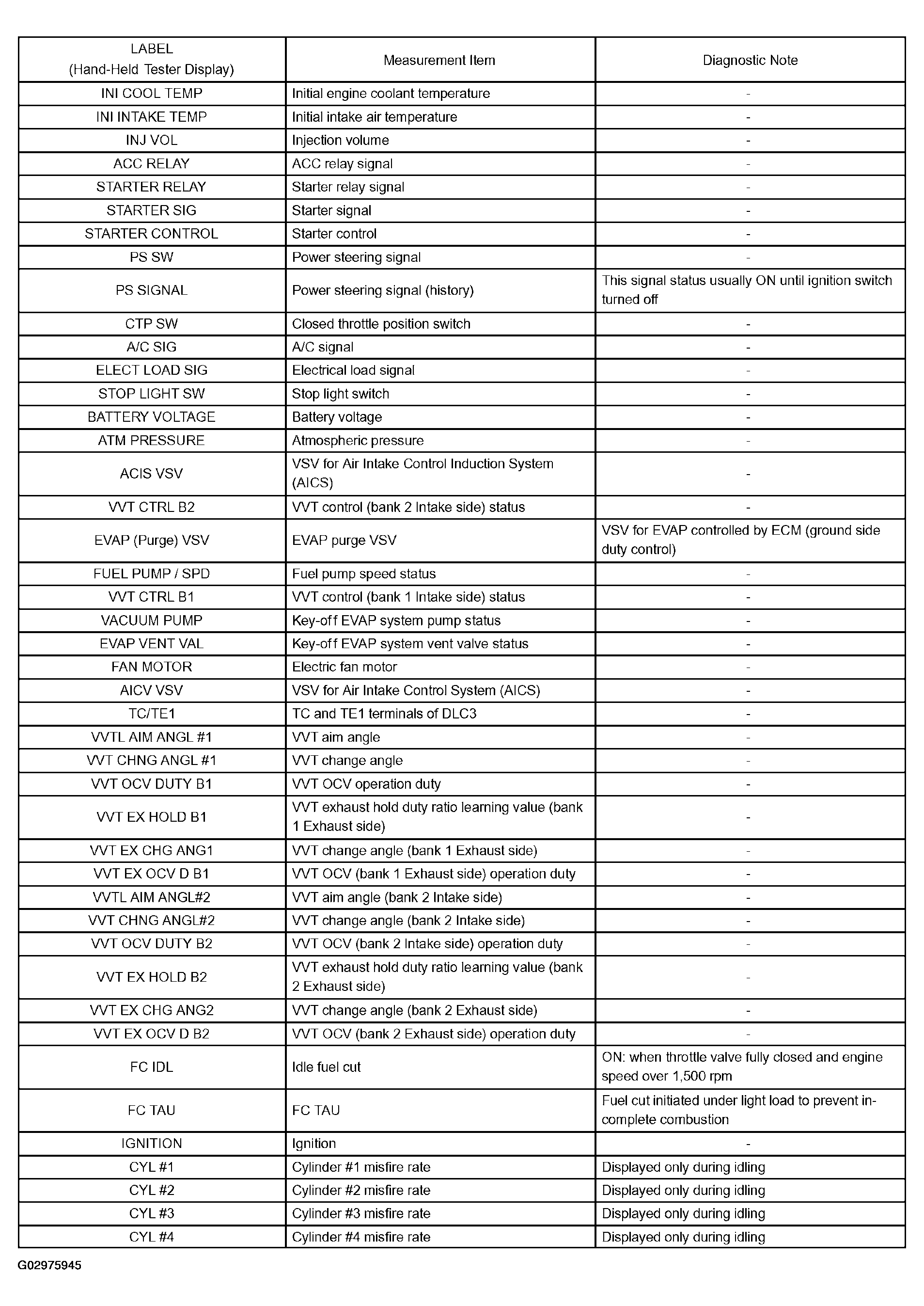

Fig 3: List Of Freeze Frame Data (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

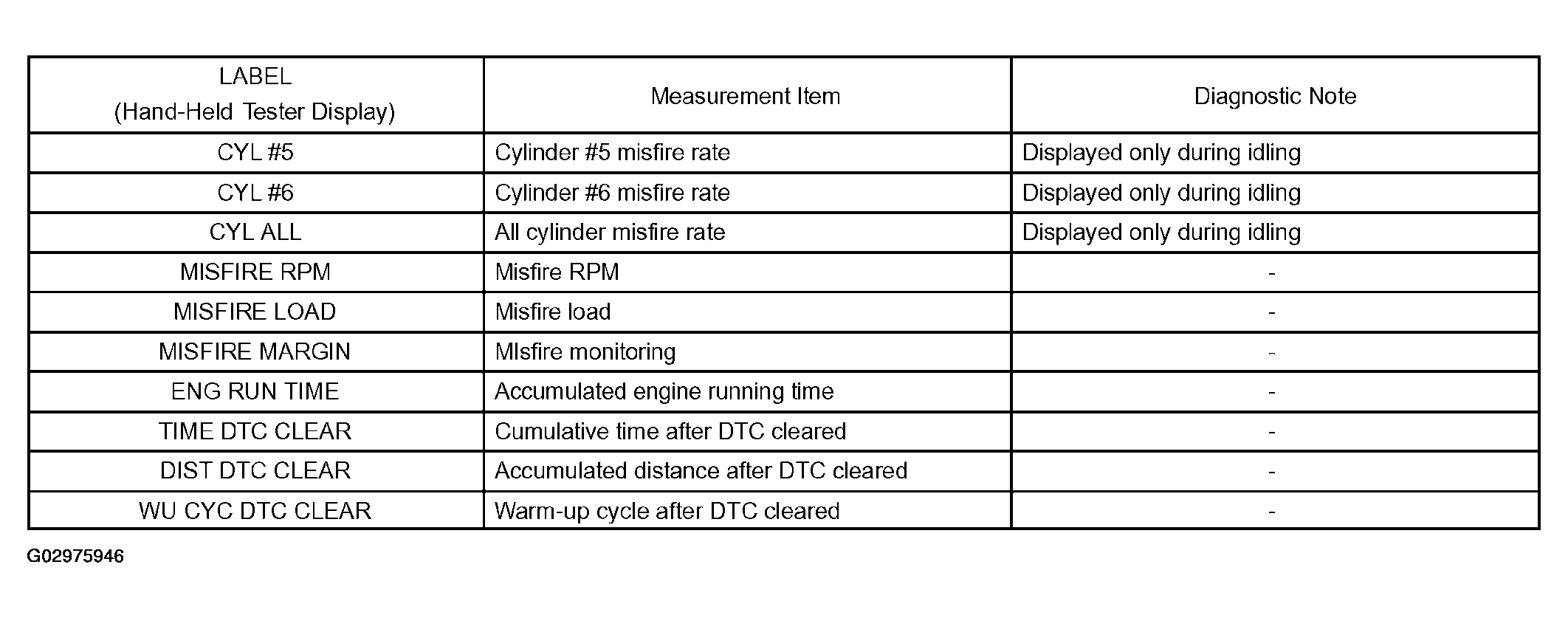

Fig 4: List Of Freeze Frame Data (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
