With Smart Key System:: Notes

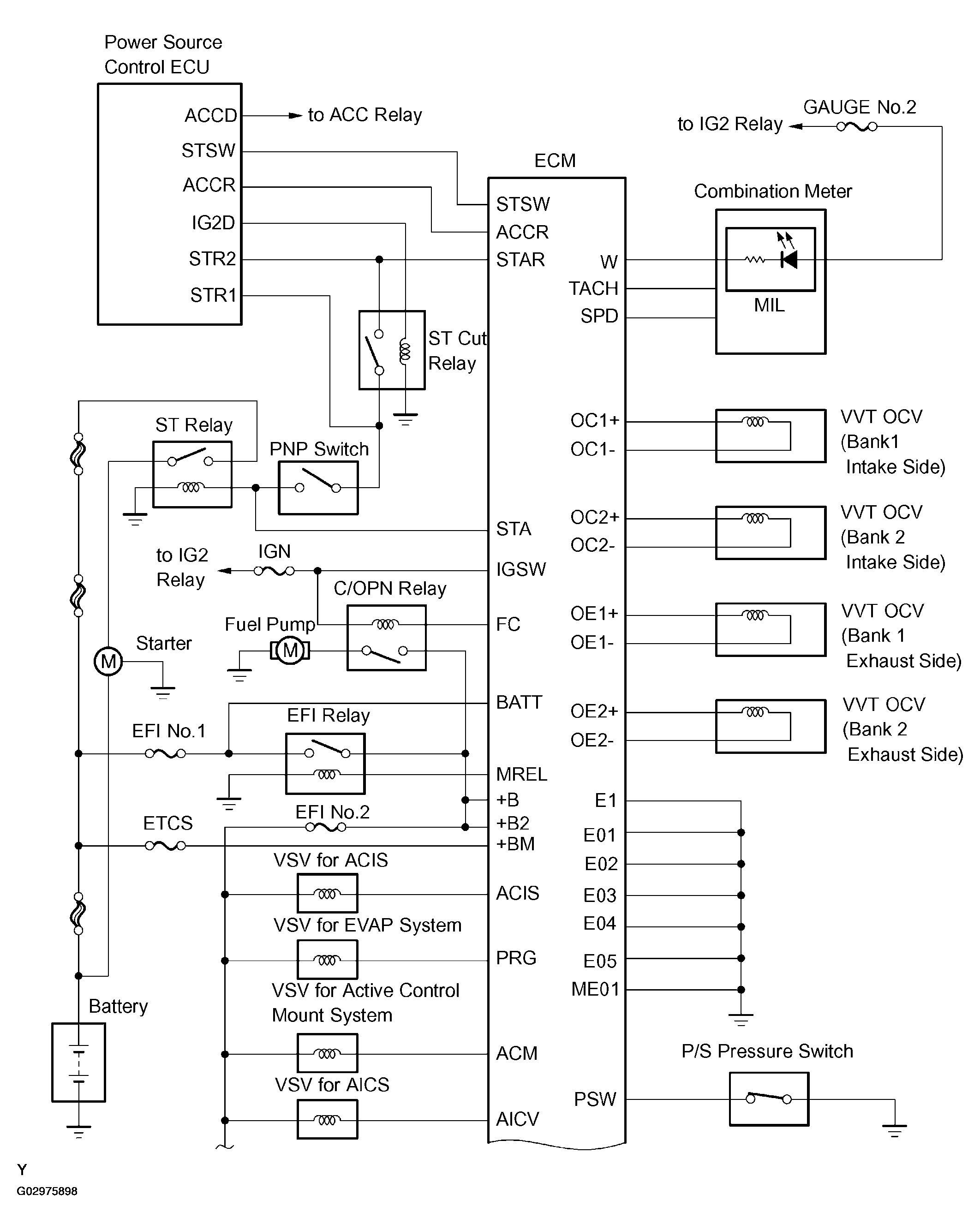

Fig 1: With Smart Key System - System Diagram (1 Of 3)
G02975898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

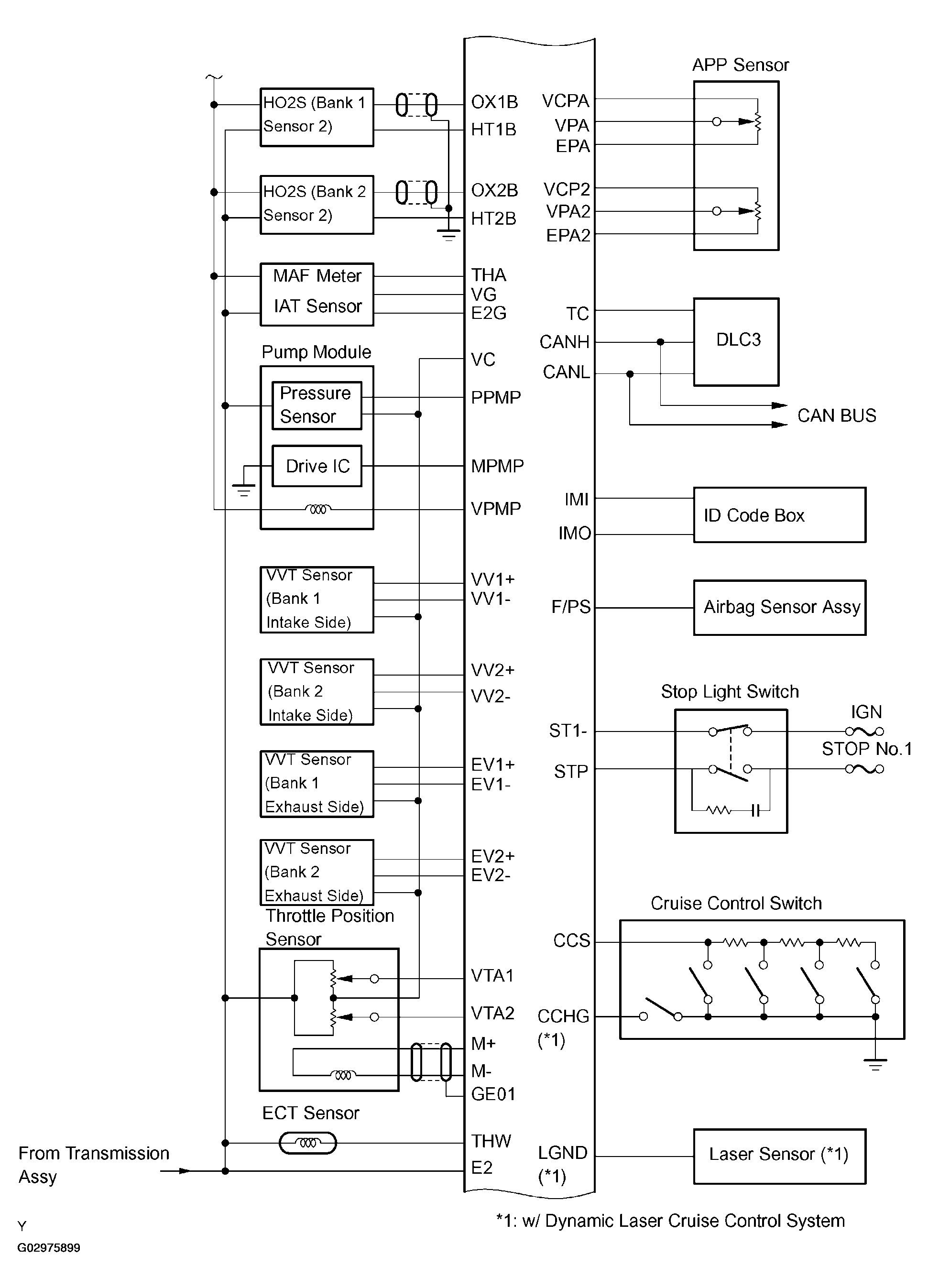

Fig 2: With Smart Key System - System Diagram (2 Of 3)
G02975899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

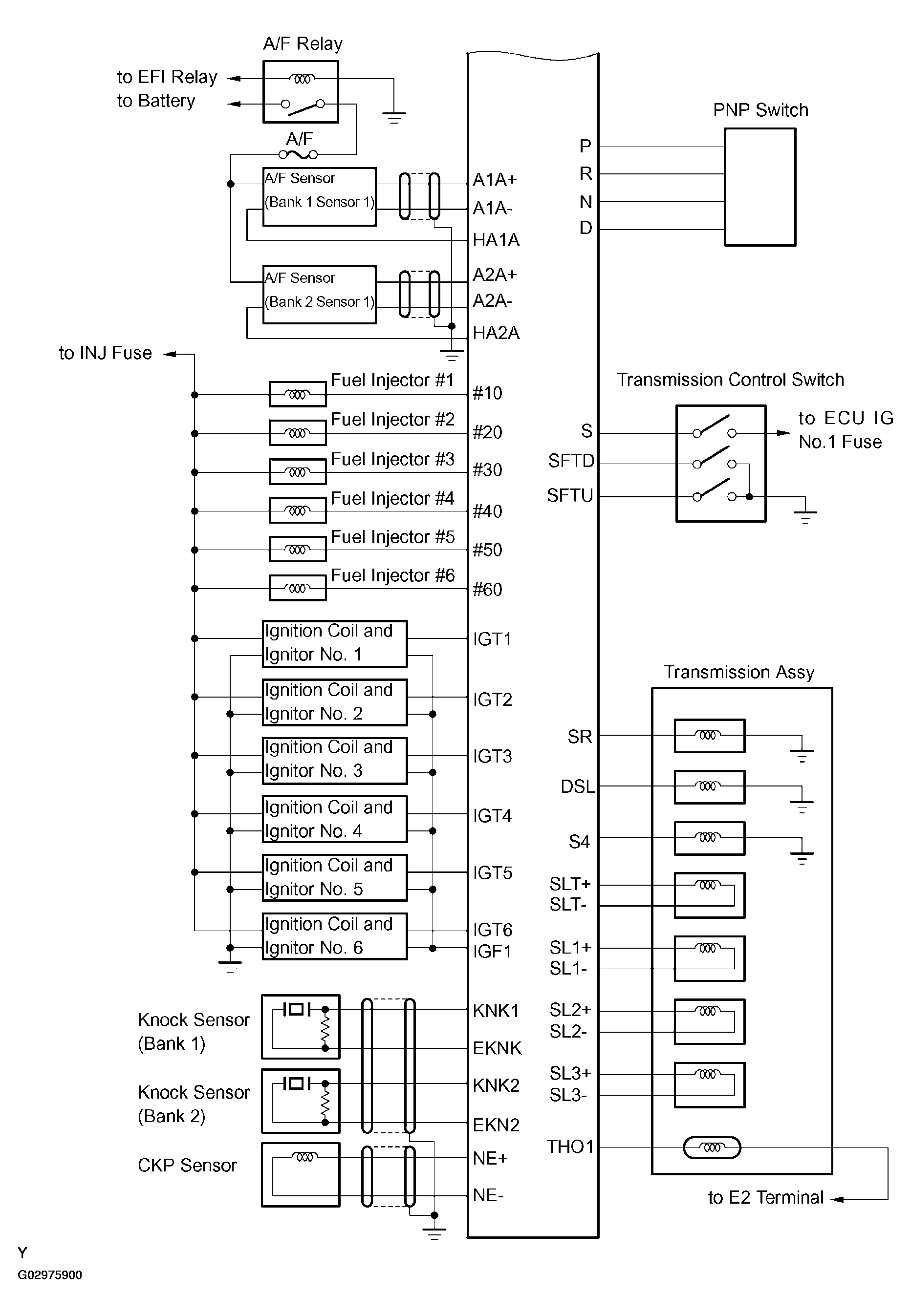

Fig 3: With Smart Key System - System Diagram (3 Of 3)
G02975900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
