Waveform 8

Vehicle speed signal

HINT:

• The wavelength becomes shorter as the vehicle speed increases.
• Depending on the vehicle, the output waveform voltage may rise to 12 V if influenced by optionally installed systems.

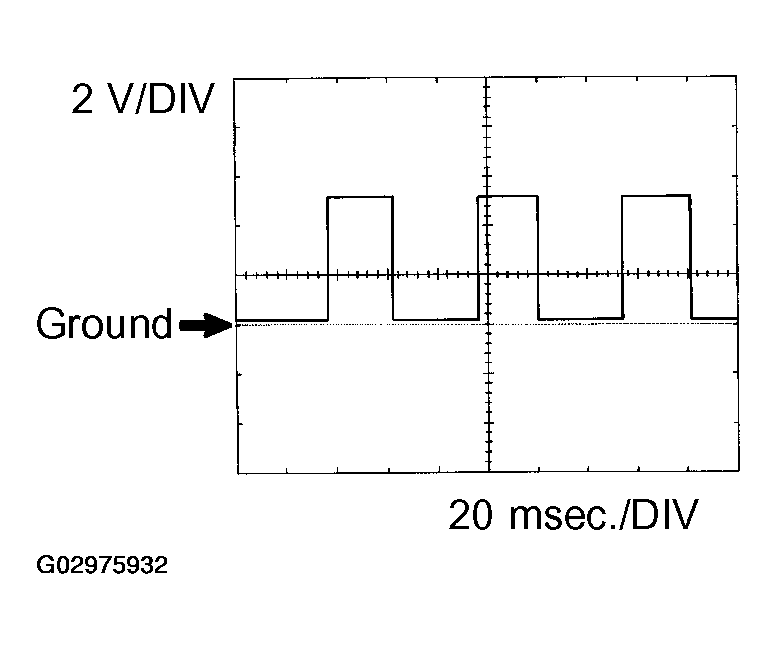

  Fig 1: Identifying Waveform 8

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
