System Diagram

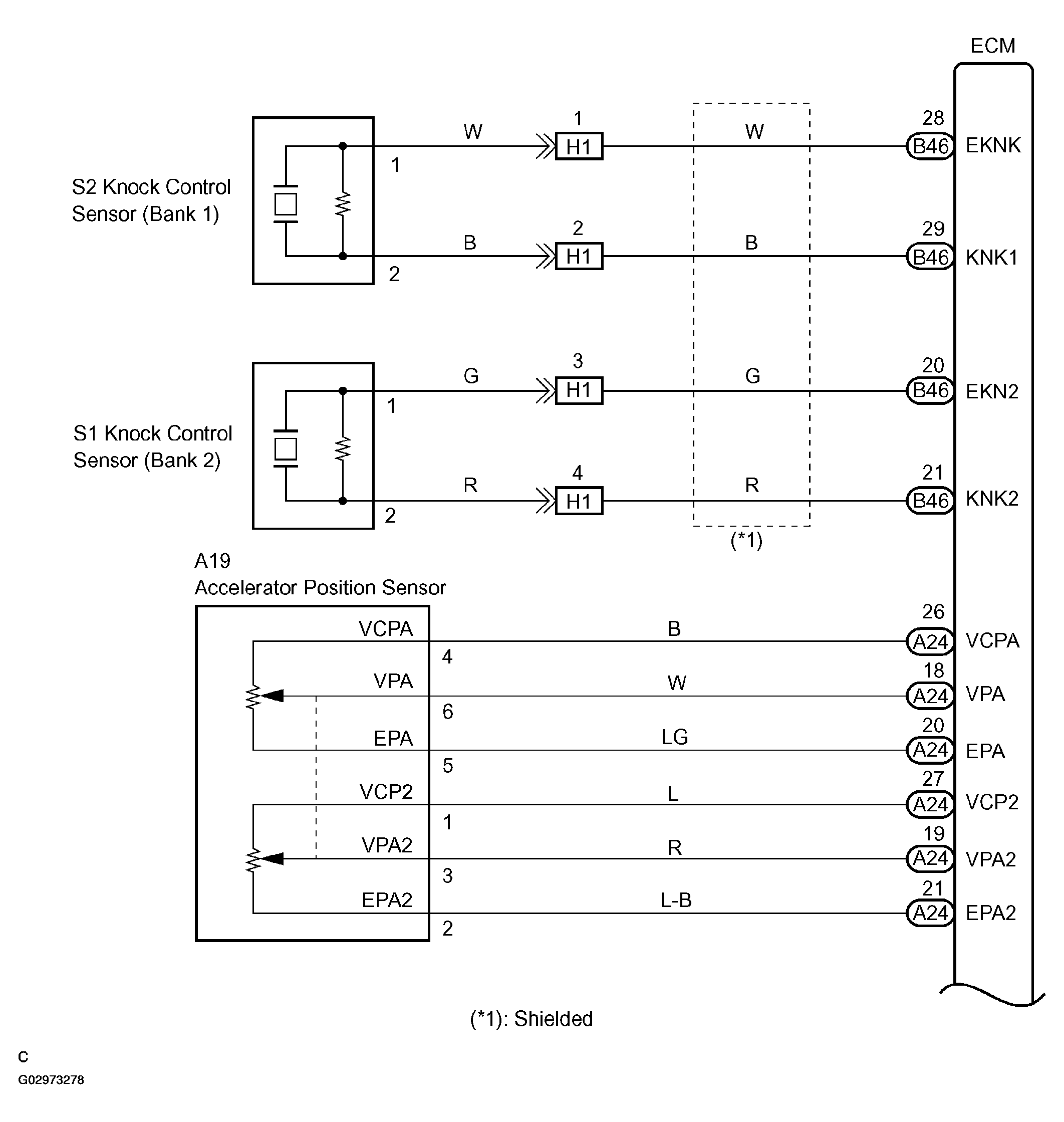

Fig 1: SFI System Diagram (2GR-FE - 1 Of 4)
G02973278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

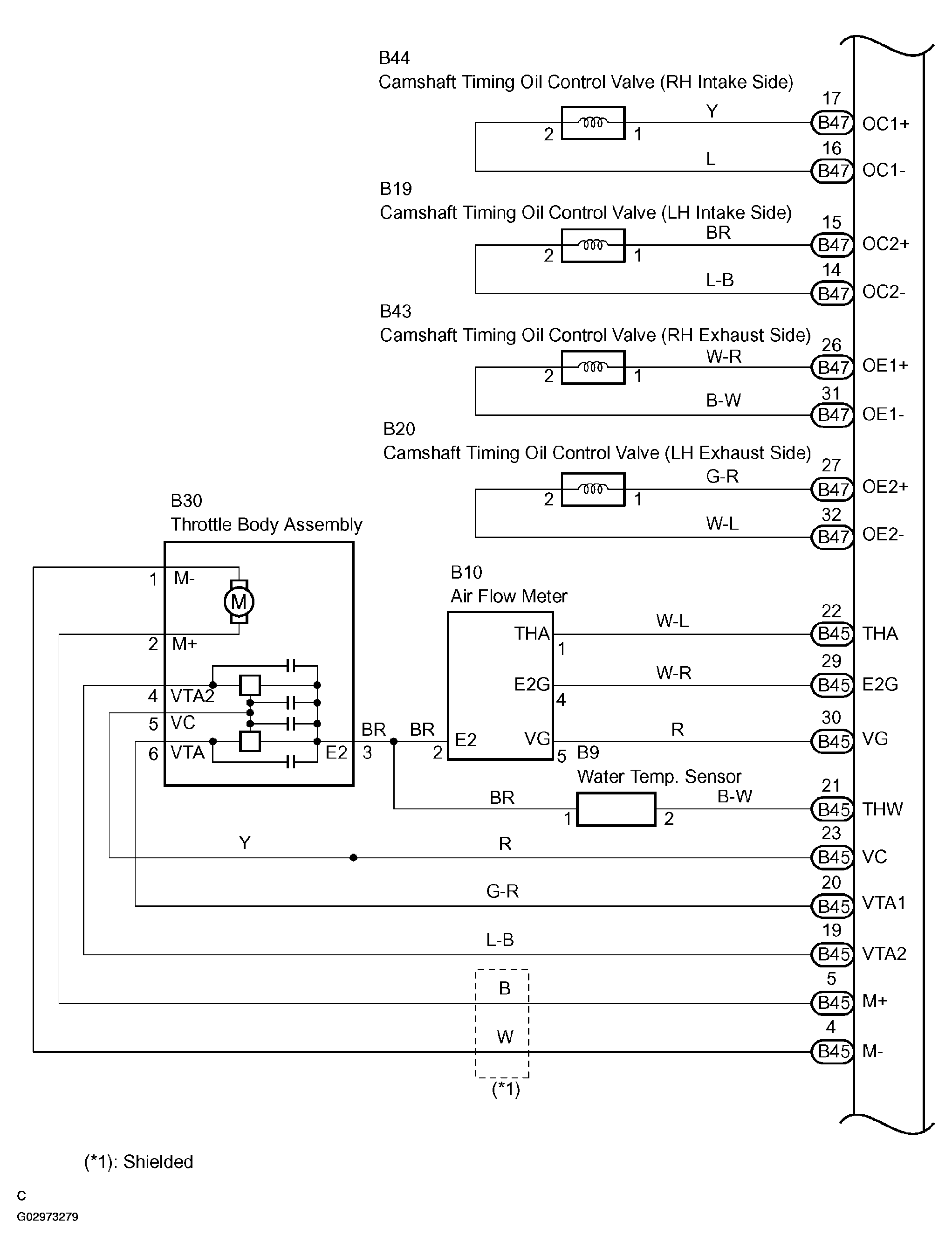

Fig 2: SFI System Diagram (2GR-FE - 2 Of 4)
G02973279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

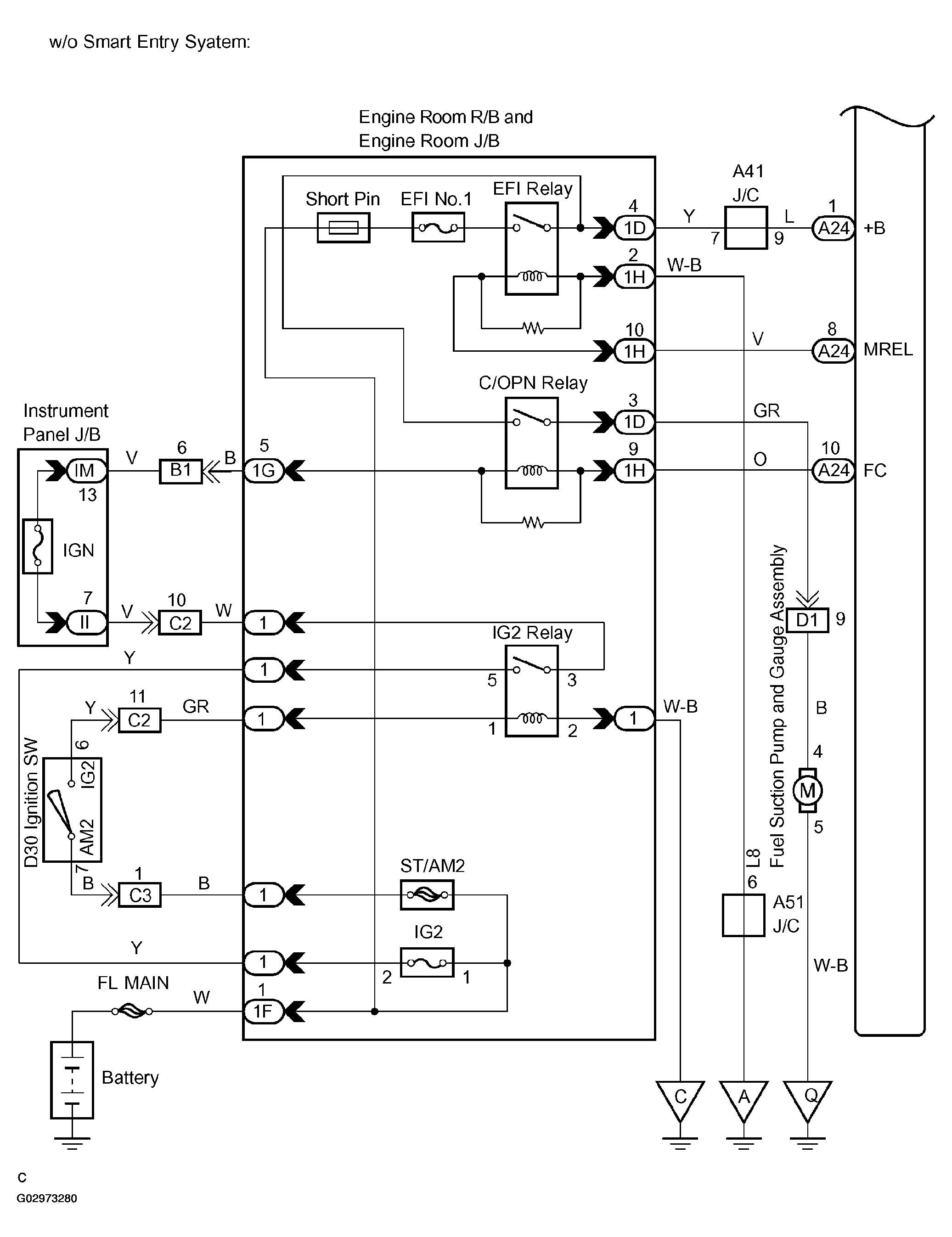

Fig 3: SFI System Diagram (2GR-FE - 3 Of 4)
G02973280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

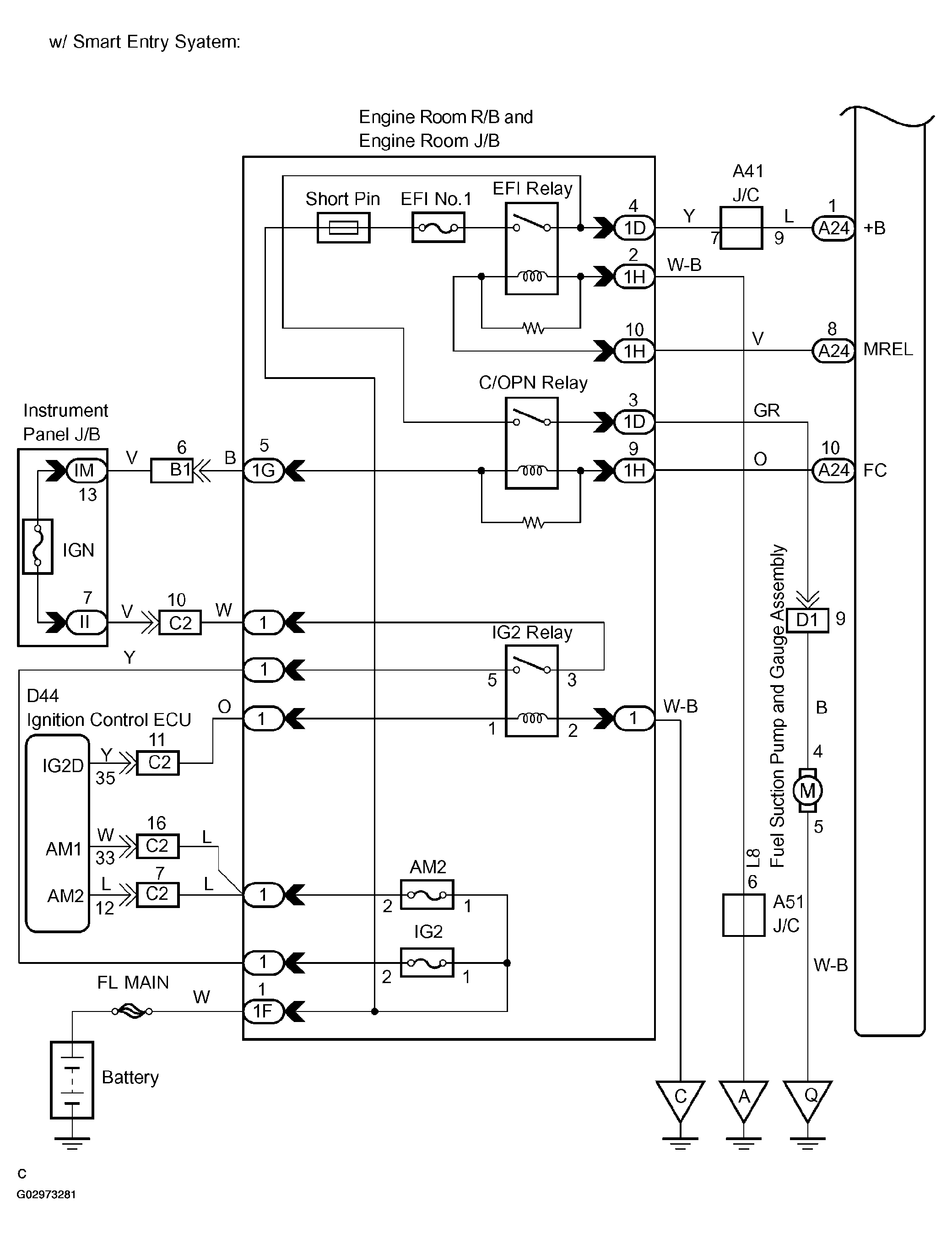

Fig 4: SFI System Diagram (2GR-FE - 4 Of 4)
G02973281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
