Engine Ignition System
>>
System Diagram
System Diagram

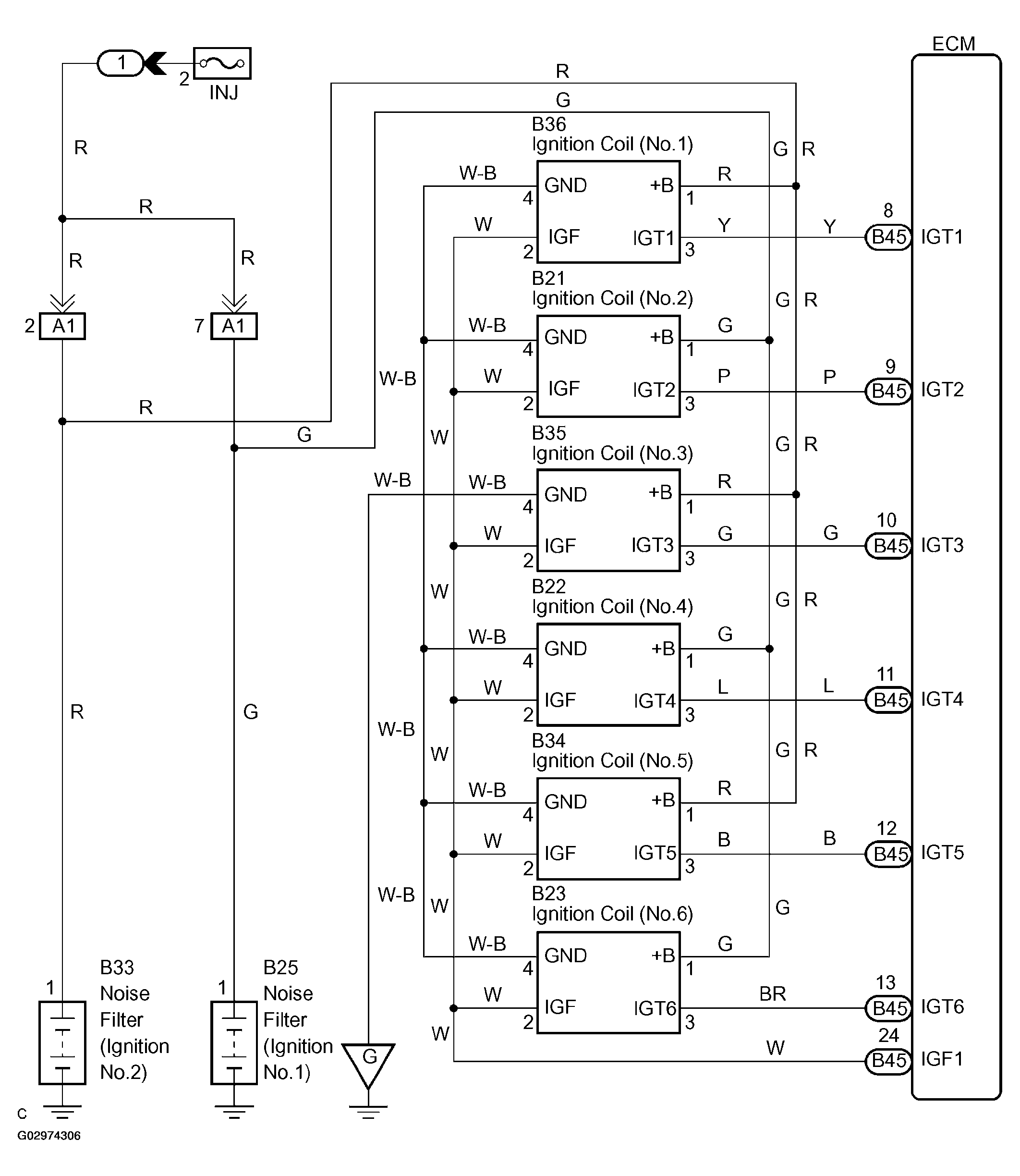

Fig 1: System Diagram - Ignition System (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: System Diagram - Ignition System (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
