Seat Belt: Components

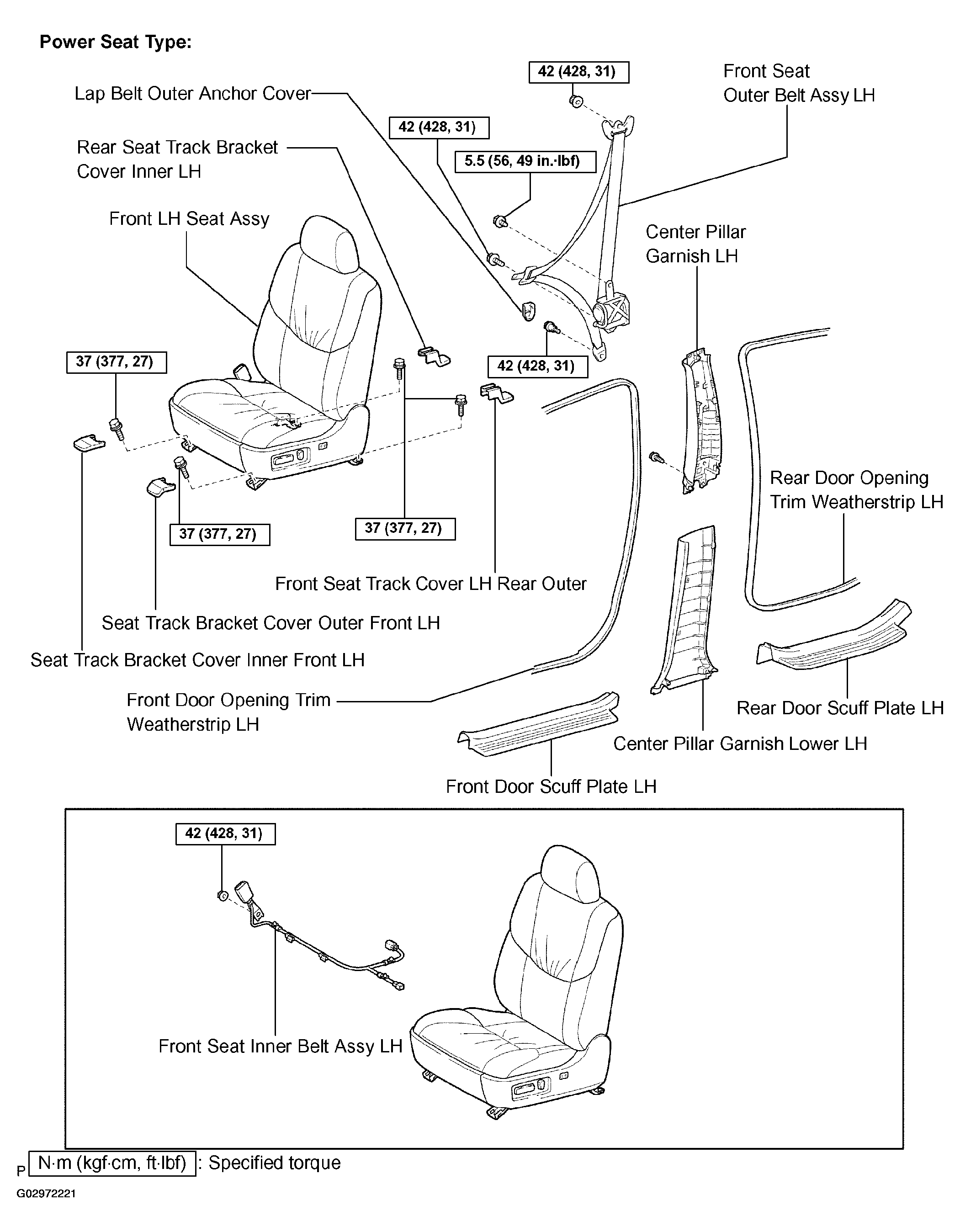

Fig 1: Identifying Seat Belt Components (1 Of 3)
G02972221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

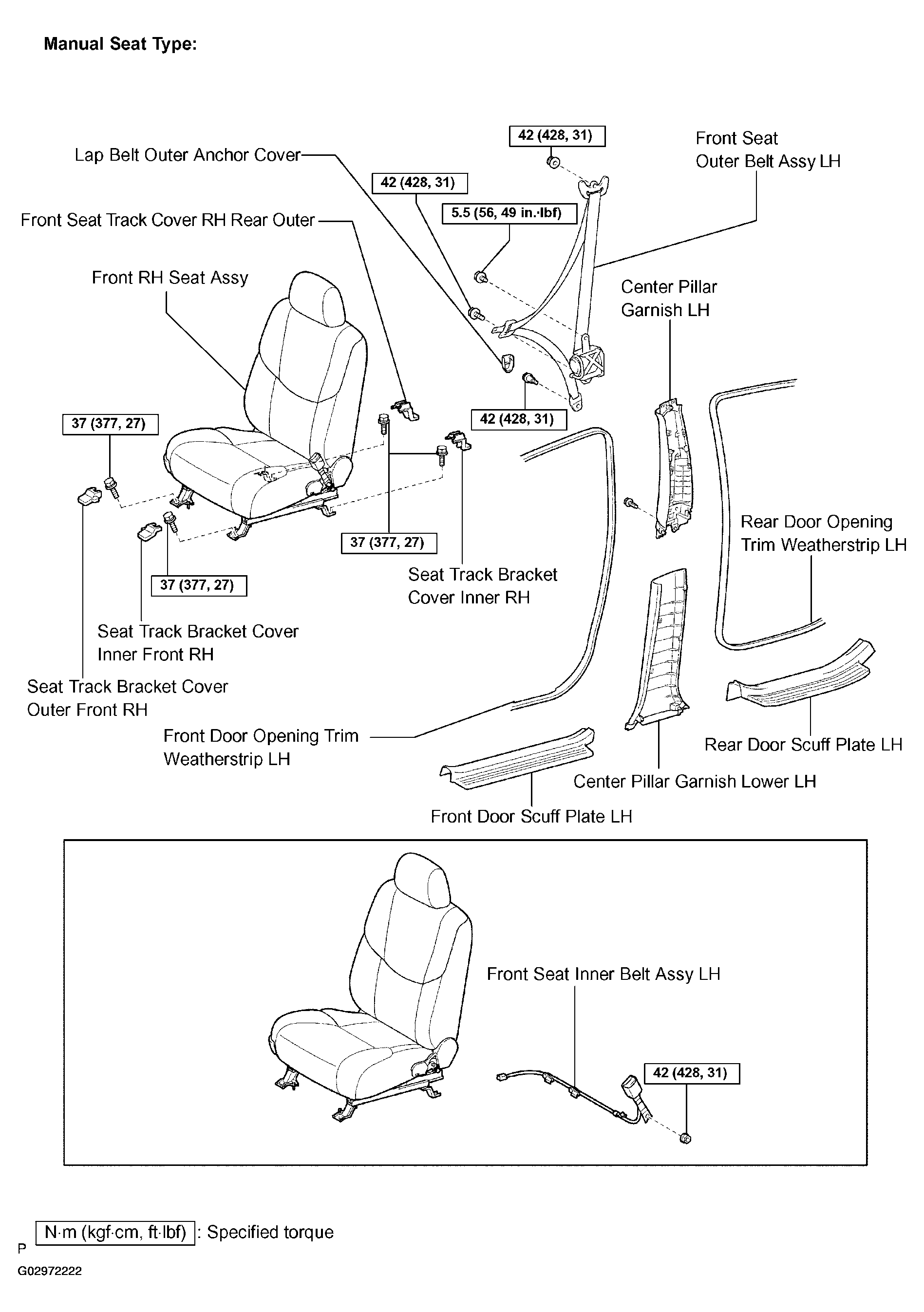

Fig 2: Identifying Seat Belt Components (2 Of 3)
G02972222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

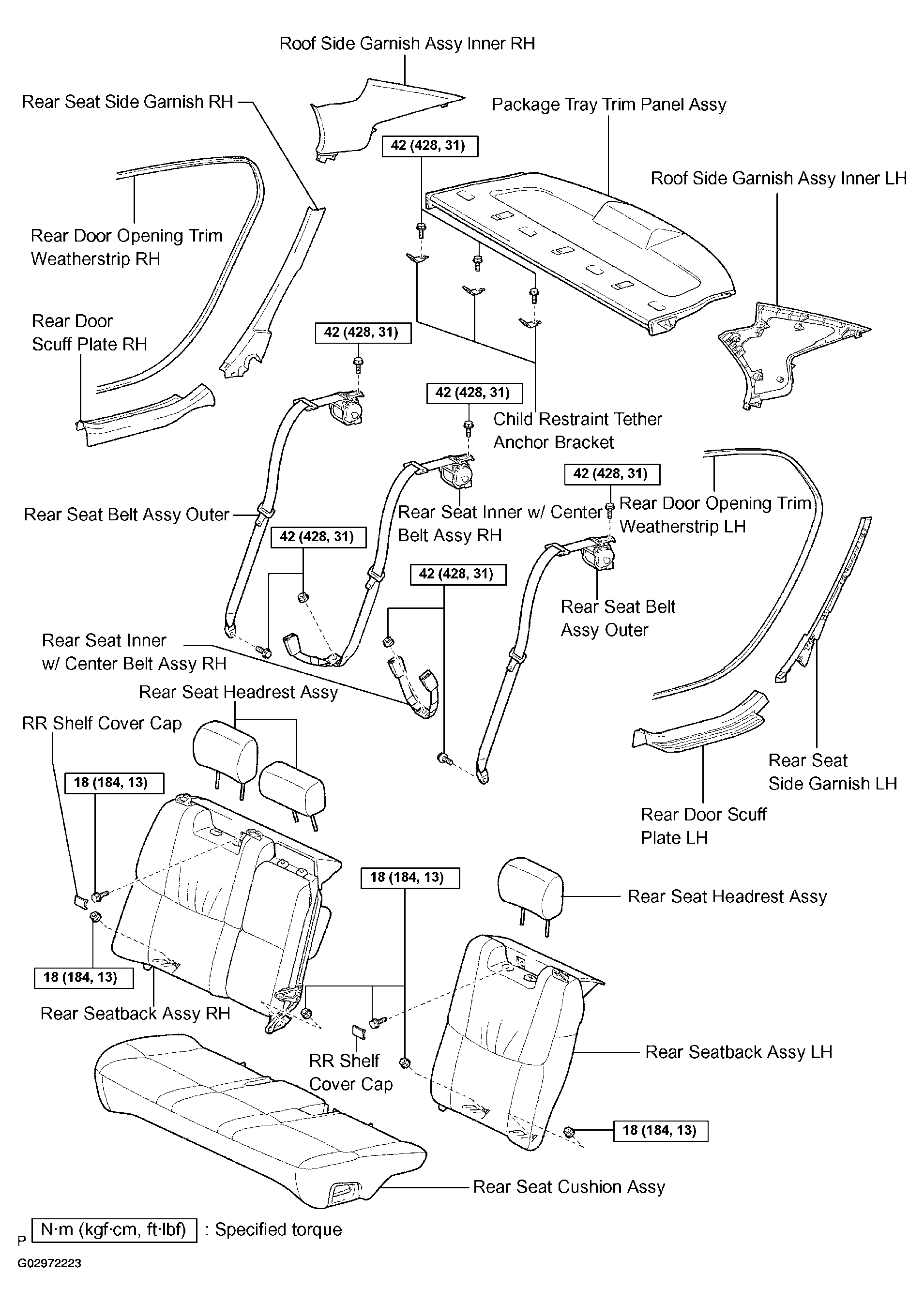

Fig 3: Identifying Seat Belt Components (3 Of 3)
G02972223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
