Home >> Toyota >> 2005 >> Avalon XLS >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension System >> Front Suspension >> Components

Front Suspension: Components

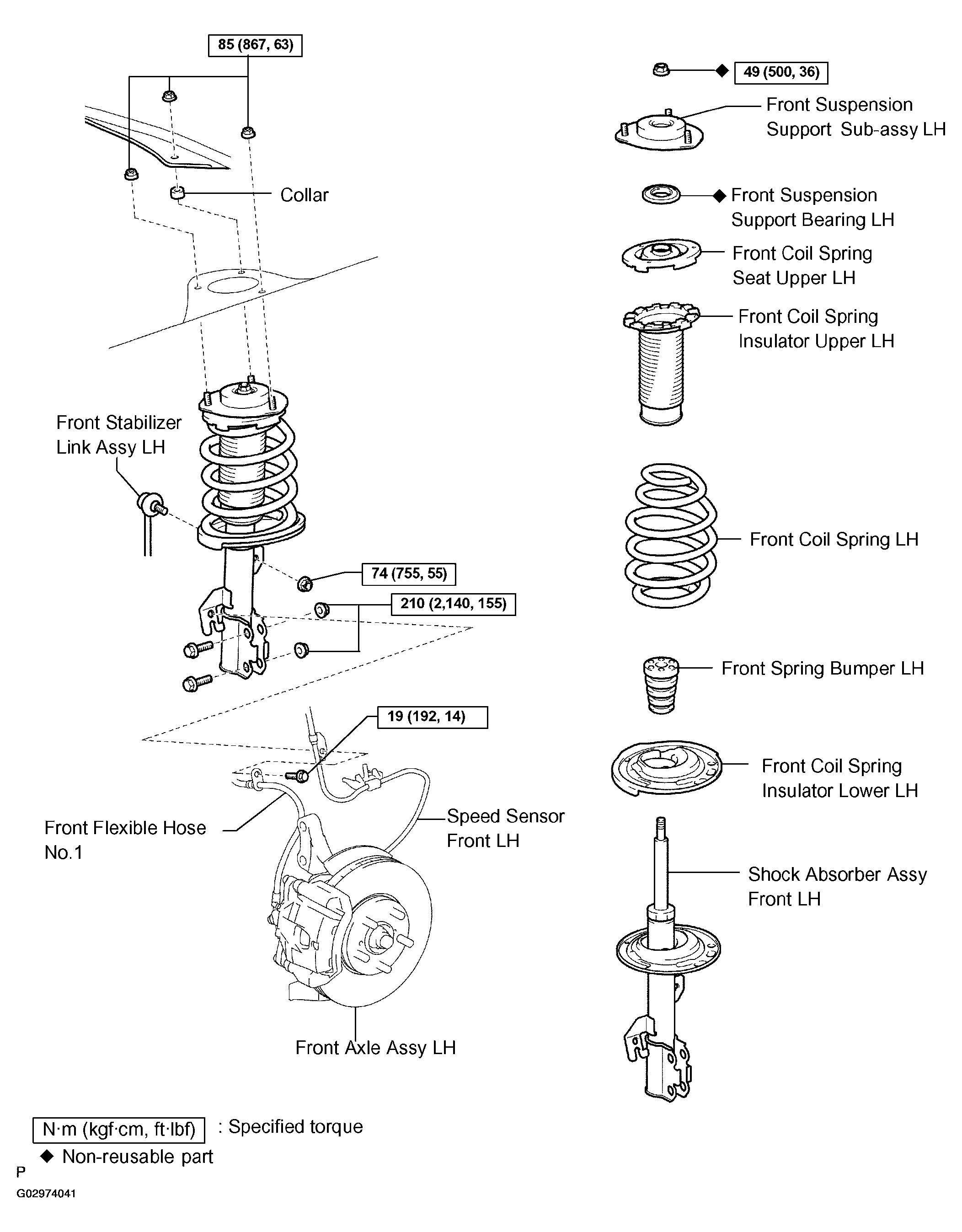

Fig 1: Front Suspension Components (1 Of 2)
G02974041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

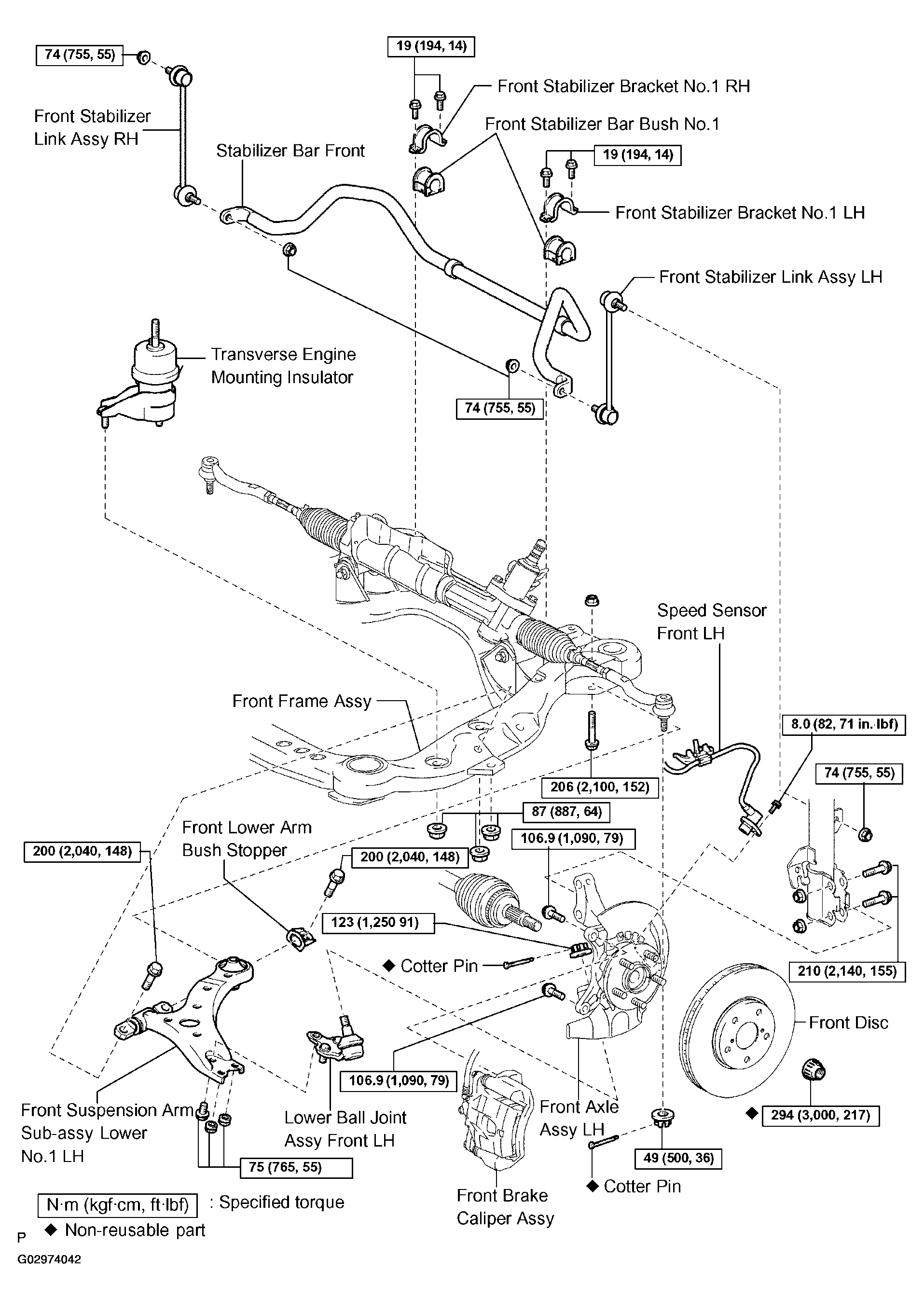

Fig 2: Front Suspension Components (2 Of 2)
G02974042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
