How To Proceed With Troubleshooting

HINT:

This is the repair procedure for vehicle pull.

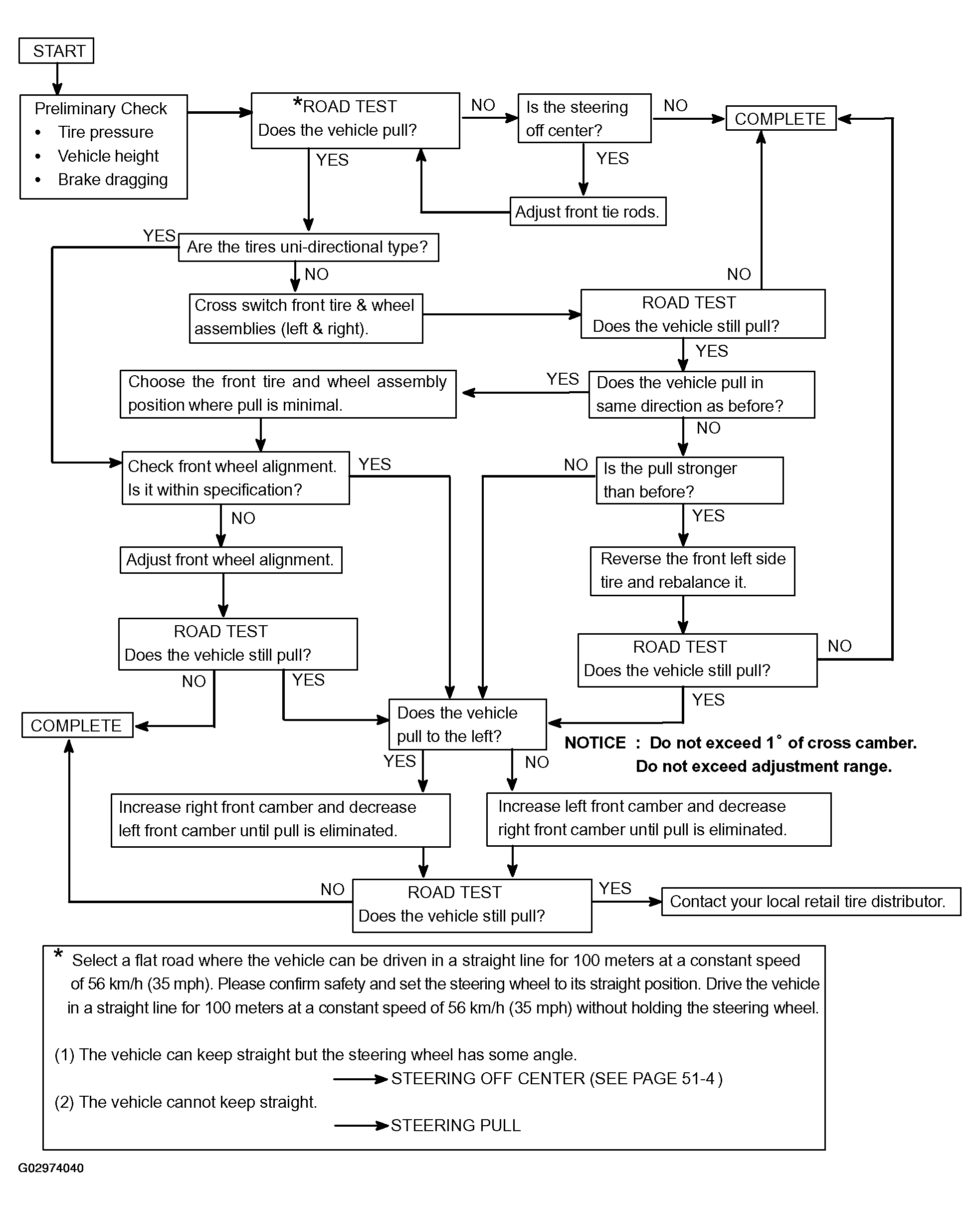

Fig 1: Front Suspension System Troubleshooting Flow Chart
G02974040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
