Ignition Switch/Steering Lock: Inspection

INSPECT IGNITION OR STARTER SWITCH ASSY
1. Inspect the ignition switch continuity.
Standard:

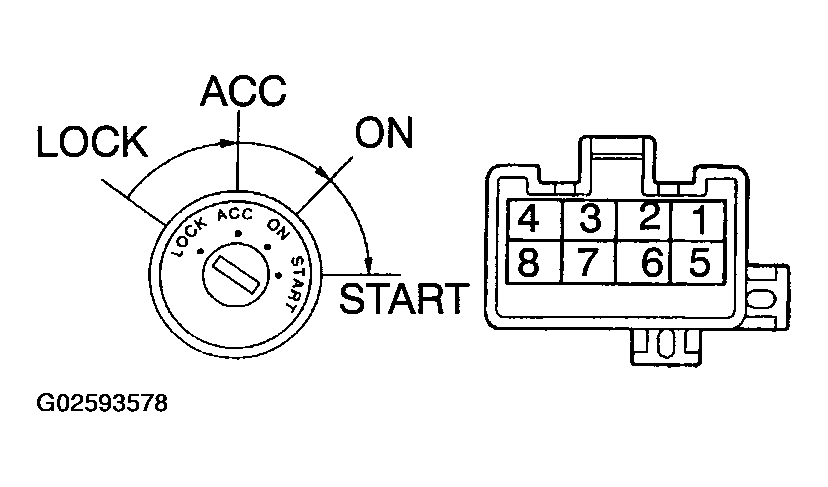

Fig 1: Identifying Ignition Or Starter Switch Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

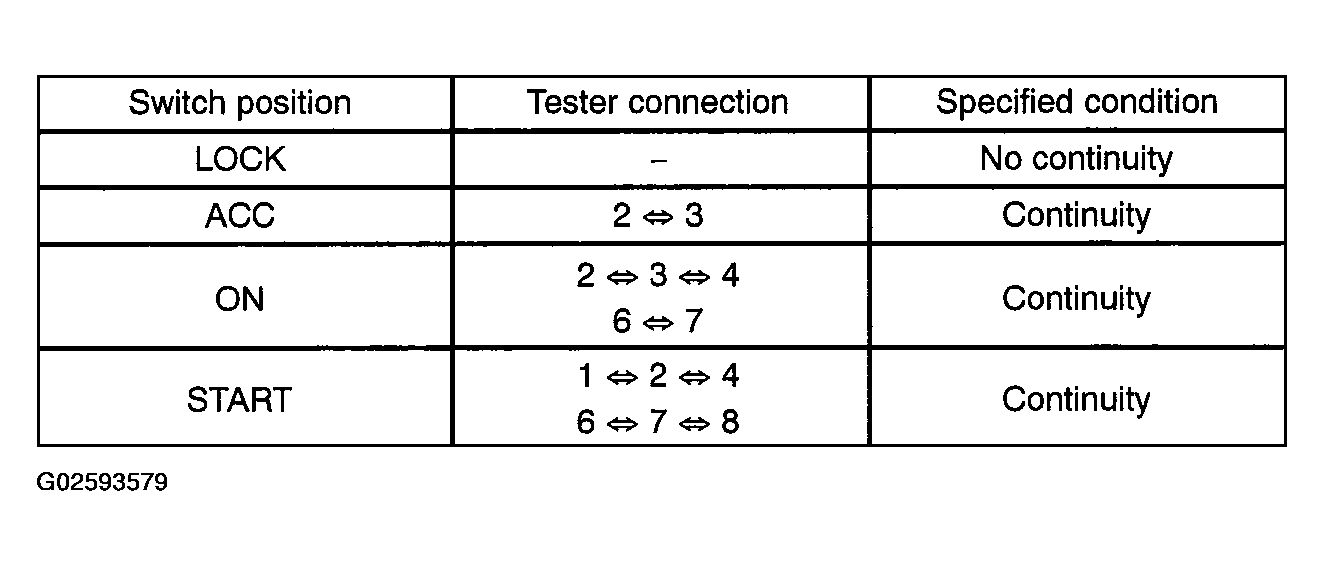

Fig 2: Ignition Switch Continuity Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.
