Power Window Control System: Wiring Diagram

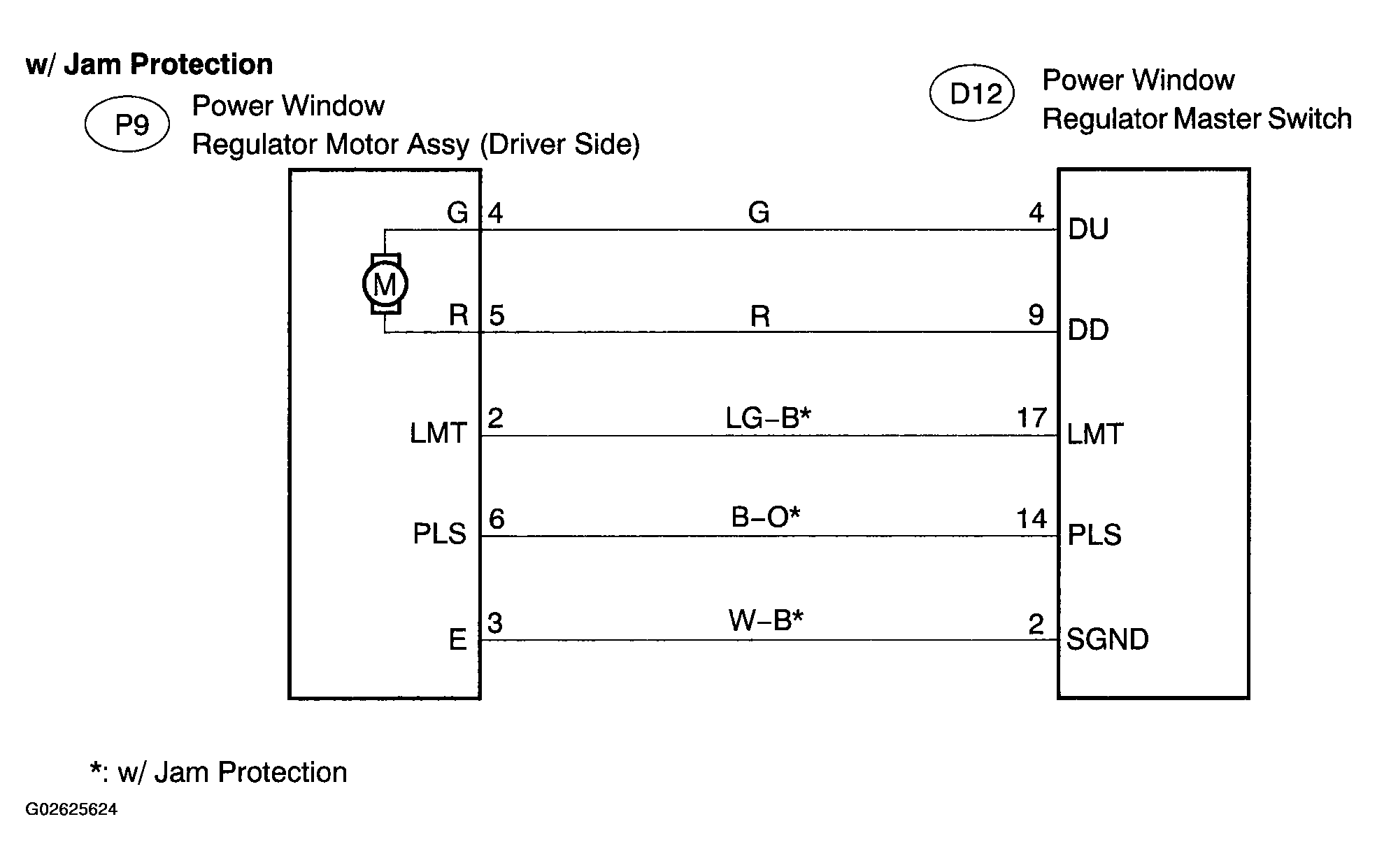

Fig 1: Driver's Door Window Goes Down During Auto Up Operation Wiring Diagram

G02625624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
