Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

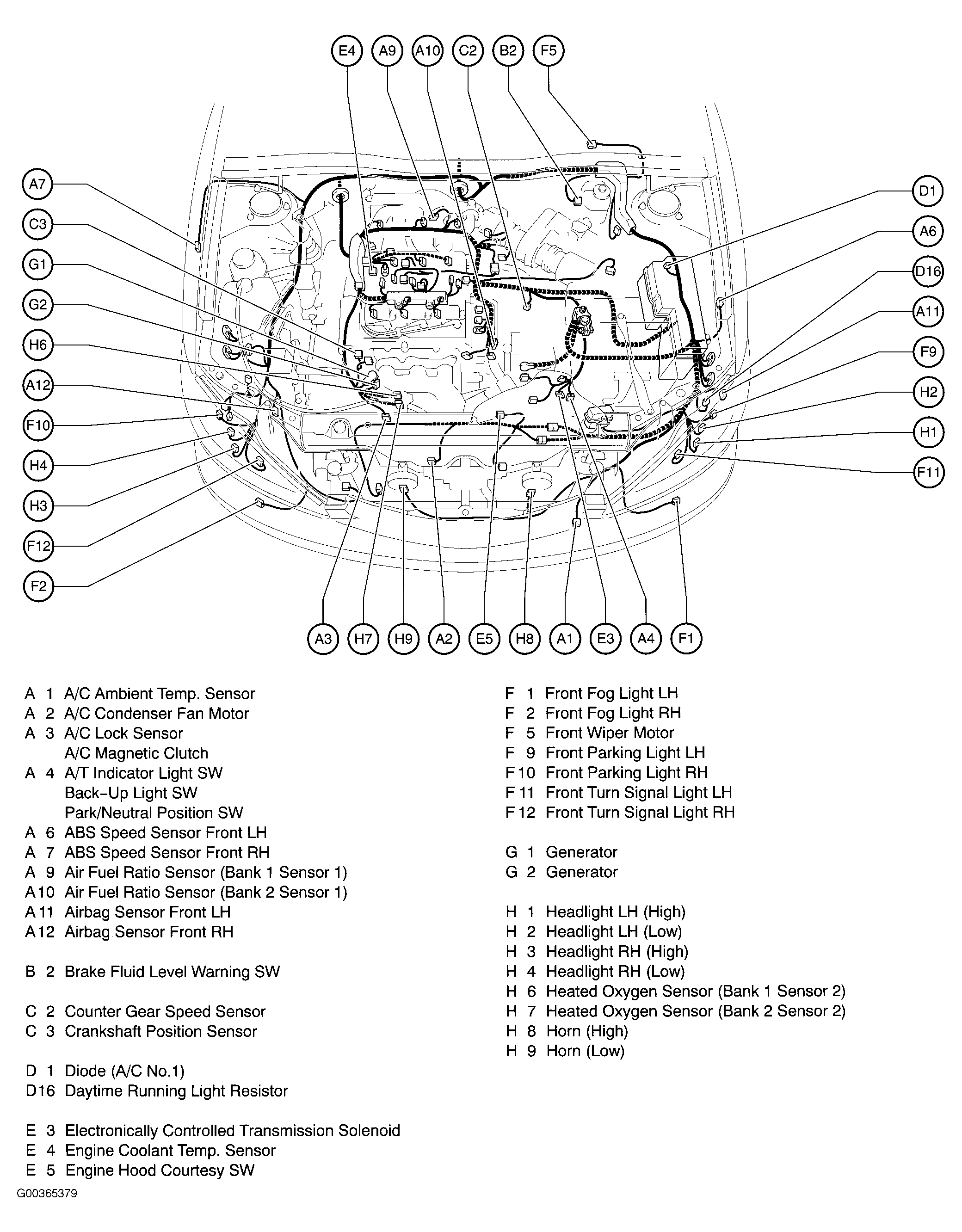

Fig 1: Engine Compartment (3.0L & 3.3L)
G00365379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

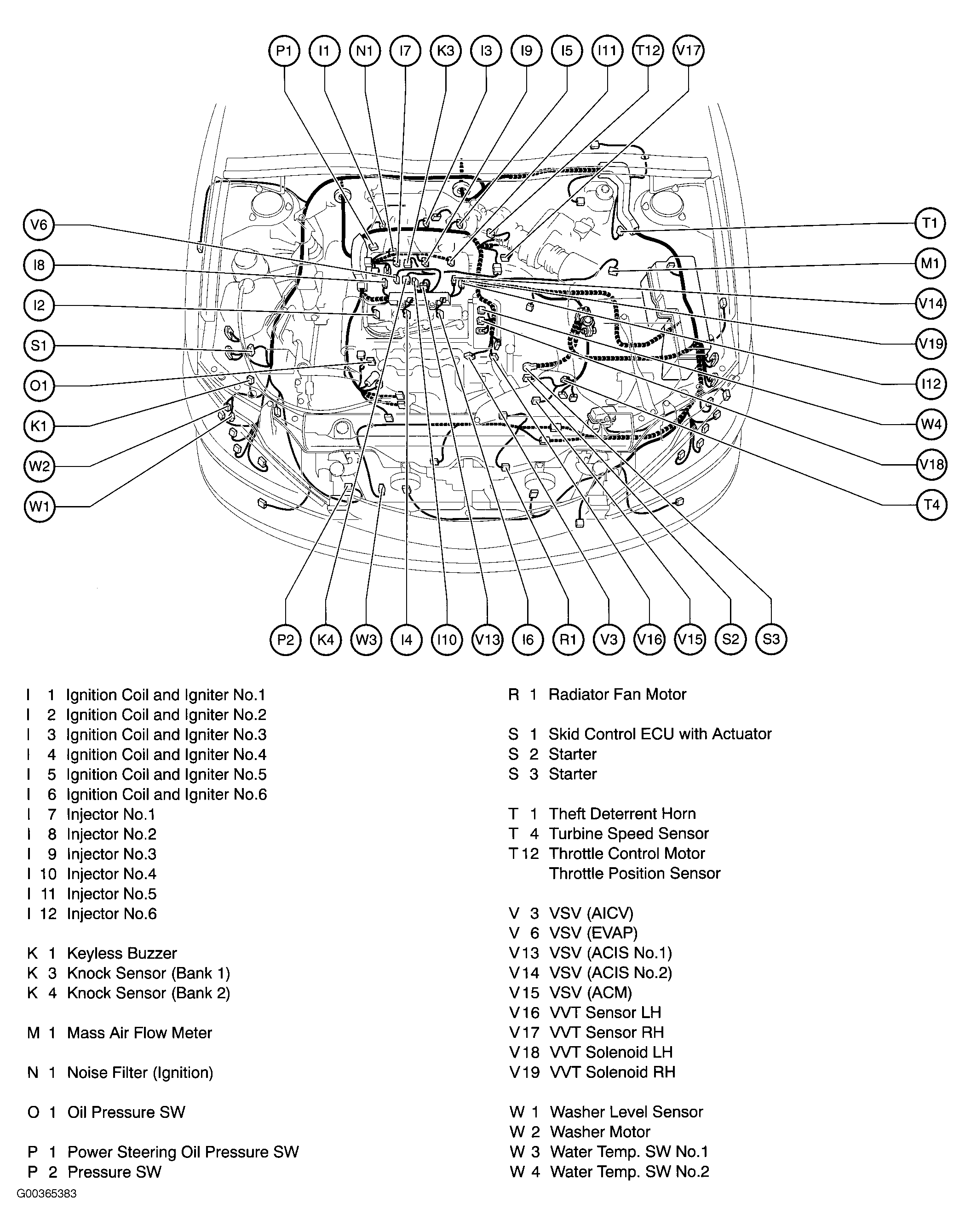

Fig 2: Engine Compartment (3.0L & 3.3L)
G00365383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Engine Compartment (2.4L)
G00365376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

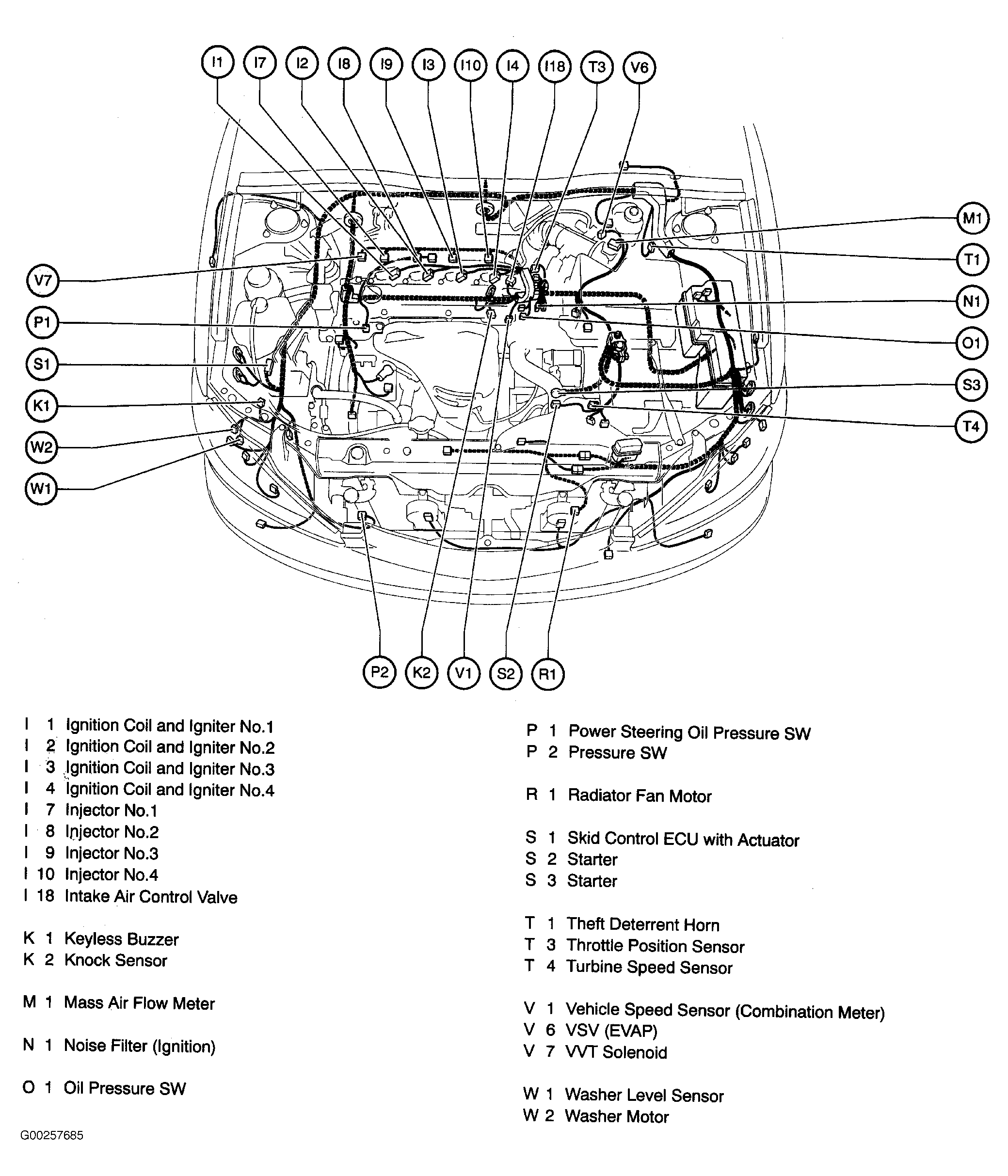

Fig 4: Engine Compartment (2.4L)
G00257685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Dash
G00365377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Dash
G00365378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Vehicle Overview
G00257688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Vehicle Overview
G00365380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

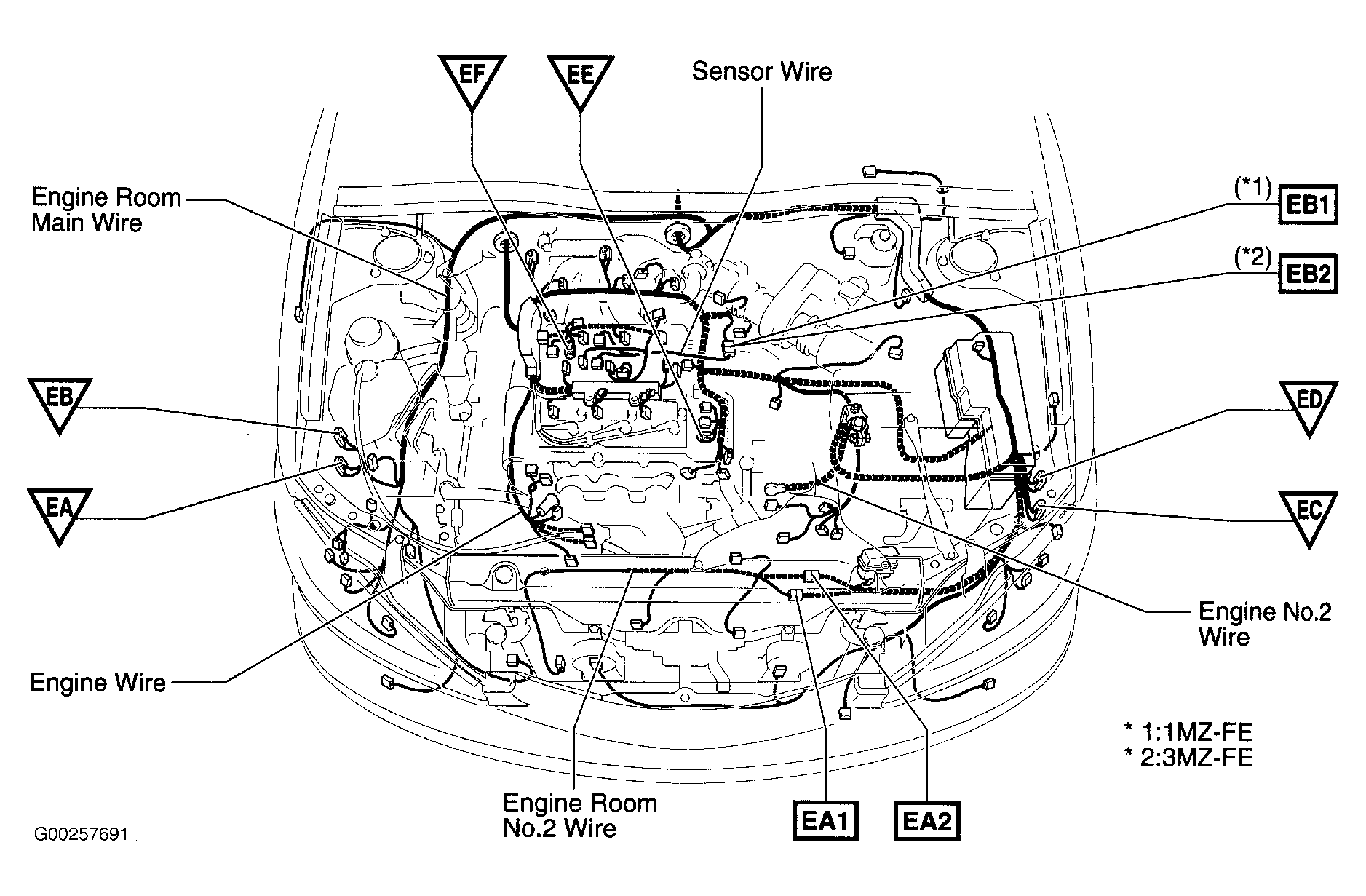

Fig 9: Engine Compartment (3.0L & 3.3L)
G00257691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

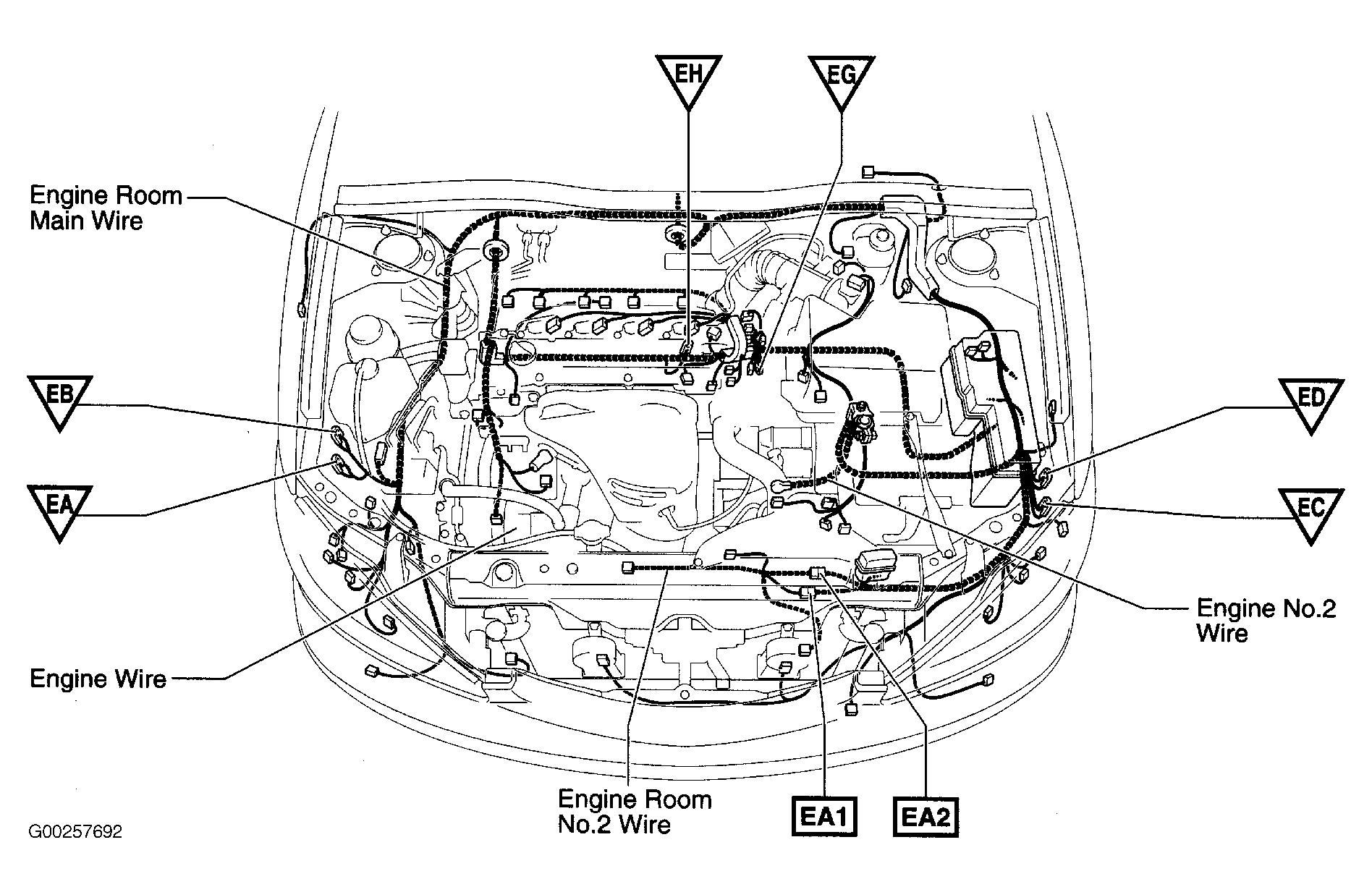

Fig 10: Engine Compartment (2.4L)
G00257692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

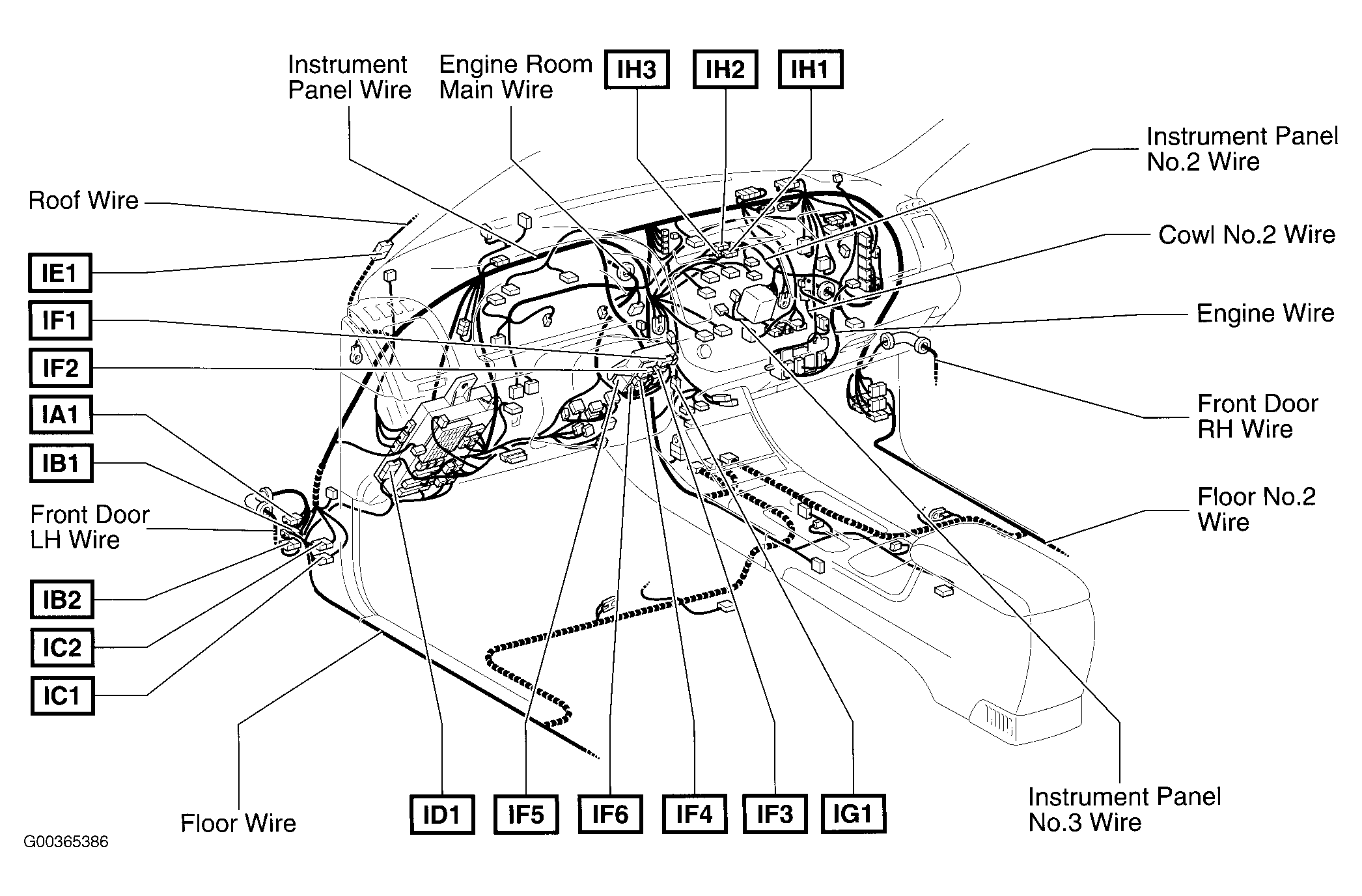

Fig 11: Dash
G00365386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

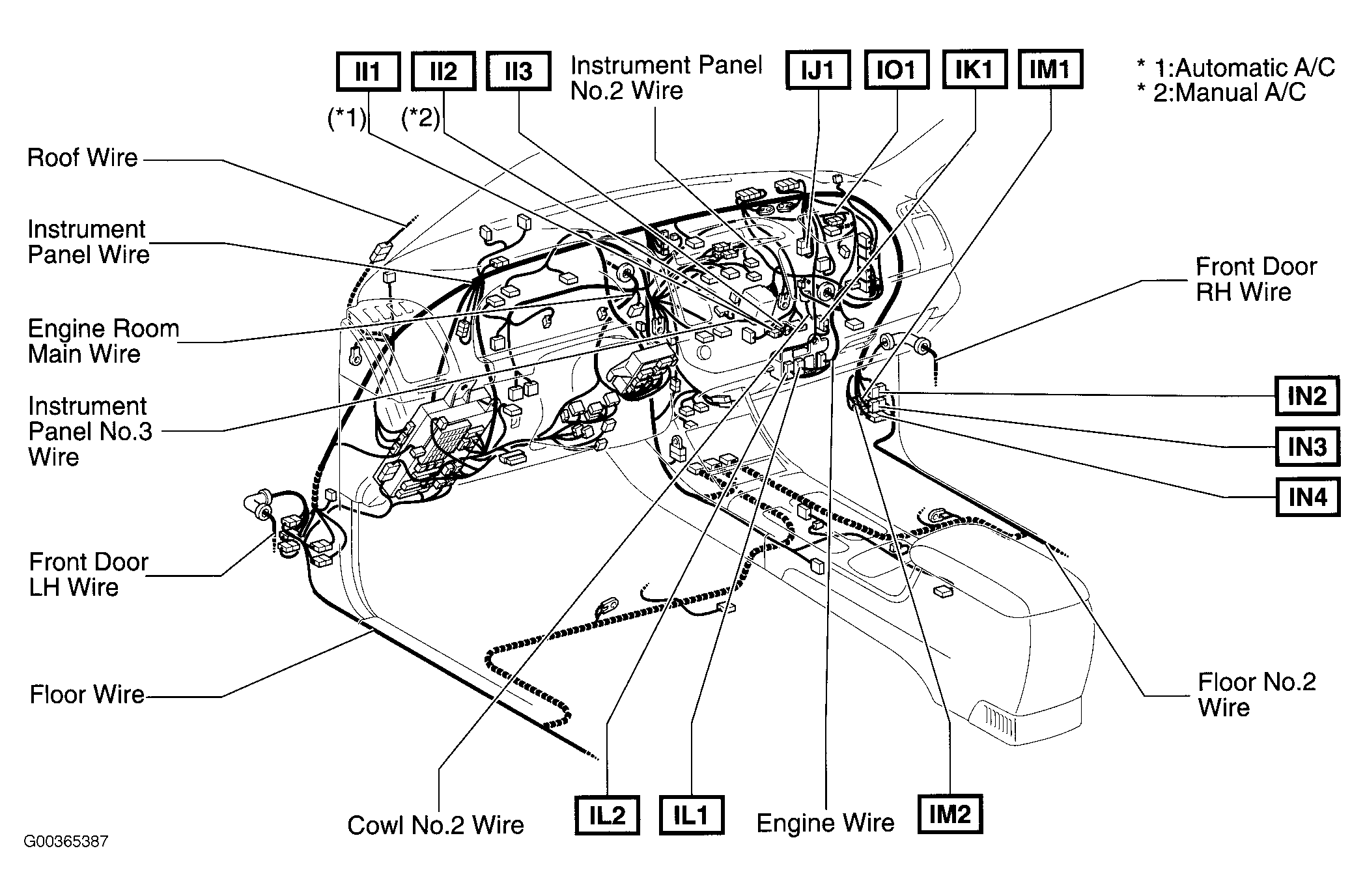

Fig 12: Dash
G00365387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

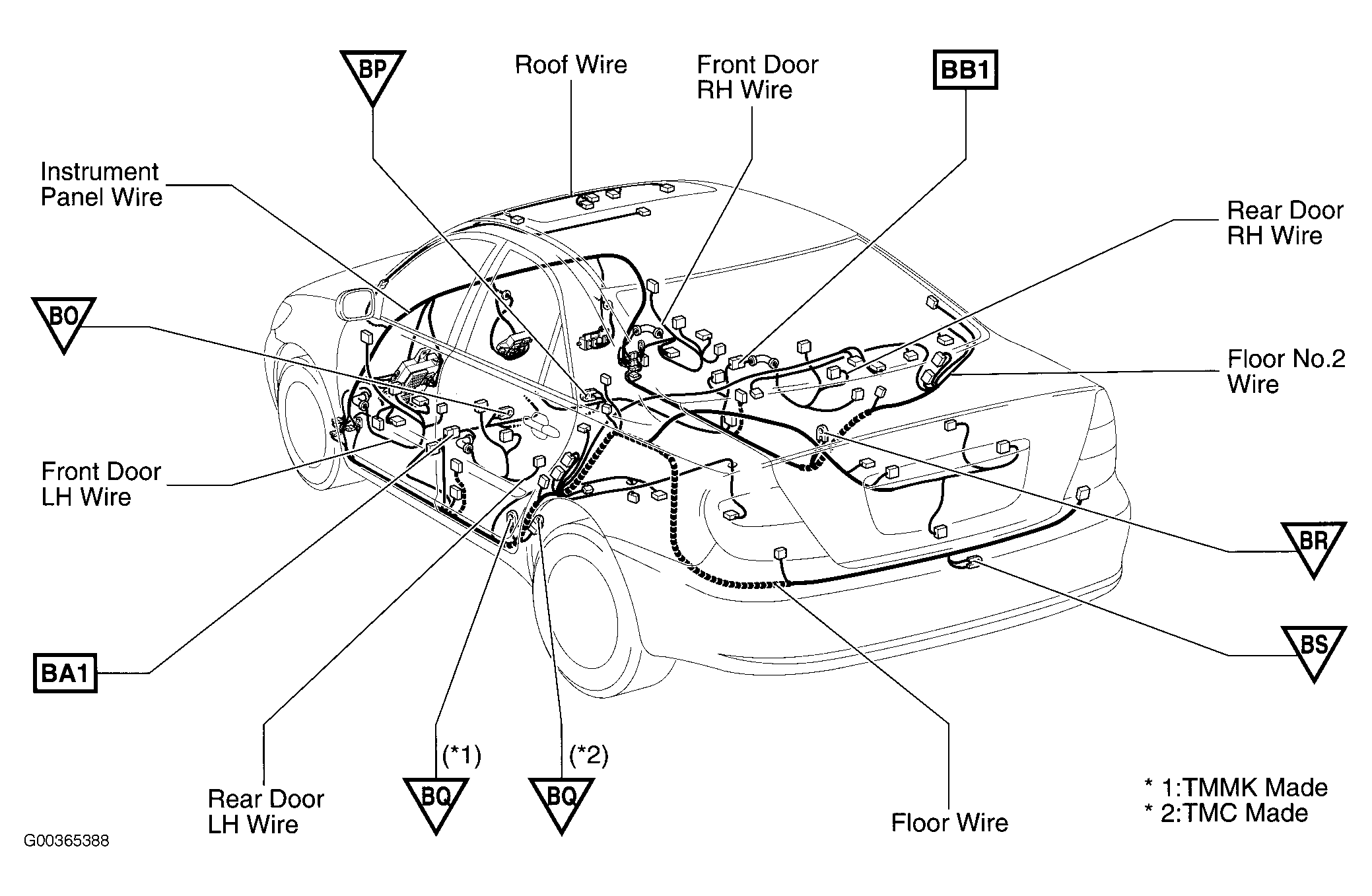

Fig 13: Vehicle Overview
G00365388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

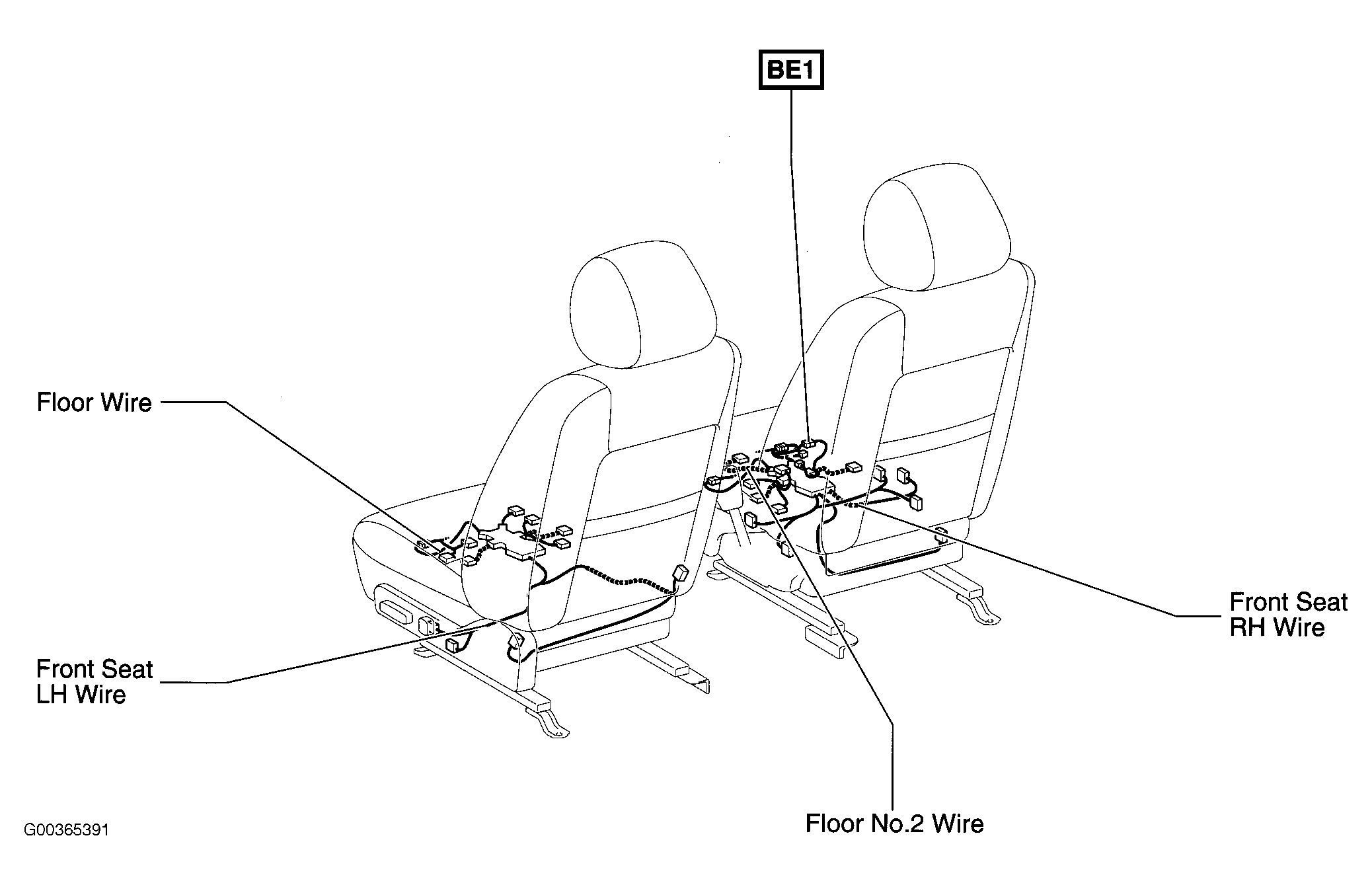

Fig 14: Front Seats (W/Power Seats)
G00365391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Engine Compartment
G00262622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 16: Dash
G00365375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

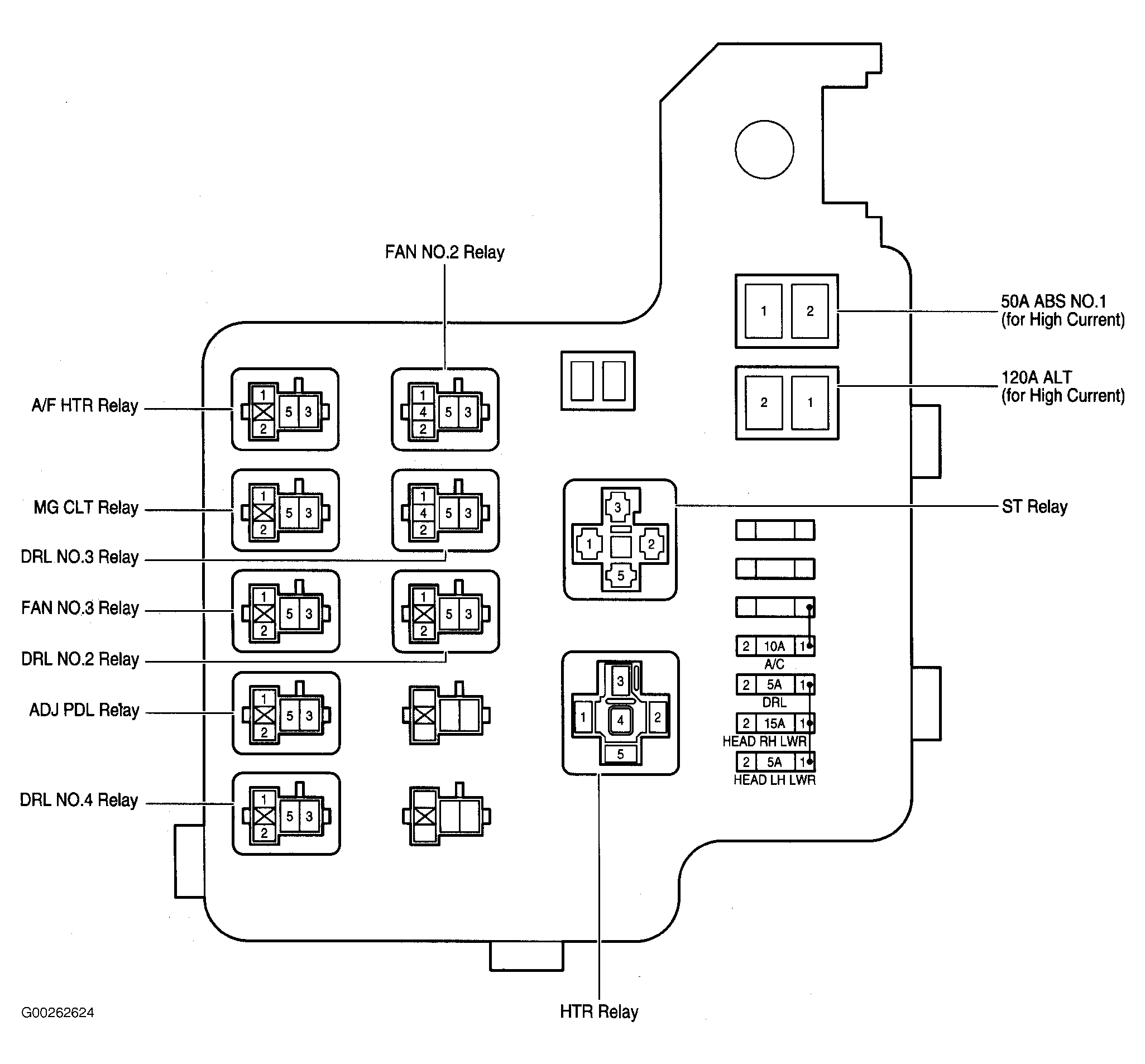

Fig 17: Engine Room R/B
G00262624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL No.4 Relay
ADJ PDL Relay
DRL No.2 Relay
Fan No.3 Relay
DRL No.3 Relay
MG CLT Relay
A/F HTR Relay
Fan No.2 Relay
ST Relay
HTR Relay

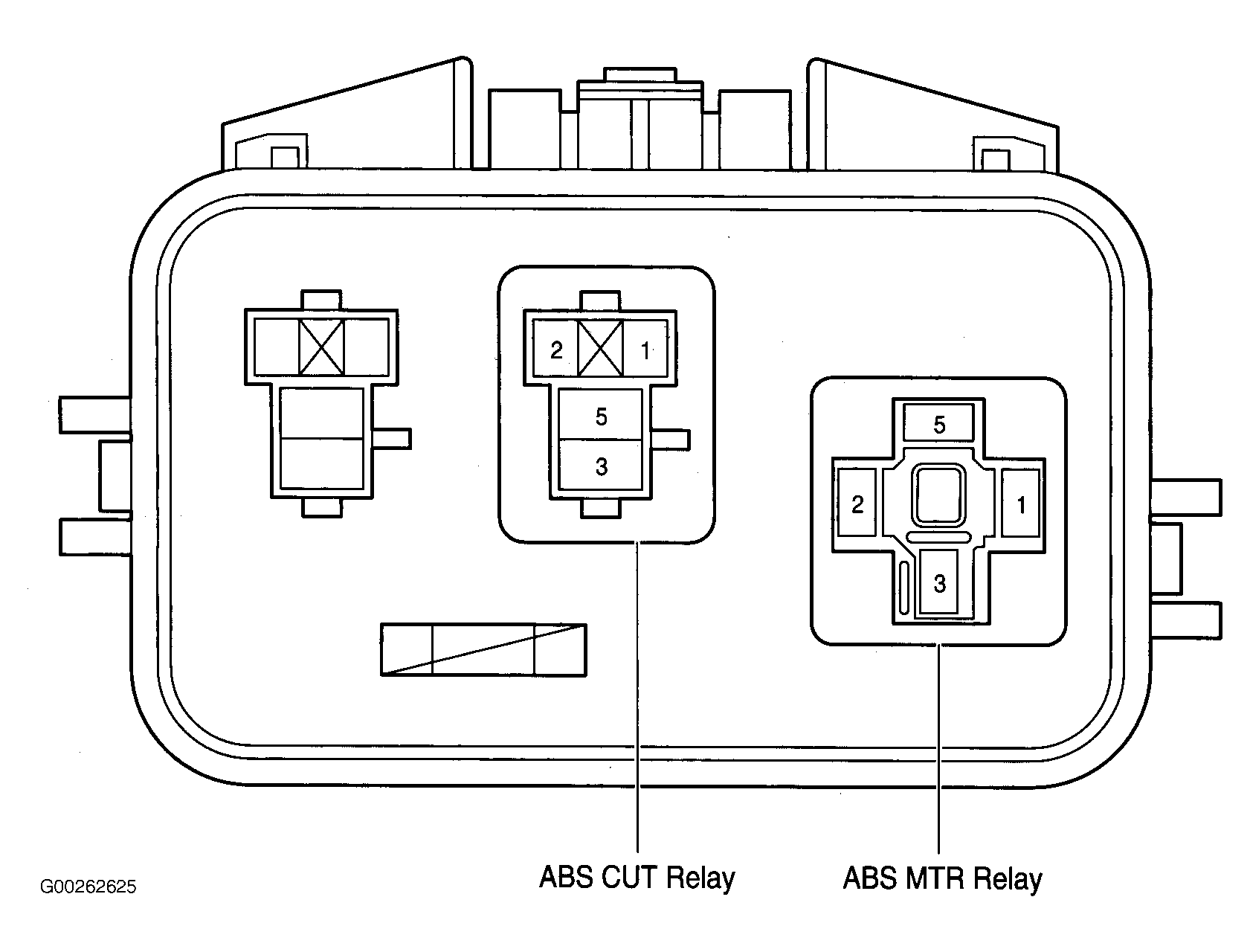

Fig 18: ABS R/B
G00262625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ABS RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ABS MTR Relay
ABS CUT Relay

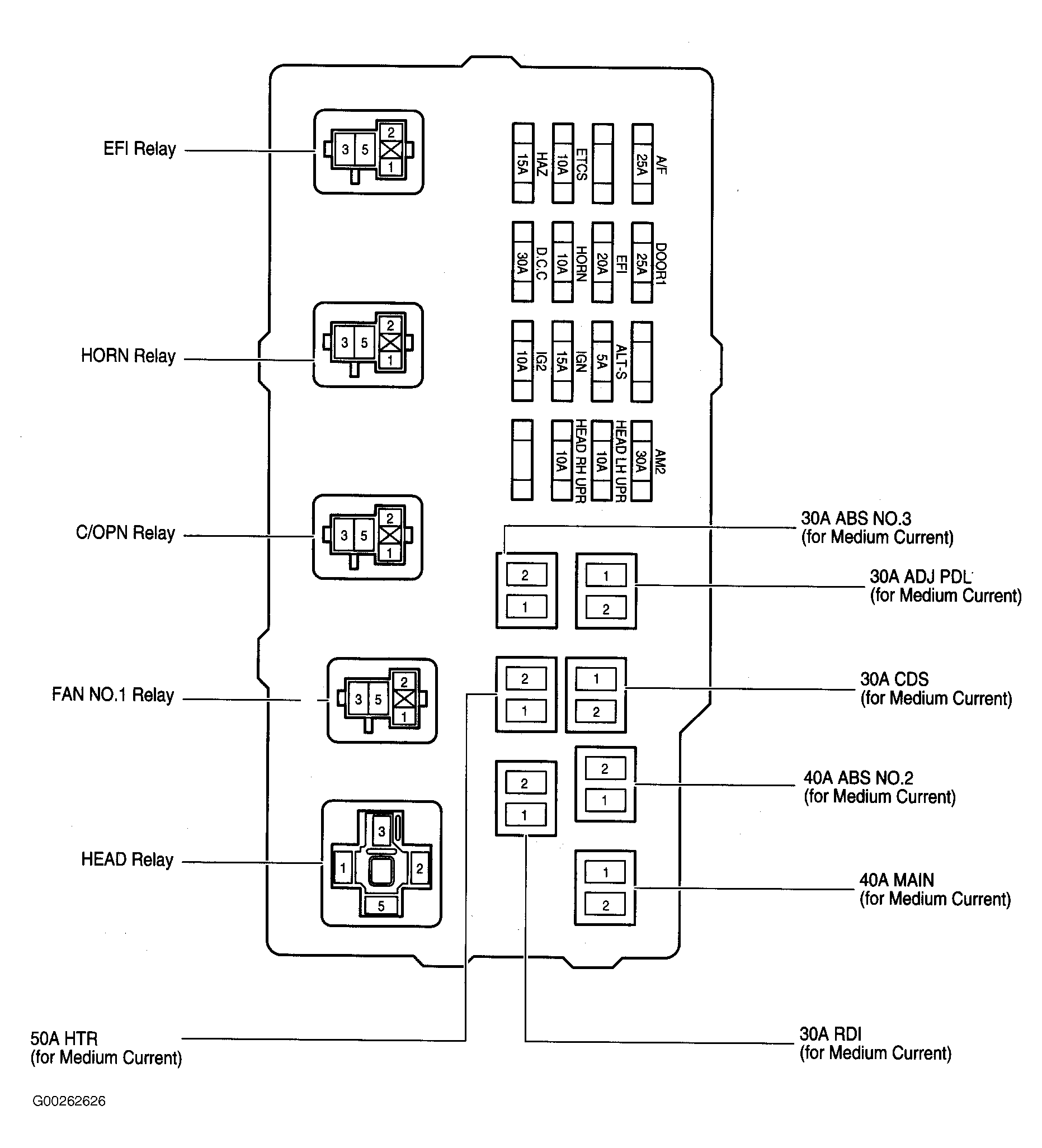

Fig 19: Engine Room J/B
G00262626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Head Relay
Fan No.1 Relay
C/OPN Relay
Horn Relay
EFI Relay
Fig 20: Driver Side J/B
G00262627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

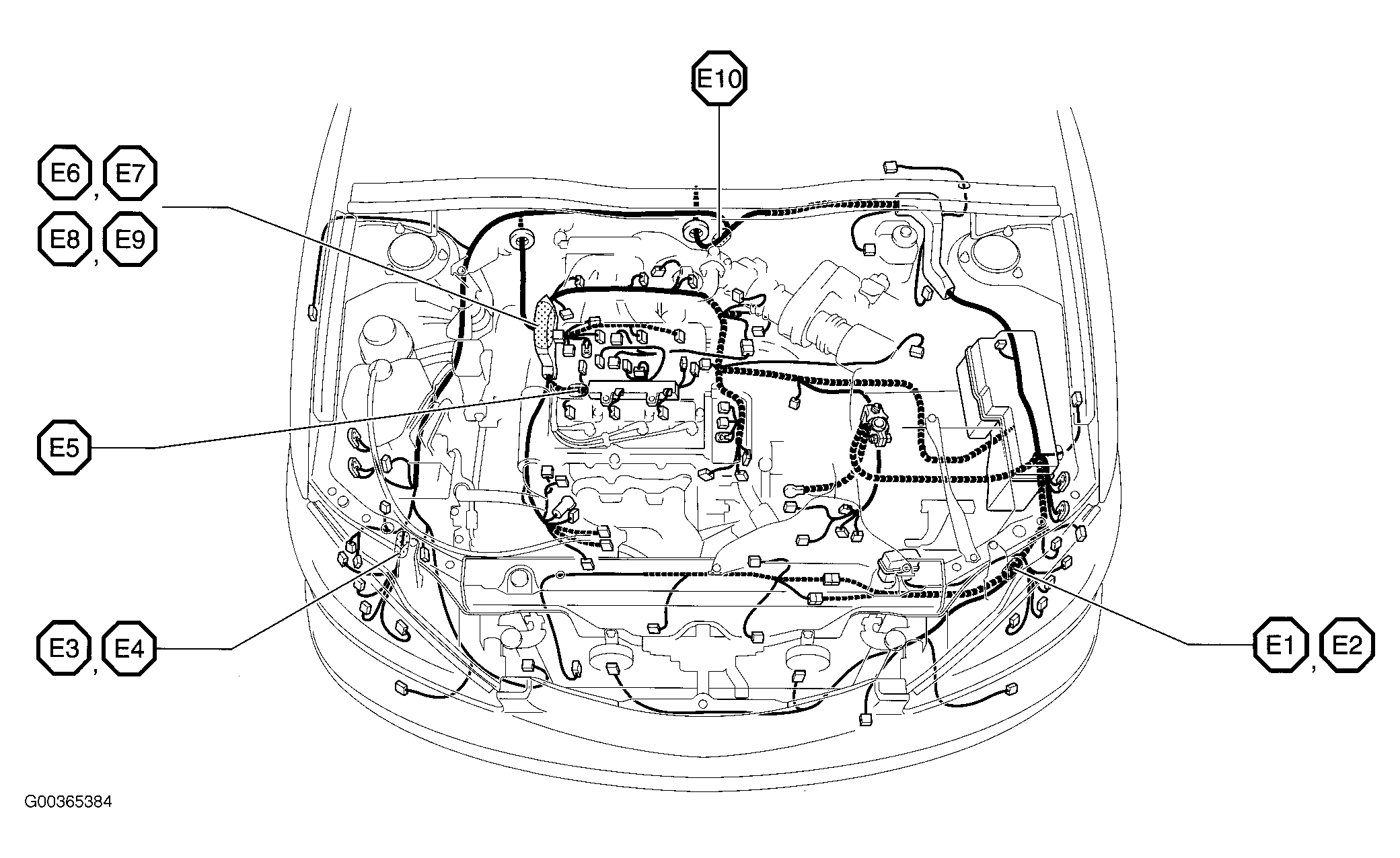

Fig 21: Engine Compartment (3.0L & 3.3L)
G00365384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

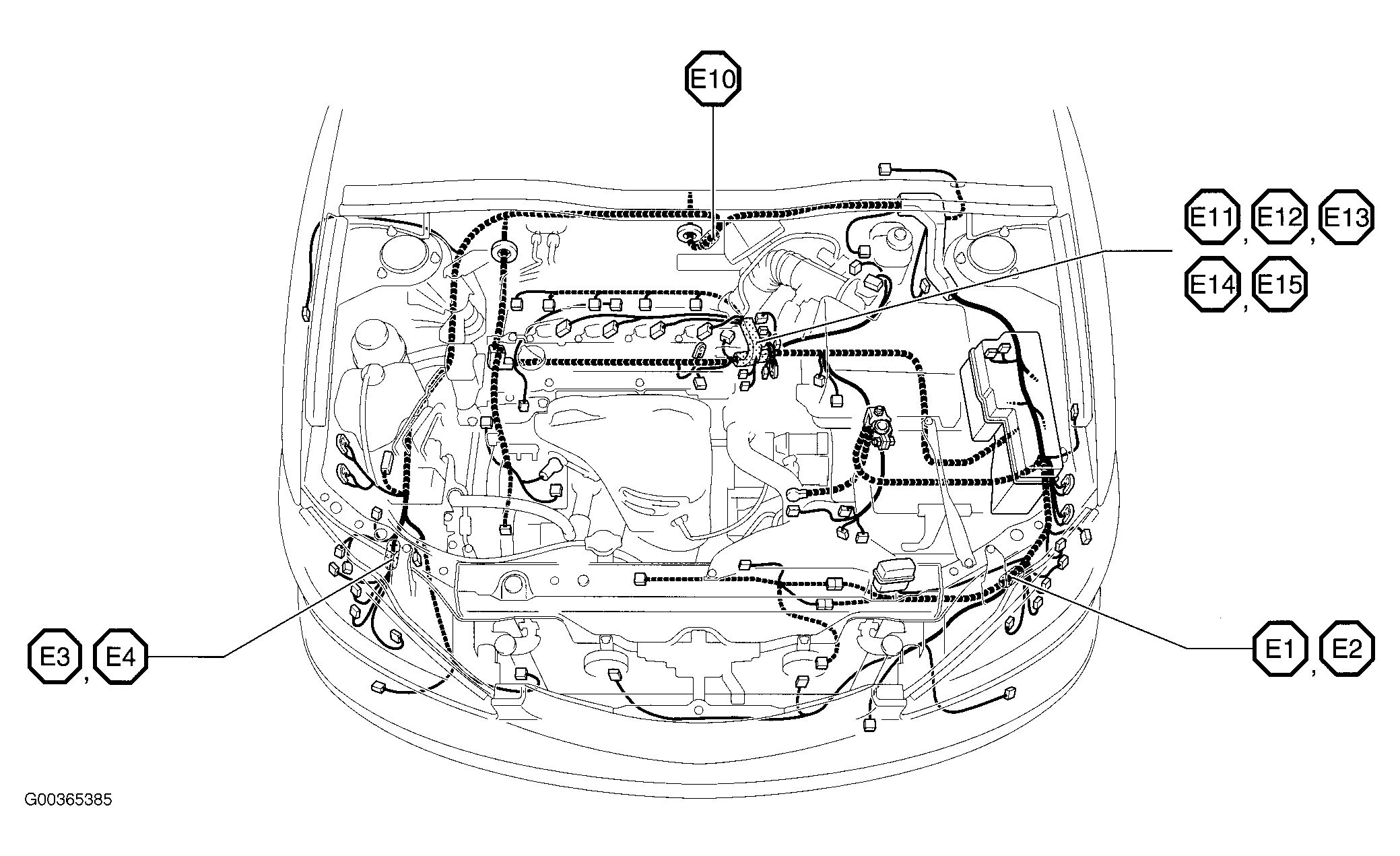

Fig 22: Engine Compartment (2.4L)
G00365385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

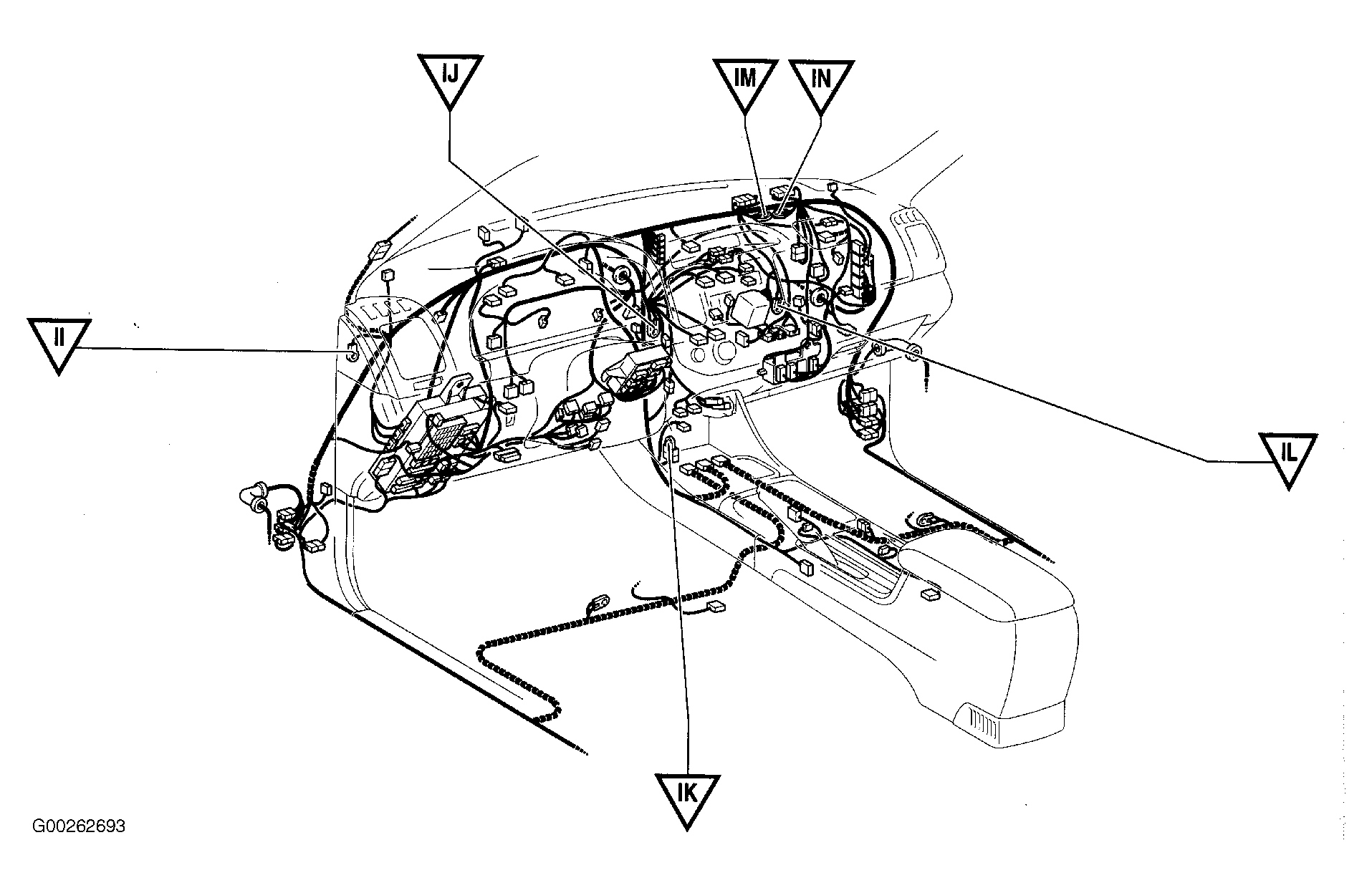

Fig 23: Dash
G00262693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

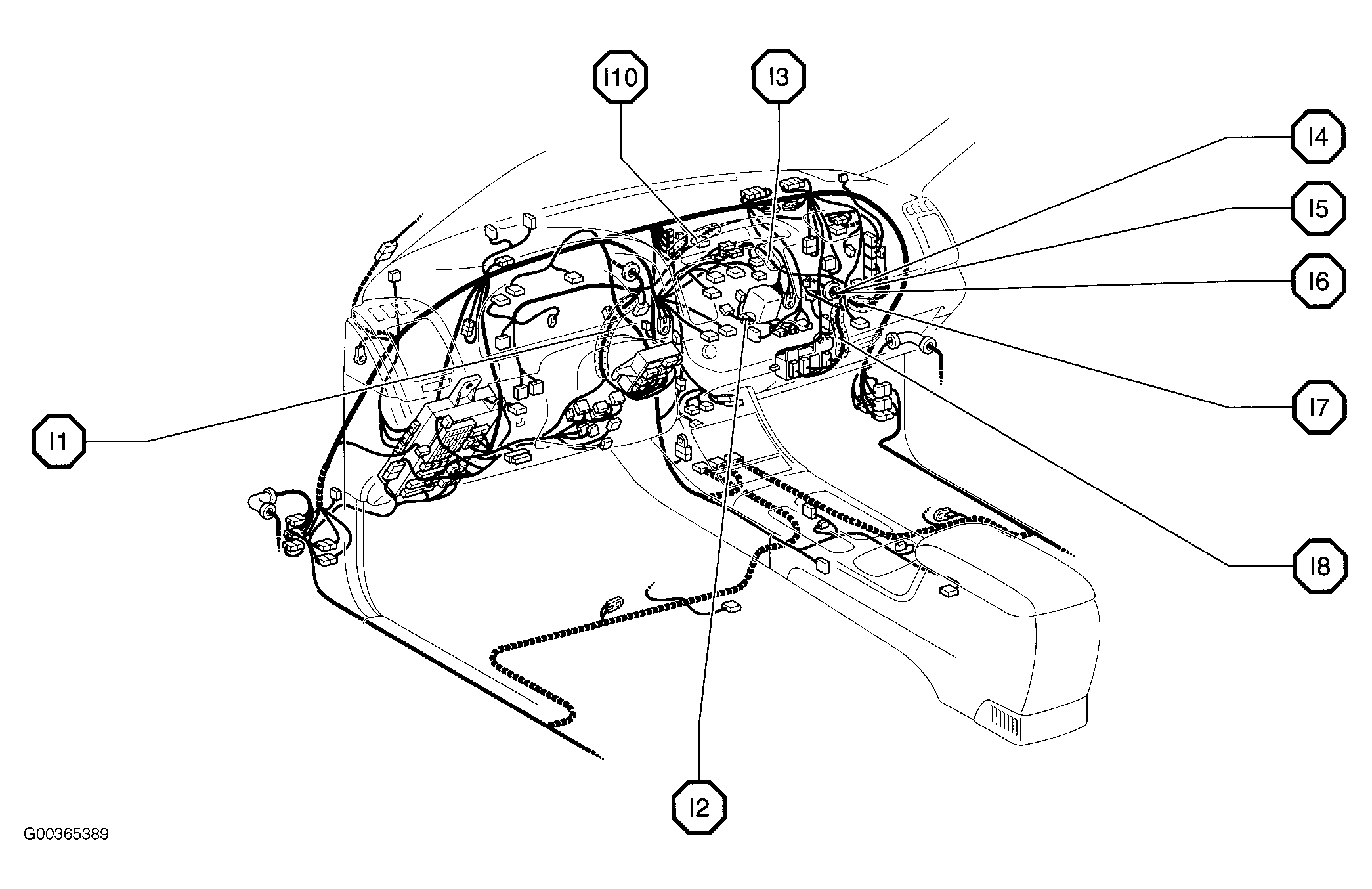

Fig 24: Dash
G00365389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

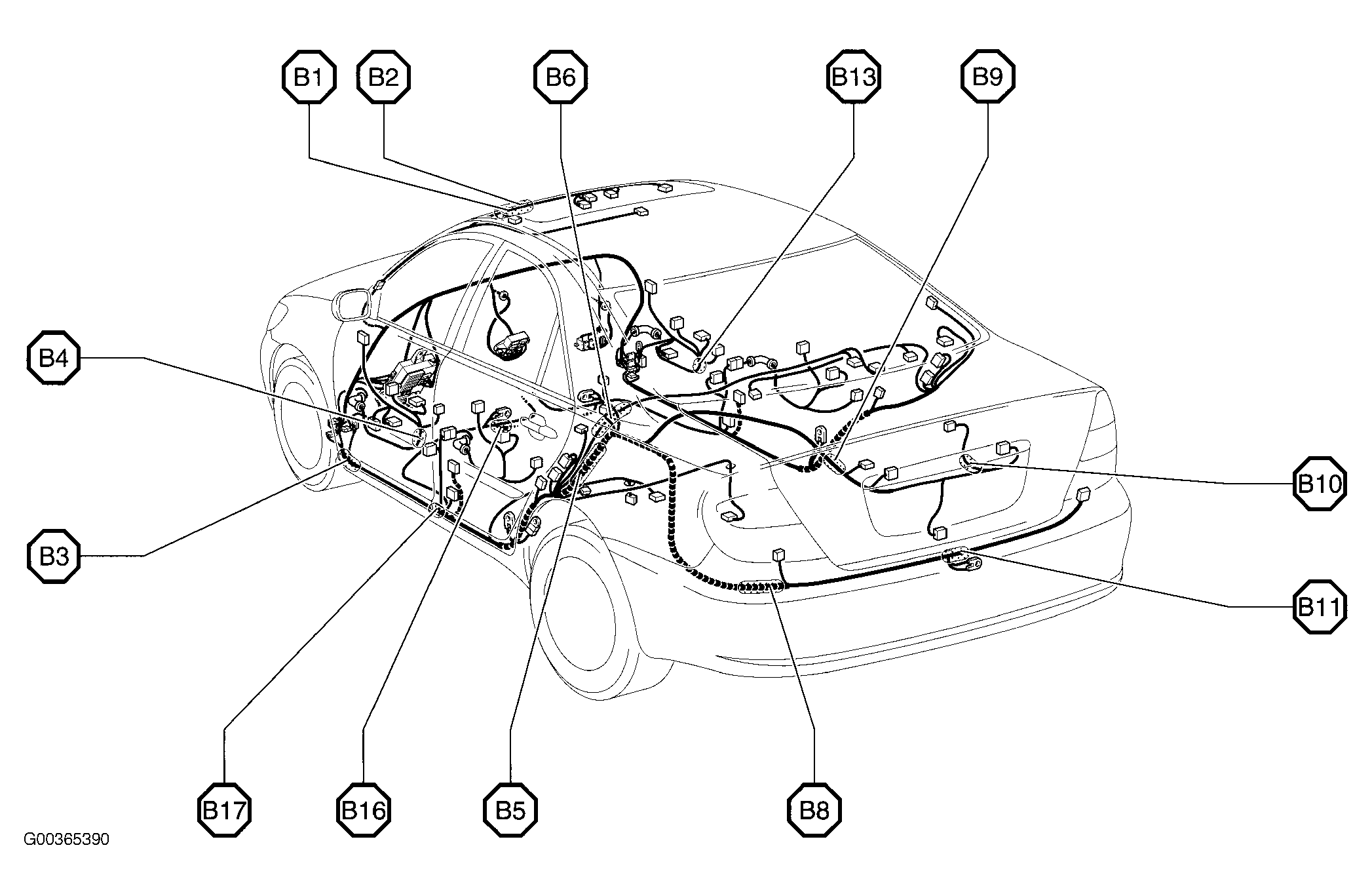

Fig 25: Vehicle Overview
G00365390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 26: Front Seats (W/Power Seat)
G00365381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 27: Front Seats (W/O Power Seats)
G00365382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

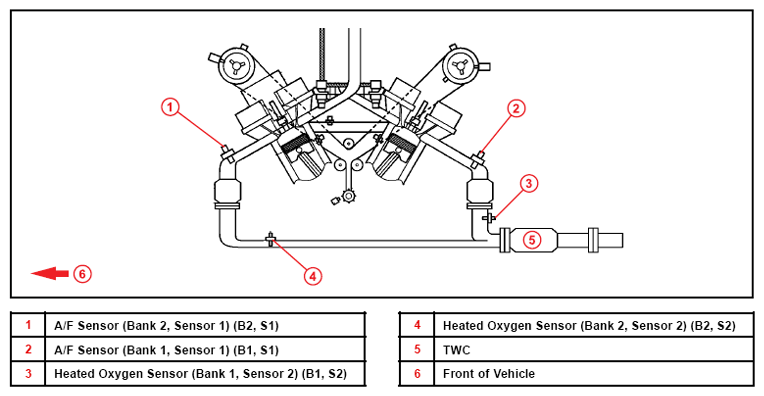

Fig 28: A/F And O2 Sensor Identification
G06375694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
