Problem Symptoms Table

Warning Lights:

PROBLEM SYMPTOMS TABLE - WARNING LIGHTS

Symptom Suspected Area
Check engine warning light does not come on.
  1. Wire Harness or Connector
  2. ECM
  3. Combination Meter Assy
Discharge warning light does not come on.
  1. Wire Harness or Connector
  2. ECM
  3. Combination Meter Assy
Brake warning light does not come on.
  1. Wire Harness or Connector
  2. Brake Actuator Assy (ABS)
  3. Combination Meter Assy
ABS warning light does not come on.
  1. Wire Harness or Connector
  2. Brake Actuator Assy (ABS)
  3. ABS & Traction Actuator Assy (VSC)
  4. Combination Meter Assy
SRS warning light does not come on.
  1. Wire Harness or Connector
  2. Airbag Sensor Assy Center
  3. Combination Meter Assy
Open door warning light does not come on.
  1. Wire Harness or Connector
  2. Front Door Courtesy Lamp Switch Circuit
  3. Body ECU
  4. Combination Meter Assy
Fuel level warning light does not come on.
  1. Wire Harness or Connector
  2. Fuel Sender Gauge Assy
  3. Combination Meter Assy
Low oil pressure warning light does not come on.
  1. Wire Harness or Connector
  2. Low Oil Pressure Warning Switch
  3. Combination Meter Assy
Window washer level warning does not come on.
  1. Wire Harness or Connector
  2. Window Washer Level Waring Switch
  3. Combination Meter Assy
Seat belt warning lamp for driver's seat does not come on.
  1. Wire Harness or Connector
  2. Refer to Troubleshooting
  3. Combination Meter Assy

Indicator Lights:

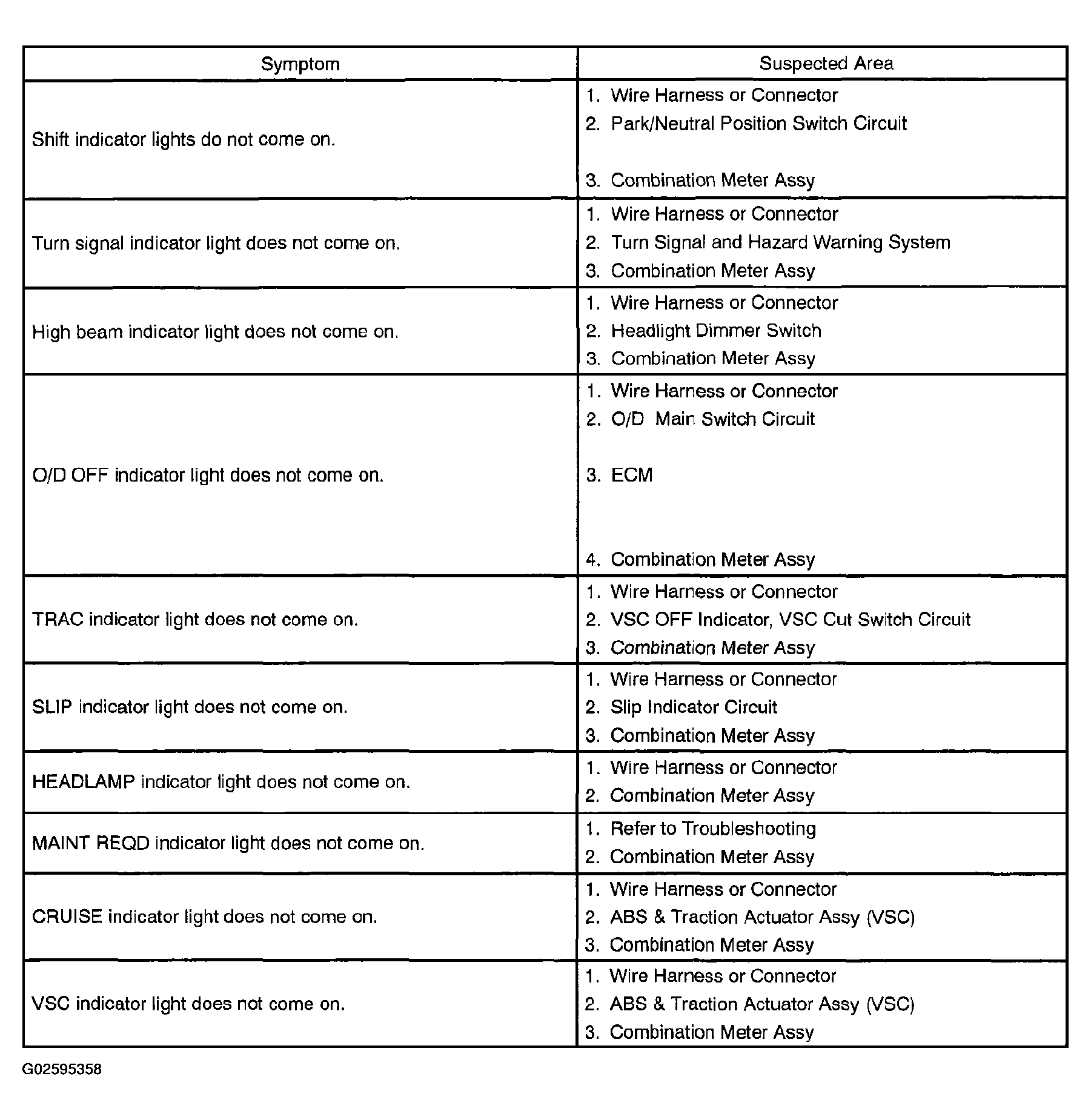

Fig 1: Troubleshooting Chart (Indicator Lights)
G02595358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Meter Gauges:

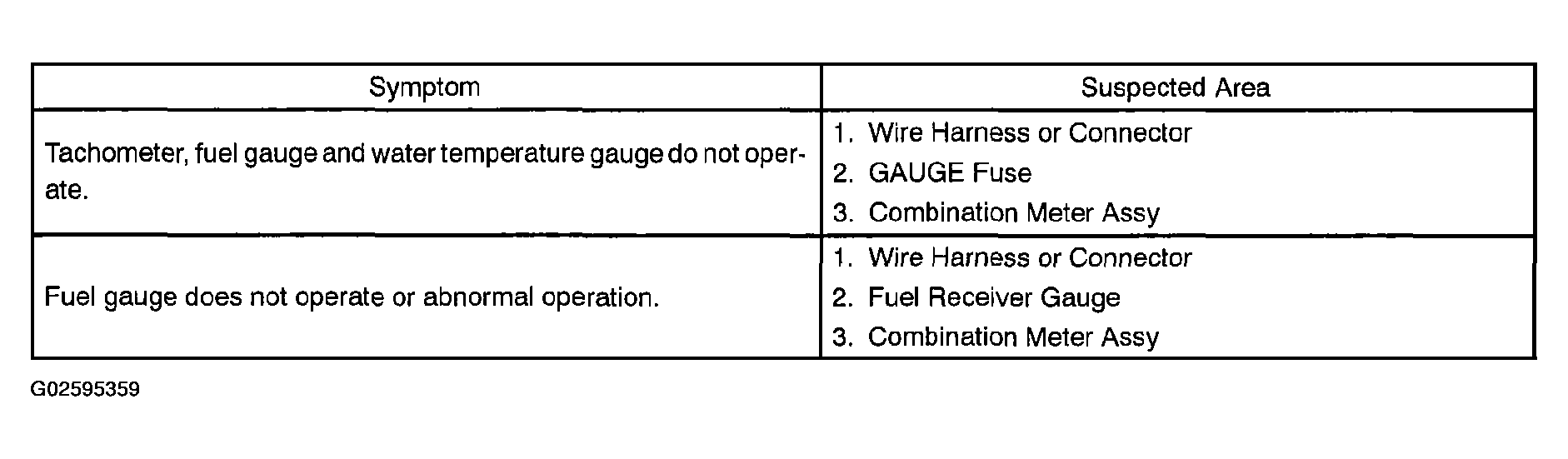

Fig 2: Troubleshooting Chart (Meter Gauges)
G02595359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Buzzer:

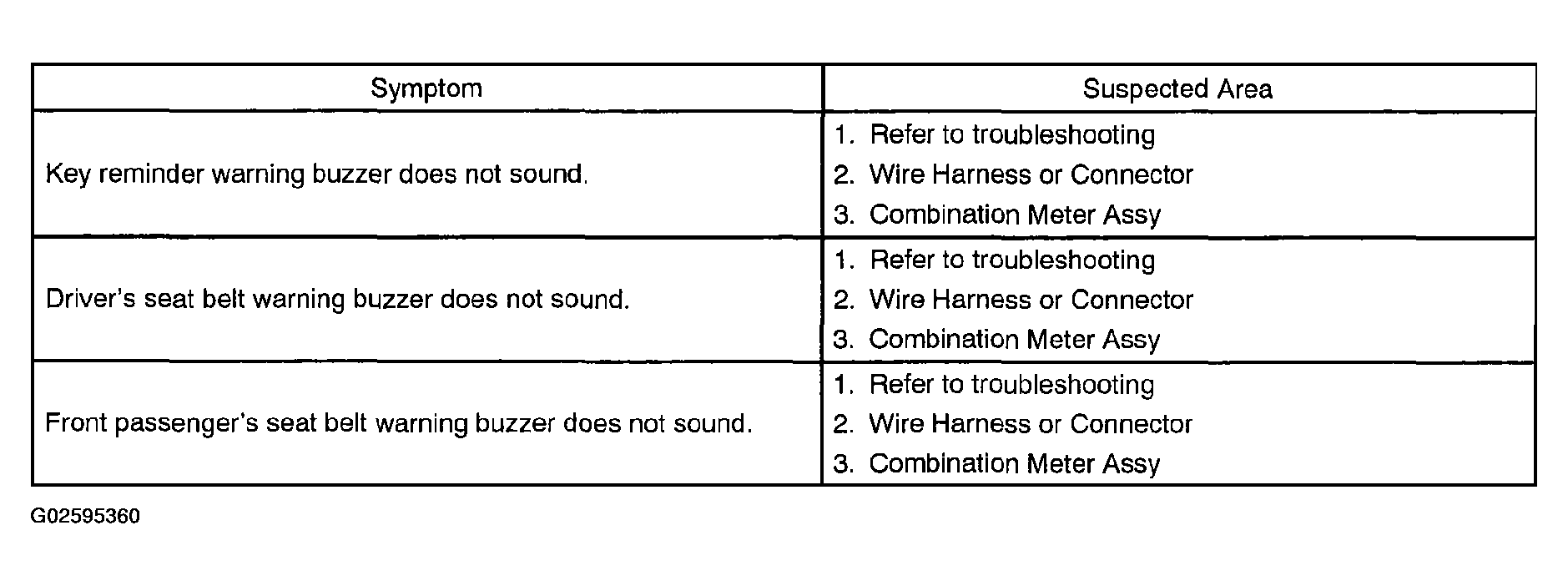

Fig 3: Troubleshooting Chart (Buzzer)
G02595360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Clock:

Fig 4: Troubleshooting Chart (Clock)
G02595361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
