Engine Performance: Tune-Up: Preparation: Brake: Preparation

SST

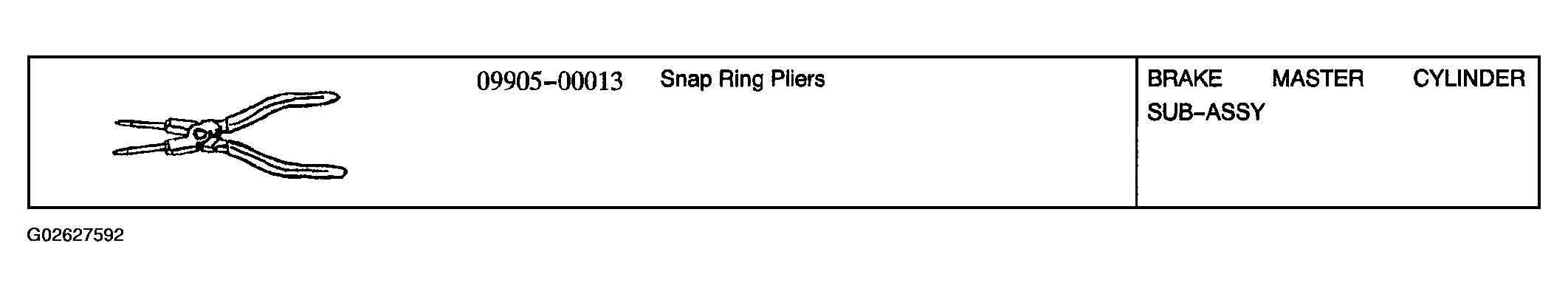

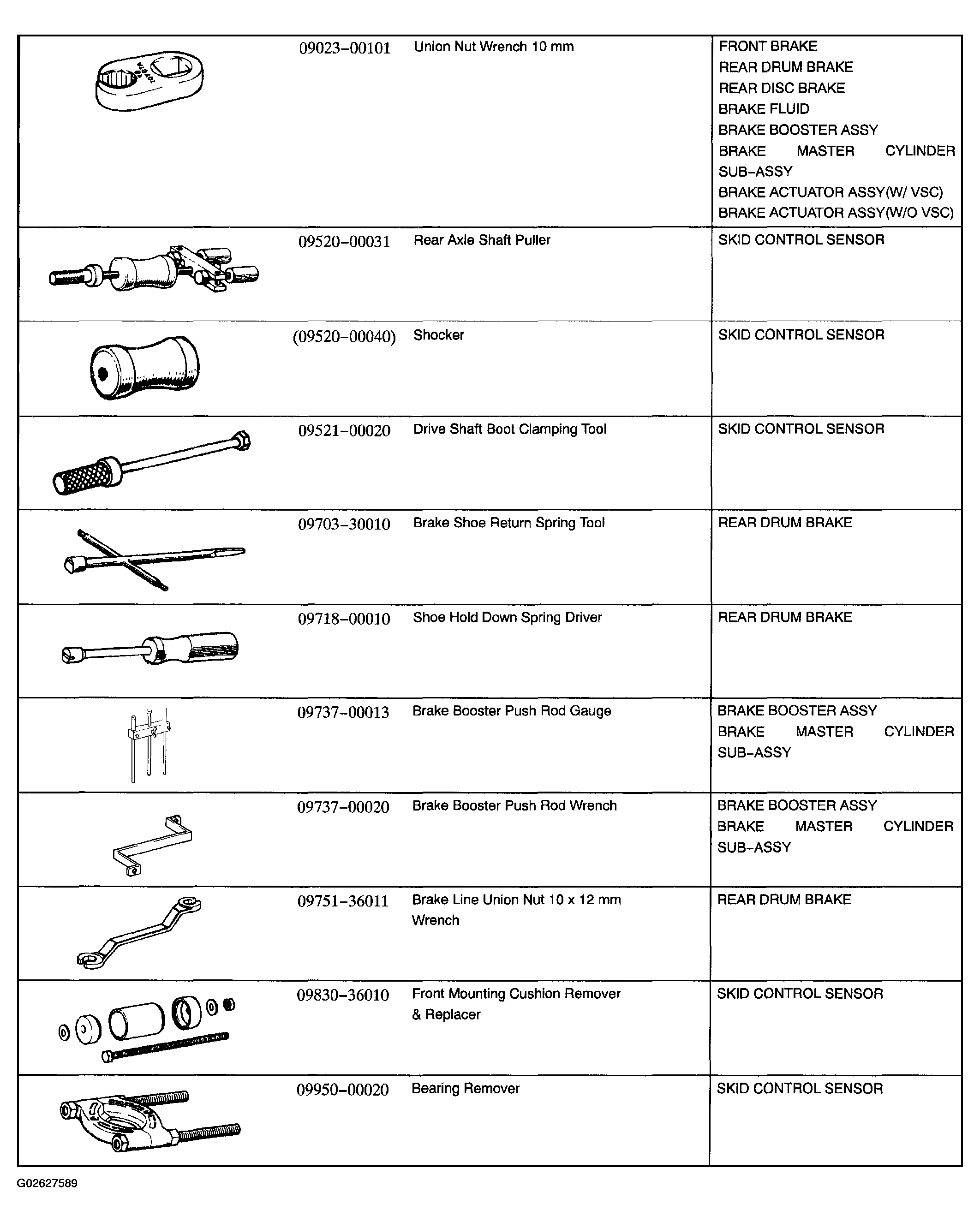

Fig 1: Brake Special Tool Description Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Brake Special Tool Description Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

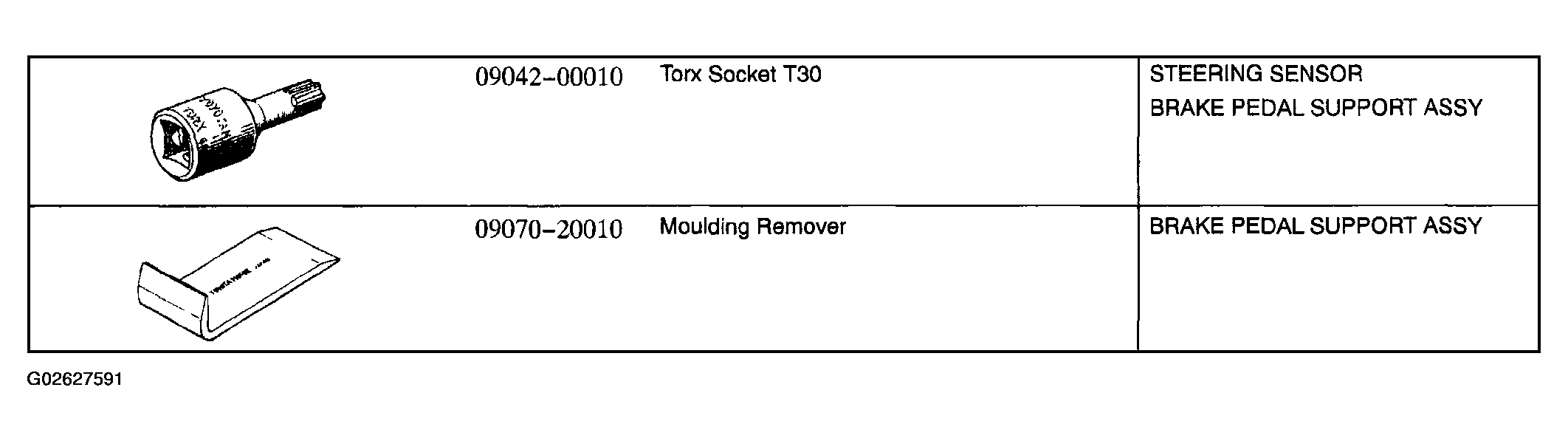

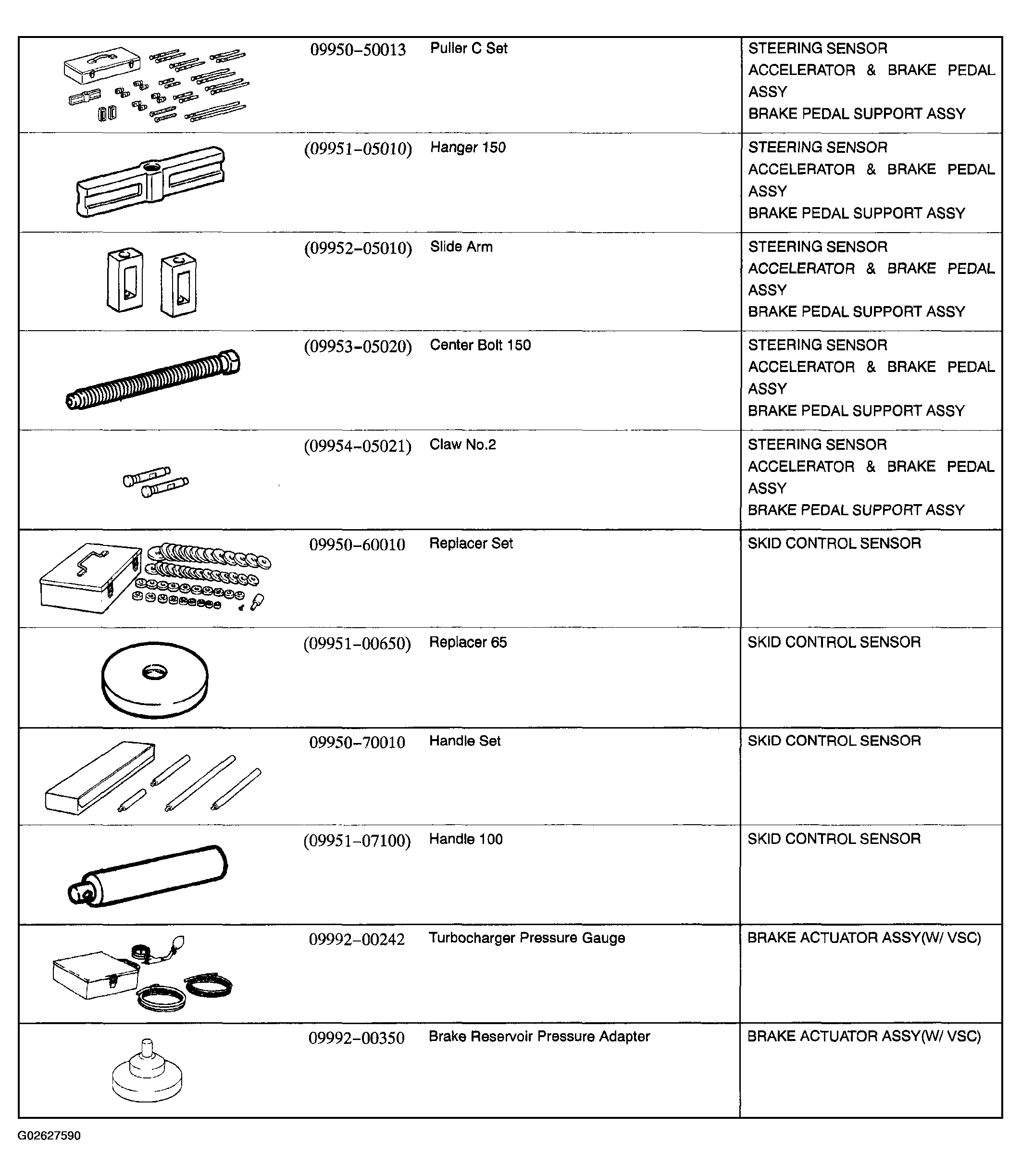

Fig 3: Brake Recommended Tools Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Brake Recommended Tools Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

BRAKE EQUIPMENT DESCRIPTION

Vernier calipers
Dial indicator
Torque wrench
Brake drum gauge

Lubricant

LUBRICANT SPECIFICATION

Item	Capacity	Classification
Brake fluid	-	SAE J1703 or FMVSS No. 116 DOT3
