Front Suspension: Components

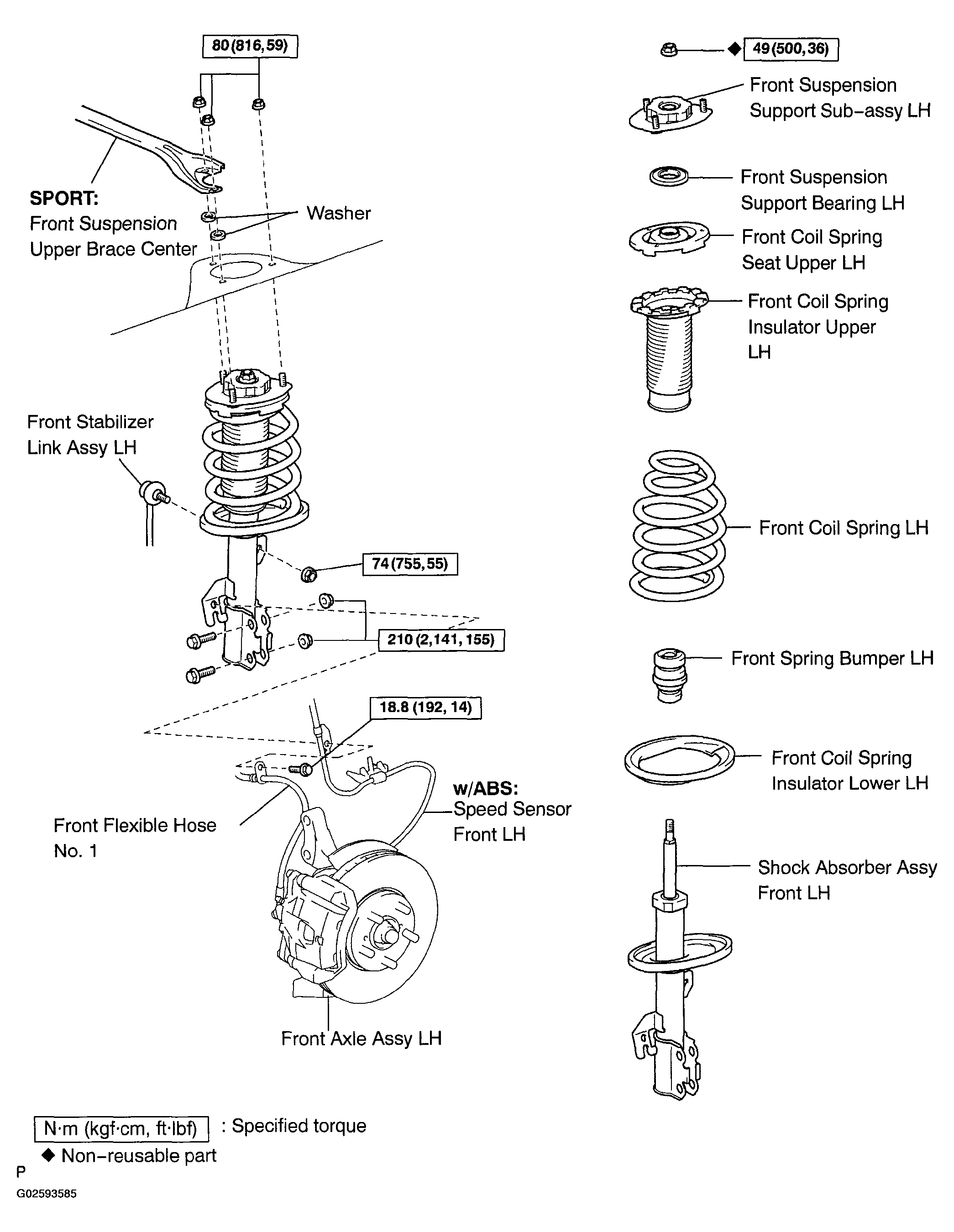

Fig 1: Front Suspension Replacement Components With Torque Specifications (1 Of 2)
G02593585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Suspension Replacement Components With Torque Specifications (2 Of 2)
G02593586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
