Front Wheel Alignment: Adjustment

INSPECT TIRE (See INSPECTION )

MEASURE VEHICLE HEIGHT

Vehicle height:

2AZ-FE COMFORT:

VEHICLE HEIGHT SPECIFICATION (2AZ-FE COMFORT)

	USA,Canada	Mexico
Front (A - B)	119 mm (4.69 in.)	106 mm (4.17 in.)
Rear (D - C)	45 mm (1.77 in.)	33 mm (1.30 in.)

2AZ-FE PREMIUM:

VEHICLE HEIGHT SPECIFICATION (2AZ-FE PREMIUM)

Front (A - B)	120 mm (4.72 in.)
Rear (D - C)	45 mm (1.77 in.)

2AZ-FE SPORT:

VEHICLE HEIGHT SPECIFICATION (2AZ-FE SPORT)

Front (A - B)	120 mm (4.72 in.)
Rear (D - C)	48 mm (1.89 in.)

1MZ-FE COMFORT:

VEHICLE HEIGHT SPECIFICATION (1MZ-FE COMFORT)

Front (A - B)	120 mm (4.72 in.)
Rear (D - C)	46 mm (1.81 in.)

1MZ-FE PREMIUM:

VEHICLE HEIGHT SPECIFICATION (1MZ-FE PREMIUM)

	USA, Canada	Mexico
Front (A - B)	119 mm (4.69 in.)	106 mm (4.17 in.)
Rear (D - C)	47 mm (1.85 in.)	33 mm (1.30 in.)

3MZ-FE SPORT:

VEHICLE HEIGHT SPECIFICATION (1MZ-FE SPORT)

Front (A - B)	121 mm (4.76 in.)
Rear (D - C)	48 mm (1.89 in.)

Measuring points:

A: Ground clearance of front wheel center

B: Ground clearance of lower suspension arm No. 2 set bolt center

C: Ground clearance of strut rod set bolt center

D: Ground clearance of rear wheel center

NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

HINT:

Bounce the vehicle at the corners up and down to stabilize the suspension and inspect the vehicle height.

Fig 1: Identifying Vehicle Height (Front)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Vehicle Height (Rear)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT TOE-IN
Toe-in:
TOE-IN SPECIFICATION

Toe-in (total) A + B:0° +/- 12' (0° +/- 0.2°) C-D:0 +/- 2 mm(0 +/- 0.08 in.)

HINT:
- Measure "A + B" when "C - D" can not be measured.
- If toe-in is not within the specified range, adjust it at the rack ends.
ADJUST TOE-IN
1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.
3. Turn the right and left rack ends by an equal amount to adjust the toe-in.
  HINT:

  Try to adjust the toe-in to the center of the specified range.

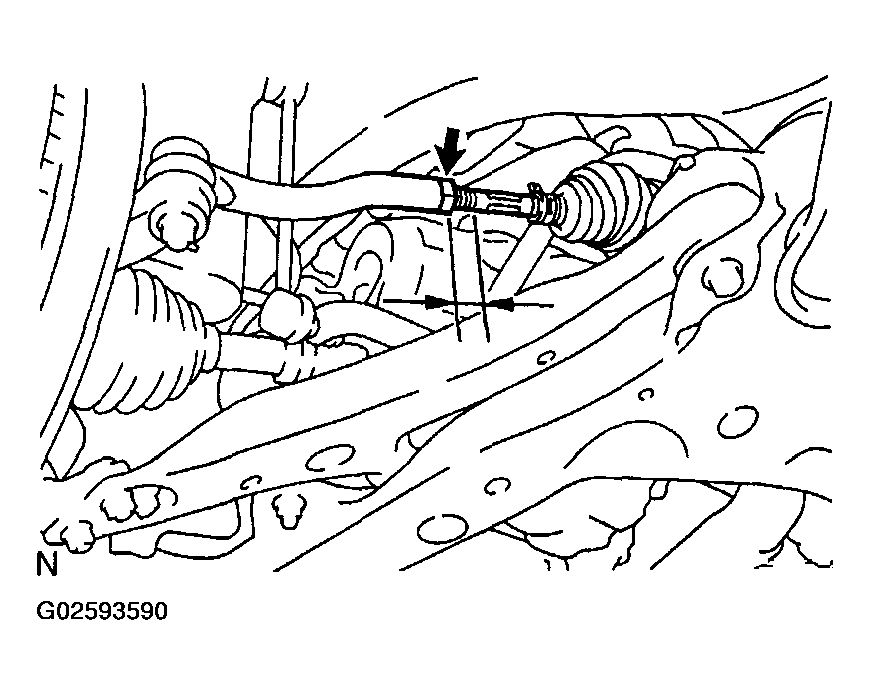

  Fig 3: Identifying Toe-In
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Make sure that the lengths of the right and left rack ends are the same.
5. Torque the tie rod end lock nuts.
  Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)
6. Place the boots on the seats and install the clips.
  HINT:

  Make sure that the boots are not twisted.
7. Perform VSC system calibration. (See DIAGNOSTIC TROUBLE CODES CHECK/CLEAR )

  Fig 4: Tightening Tie Rod End Lock Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT WHEEL ANGLE
1. Turn the steering wheel fully left and right, and measure the turning angle.

  Fig 5: Identifying Wheel Turning Angle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Wheel turning angle:

  USA, Canada:

  Fig 6: Wheel Turning Angle Specification Chart (USA And Canada)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Mexico:

  Fig 7: Wheel Turning Angle Specification Chart (Mexico)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the right and left inside wheel angles differ from the specified value, check the right and left rack end lengths.
INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
1. Put the front wheel on the center of the alignment tester.
2. Set the camber-caster-kingpin gauge at the center of the axle hub or drive shaft.

  Fig 8: Putting Front Wheel On Center Of Alignment Tester
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Camber and steering axis inclination:

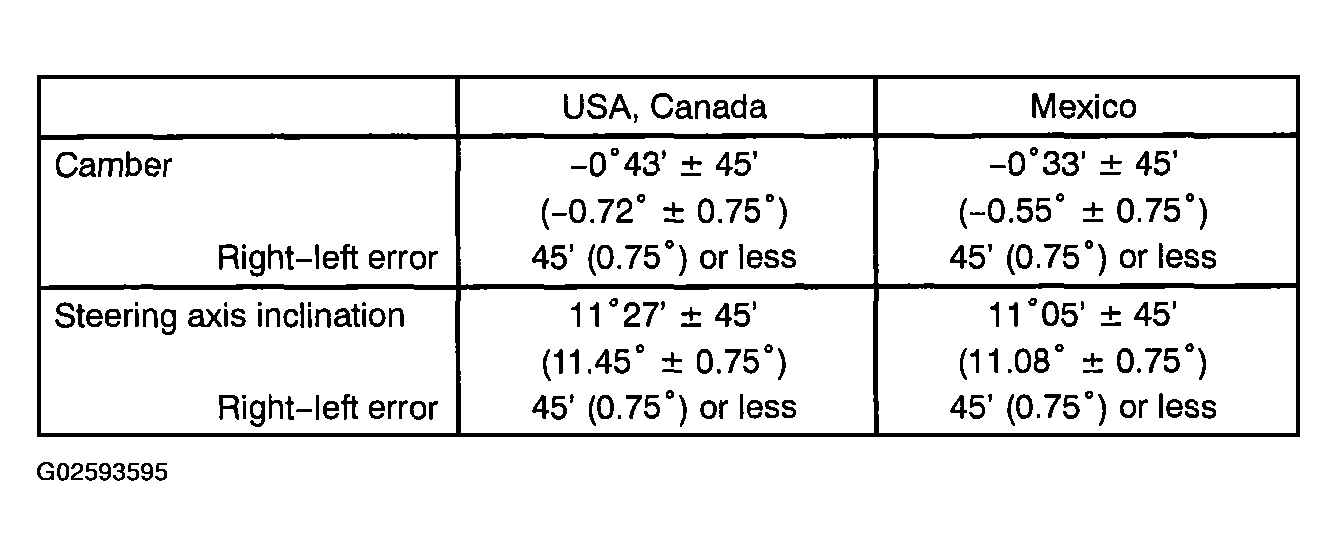

Fig 9: Camber And Steering Axis Inclination Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Caster

3MZ-FE:

Fig 10: Caster Specification Chart (3MZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1MZ-FE:

Fig 11: Caster Specification Chart (1MZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2AZ-FE SPORT:

Fig 12: Caster Specification Chart (2AZ-FE SPORT)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2AZ-FE Except SPORT:

Fig 13: Caster Specification Chart (2AZ-FE Except SPORT)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the caster and steering axis inclination are not within the specified ranges, after the camber has been correctly adjusted, recheck the suspension parts for damaged and/or worn out parts.

ADJUST CAMBER

NOTE: After the camber has been adjusted, inspect the toe-in.

Remove the front wheel.
Remove the 2 nuts on the lower side of the shock absorber assy front LH.
Clean the installation surfaces of the shock absorber assy front LH and the steering knuckle.
Temporarily install the 2 nuts.

Fig 14: Removing Nuts From Lower Side Of Shock Absorber Assy Front (LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fully push or pull the front axle hub in the direction of the required adjustment.
Tighten the nuts.
Torque: 210 N.m (2,141 kgf.cm, 155 ft.lbf)
Install the front wheel.
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

Fig 15: Pushing Or Pulling Front Axle Hub For Adjustment
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Check the camber.
If the measured value is not within the specified range, calculate the required adjustment amount using the formula below.

(Camber adjustment amount) = Center of the specified range - Measured value

Check installed bolts combination. Select appropriate bolts from the table below to adjust the camber within the specified range.

Fig 16: Tightening Nuts To Lower Side Of Shock Absorber Assy Front (LH)

[CAMBER ADJUSTMENT AMOUNT FORMULA]

Move the axle toward (+) in step (e)	Refer to table (1) (Move the axle toward positive side)
Move the axle toward (-) in step (e)	Refer to table (2) (Move the axle toward negative side)

Table (1) (Move the axle toward positive side)

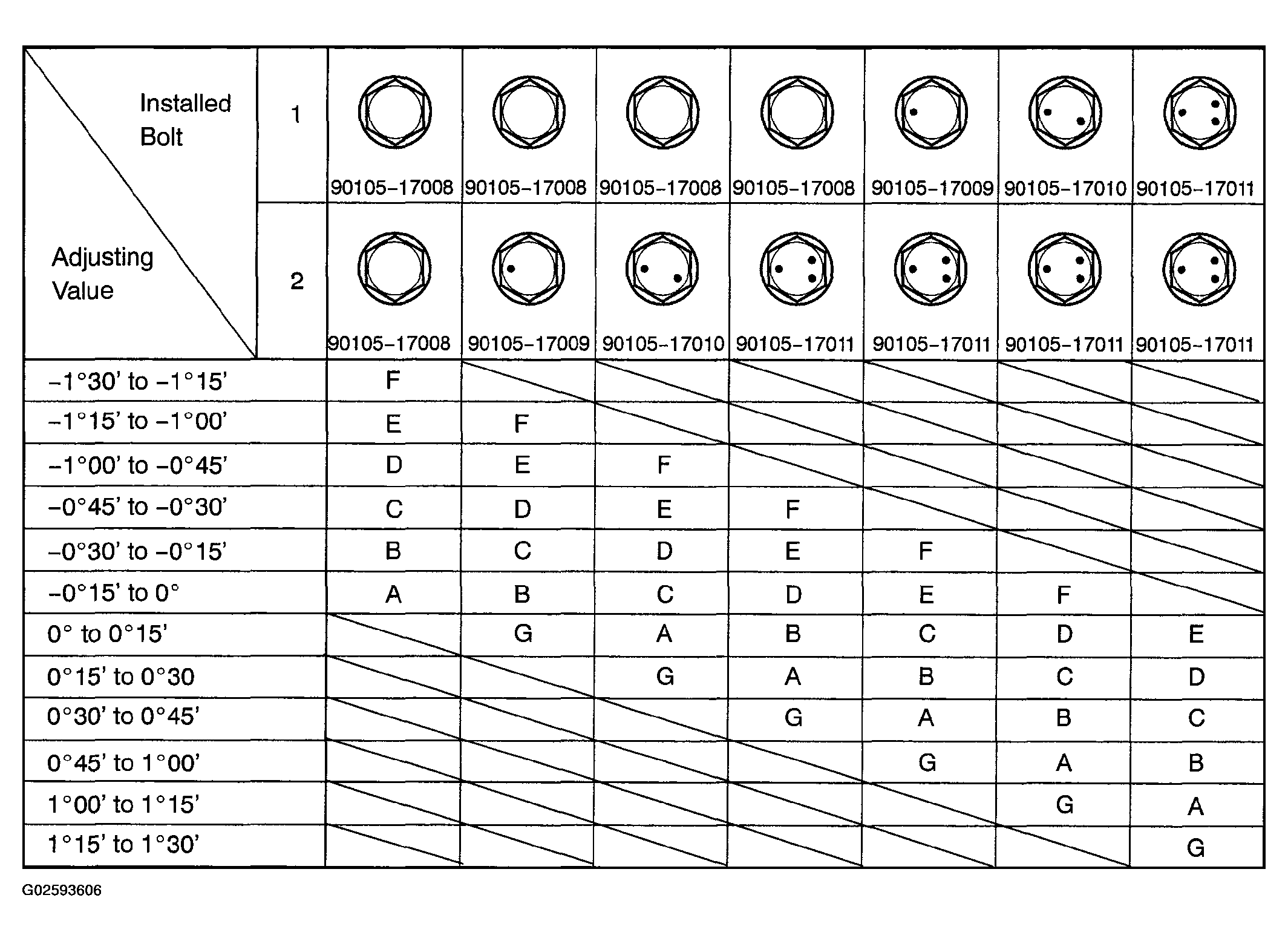

Fig 17: Bolts Specification Chart (Move Axle Toward Positive Side)

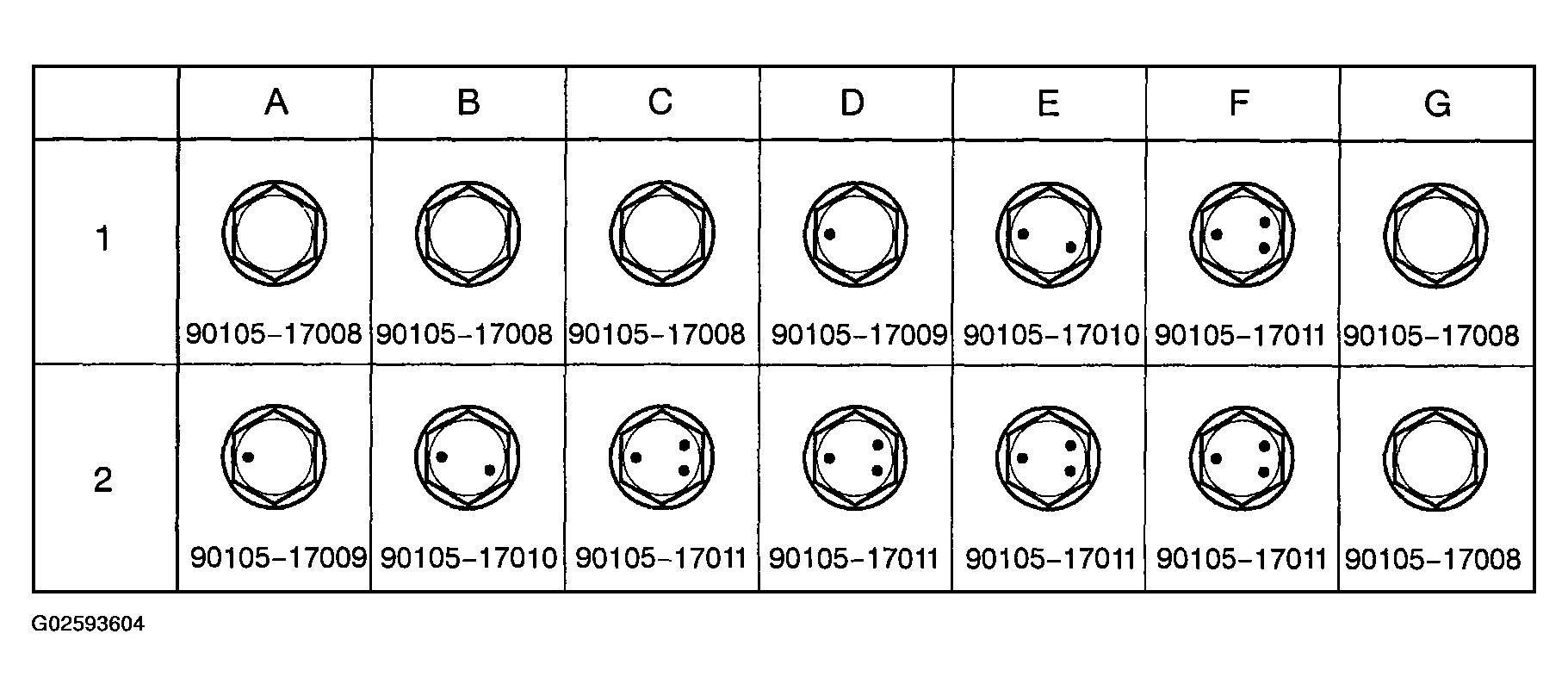

Selected Bolt Combination

Fig 18: Selected Bolt Combination Chart

The body and suspension may be damaged if the camber is not correctly adjusted according to the above table.

NOTE: Replace the nut with a new one when replacing the bolt.

Repeat the steps mentioned above. At step (b), replace 1 or 2 selected bolts.

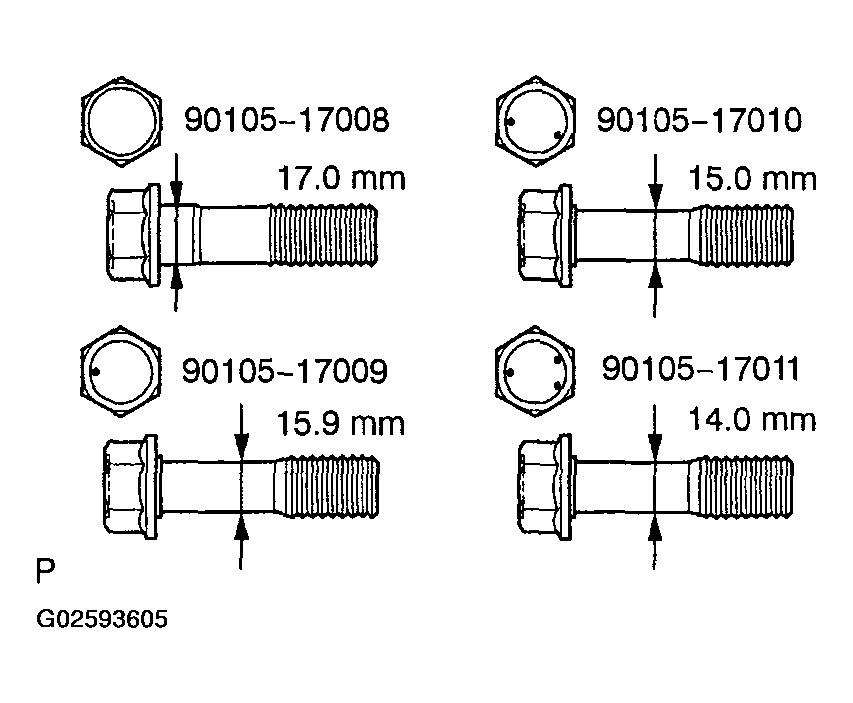

Fig 19: Identifying Bolts Dimension
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Replace one bolt at a time when replacing 2 bolts.

Table (2) (Move the axle toward negative side)

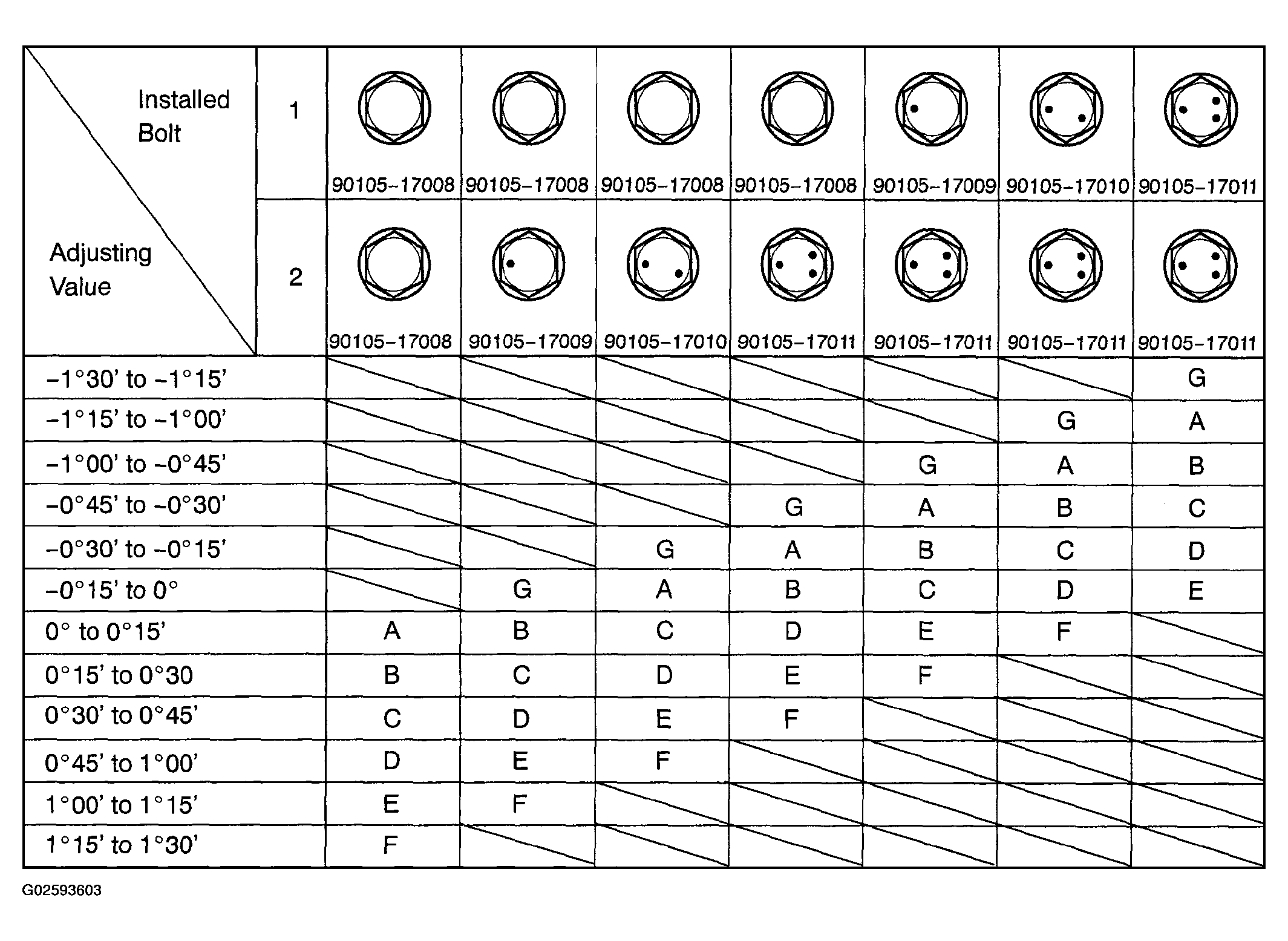

Fig 20: Bolts Specification Chart (Move Axle Toward Negative Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

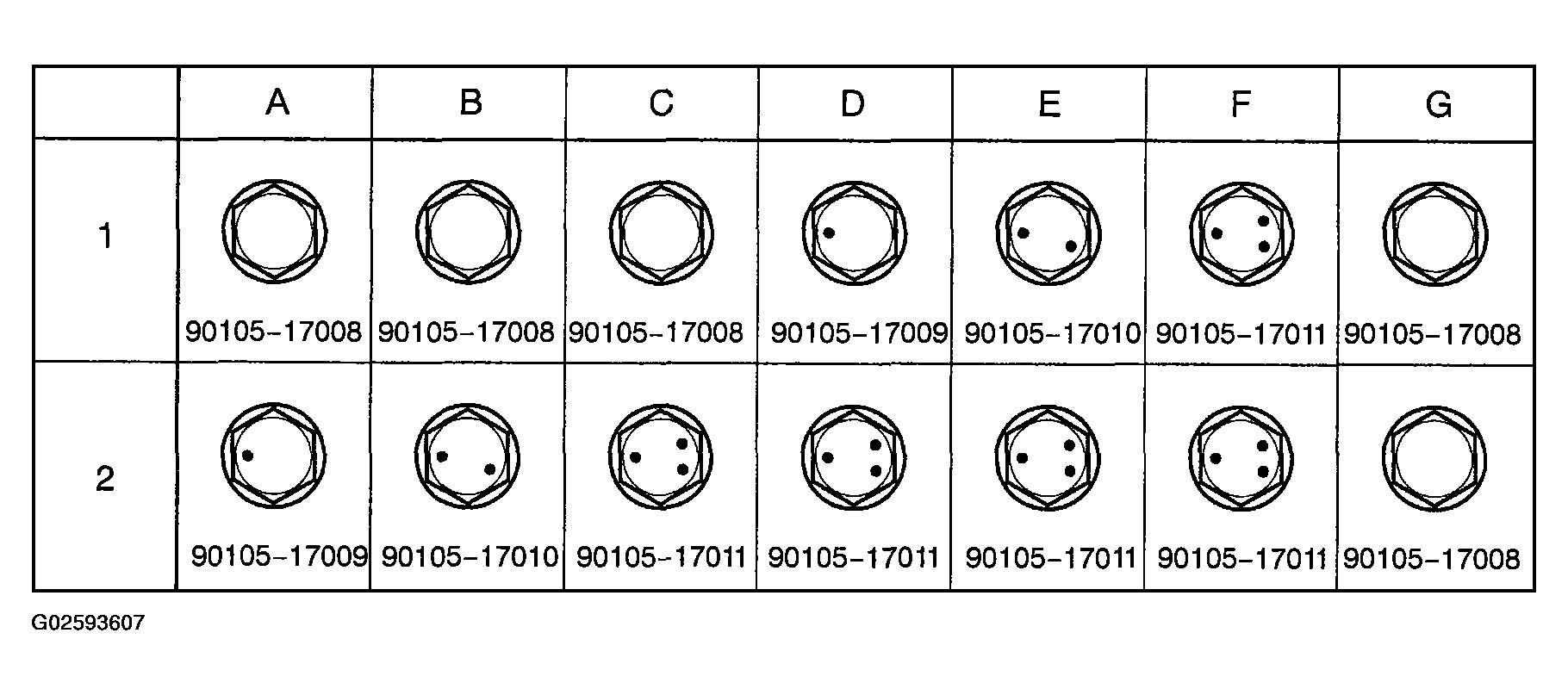

Selected Bolt Combination

Fig 21: Selected Bolt Combination Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The body and suspension may be damaged if the camber is not correctly adjusted according to the above table.

NOTE: Replace the nut with a new one when replacing the bolt.
Repeat the steps mentioned above. At step (b), replace 1 or 2 selected bolts.

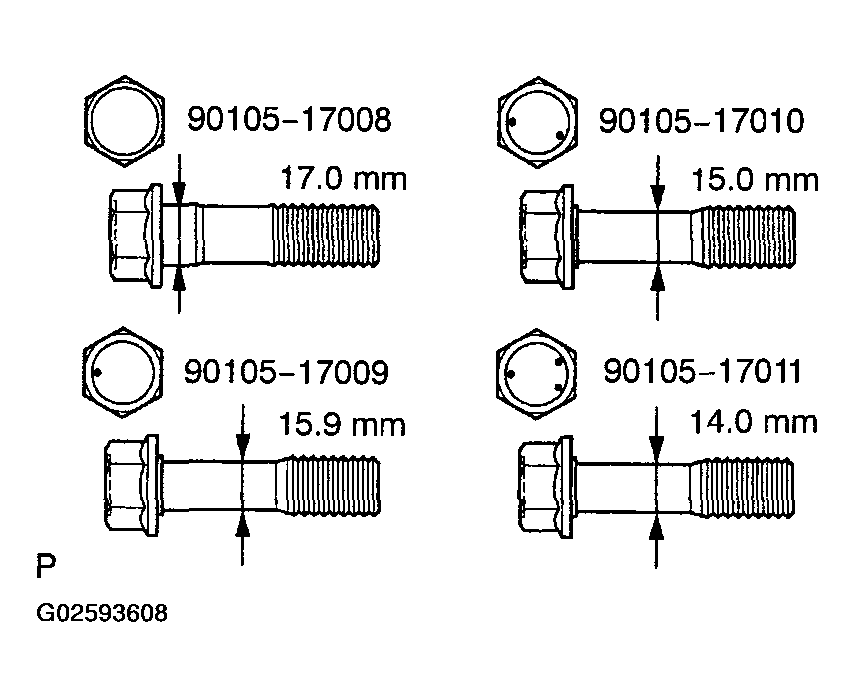

Fig 22: Identifying Bolts Dimension
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Replace one bolt at a time when replacing 2 bolts.
