Automatic Trans: Preparation: Cooling: Preparation

SST

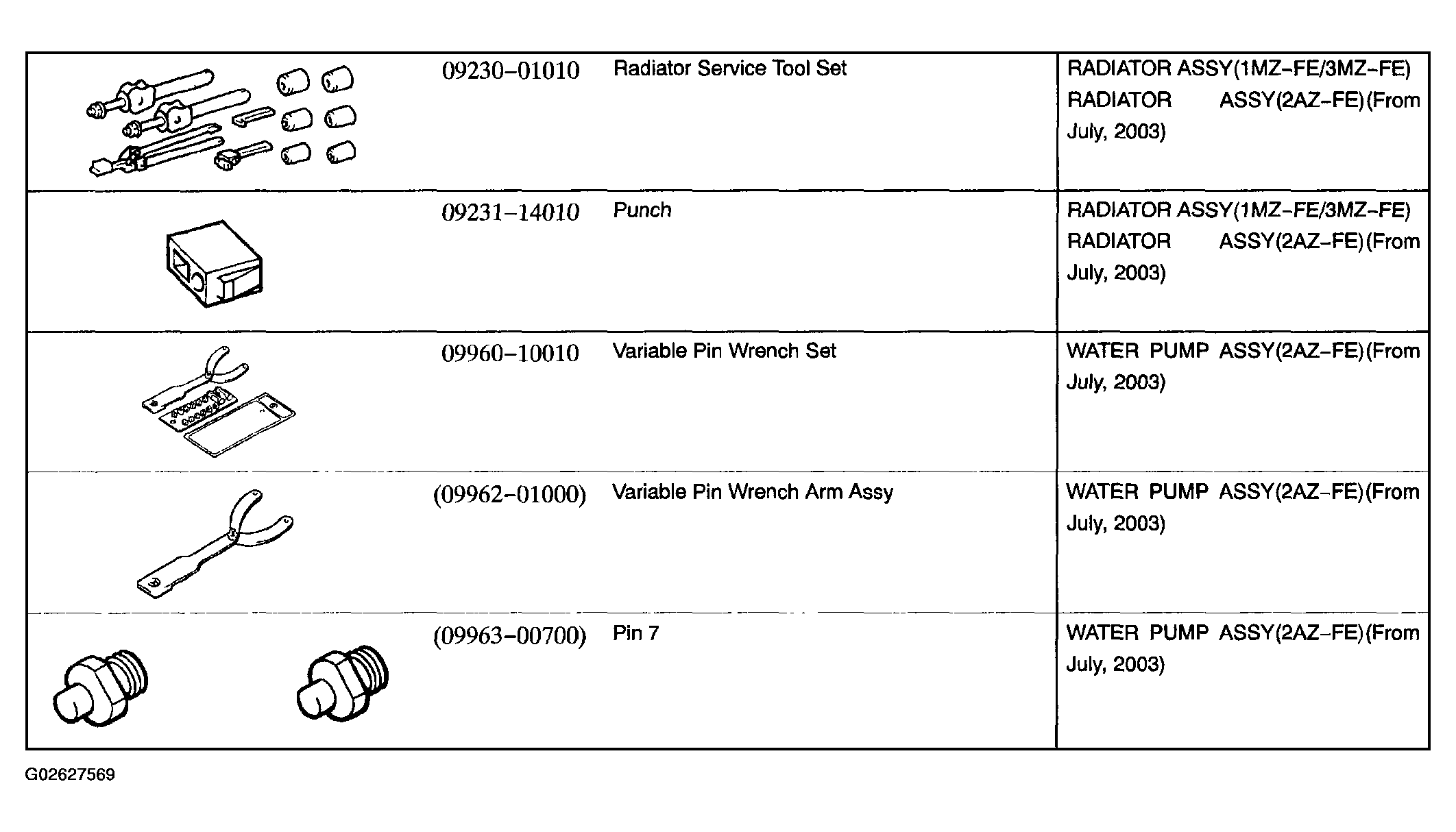

Fig 1: Cooling Special Tool Description Chart
G02627569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

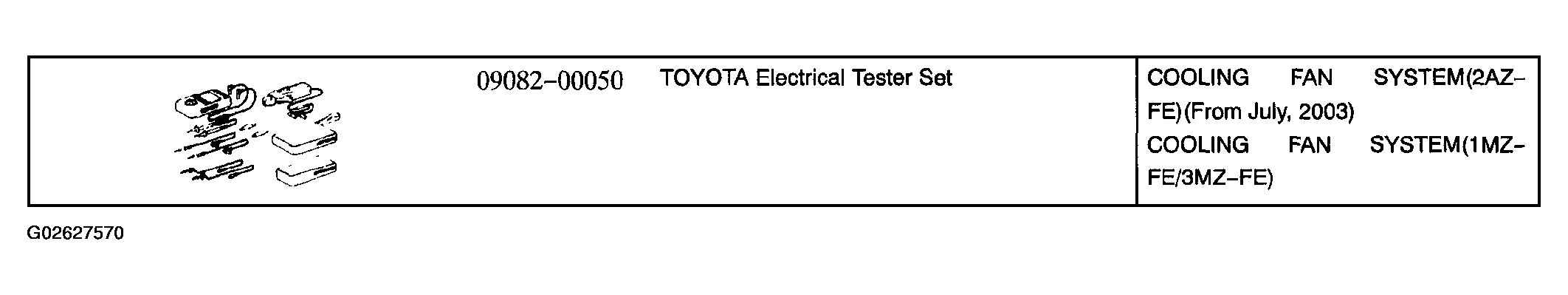

Fig 2: Cooling Recommended Tools Chart
G02627570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

COOLING EQUIPMENT DESCRIPTION

Heater
Radiator cap tester
Thermometer
Torque wrench
Vemler caliper

SSM

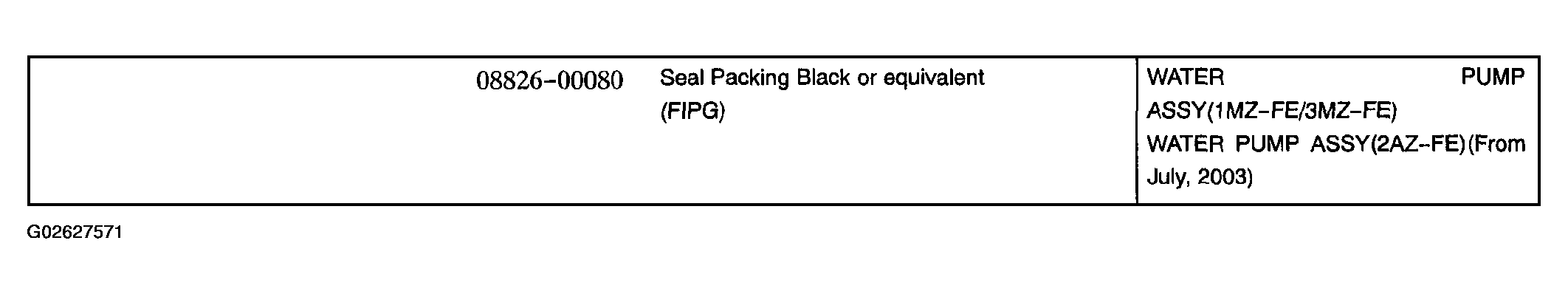

Fig 3: Cooling SSM Tool No Description
G02627571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Coolant

COOLANT SPECIFICATION

Item Capacity Classification
Engine coolant 2AZ-FE 1MZ-FE/3MZ-FE
  1. 6.2 liters (6.6 US qts, 5.4 lmp. qts)
  2. 9.2 liters (9.7 US qts, 8.1 lmp. qts)
"Toyota Super Long Life Coolant", "Toyota Long Life Coolant" or equivalent
