Home >> Toyota >> 2005 >> Celica GT, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> SFI System >> Engine Coolant Temperature (ECT) Sensor >> Components

Engine Coolant Temperature (ECT) Sensor: Components

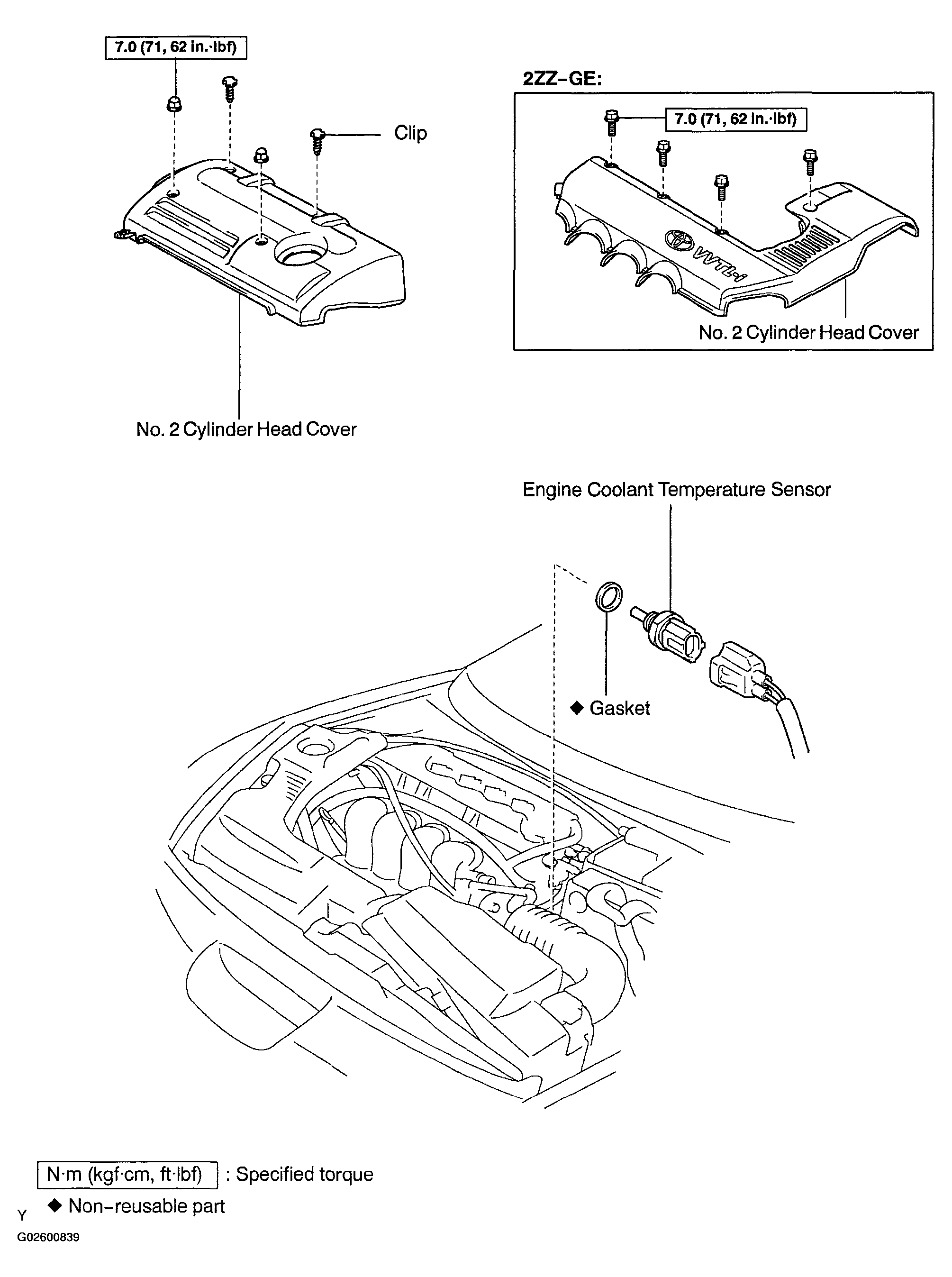

Fig 1: Identifying ECT Sensor Components
G02600839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
