Fuel Pump: Disassembly

1. Using a small screwdriver, remove the No. 2 fuel suction support.
2. Remove the rubber cushion.

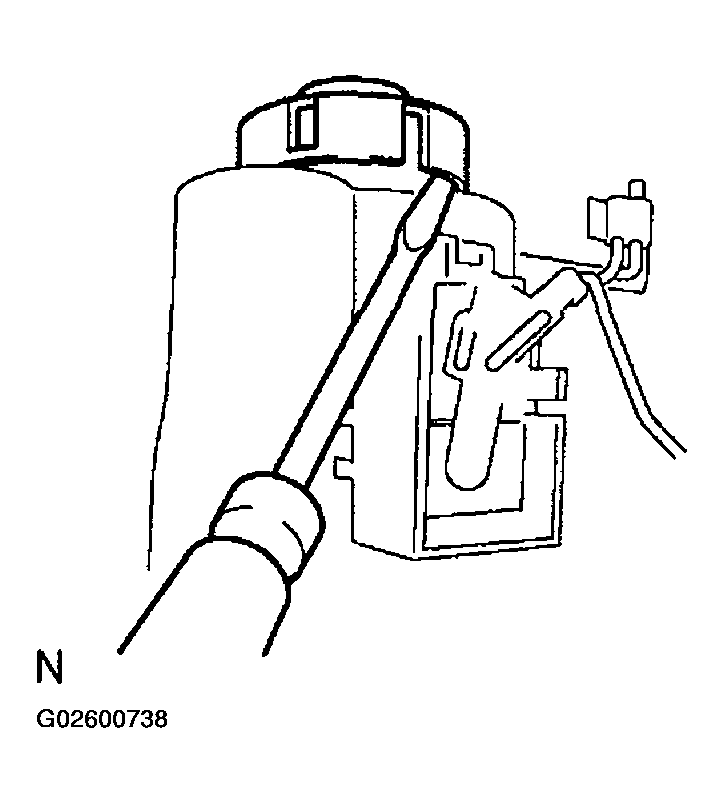

Fig 1: Removing No. 2 Fuel Suction Support

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the fuel sender gauge connector and earth plate.
2. While pressing the lock of the fuel pump filter, slide the fuel sender gauge and remove it.

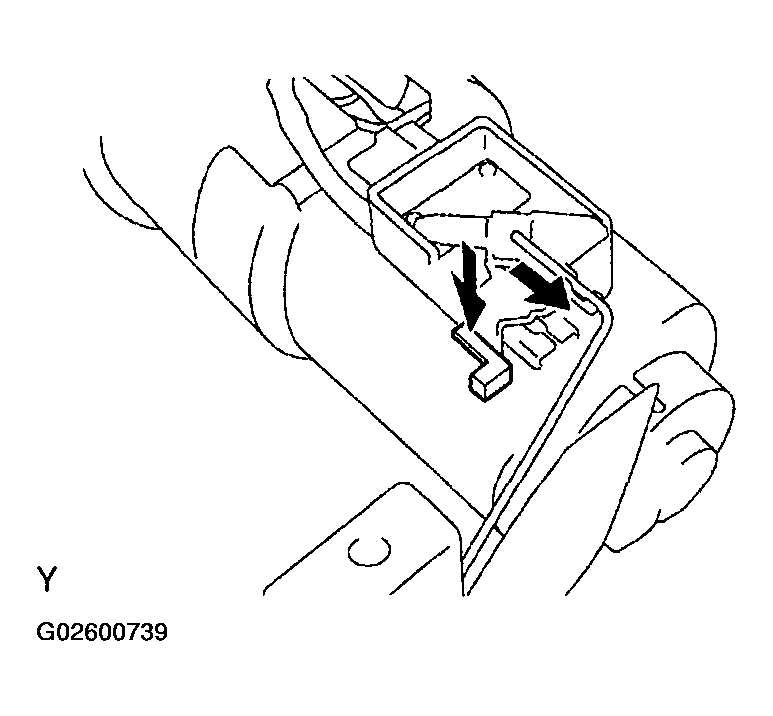

   Fig 2: Removing Fuel Sender Gauge

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a small screwdriver, remove the No. 1 fuel suction support.
   NOTE: Do not damage the fuel suction support and fuel suction plate.

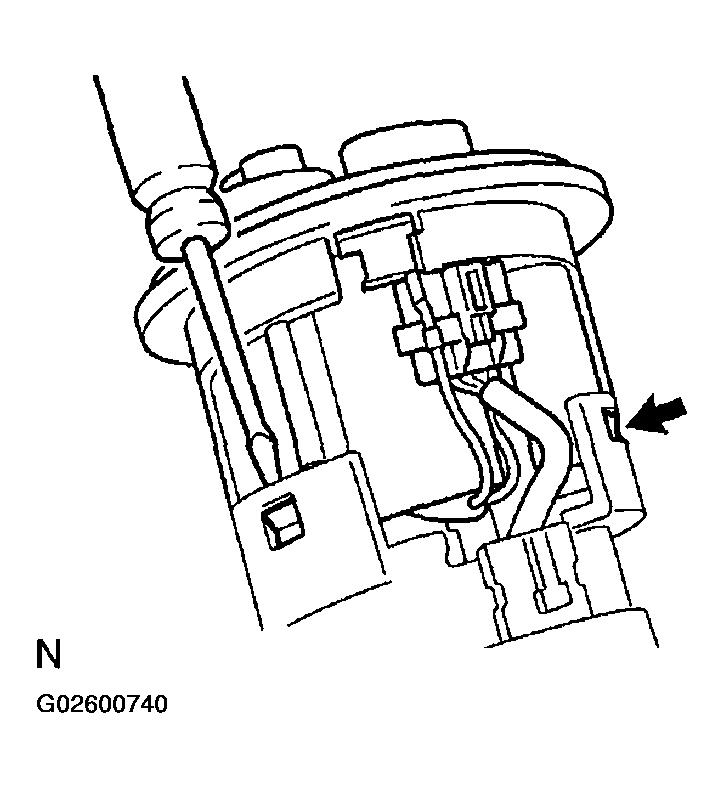

   Fig 3: Removing No. 1 Fuel Suction Support

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the fuel pump harness from the No. 1 fuel suction support and fuel pump.

Pull off the joint clip and remove the vapor pressure sensor from No. 1 fuel suction support.

Remove the pump from the fuel filter.

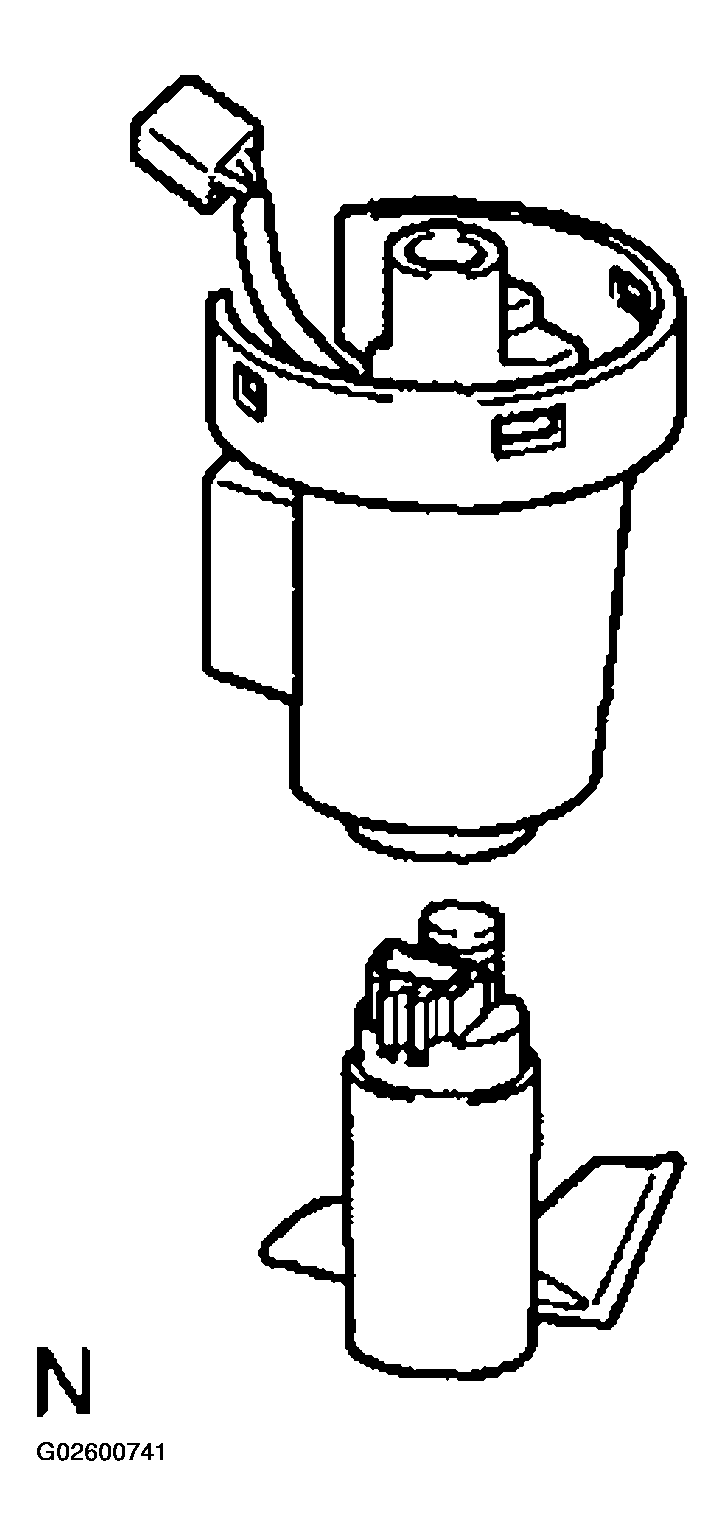

Fig 4: Removing Fuel Pump

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull out the fuel pressure regulator and O-ring from the fuel filter.

1. Using a small screwdriver, pry out the clip.
2. Pull out the suction filter.

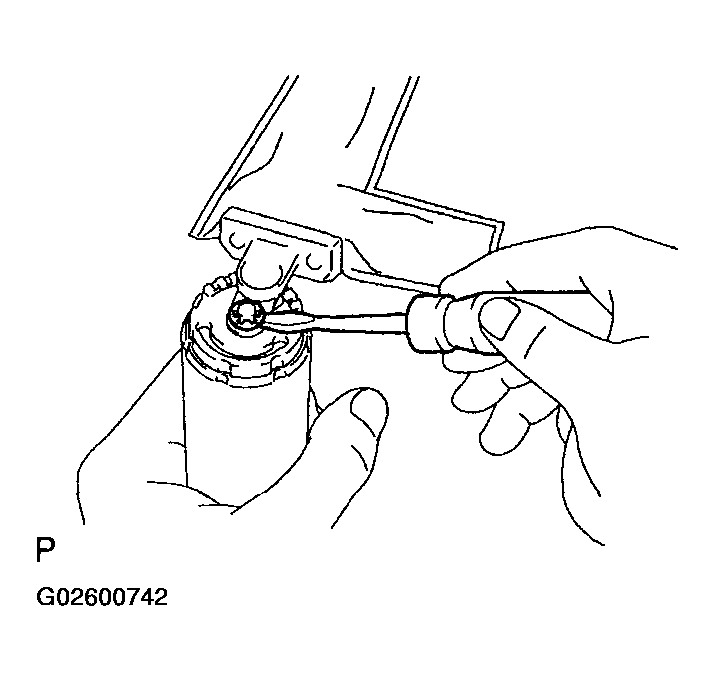

Fig 5: Removing Fuel Suction Filter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
