Fuel Pump: Installation

1. Install the new gasket to the fuel pump assembly.
2. Install the fuel pump assembly to the fuel tank.
   NOTE:

   • Do not damage the fuel pump filter.
   • Be careful that the arm of the sender gauge should not bent.
3. Install the 8 bolts and fuel tank vent tube set plate from the fuel tank.

   Torque: 4.0 N.m (40 kgf.cm, 35 in..lbf)

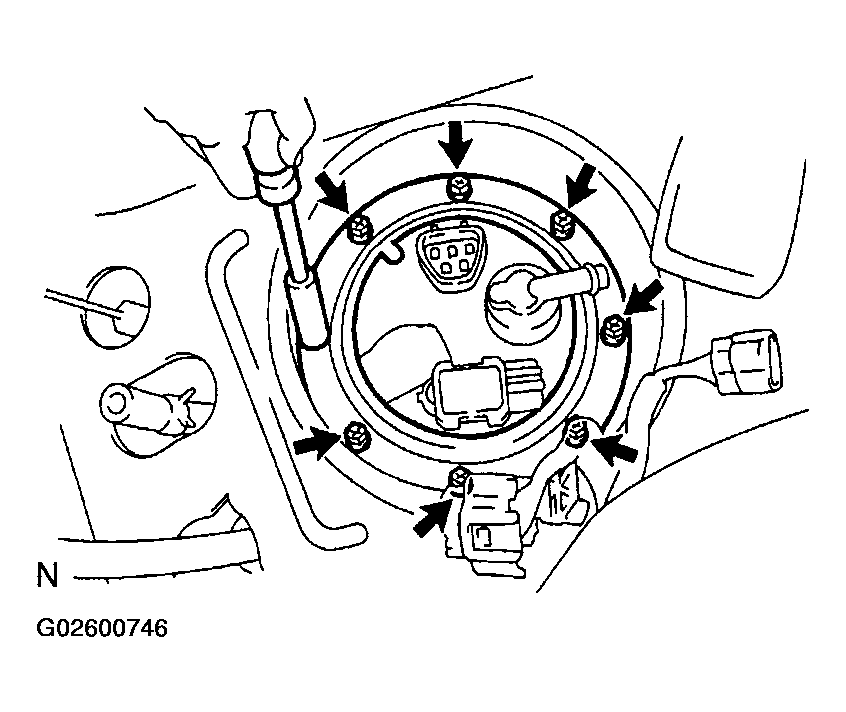

Fig 1: Installing Fuel Pump Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Clean up around the fuel tube.
2. Connect the fuel tube and emission tube to the fuel pump assembly.
3. Connect the tube joint clip to the fuel suction plate.

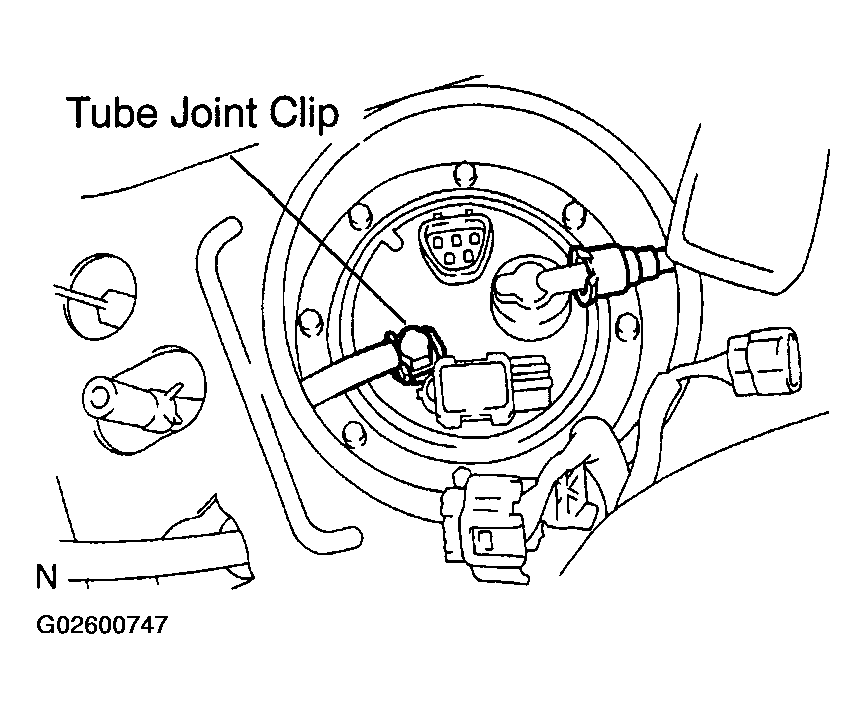

Fig 2: Connecting Fuel Tube

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Start the engine, check for fuel leakage.

1. Install the service hole cover.
2. Install the floor carpet.
