Fuel Pump: Reassembly

Install the suction filter with a new clip.

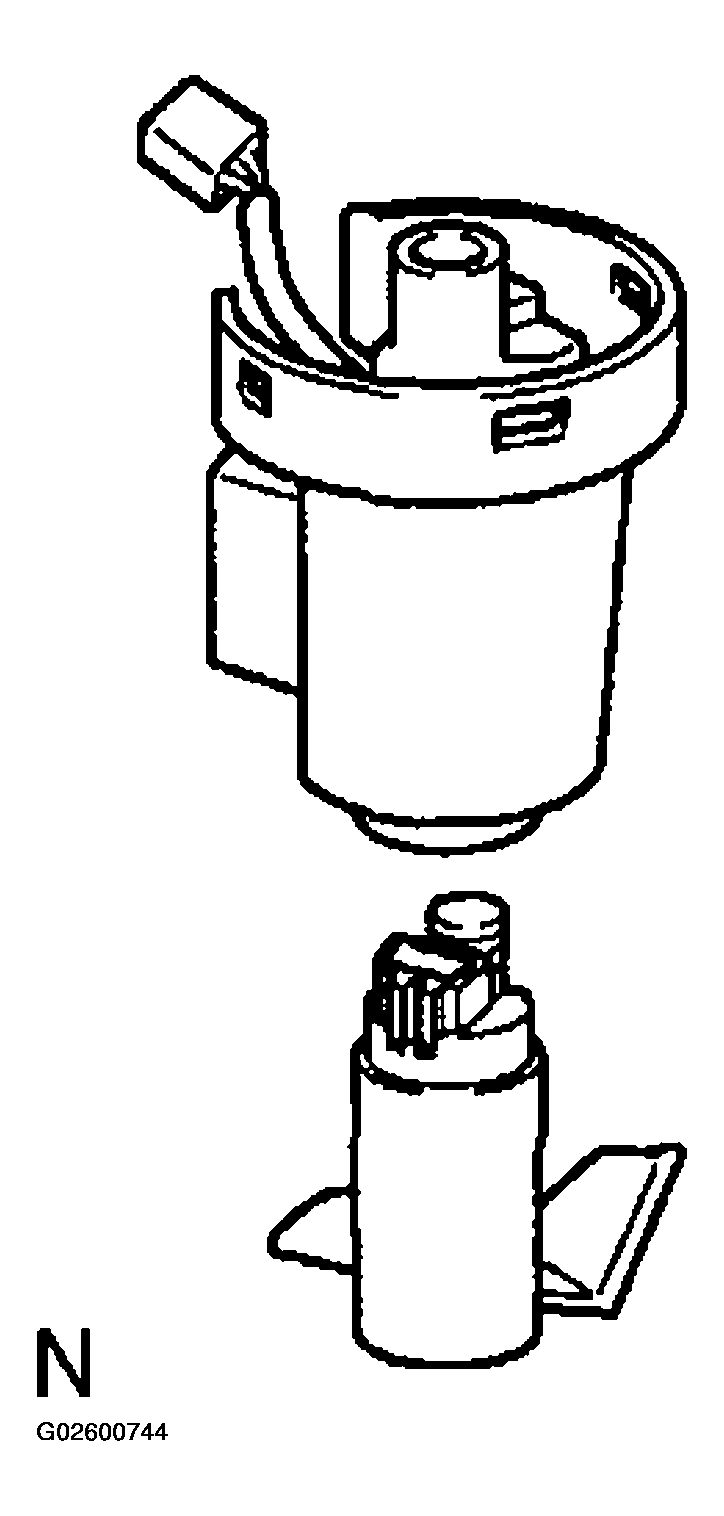

Fig 1: Installing Fuel Suction Filter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the fuel pump to the fuel filter.

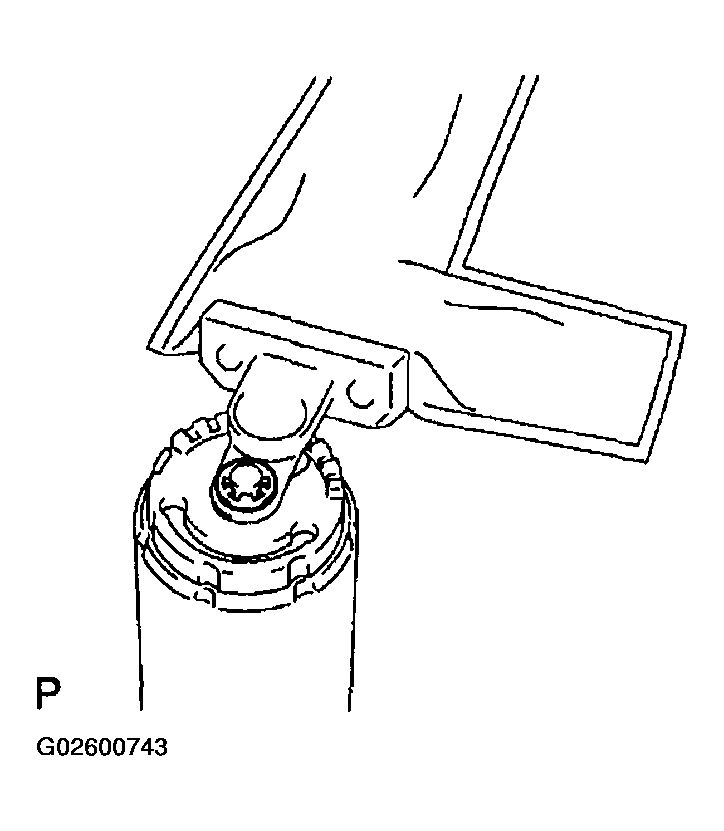

Fig 2: Installing Fuel Pump

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the O-ring to the pressure regulator.

   HINT:

   Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.

2. Connect the pressure regulator to the fuel filter.

1. Connect the fuel pump harness to the No. 1 fuel suction support and fuel pump.
2. Install the No. 1 fuel suction support to the fuel filter.
3. Install the fuel sender gauge to the fuel pump filter so that the distance between the No. 1 fuel suction support and the float fulcrum of the fuel sender gauge is 150 mm (5.91 in.).

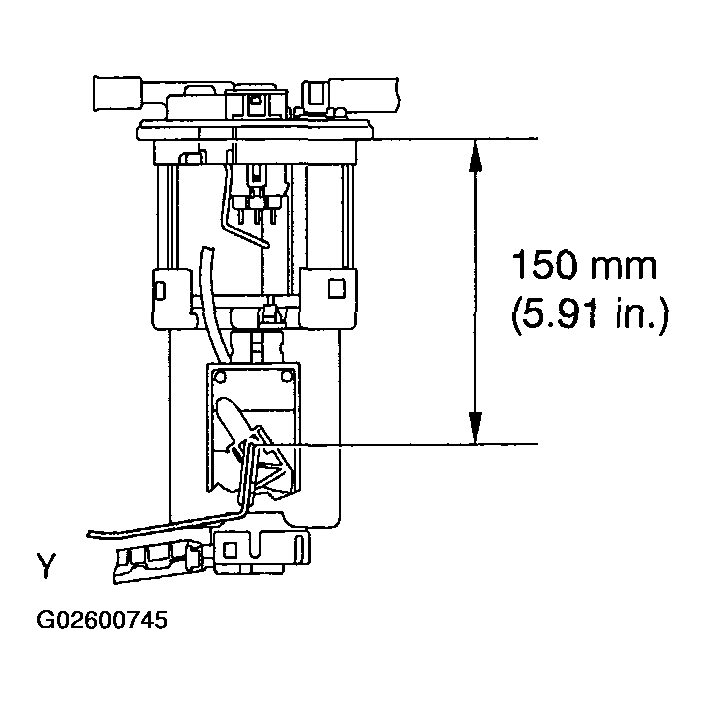

   Fig 3: Installing Fuel Sender Gauge To Fuel Pump Filter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the fuel sender gauge connector and earth plate.

1. Install the rubber cushion.
2. Install the No. 2 fuel suction support to the No. 1 fuel suction support.

Install the vapor pressure sensor and connect the joint clip to the No. 1 fuel suction support.
