Crankshaft Position Sensor: Inspection
NOTE:
"Cold" and "Hot" in these sentences express the temperature of the sensor itself. "Cold" is from -10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
INSPECT CRANKSHAFT POSITION SENSOR RESISTANCE

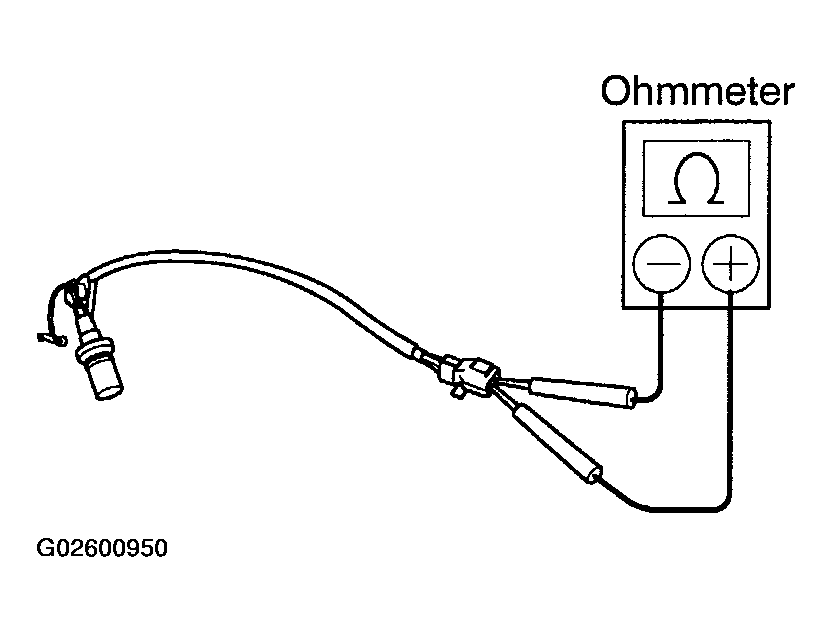

Using an ohmmeter, measure the resistance between terminals.
- Resistance: Cold: 1,630- 2,740 Ω
- Hot: 2,065 - 3,225 Ω
If the resistance is not as specified, replace the crankshaft position sensor.
