Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

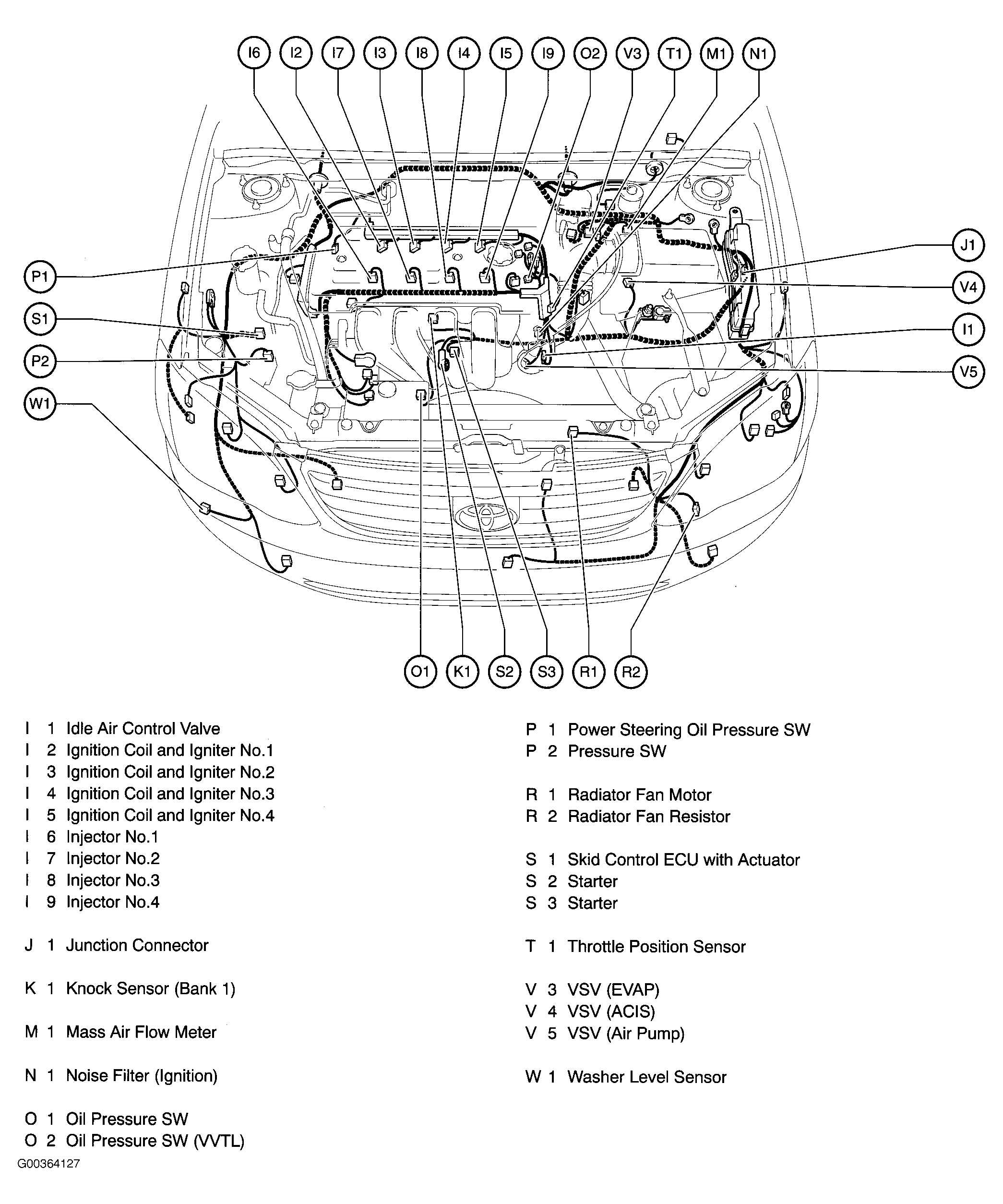

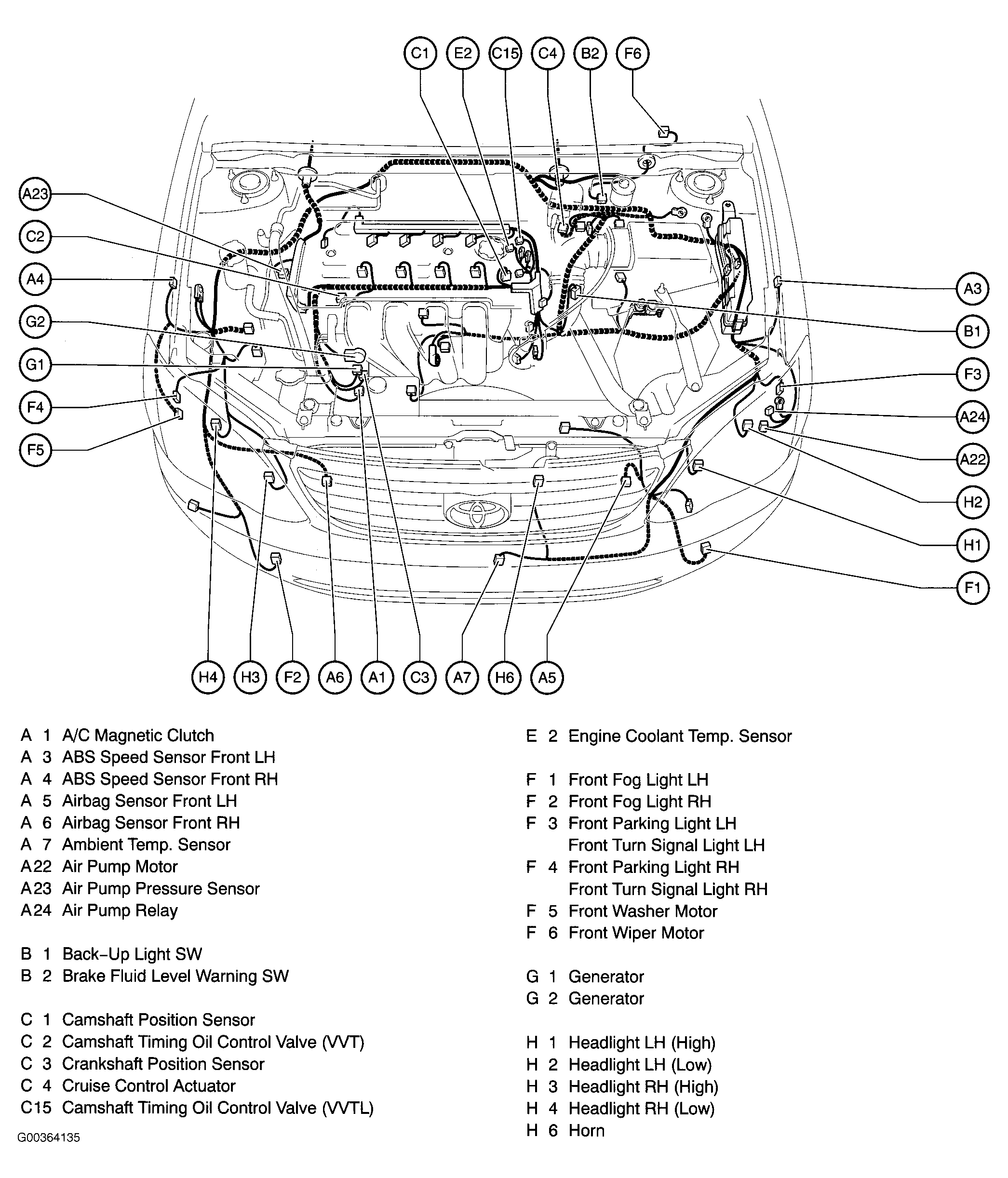

Fig 1: Engine Compartment (XRS)

G00364135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Compartment (XRS)

G00364127

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

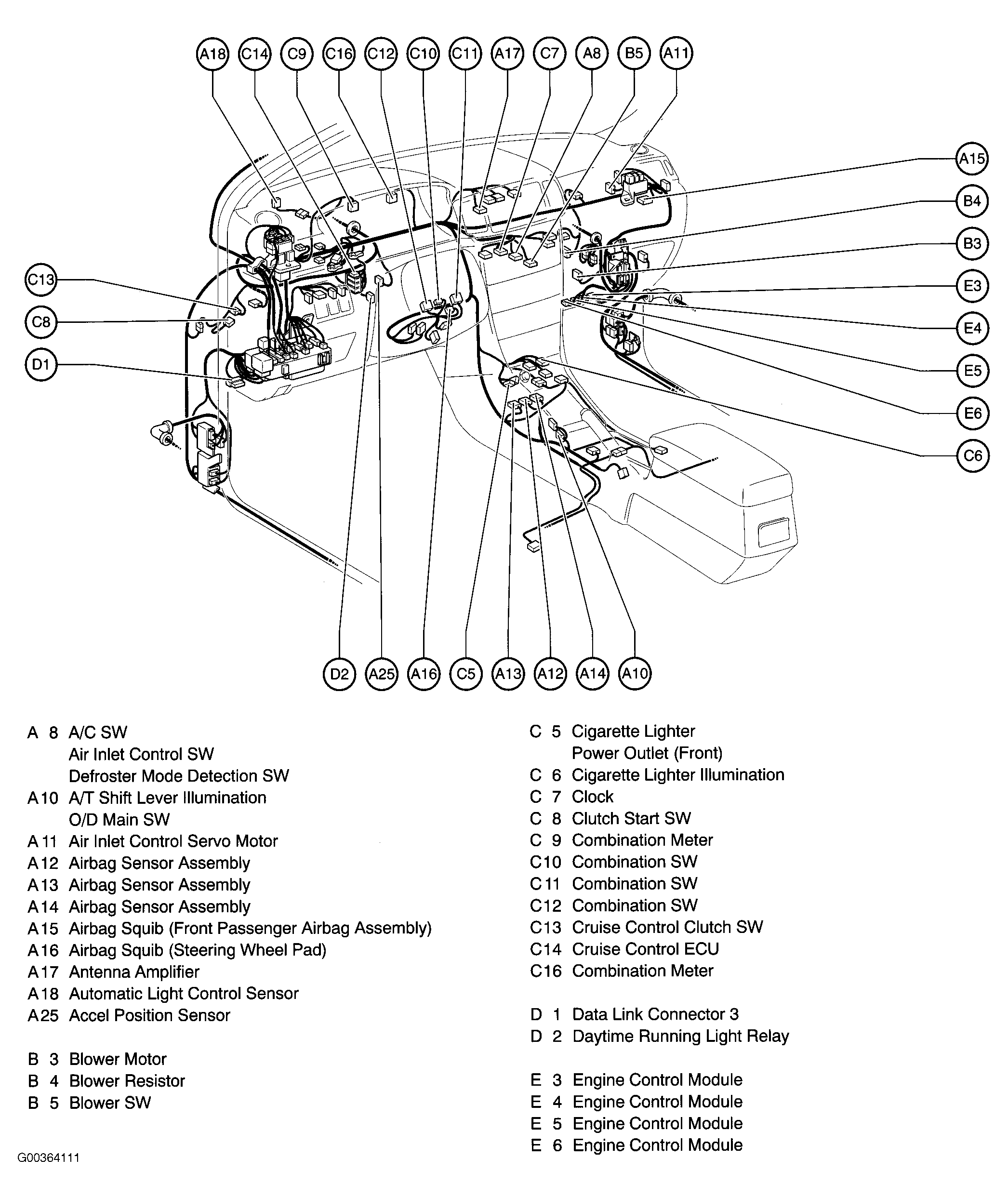

Fig 3: Dash & Center Console

G00364111

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash & Center Console

G00364115

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

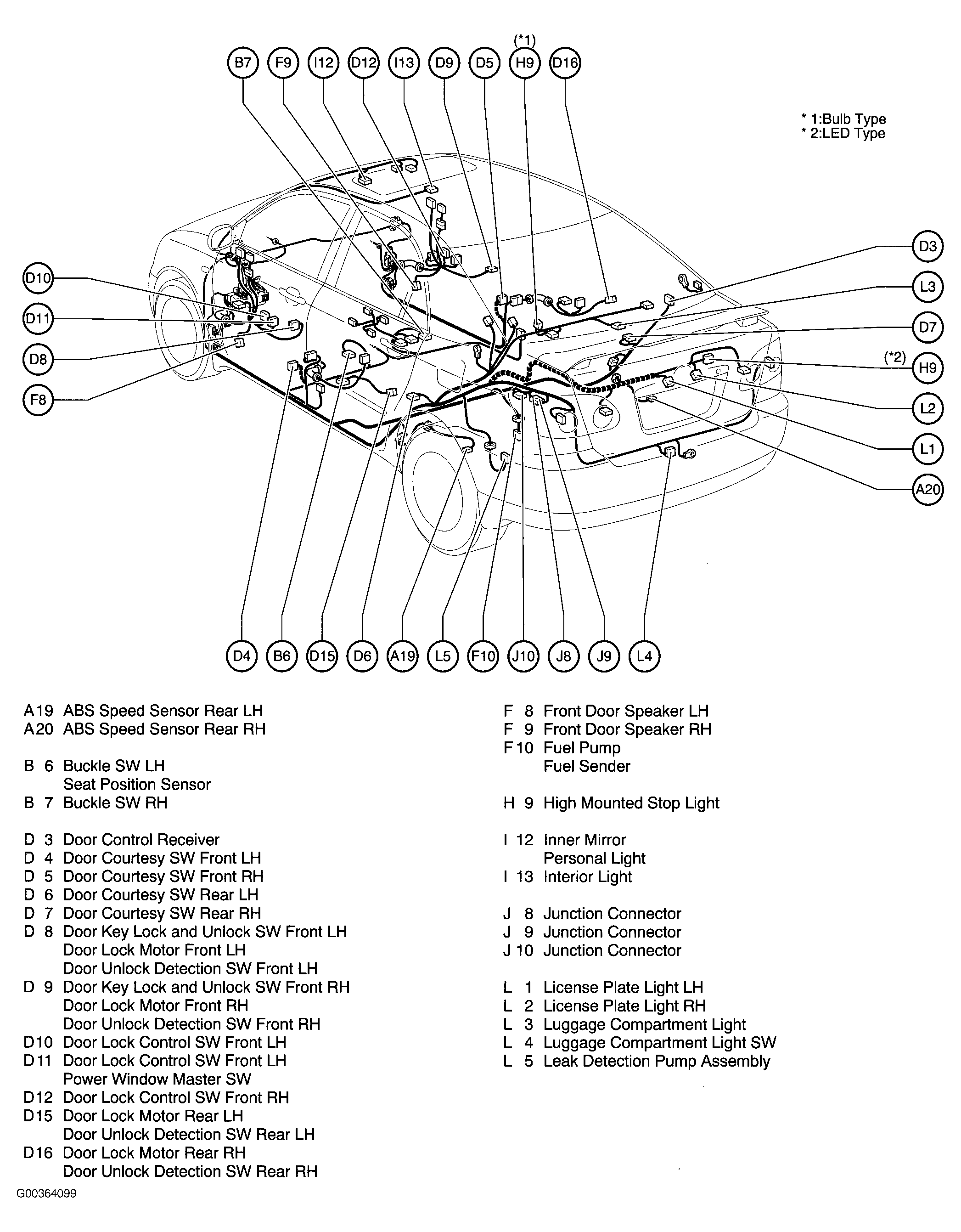

Fig 5: Vehicle Overview (W/O Side Airbag And/Or Stereo Amplifier)

G00364099

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Vehicle Overview (W/O Side Airbag And/Or Stereo Amplifier)

G00364107

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

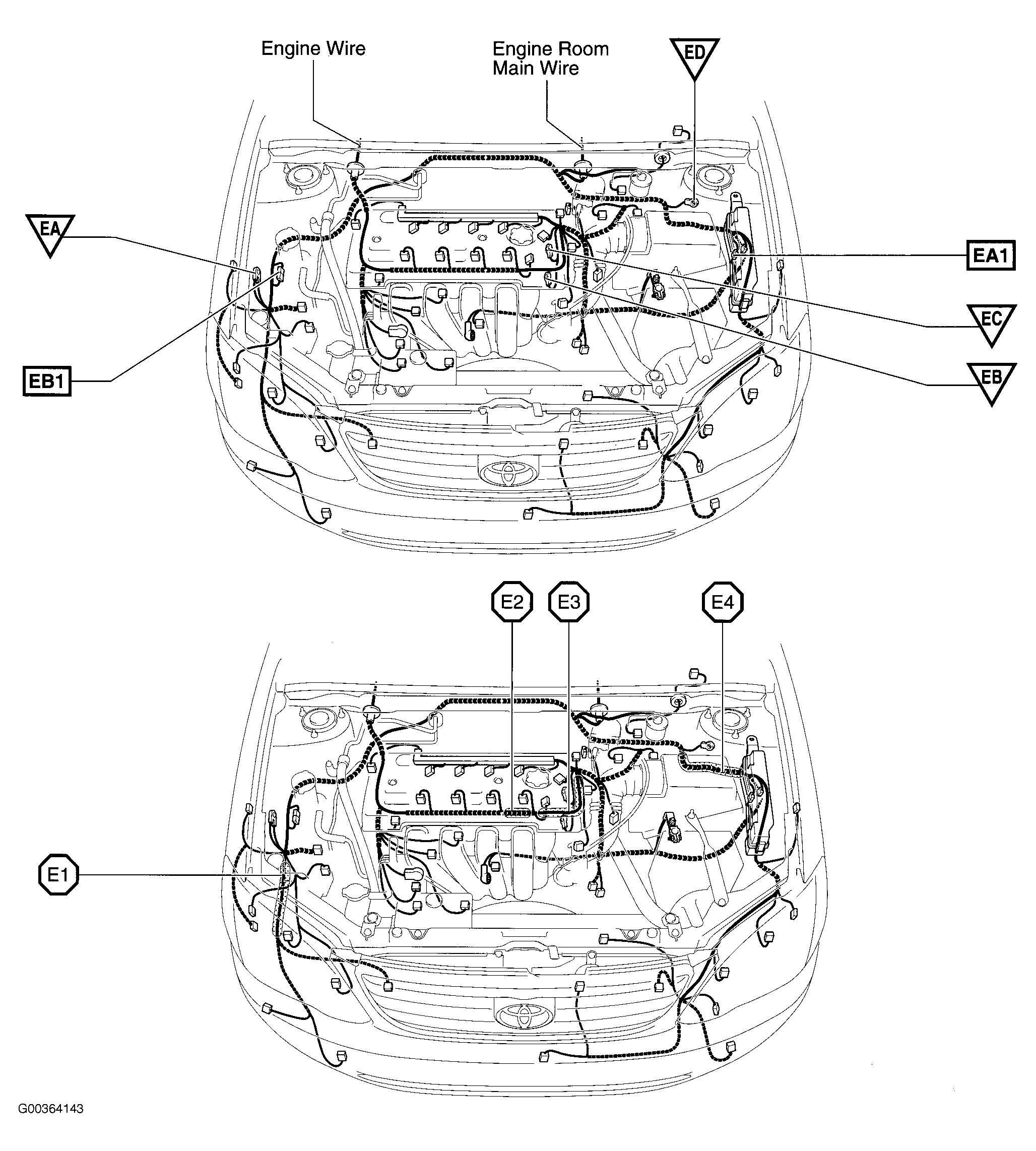

Fig 7: Engine Compartment (Except XRS)

G00364143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Compartment (Except XRS)

G00262709

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dash & Center Console

G00364167

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

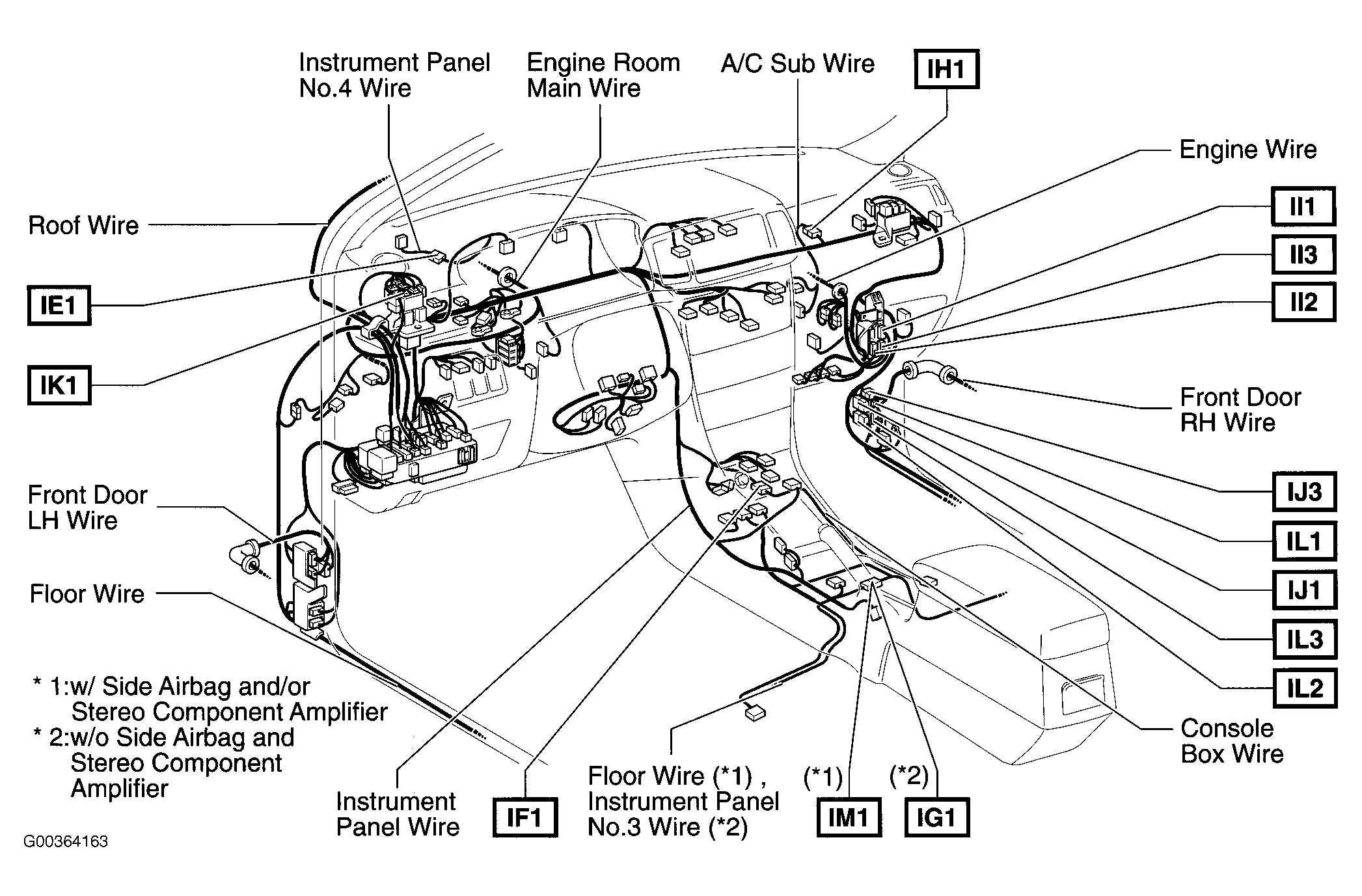

Fig 10: Dash & Center Console

G00364163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

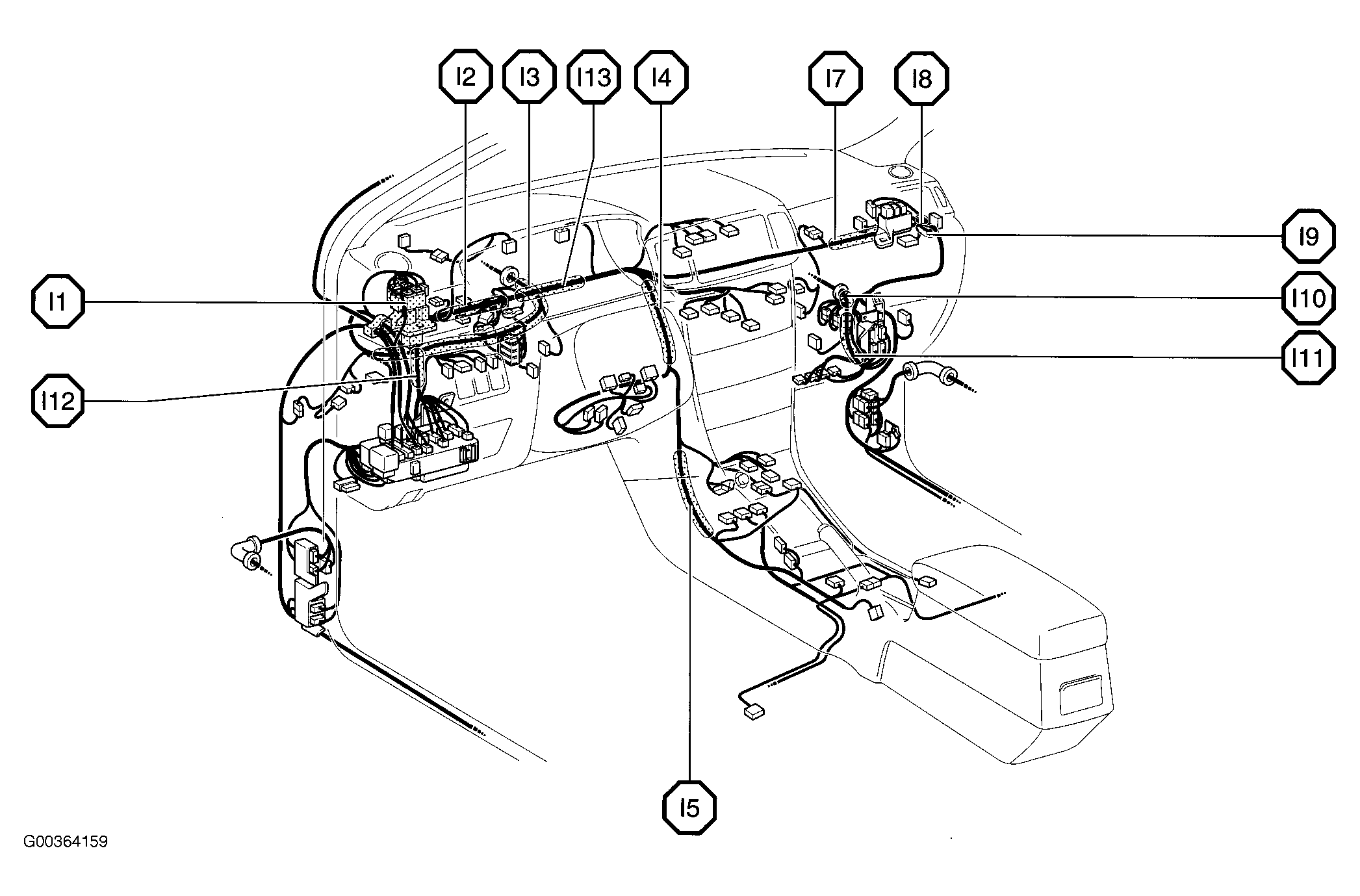

Fig 11: Dash & Center Console

G00364159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Vehicle Overview (W/Side Airbag And/Or Stereo Component Amplifier)

G00364155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

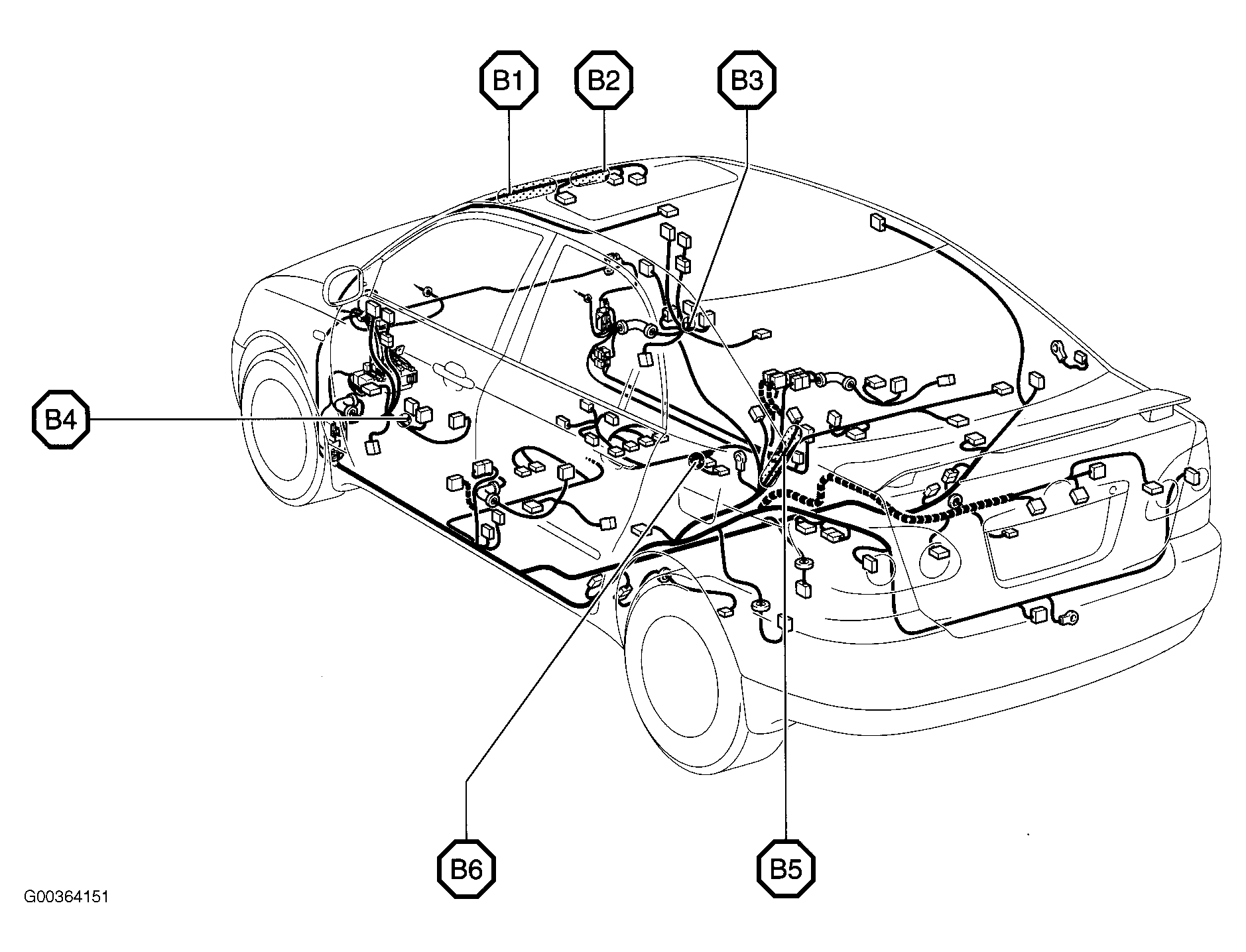

Fig 13: Vehicle Overview

G00364151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Compartment

G00364121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Vehicle Overview

G00364122

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash & Center Console

G00262718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Engine Room R/B

G00262719

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Instrument Panel J/B

G00262720

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Instrument Panel J/B

G00262721

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Right Hand R/B

G00262722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

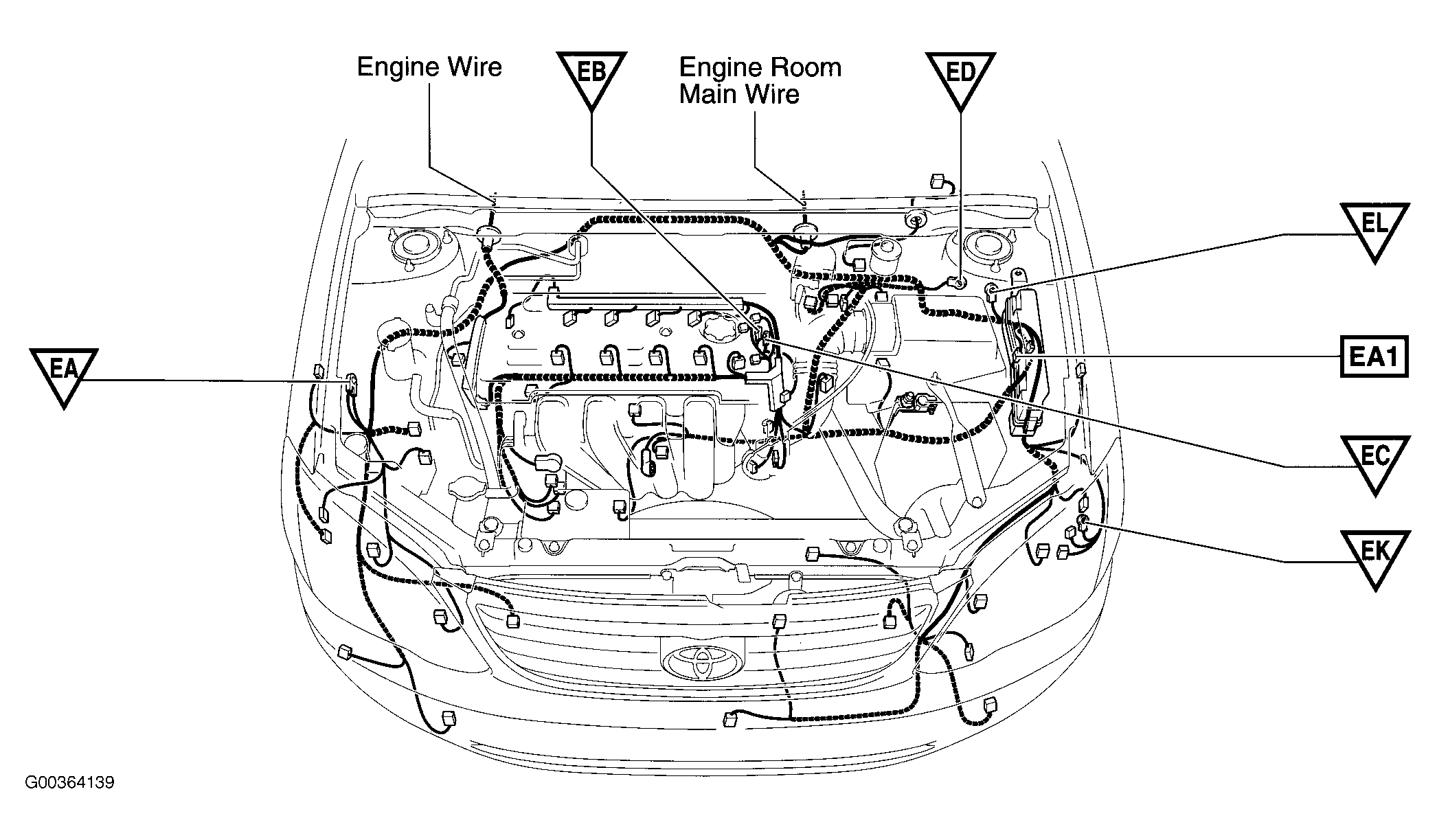

Fig 21: Engine Compartment (XRS)

G00364139

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

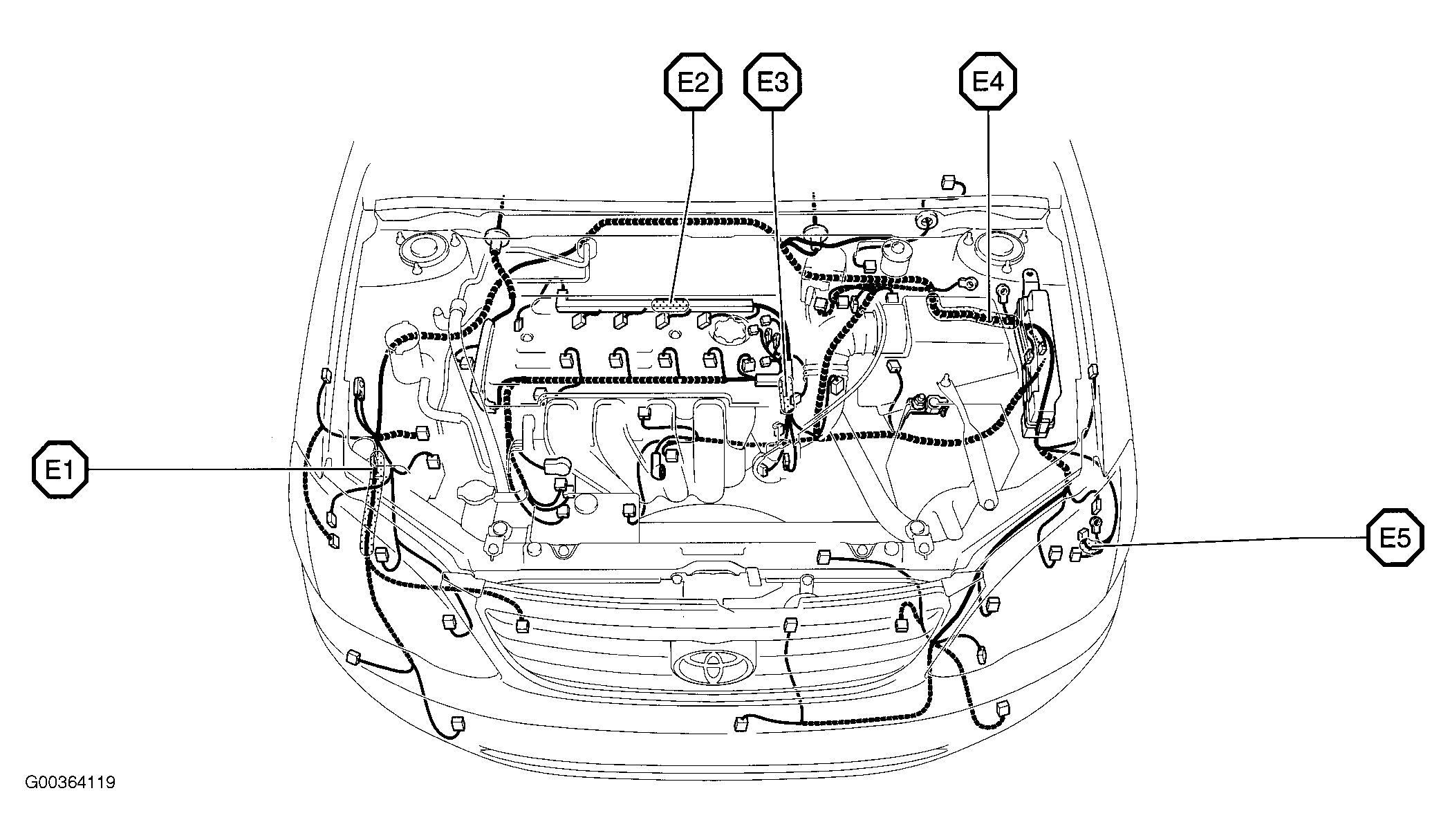

Fig 22: Engine Compartment (XRS)

G00364119

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Dash & Center Console

G00364171

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

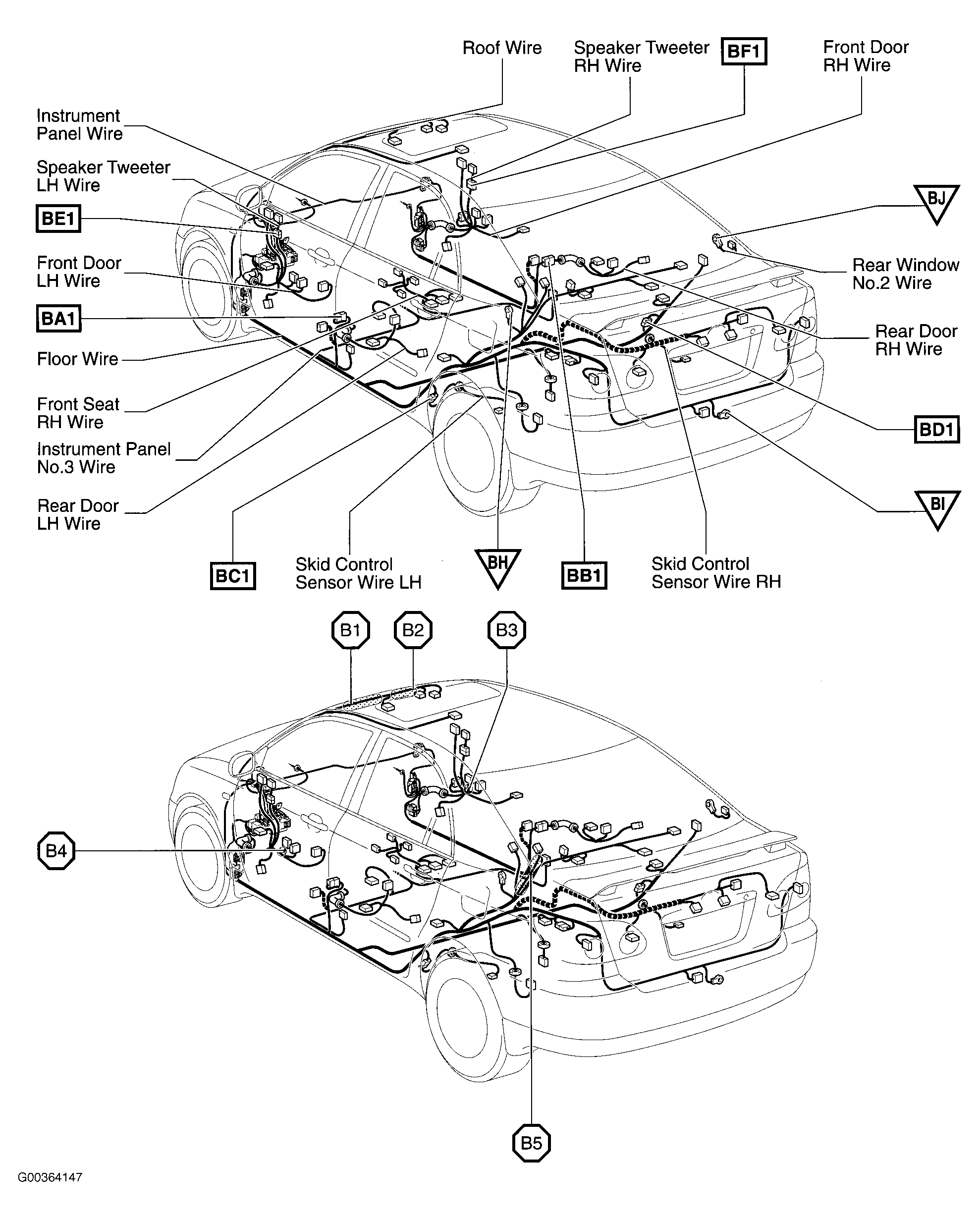

Fig 24: Vehicle Overview (W/O Side Airbag And/Or Stereo Amplifier)

G00262715

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Vehicle Overview (W/O Side Airbag And/Or Stereo Amplifier)

G00364147

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Engine Compartment (Except XRS)

G00364131

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Engine Compartment (Except XRS)

G00364123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

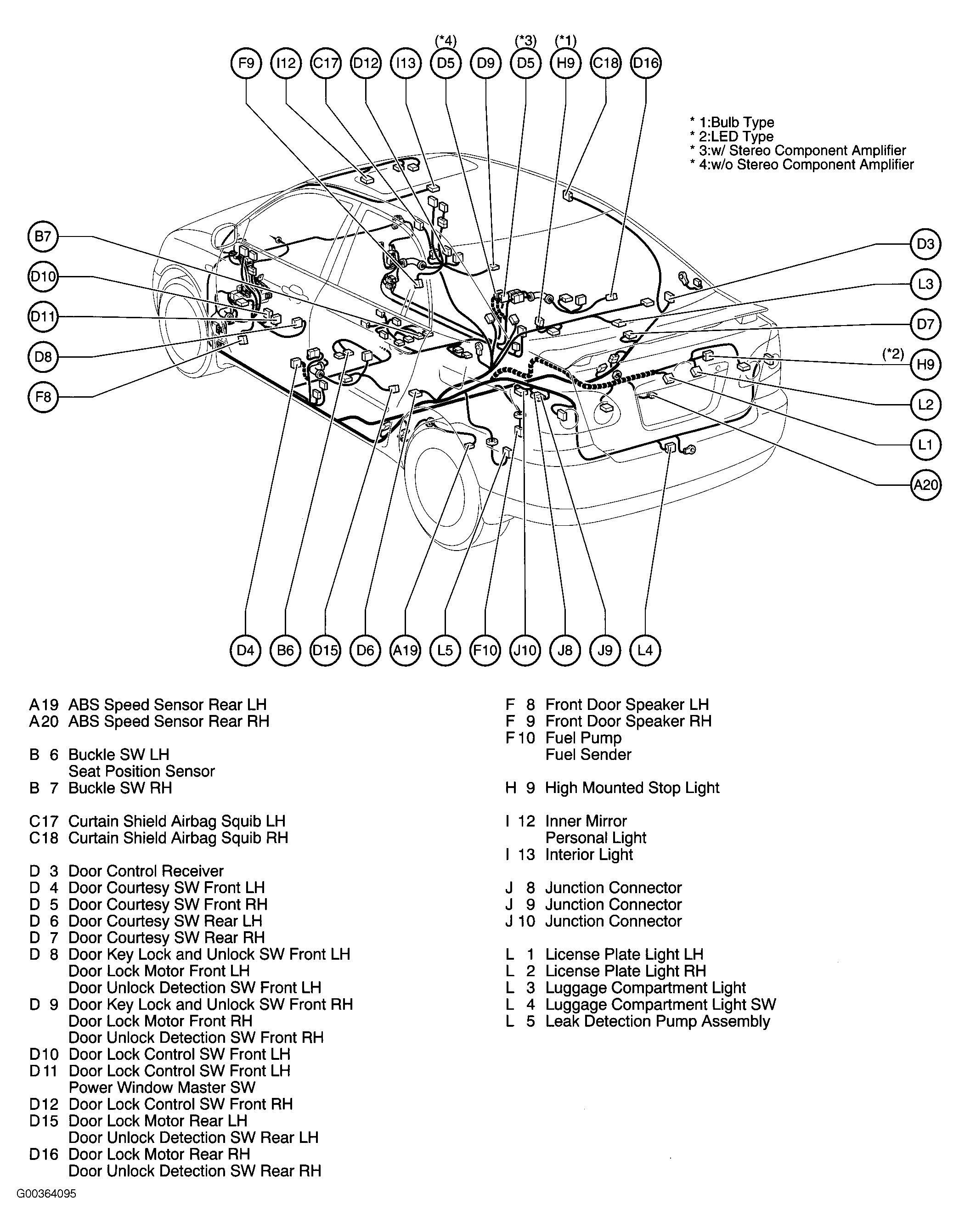

Fig 28: Vehicle Overview (W/Side Airbag And/Or Stereo Amplifier)

G00364095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Vehicle Overview (W/Side Airbag And/Or Stereo Amplifier)

G00364103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: ABS R/B

G00364096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
