Power Window Control System: Location

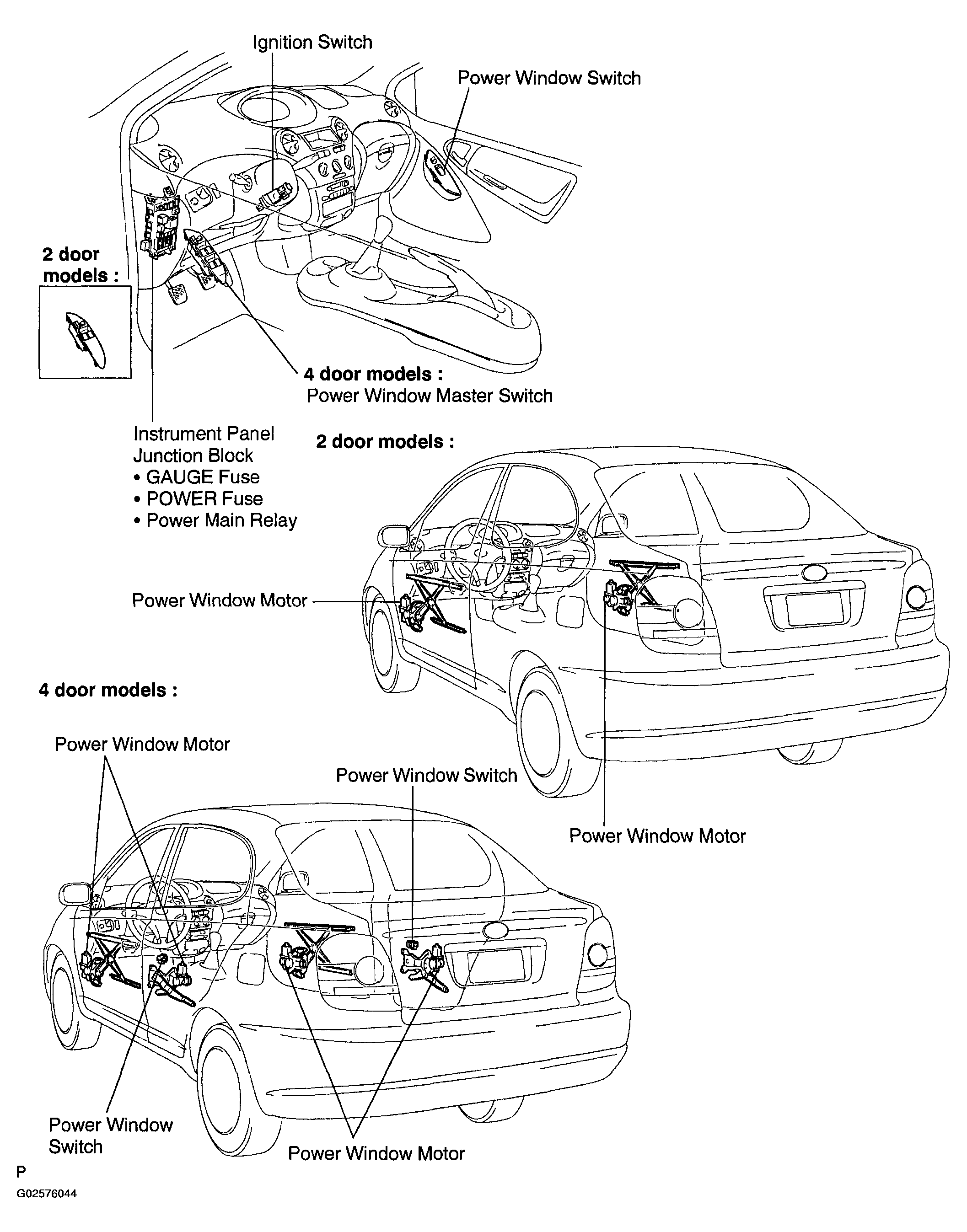

Fig 1: Identifying Components Of Power Window Control System

G02576044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
