Crankshaft Position Sensor: Removal

  1. REMOVE ENGINE UNDER COVER RH
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. While sliding the connector lock, remove the connector.
    2. Remove the bolt and crankshaft position sensor.

      Torque: 7.5 N.m (76 kgf.cm, 66 in..lbf)

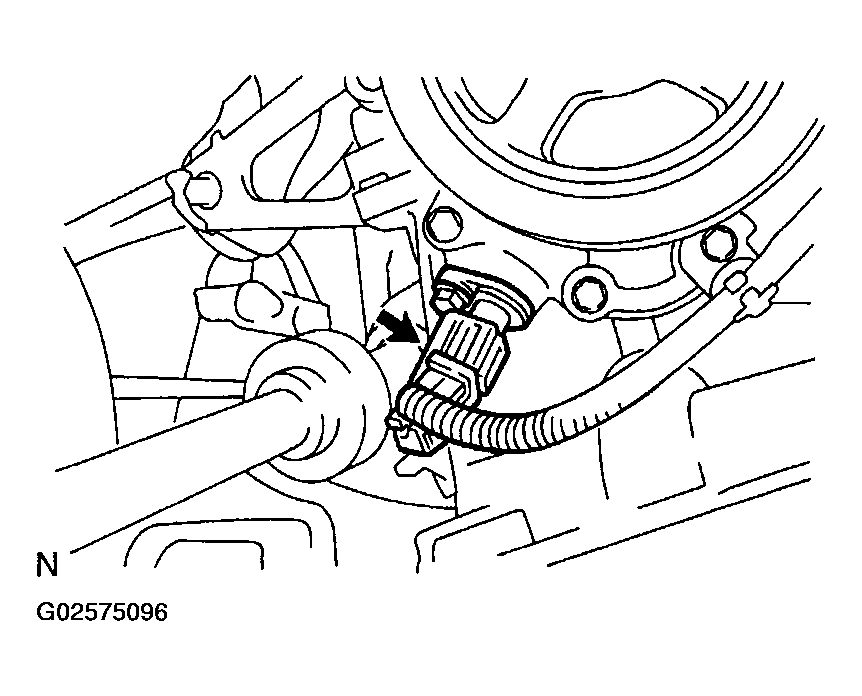

    Fig 1: Removing Connector
    G02575096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
