Ignition Coil: Removal

  1. REMOVE NO.2 CYLINDER HEAD COVER
  2. DISCONNECT 4 IGNITION COIL CONNECTORS
  3. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS

    Remove the 4 bolts and pull out the 4 ignition coils (with igniter).

    Torque: 9.0 N.m (92 kgf.cm, 80 In..lbf)

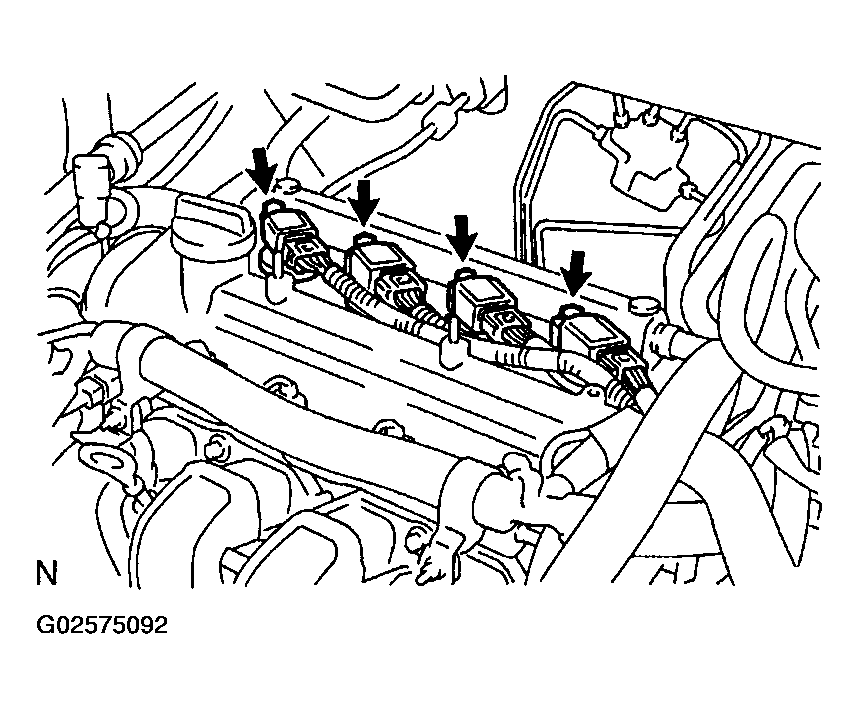

    Fig 1: Pulling Out Ignition Coils
    G02575092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
