How To Preceded With Troubleshooting

Troubleshoot in accordance with the procedure on this page.

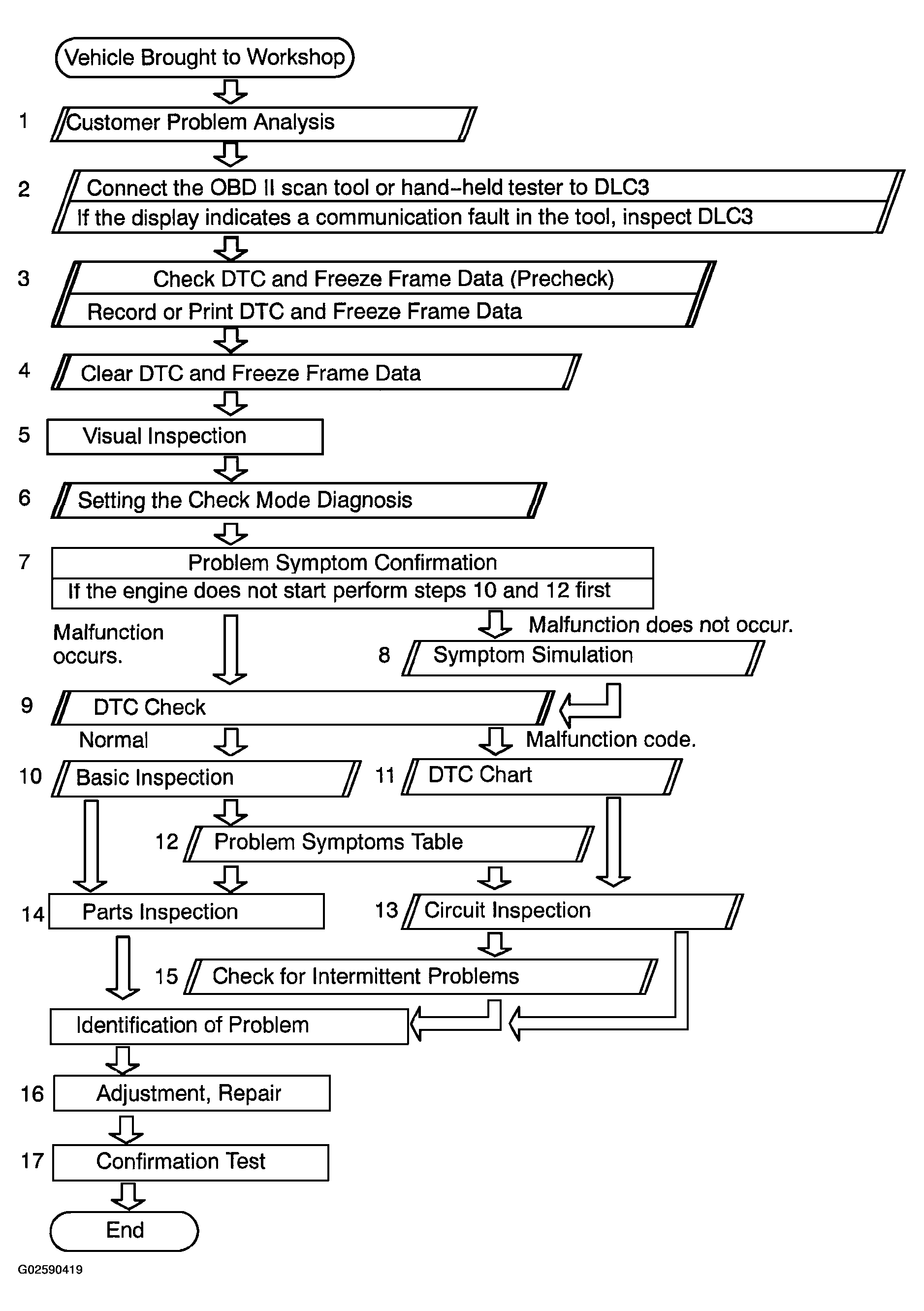

Fig 1: Engine Troubleshooting Flow Chart

G02590419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
