Terminals Of ECM

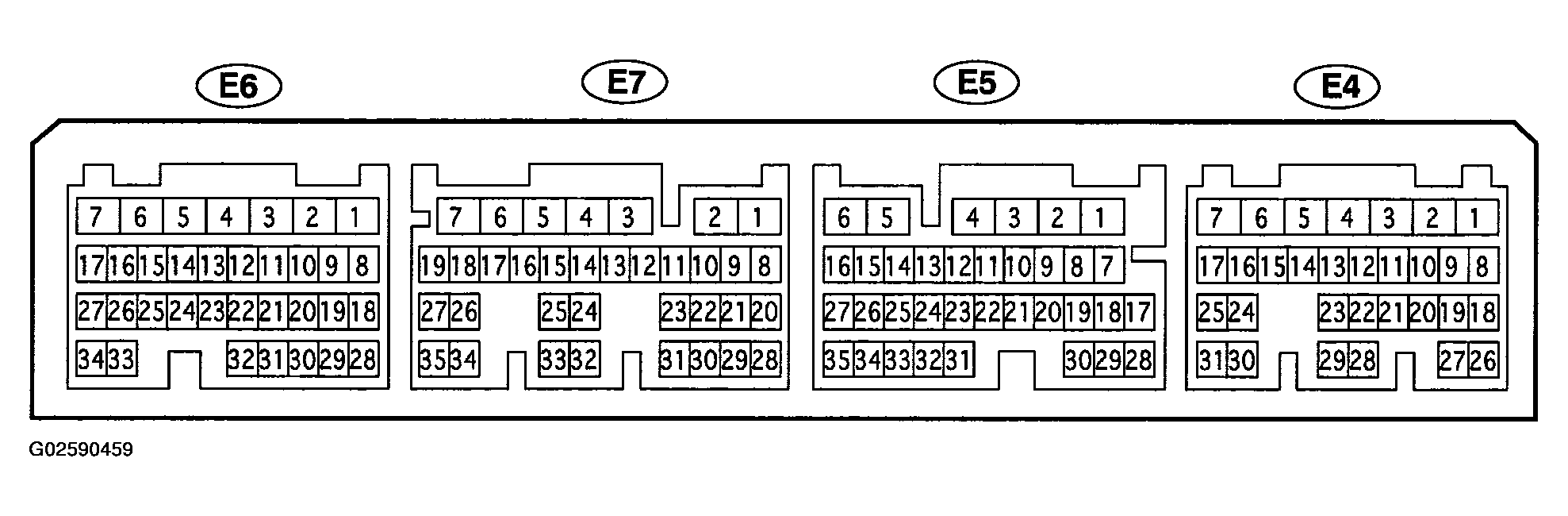

Fig 1: Identifying Terminals Of ECM
G02590459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

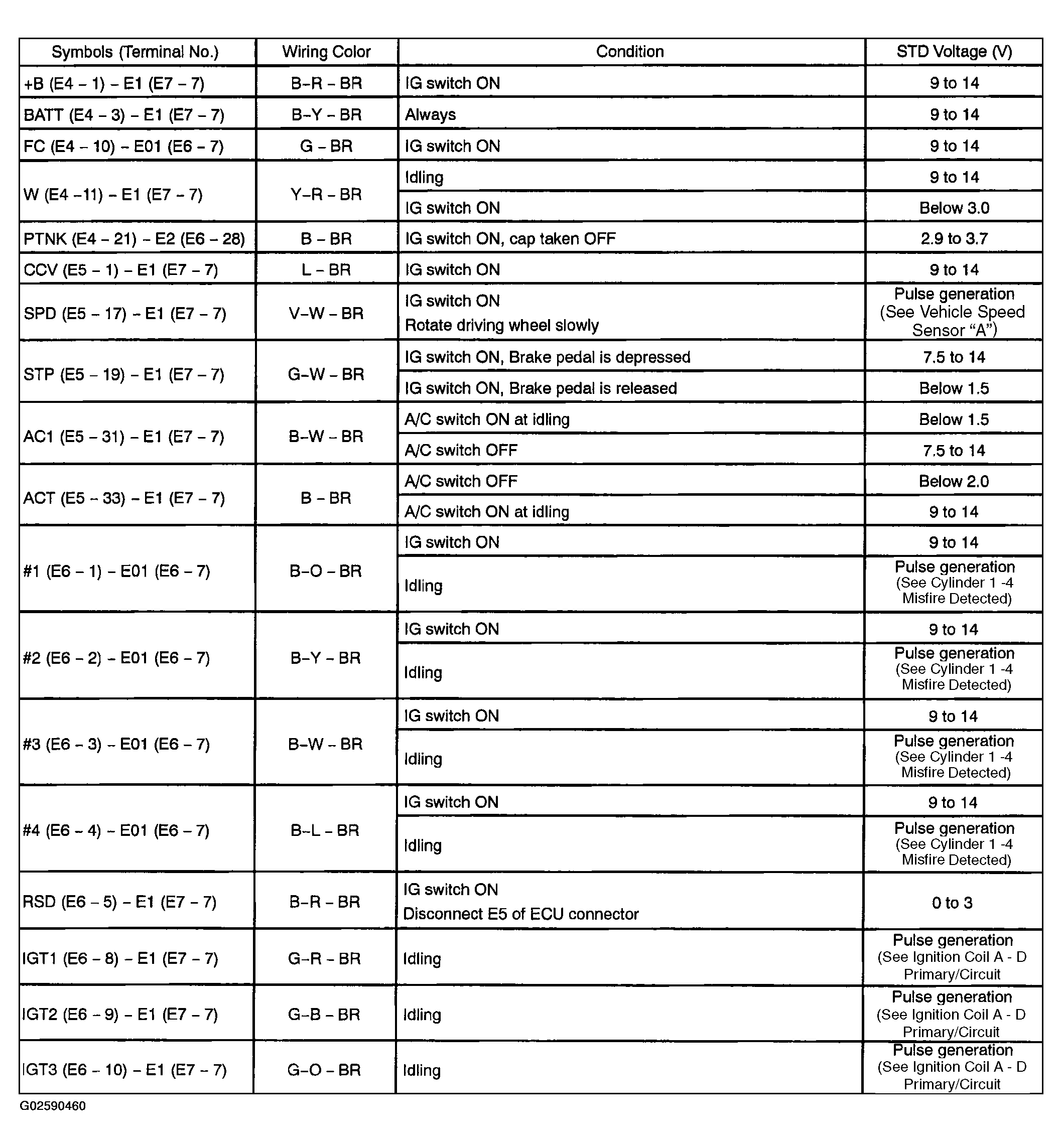

Fig 2: ECM Terminals Reference Chart (1 Of 2)
G02590460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

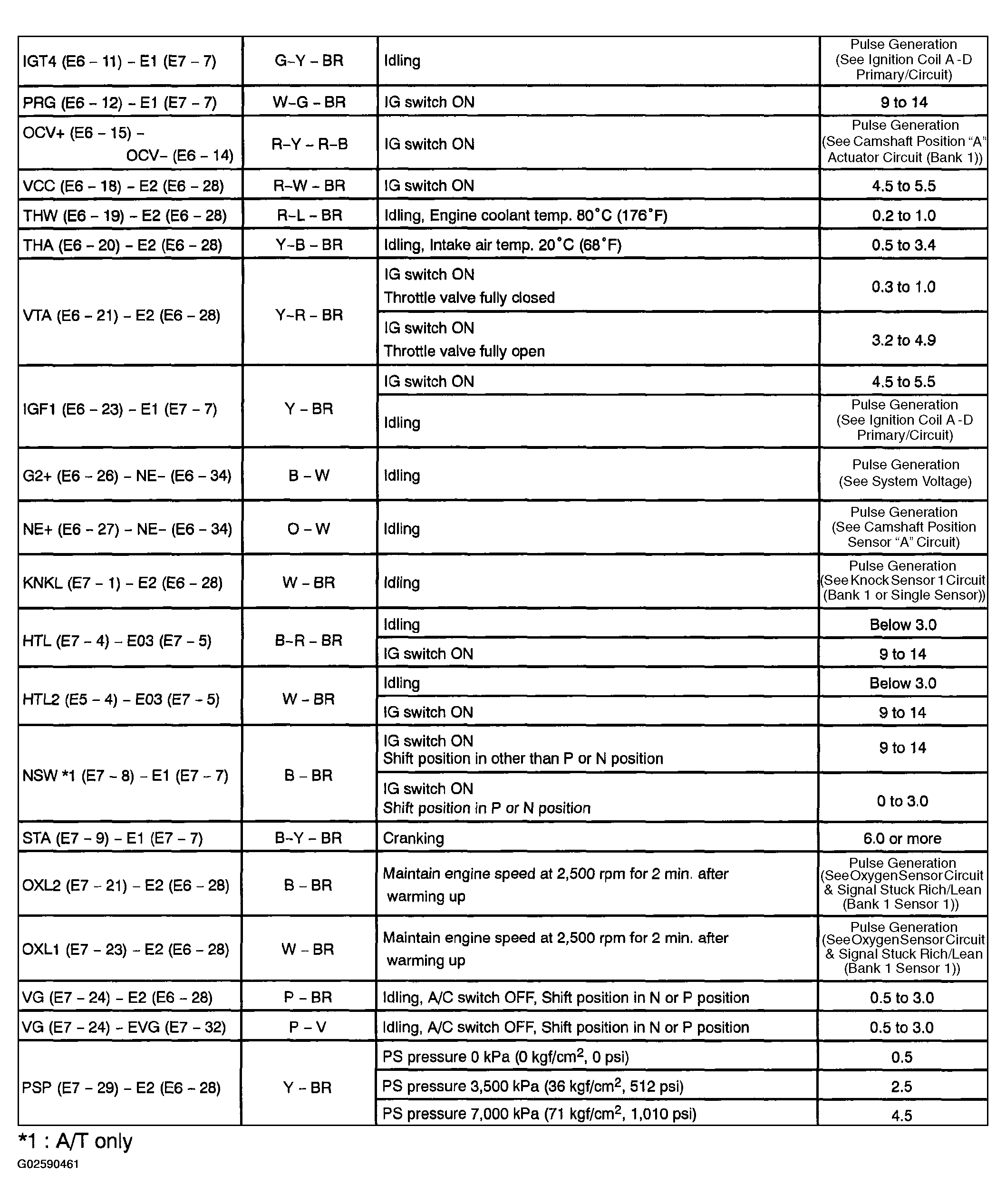

Fig 3: ECM Terminals Reference Chart (2 Of 2)
G02590461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
